Swap

CEILING RECESSED

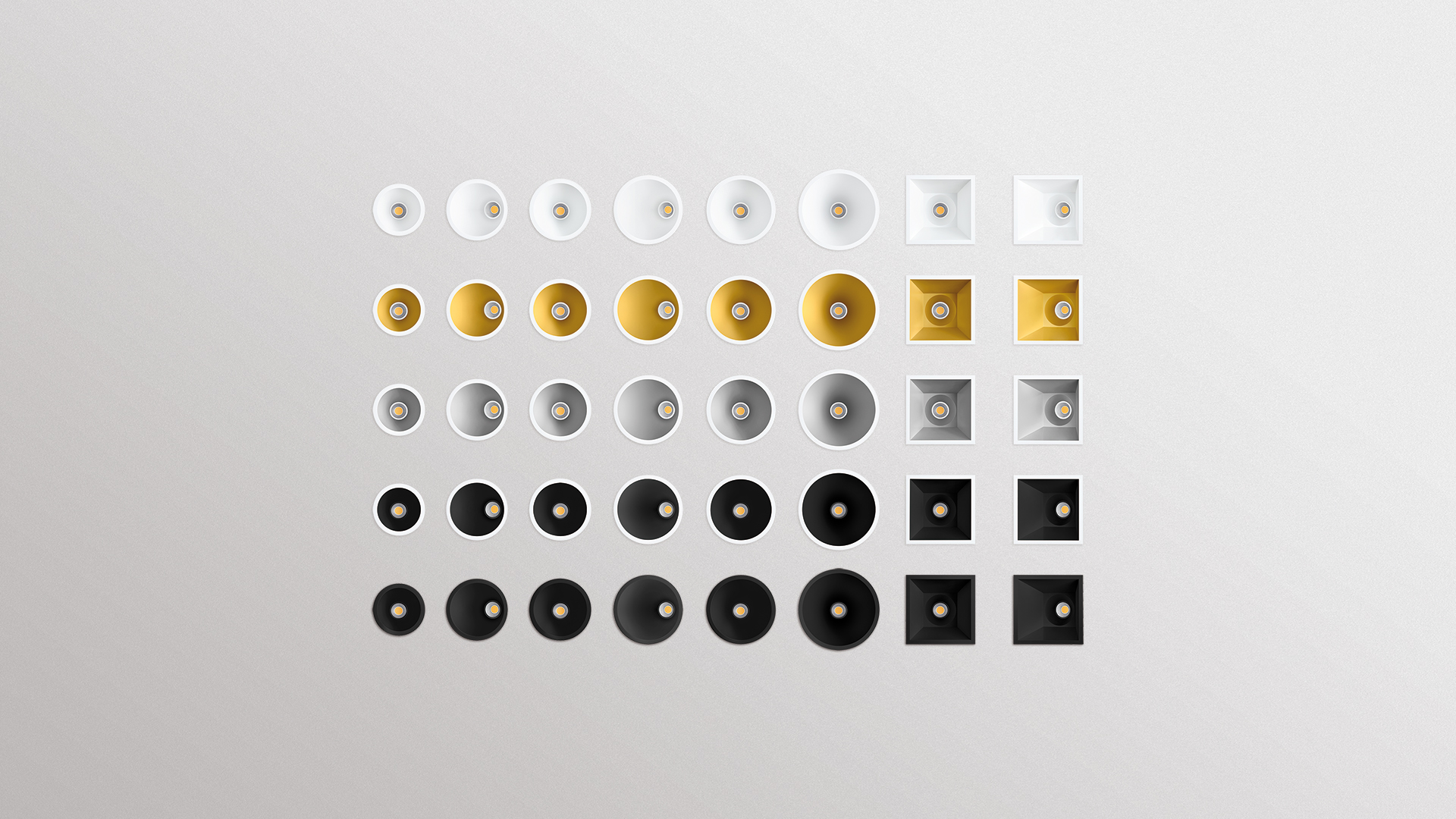

Swap is a family of recessed LED spots that comes in 4 sizes (S, M, L, XL), two formats (round and square) and two light beam directions (symmetrical or asymmetrical). These features are embodied in 8 models and, through them, the Swap range offers a very extensive variety of colour options, luminous flux, colour temperatures, chromatic reproduction, sealing and dimming protocols. Minimalist design and easy fitting make it an unbeatable offer.

Awards

Red Dot Design Award 2015
German Design Award Nominee 2016

Swap S

Swap M

Swap L

Swap XL

Swap M Asymmetric

Swap L Asymmetric

Swap Square

Swap Square Asymmetric

Swap S RT

Swap M RT

Swap Square Asymmetric

Luminous flux

640 lm / 675 lm / 700 lm / 705 lm / 710 lm / 770 lm / 800 lm / 820 lm / 910 lm / 940 lm / 955 lm / 960 lm
Lighting efficiency

58% / 64% / 71% / 72% / 76% / 77% / 78% / 80% / 81% / 86%
Power

5 W / 6 W / 7 W
Dimming

No Dim, DALI / Push, Phase Cut
Color temperature

2700K / 3000K / 3500K / 4000K / Dim to warm 3000 - 1800K
Sealing

IP20 / IP65
Chromatic stability

MacAdam Step 2 / MacAdam Step 3
Recess measurements

85 x 85mm
Light beam angle

52°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

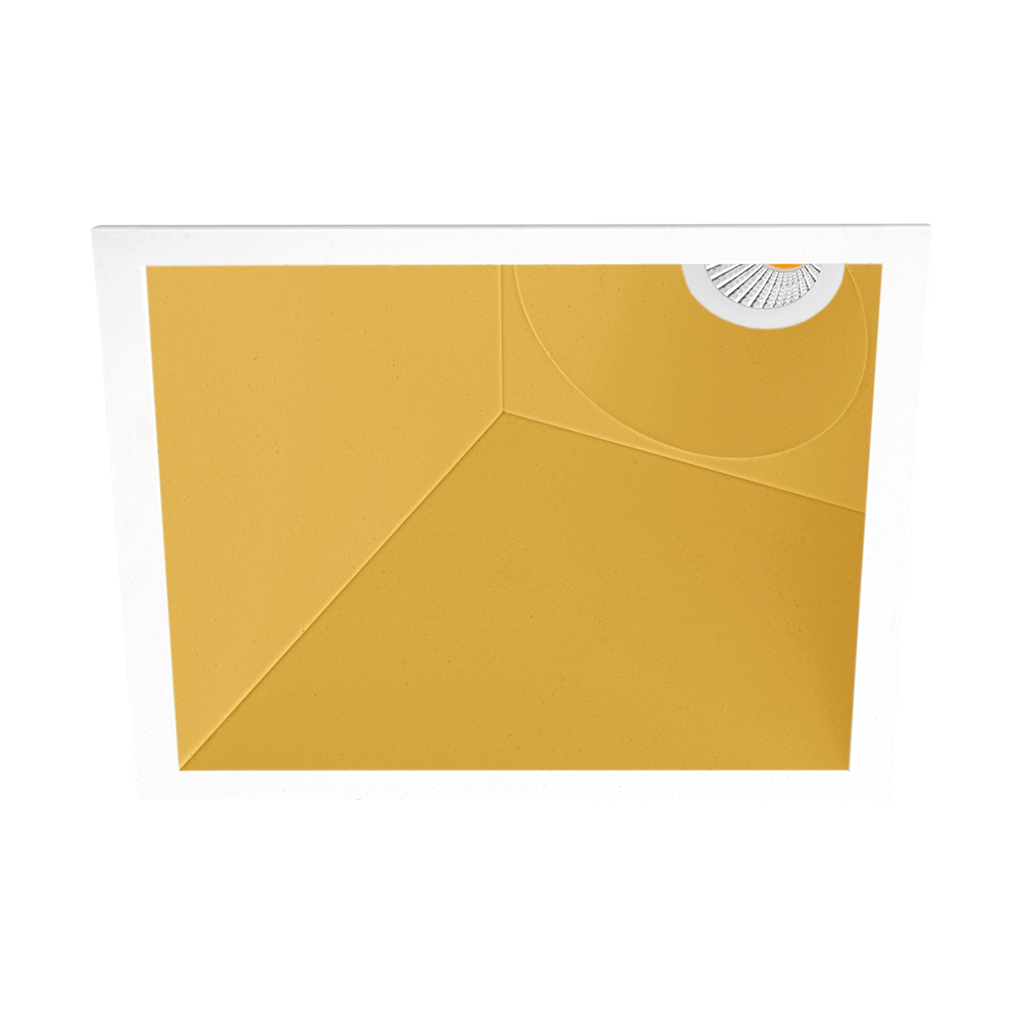

SWAP SQUARE ASYMM 5W 2700K G

Reference:

A2553110G

Color:

Gold

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20

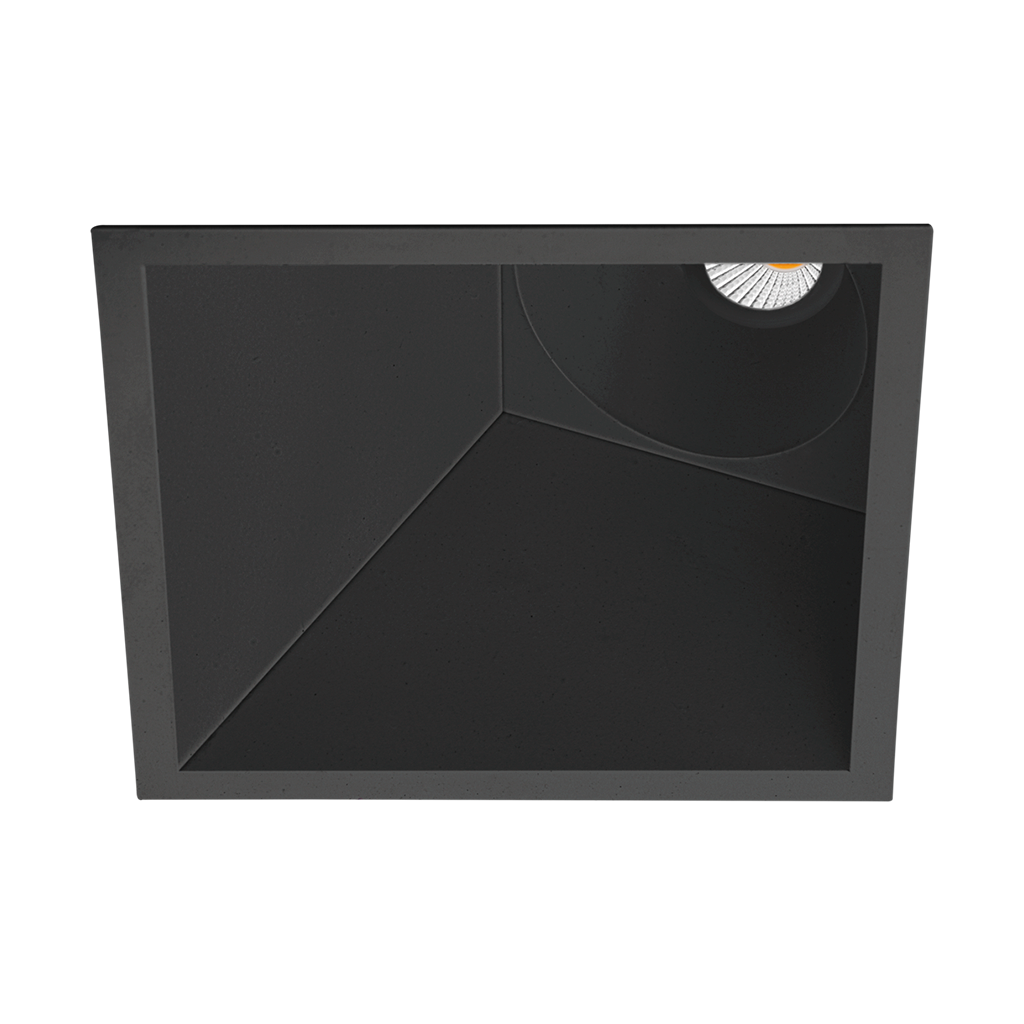

SWAP SQUARE ASYMM 5W 2700K N

Reference:

A2553110N

Color:

Matt black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 2700K W

Reference:

A2553110W

Color:

Matt white

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 5W 2700K W

Reference:

A2553110W65

Color:

Matt white

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65

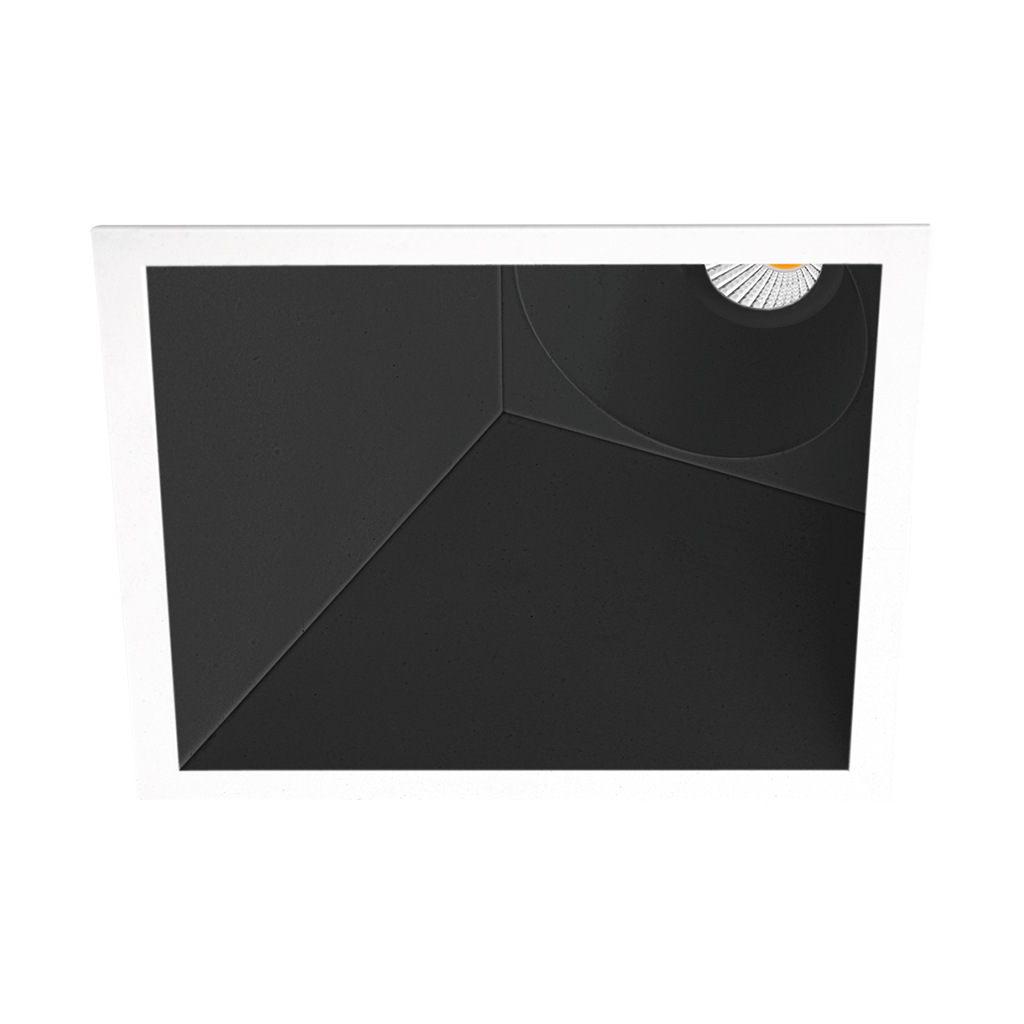

SWAP SQUARE ASYMM 5W 2700K WN

Reference:

A2553110WN

Color:

White-Black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20

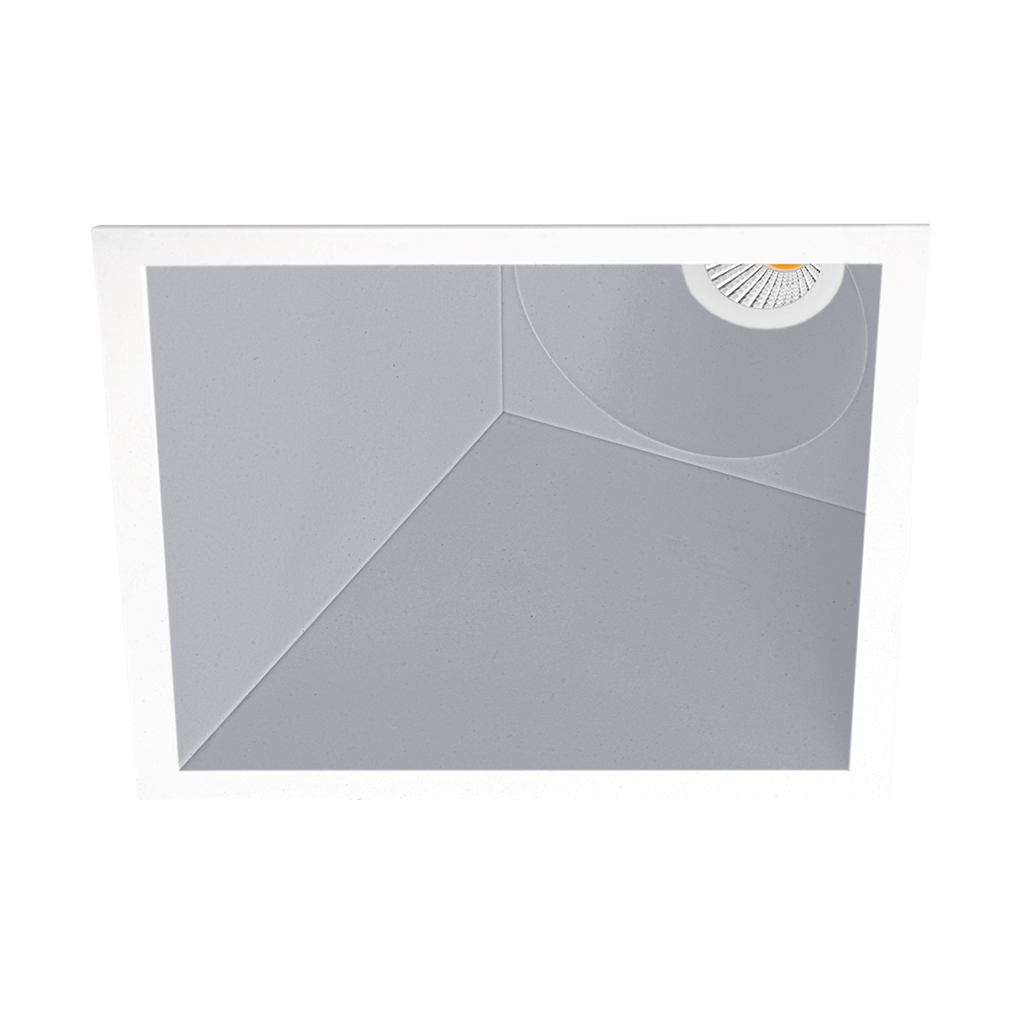

SWAP SQUARE ASYMM 5W 2700K Z

Reference:

A2553110Z

Color:

Aluminium

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 3000K G

Reference:

A2553111G

Color:

Gold

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 3000K N

Reference:

A2553111N

Color:

Matt black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20

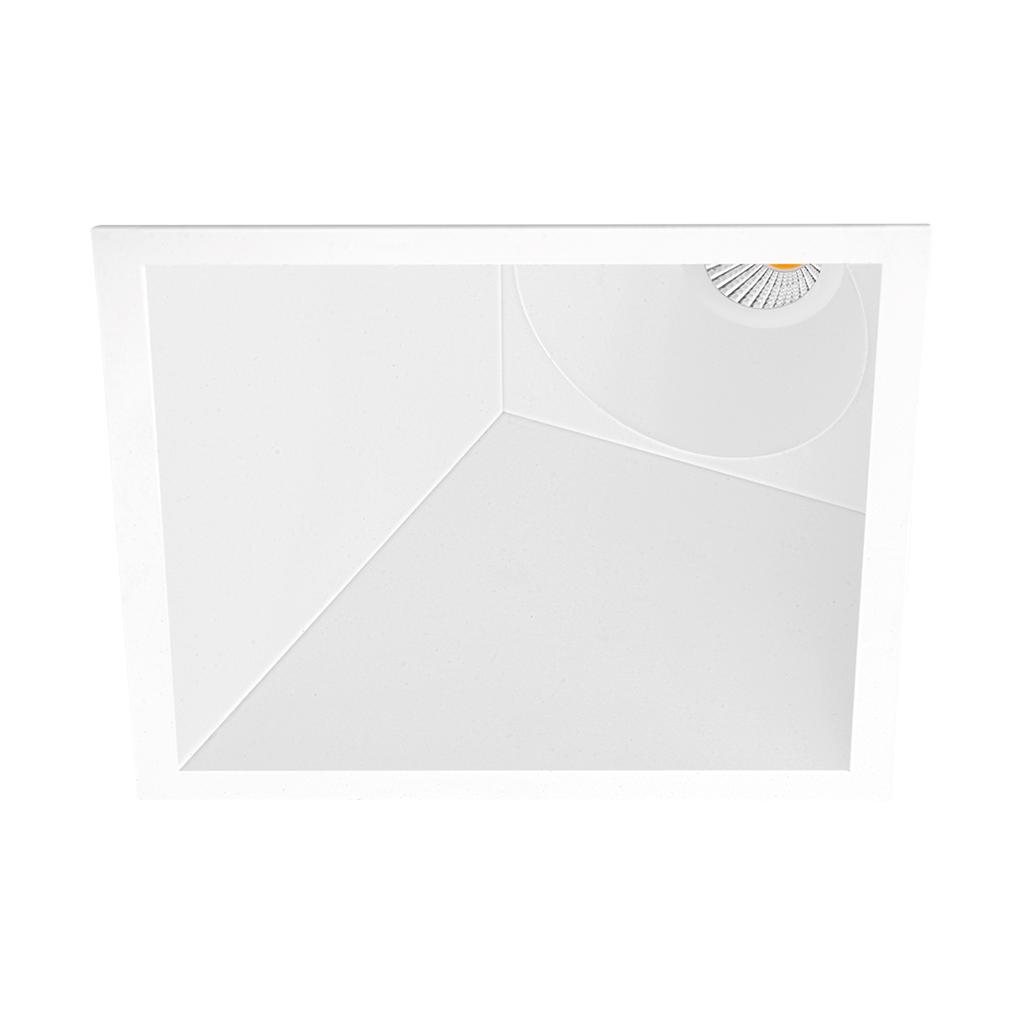

SWAP SQUARE ASYMM 5W 3000K W

Reference:

A2553111W

Color:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 5W 3000K W

Reference:

A2553111W65

Color:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP SQUARE ASYMM 5W 3000K WN

Reference:

A2553111WN

Color:

White-Black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 3000K Z

Reference:

A2553111Z

Color:

Aluminium

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 4000K G

Reference:

A2553112G

Color:

Gold

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 4000K N

Reference:

A2553112N

Color:

Matt black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 4000K W

Reference:

A2553112W

Color:

Matt white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 5W 4000K W

Reference:

A2553112W65

Color:

Matt white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP SQUARE ASYMM 5W 4000K WN

Reference:

A2553112WN

Color:

White-Black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 4000K Z

Reference:

A2553112Z

Color:

Aluminium

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 3500K G

Reference:

A2553113G

Color:

Gold

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 3500K N

Reference:

A2553113N

Color:

Matt black

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 3500K W

Reference:

A2553113W

Color:

Matt white

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 5W 3500K W

Reference:

A2553113W65

Color:

Matt white

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP SQUARE ASYMM 5W 3500K WN

Reference:

A2553113WN

Color:

White-Black

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 5W 3500K Z

Reference:

A2553113Z

Color:

Aluminium

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 2700K G

Reference:

A2553210G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 2700K N

Reference:

A2553210N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 2700K W

Reference:

A2553210W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W 2700K W

Reference:

A2553210W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP SQUARE ASYMM 7W 2700K WN

Reference:

A2553210WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 2700K Z

Reference:

A2553210Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 3000K G

Reference:

A2553211G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 3000K N

Reference:

A2553211N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 3000K W

Reference:

A2553211W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W 3000K W

Reference:

A2553211W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP SQUARE ASYMM 7W 3000K WN

Reference:

A2553211WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 3000K Z

Reference:

A2553211Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 4000K G

Reference:

A2553212G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 4000K N

Reference:

A2553212N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 4000K W

Reference:

A2553212W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W 4000K W

Reference:

A2553212W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP SQUARE ASYMM 7W 4000K WN

Reference:

A2553212WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 4000K Z

Reference:

A2553212Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 3500K G

Reference:

A2553213G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 3500K N

Reference:

A2553213N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 3500K W

Reference:

A2553213W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W 3500K W

Reference:

A2553213W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP SQUARE ASYMM 7W 3500K WN

Reference:

A2553213WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W 3500K Z

Reference:

A2553213Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 2700K G

Reference:

A2553220G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 2700K N

Reference:

A2553220N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 2700K W

Reference:

A2553220W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W DIM PH.CUT 2700K W

Reference:

A2553220W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP SQUARE ASYMM 7W DIM PH.CUT 2700K WN

Reference:

A2553220WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 2700K Z

Reference:

A2553220Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 3000K G

Reference:

A2553221G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 3000K N

Reference:

A2553221N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 3000K W

Reference:

A2553221W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W DIM PH.CUT 3000K W

Reference:

A2553221W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP SQUARE ASYMM 7W DIM PH.CUT 3000K WN

Reference:

A2553221WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 3000K Z

Reference:

A2553221Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 4000K G

Reference:

A2553222G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 4000K N

Reference:

A2553222N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 4000K W

Reference:

A2553222W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W DIM PH.CUT 4000K W

Reference:

A2553222W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP SQUARE ASYMM 7W DIM PH.CUT 4000K WN

Reference:

A2553222WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 4000K Z

Reference:

A2553222Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 3500K G

Reference:

A2553223G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 3500K N

Reference:

A2553223N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 3500K W

Reference:

A2553223W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W DIM PH.CUT 3500K W

Reference:

A2553223W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP SQUARE ASYMM 7W DIM PH.CUT 3500K WN

Reference:

A2553223WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM PH.CUT 3500K Z

Reference:

A2553223Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 2700K G

Reference:

A2553230G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 2700K N

Reference:

A2553230N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 2700K W

Reference:

A2553230W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W DIM DALI/PUSH 2700K W

Reference:

A2553230W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 2700K WN

Reference:

A2553230WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 2700K Z

Reference:

A2553230Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 3000K G

Reference:

A2553231G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 3000K N

Reference:

A2553231N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 3000K W

Reference:

A2553231W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W DIM DALI/PUSH 3000K W

Reference:

A2553231W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 3000K WN

Reference:

A2553231WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 3000K Z

Reference:

A2553231Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 4000K G

Reference:

A2553232G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 4000K N

Reference:

A2553232N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 4000K W

Reference:

A2553232W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W DIM DALI/PUSH 4000K W

Reference:

A2553232W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 4000K WN

Reference:

A2553232WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 4000K Z

Reference:

A2553232Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 3500K G

Reference:

A2553233G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 3500K N

Reference:

A2553233N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 3500K W

Reference:

A2553233W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 7W DIM DALI/PUSH 3500K W

Reference:

A2553233W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 3500K WN

Reference:

A2553233WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 7W DIM DALI/PUSH 3500K Z

Reference:

A2553233Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 6W PH.CUT DIM TO WARM G

Reference:

A2553329G

Color:

Gold

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 6W PH.CUT DIM TO WARM N

Reference:

A2553329N

Color:

Matt black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

58%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 6W PH.CUT DIM TO WARM W

Reference:

A2553329W

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 6W PH.CUT DIM TO WARM W

Reference:

A2553329W65

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP65
SWAP SQUARE ASYMM 6W PH.CUT DIM TO WARM WN

Reference:

A2553329WN

Color:

White-Black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

58%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 6W PH.CUT DIM TO WARM Z

Reference:

A2553329Z

Color:

Aluminium

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

72%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM 6W DALI/PUSH DIM TO WARM G

Reference:

A2553339G

Color:

Gold

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

71%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 6W DALI/PUSH DIM TO WARM N

Reference:

A2553339N

Color:

Matt black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

58%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 6W DALI/PUSH DIM TO WARM W

Reference:

A2553339W

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 SQUARE ASYMM 6W DALI/PUSH DIM TO WARM W

Reference:

A2553339W65

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

76%

Dimming:

DALI / Push

Sealing:

IP65
SWAP SQUARE ASYMM 6W DALI/PUSH DIM TO WARM WN

Reference:

A2553339WN

Color:

White-Black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

58%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM 6W DALI/PUSH DIM TO WARM Z

Reference:

A2553339Z

Color:

Aluminium

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

52°

Lighting efficiency:

72%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 2700K G

Reference:

A3553210G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 2700K N

Reference:

A3553210N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 2700K W

Reference:

A3553210W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM SUPERCRI 7W 2700K W

Reference:

A3553210W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP SQUARE ASYMM SUPERCRI 7W 2700K WN

Reference:

A3553210WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 2700K Z

Reference:

A3553210Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 3000K G

Reference:

A3553211G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 3000K N

Reference:

A3553211N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 3000K W

Reference:

A3553211W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM SUPERCRI 7W 3000K W

Reference:

A3553211W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP SQUARE ASYMM SUPERCRI 7W 3000K WN

Reference:

A3553211WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 3000K Z

Reference:

A3553211Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 4000K G

Reference:

A3553212G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 4000K N

Reference:

A3553212N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 4000K W

Reference:

A3553212W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 SQUARE ASYMM SUPERCRI 7W 4000K W

Reference:

A3553212W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP SQUARE ASYMM SUPERCRI 7W 4000K WN

Reference:

A3553212WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W 4000K Z

Reference:

A3553212Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 2700K G

Reference:

A3553220G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 2700K N

Reference:

A3553220N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 2700K W

Reference:

A3553220W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 2700

Reference:

A3553220W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 2700K WN

Reference:

A3553220WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 2700K Z

Reference:

A3553220Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 3000K G

Reference:

A3553221G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 3000K N

Reference:

A3553221N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 3000K W

Reference:

A3553221W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 3000

Reference:

A3553221W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 3000K WN

Reference:

A3553221WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 3000K Z

Reference:

A3553221Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 4000K G

Reference:

A3553222G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 4000K N

Reference:

A3553222N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 4000K W

Reference:

A3553222W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 4000

Reference:

A3553222W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 4000K WN

Reference:

A3553222WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM PH.CUT 4000K Z

Reference:

A3553222Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 2700K

Reference:

A3553230G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 2700K N

Reference:

A3553230N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 2700K W

Reference:

A3553230W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 2

Reference:

A3553230W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 2700K WN

Reference:

A3553230WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 2700K Z

Reference:

A3553230Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 3000K G

Reference:

A3553231G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 3000K N

Reference:

A3553231N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 3000K W

Reference:

A3553231W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 3

Reference:

A3553231W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 3000K WN

Reference:

A3553231WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 3000K Z

Reference:

A3553231Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 4000K G

Reference:

A3553232G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 4000K N

Reference:

A3553232N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 4000K W

Reference:

A3553232W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 4

Reference:

A3553232W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 4000K WN

Reference:

A3553232WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP SQUARE ASYMM SUPERCRI 7W DIM DALI/PUSH 4000K Z

Reference:

A3553232Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

52°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20

Accessories

IP65 ACCESSORY

ADD-ON BEZEL

Are you interested in this product? Contact us

Company

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Company

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Swap

CEILING RECESSED

Awards

Red Dot Design Award 2015

German Design Award Nominee 2016

Swap Square Asymmetric

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

Shot Light

Lex

Olympia

Deep

Related projects

Restaurante Caliza

B50 Residential villa

Projet MMR

Brassa de Mar

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
