Swap

CEILING RECESSED

Swap is a family of recessed LED spots that comes in 4 sizes (S, M, L, XL), two formats (round and square) and two light beam directions (symmetrical or asymmetrical). These features are embodied in 8 models and, through them, the Swap range offers a very extensive variety of colour options, luminous flux, colour temperatures, chromatic reproduction, sealing and dimming protocols. Minimalist design and easy fitting make it an unbeatable offer.

Awards

Red Dot Design Award 2015
German Design Award Nominee 2016

Swap S

Swap M

Swap L

Swap XL

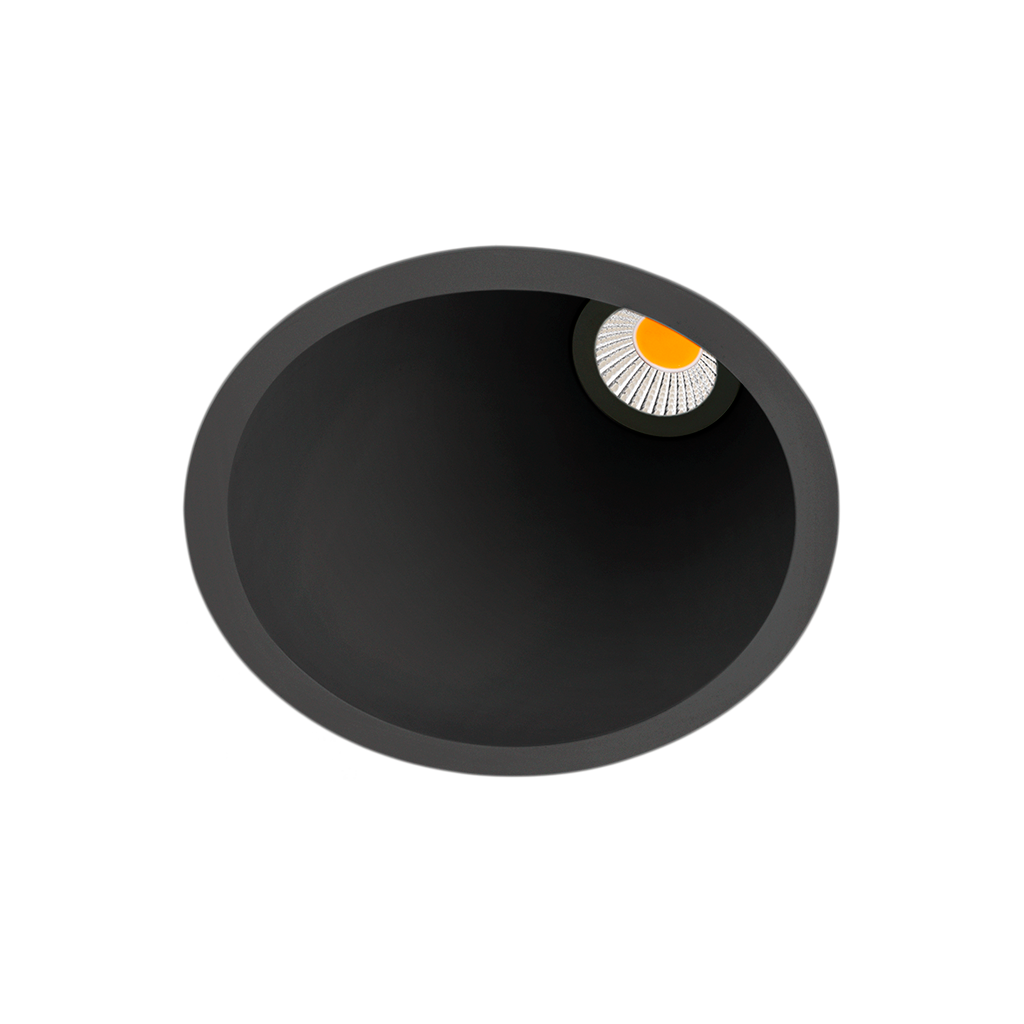

Swap M Asymmetric

Swap L Asymmetric

Swap Square

Swap Square Asymmetric

Swap S RT

Swap M RT

Swap M Asymmetric

Luminous flux

640 lm / 675 lm / 700 lm / 705 lm / 710 lm / 770 lm / 800 lm / 820 lm / 910 lm / 940 lm / 955 lm / 960 lm
Lighting efficiency

58% / 64% / 71% / 72% / 76% / 77% / 78% / 80% / 81% / 86%
Power

5 W / 6 W / 7 W
Dimming

No Dim, DALI / Push, Phase Cut
Color temperature

2700K / 3000K / 3500K / 4000K / Dim to warm 3000 - 1800K
Sealing

IP20 / IP65
Chromatic stability

MacAdam Step 2 / MacAdam Step 3
Recess measurements

Ø75mm
Light beam angle

45°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

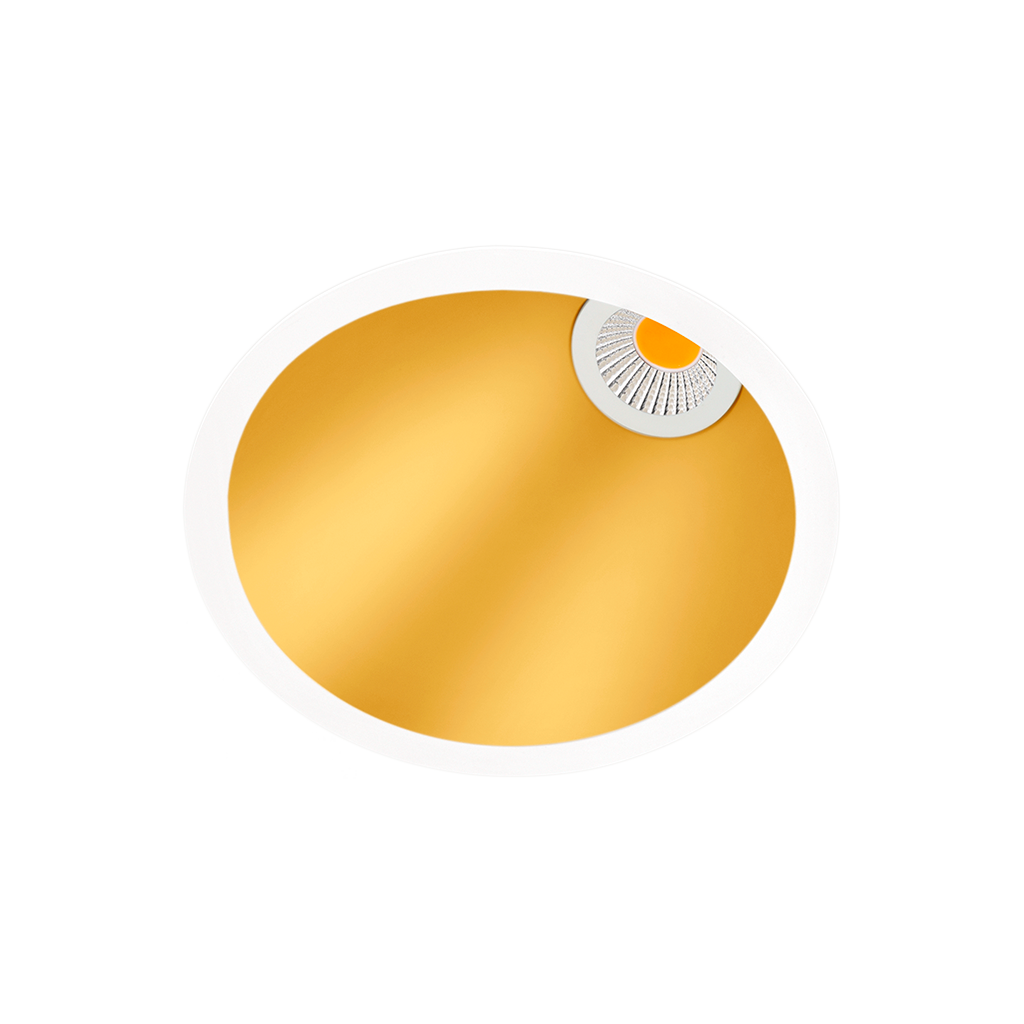

SWAP ASYMM M 5W 2700K G

Reference:

A2162110G

Color:

Gold

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 2700K N

Reference:

A2162110N

Color:

Matt black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20

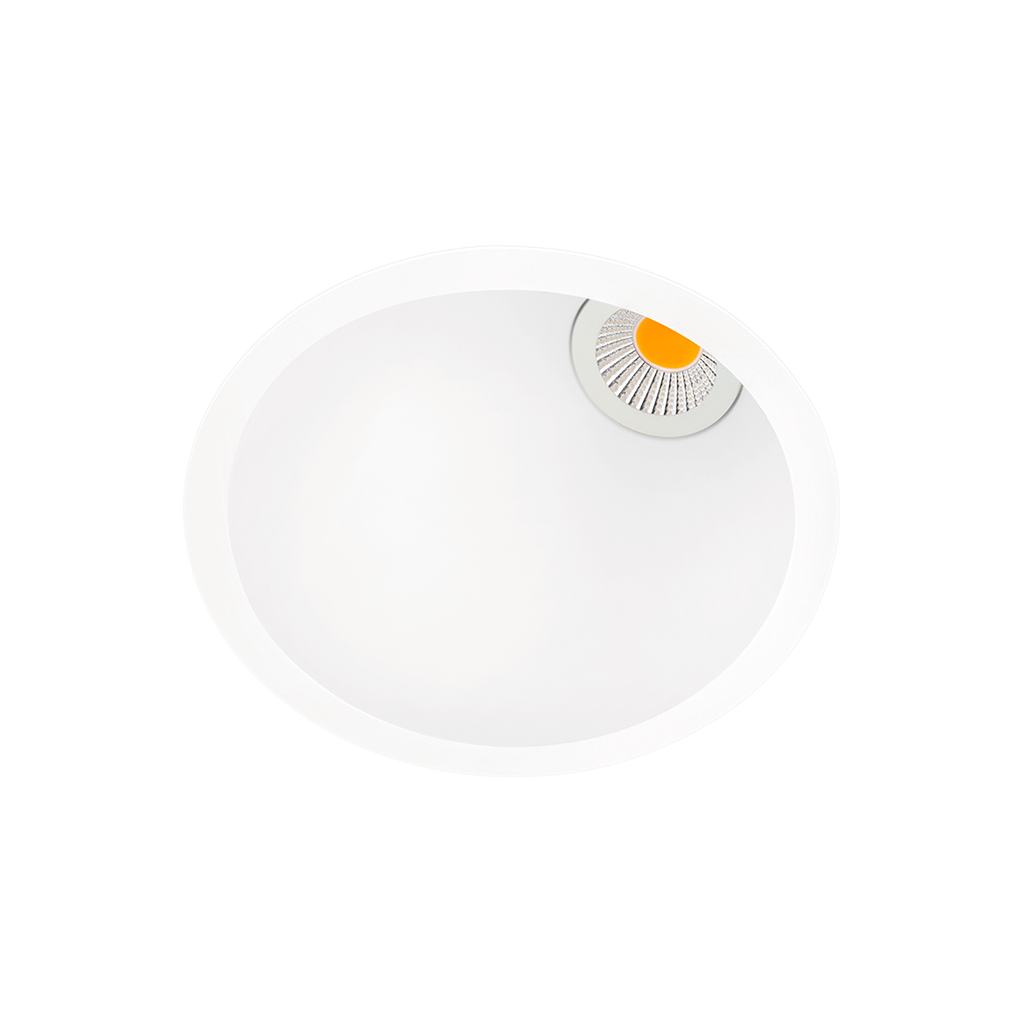

SWAP ASYMM M 5W 2700K W

Reference:

A2162110W

Color:

Matt white

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M 5W 2700K W

Reference:

A2162110W65

Color:

Matt white

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65

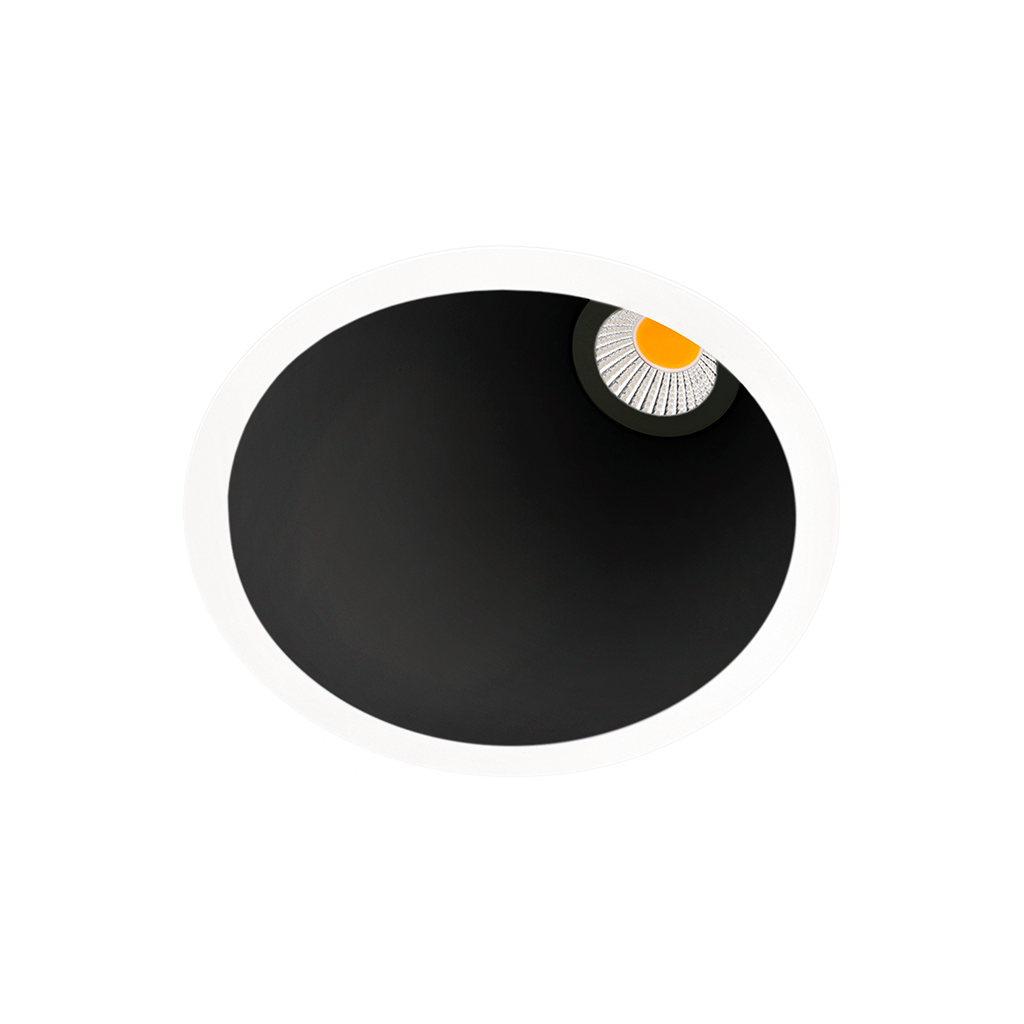

SWAP ASYMM M 5W 2700K WN

Reference:

A2162110WN

Color:

White-Black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20

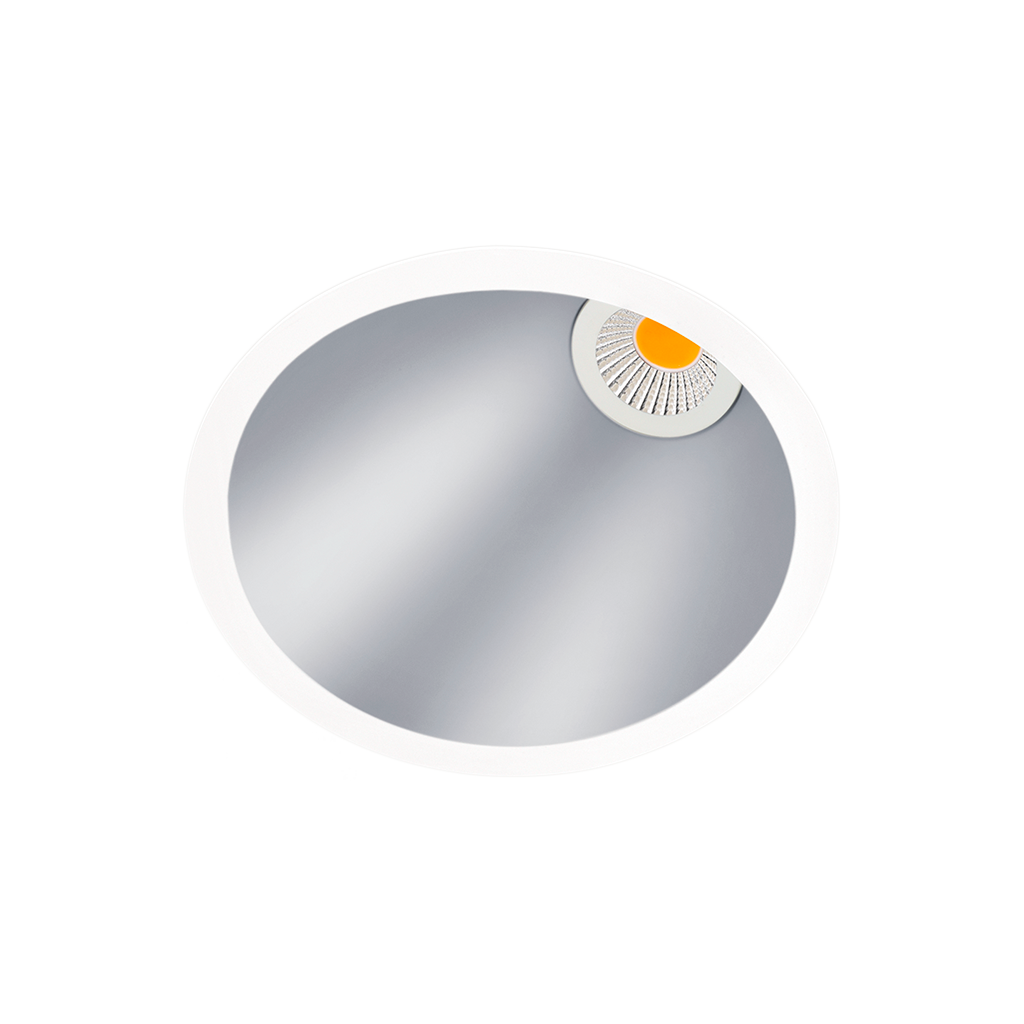

SWAP ASYMM M 5W 2700K Z

Reference:

A2162110Z

Color:

Aluminium

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 3000K G

Reference:

A2162111G

Color:

Gold

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 3000K N

Reference:

A2162111N

Color:

Matt black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 3000K W

Reference:

A2162111W

Color:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M 5W 3000K W

Reference:

A2162111W65

Color:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM M 5W 3000K WN

Reference:

A2162111WN

Color:

White-Black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 3000K Z

Reference:

A2162111Z

Color:

Aluminium

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 4000K G

Reference:

A2162112G

Color:

Gold

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 4000K N

Reference:

A2162112N

Color:

Matt black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 4000K W

Reference:

A2162112W

Color:

Matt white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M 5W 4000K W

Reference:

A2162112W65

Color:

Matt white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM M 5W 4000K WN

Reference:

A2162112WN

Color:

White-Black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 4000K Z

Reference:

A2162112Z

Color:

Aluminium

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 3500K G

Reference:

A2162113G

Color:

Gold

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 3500K N

Reference:

A2162113N

Color:

Matt black

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 3500K W

Reference:

A2162113W

Color:

Matt white

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M 5W 3500K W

Reference:

A2162113W65

Color:

Matt white

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM M 5W 3500K WN

Reference:

A2162113WN

Color:

White-Black

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 5W 3500K Z

Reference:

A2162113Z

Color:

Aluminium

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 2700K G

Reference:

A2162210G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 2700K N

Reference:

A2162210N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 2700K W

Reference:

A2162210W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M 7W 2700K W

Reference:

A2162210W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM M 7W 2700K WN

Reference:

A2162210WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 2700K Z

Reference:

A2162210Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 3000K G

Reference:

A2162211G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 3000K N

Reference:

A2162211N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 3000K W

Reference:

A2162211W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M 7W 3000K W

Reference:

A2162211W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM M 7W 3000K WN

Reference:

A2162211WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 3000K Z

Reference:

A2162211Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 4000K G

Reference:

A2162212G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 4000K N

Reference:

A2162212N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 4000K W

Reference:

A2162212W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M 7W 4000K W

Reference:

A2162212W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM M 7W 4000K WN

Reference:

A2162212WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 4000K Z

Reference:

A2162212Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 3500K G

Reference:

A2162213G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 3500K N

Reference:

A2162213N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 3500K W

Reference:

A2162213W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M 7W 3500K W

Reference:

A2162213W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM M 7W 3500K WN

Reference:

A2162213WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W 3500K Z

Reference:

A2162213Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 2700K G

Reference:

A2162220G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 2700K N

Reference:

A2162220N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 2700K W

Reference:

A2162220W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM M 7W DIM PH.CUT 2700K W

Reference:

A2162220W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM M 7W DIM PH.CUT 2700K WN

Reference:

A2162220WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 2700K Z

Reference:

A2162220Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 3000K G

Reference:

A2162221G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 3000K N

Reference:

A2162221N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 3000K W

Reference:

A2162221W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM M 7W DIM PH.CUT 3000K W

Reference:

A2162221W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM M 7W DIM PH.CUT 3000K WN

Reference:

A2162221WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 3000K Z

Reference:

A2162221Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 4000K G

Reference:

A2162222G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 4000K N

Reference:

A2162222N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 4000K W

Reference:

A2162222W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM M 7W DIM PH.CUT 4000K W

Reference:

A2162222W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM M 7W DIM PH.CUT 4000K WN

Reference:

A2162222WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 4000K Z

Reference:

A2162222Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 3500K G

Reference:

A2162223G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 3500K N

Reference:

A2162223N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 3500K W

Reference:

A2162223W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM M 7W DIM PH.CUT 3500K W

Reference:

A2162223W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM M 7W DIM PH.CUT 3500K WN

Reference:

A2162223WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM PH.CUT 3500K Z

Reference:

A2162223Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 2700K G

Reference:

A2162230G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 2700K N

Reference:

A2162230N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 2700K W

Reference:

A2162230W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM M 7W DIM DALI/PUSH 2700K W

Reference:

A2162230W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM M 7W DIM DALI/PUSH 2700K WN

Reference:

A2162230WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 2700K Z

Reference:

A2162230Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 3000K G

Reference:

A2162231G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 3000K N

Reference:

A2162231N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 3000K W

Reference:

A2162231W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM M 7W DIM DALI/PUSH 3000K W

Reference:

A2162231W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM M 7W DIM DALI/PUSH 3000K WN

Reference:

A2162231WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 3000K Z

Reference:

A2162231Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 4000K G

Reference:

A2162232G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 4000K N

Reference:

A2162232N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 4000K W

Reference:

A2162232W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM M 7W DIM DALI/PUSH 4000K W

Reference:

A2162232W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM M 7W DIM DALI/PUSH 4000K WN

Reference:

A2162232WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 4000K Z

Reference:

A2162232Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 3500K G

Reference:

A2162233G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 3500K N

Reference:

A2162233N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 3500K W

Reference:

A2162233W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM M 7W DIM DALI/PUSH 3500K W

Reference:

A2162233W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM M 7W DIM DALI/PUSH 3500K WN

Reference:

A2162233WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 7W DIM DALI/PUSH 3500K Z

Reference:

A2162233Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 6W PH.CUT DIM TO WARM G

Reference:

A2162329G

Color:

Gold

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M PH.CUT DIM TO WARM N

Reference:

A2162329N

Color:

Matt black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

58%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 6W PH.CUT DIM TO WARM W

Reference:

A2162329W

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM M 6W PH.CUT DIM TO WARM W

Reference:

A2162329W65

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM M 6W PH.CUT DIM TO WARM WN

Reference:

A2162329WN

Color:

White-Black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

58%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 6W PH.CUT DIM TO WARM Z

Reference:

A2162329Z

Color:

Aluminium

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

72%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M 6W DALI/PUSH DIM TO WARM G

Reference:

A2162339G

Color:

Gold

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

71%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 6W DALI/PUSH DIM TO WARM N

Reference:

A2162339N

Color:

Matt black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

58%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 6W DALI/PUSH DIM TO WARM W

Reference:

A2162339W

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM M 6W DALI/PUSH DIM TO WARM W

Reference:

A2162339W65

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

76%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM M 6W DALI/PUSH DIM TO WARM WN

Reference:

A2162339WN

Color:

White-Black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

58%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M 6W DALI/PUSH DIM TO WARM Z

Reference:

A2162339Z

Color:

Aluminium

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

72%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 2700K G

Reference:

A3162210G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 2700K N

Reference:

A3162210N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 2700K W

Reference:

A3162210W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M SUPERCRI 7W 2700K W

Reference:

A3162210W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM M SUPERCRI 7W 2700K WN

Reference:

A3162210WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 2700K Z

Reference:

A3162210Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 3000K G

Reference:

A3162211G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 3000K N

Reference:

A3162211N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 3000K W

Reference:

A3162211W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M SUPERCRI 7W 3000K W

Reference:

A3162211W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM M SUPERCRI 7W 3000K WN

Reference:

A3162211WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 3000K Z

Reference:

A3162211Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 4000K G

Reference:

A3162212G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 4000K N

Reference:

A3162212N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 4000K W

Reference:

A3162212W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM M SUPERCRI 7W 4000K W

Reference:

A3162212W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM M SUPERCRI 7W 4000K WN

Reference:

A3162212WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W 4000K Z

Reference:

A3162212Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 2700K G

Reference:

A3162220G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 2700K N

Reference:

A3162220N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 2700K W

Reference:

A3162220W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM M SUPERCRI 7W DIM PH.CUT 2700K W

Reference:

A3162220W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 2700K WN

Reference:

A3162220WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 2700K Z

Reference:

A3162220Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 3000K G

Reference:

A3162221G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 3000K N

Reference:

A3162221N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 3000K W

Reference:

A3162221W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM M SUPERCRI 7W DIM PH.CUT 3000K W

Reference:

A3162221W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 3000K WN

Reference:

A3162221WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 3000K Z

Reference:

A3162221Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 4000K G

Reference:

A3162222G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 4000K N

Reference:

A3162222N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 4000K W

Reference:

A3162222W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM M SUPERCRI 7W DIM PH.CUT 4000K W

Reference:

A3162222W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 4000K WN

Reference:

A3162222WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM PH.CUT 4000K Z

Reference:

A3162222Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 2700K G

Reference:

A3162230G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 2700K N

Reference:

A3162230N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 2700K W

Reference:

A3162230W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM M SUPERCRI 7W DIM DALI/PUSH 2700K

Reference:

A3162230W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 2700K WN

Reference:

A3162230WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 2700K Z

Reference:

A3162230Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 3000K G

Reference:

A3162231G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 3000K N

Reference:

A3162231N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 3000K W

Reference:

A3162231W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM M SUPERCRI 7W DIM DALI/PUSH 3000K

Reference:

A3162231W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 3000K WN

Reference:

A3162231WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 3000K Z

Reference:

A3162231Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 4000K G

Reference:

A3162232G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 4000K N

Reference:

A3162232N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 4000K W

Reference:

A3162232W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM M SUPERCRI 7W DIM DALI/PUSH 4000K

Reference:

A3162232W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 4000K WN

Reference:

A3162232WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM M SUPERCRI 7W DIM DALI/PUSH 4000K Z

Reference:

A3162232Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

45°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20

Accessories

IP65 ACCESSORY

ADD-ON BEZEL

Are you interested in this product? Contact us

Phone

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Company

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Swap

CEILING RECESSED

Awards

Red Dot Design Award 2015

German Design Award Nominee 2016

Swap M Asymmetric

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

Shot Light

Lex

Olympia

Deep

Related projects

Restaurante Caliza

B50 Residential villa

Projet MMR

Brassa de Mar

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
