Swap

CEILING RECESSED

Swap is a family of recessed LED spots that comes in 4 sizes (S, M, L, XL), two formats (round and square) and two light beam directions (symmetrical or asymmetrical). These features are embodied in 8 models and, through them, the Swap range offers a very extensive variety of colour options, luminous flux, colour temperatures, chromatic reproduction, sealing and dimming protocols. Minimalist design and easy fitting make it an unbeatable offer.

Awards

Red Dot Design Award 2015
German Design Award Nominee 2016

Swap S

Swap M

Swap L

Swap XL

Swap M Asymmetric

Swap L Asymmetric

Swap Square

Swap Square Asymmetric

Swap S RT

Swap M RT

Swap L Asymmetric

Luminous flux

640 lm / 675 lm / 700 lm / 705 lm / 710 lm / 770 lm / 800 lm / 820 lm / 910 lm / 940 lm / 955 lm / 960 lm
Lighting efficiency

58% / 64% / 71% / 72% / 76% / 77% / 78% / 80% / 81% / 86%
Power

5 W / 6 W / 7 W
Dimming

No Dim, DALI / Push, Phase Cut
Color temperature

2700K / 3000K / 3500K / 4000K / Dim to warm 3000 - 1800K
Sealing

IP20 / IP65
Chromatic stability

MacAdam Step 2 / MacAdam Step 3
Recess measurements

Ø85mm
Light beam angle

43°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
SWAP ASYMM L 5W 2700K G

Reference:

A2163110G

Color:

Gold

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20

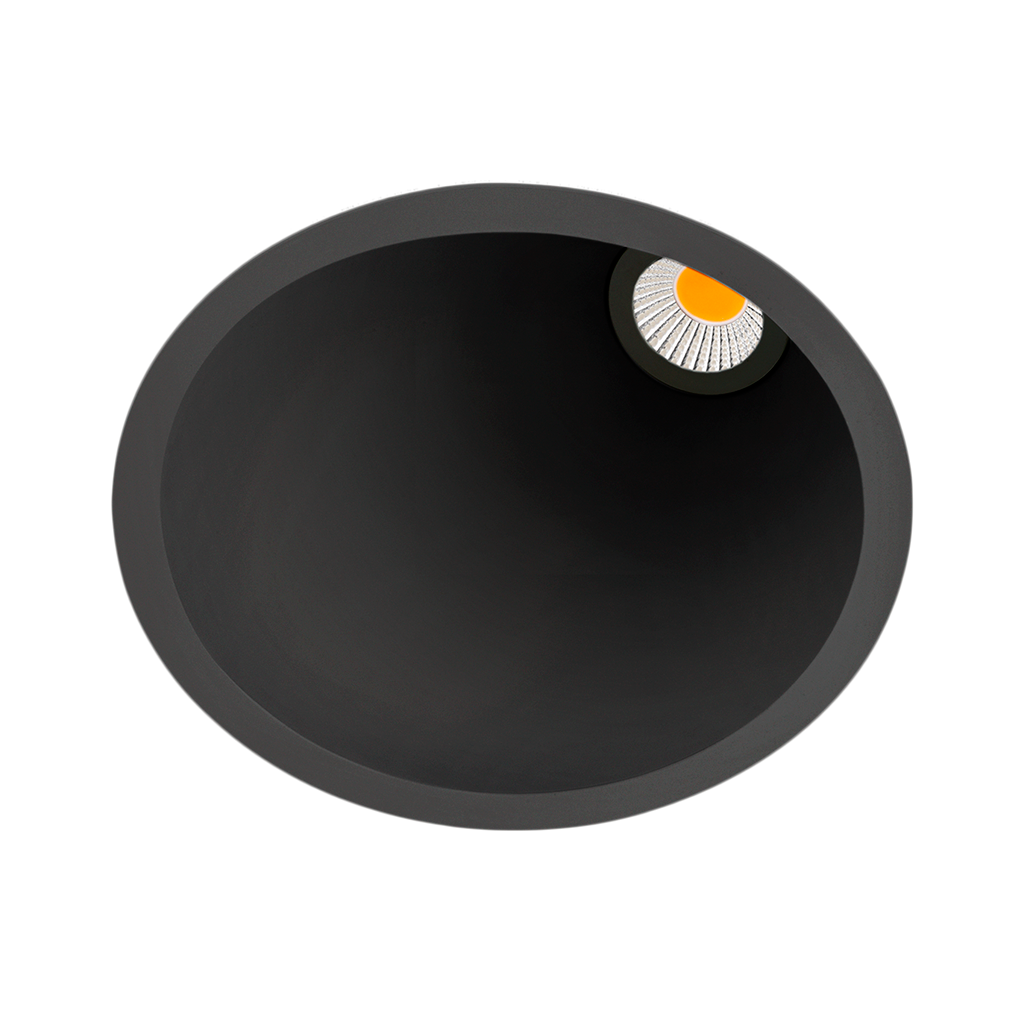

SWAP ASYMM L 5W 2700K N

Reference:

A2163110N

Color:

Matt black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20

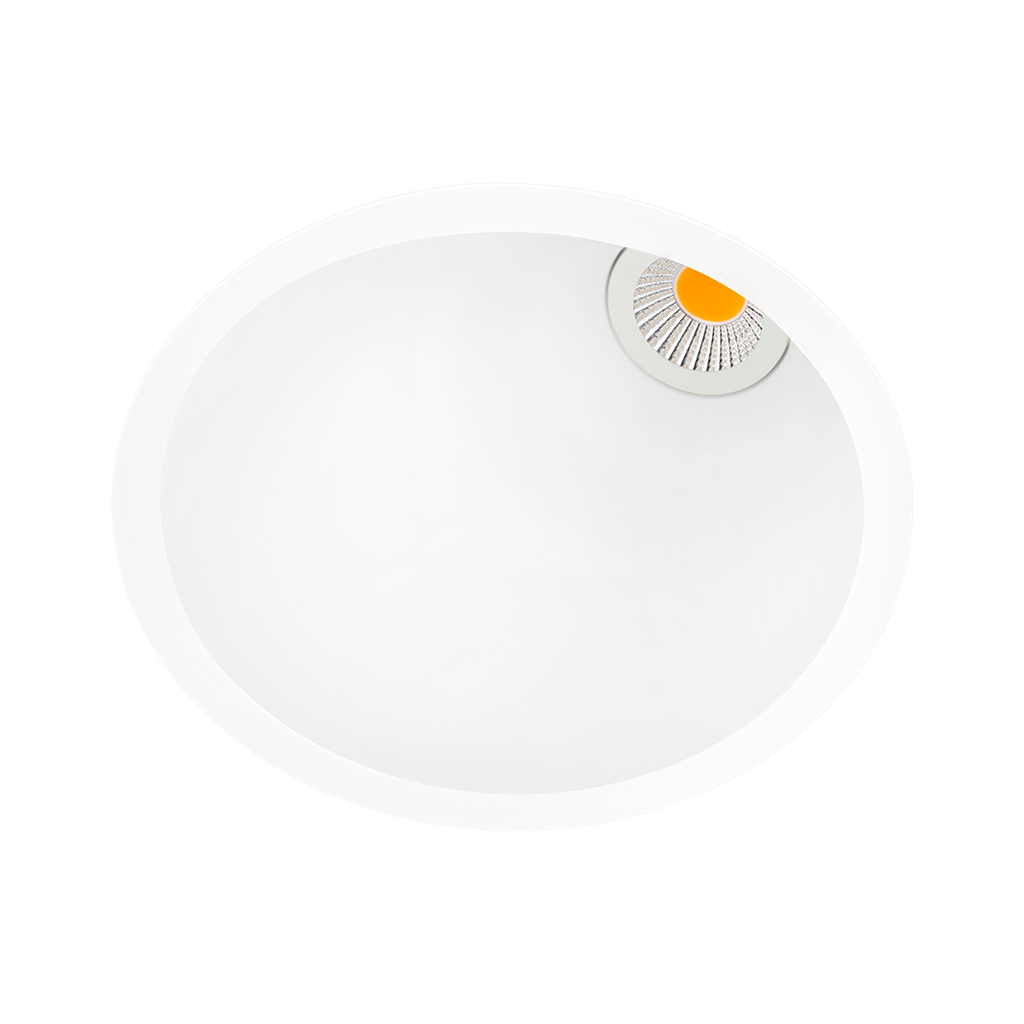

SWAP ASYMM L 5W 2700K W

Reference:

A2163110W

Color:

Matt white

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L 5W 2700K W

Reference:

A2163110W65

Color:

Matt white

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65

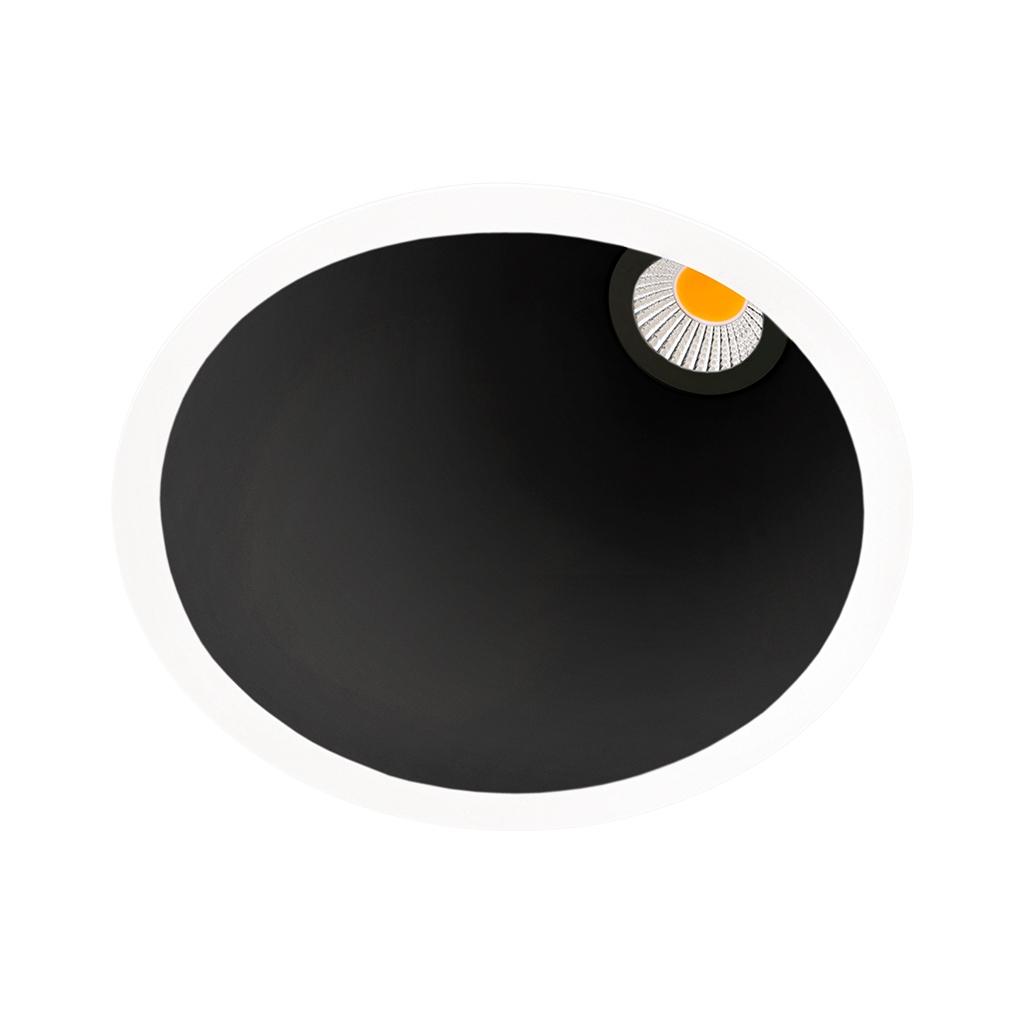

SWAP ASYMM L 5W 2700K WN

Reference:

A2163110WN

Color:

White-Black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20

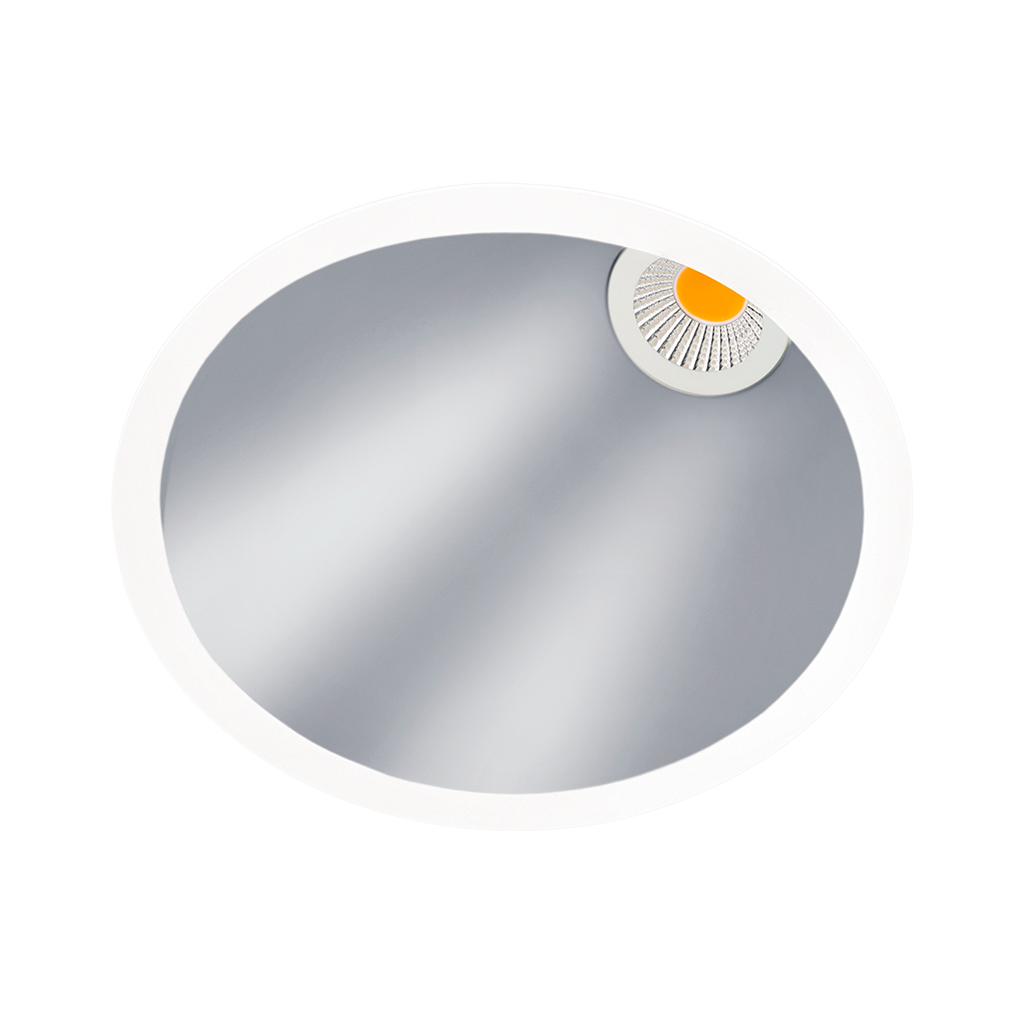

SWAP ASYMM L 5W 2700K Z

Reference:

A2163110Z

Color:

Aluminium

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 3000K G

Reference:

A2163111G

Color:

Gold

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 3000K N

Reference:

A2163111N

Color:

Matt black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 3000K W

Reference:

A2163111W

Color:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L 5W 3000K W

Reference:

A2163111W65

Color:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM L 5W 3000K WN

Reference:

A2163111WN

Color:

White-Black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 3000K Z

Reference:

A2163111Z

Color:

Aluminium

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 4000K G

Reference:

A2163112G

Color:

Gold

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 4000K N

Reference:

A2163112N

Color:

Matt black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 4000K W

Reference:

A2163112W

Color:

Matt white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L 5W 4000K W

Reference:

A2163112W65

Color:

Matt white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM L 5W 4000K WN

Reference:

A2163112WN

Color:

White-Black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 4000K Z

Reference:

A2163112Z

Color:

Aluminium

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 3500K G

Reference:

A2163113G

Color:

Gold

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 3500K N

Reference:

A2163113N

Color:

Matt black

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 3500K W

Reference:

A2163113W

Color:

Matt white

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L 5W 3500K W

Reference:

A2163113W65

Color:

Matt white

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM L 5W 3500K WN

Reference:

A2163113WN

Color:

White-Black

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 5W 3500K Z

Reference:

A2163113Z

Color:

Aluminium

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 2700K G

Reference:

A2163210G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 2700K N

Reference:

A2163210N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 2700K W

Reference:

A2163210W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L 7W 2700K W

Reference:

A2163210W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM L 7W 2700K WN

Reference:

A2163210WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 2700K Z

Reference:

A2163210Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 3000K G

Reference:

A2163211G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 3000K N

Reference:

A2163211N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 3000K W

Reference:

A2163211W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L 7W 3000K W

Reference:

A2163211W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM L 7W 3000K WN

Reference:

A2163211WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 3000K Z

Reference:

A2163211Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 4000K G

Reference:

A2163212G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 4000K N

Reference:

A2163212N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 4000K W

Reference:

A2163212W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L 7W 4000K W

Reference:

A2163212W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM L 7W 4000K WN

Reference:

A2163212WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 4000K Z

Reference:

A2163212Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 3500K G

Reference:

A2163213G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 3500K N

Reference:

A2163213N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 3500K W

Reference:

A2163213W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L 7W 3500K W

Reference:

A2163213W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM L 7W 3500K WN

Reference:

A2163213WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W 3500K Z

Reference:

A2163213Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 2700K G

Reference:

A2163220G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 2700K N

Reference:

A2163220N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 2700K W

Reference:

A2163220W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM L 7W DIM PH.CUT 2700K W

Reference:

A2163220W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM L 7W DIM PH.CUT 2700K WN

Reference:

A2163220WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 2700K Z

Reference:

A2163220Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 3000K G

Reference:

A2163221G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 3000K N

Reference:

A2163221N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 3000K W

Reference:

A2163221W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM L 7W DIM PH.CUT 3000K W

Reference:

A2163221W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM L 7W DIM PH.CUT 3000K WN

Reference:

A2163221WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 3000K Z

Reference:

A2163221Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 4000K G

Reference:

A2163222G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 4000K N

Reference:

A2163222N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 4000K W

Reference:

A2163222W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM L 7W DIM PH.CUT 4000K W

Reference:

A2163222W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM L 7W DIM PH.CUT 4000K WN

Reference:

A2163222WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 4000K Z

Reference:

A2163222Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 3500K G

Reference:

A2163223G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 3500K N

Reference:

A2163223N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 3500K W

Reference:

A2163223W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM L 7W DIM PH.CUT 3500K W

Reference:

A2163223W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM L 7W DIM PH.CUT 3500K WN

Reference:

A2163223WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM PH.CUT 3500K Z

Reference:

A2163223Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 2700K G

Reference:

A2163230G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 2700K N

Reference:

A2163230N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 2700K W

Reference:

A2163230W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM L 7W DIM DALI/PUSH 2700K W

Reference:

A2163230W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM L 7W DIM DALI/PUSH 2700K WN

Reference:

A2163230WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 2700K Z

Reference:

A2163230Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 3000K G

Reference:

A2163231G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 3000K N

Reference:

A2163231N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 3000K W

Reference:

A2163231W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM L 7W DIM DALI/PUSH 3000K W

Reference:

A2163231W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM L 7W DIM DALI/PUSH 3000K WN

Reference:

A2163231WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 3000K Z

Reference:

A2163231Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 4000K G

Reference:

A2163232G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 4000K N

Reference:

A2163232N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 4000K W

Reference:

A2163232W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM L 7W DIM DALI/PUSH 4000K W

Reference:

A2163232W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM L 7W DIM DALI/PUSH 4000K WN

Reference:

A2163232WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 4000K Z

Reference:

A2163232Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 3500K G

Reference:

A2163233G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 3500K N

Reference:

A2163233N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 3500K W

Reference:

A2163233W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM L 7W DIM DALI/PUSH 3500K W

Reference:

A2163233W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM L 7W DIM DALI/PUSH 3500K WN

Reference:

A2163233WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 7W DIM DALI/PUSH 3500K Z

Reference:

A2163233Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 6W PH.CUT DIM TO WARM G

Reference:

A2163329G

Color:

Gold

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 6W PH.CUT DIM TO WARM N

Reference:

A2163329N

Color:

Matt black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

58%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 6W PH.CUT DIM TO WARM W

Reference:

A2163329W

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM L 6W PH.CUT DIM TO WARM W

Reference:

A2163329W65

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM L 6W PH.CUT DIM TO WARM WN

Reference:

A2163329WN

Color:

White-Black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

58%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 6W PH.CUT DIM TO WARM Z

Reference:

A2163329Z

Color:

Aluminium

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

72%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L 6W DALI/PUSH DIM TO WARM G

Reference:

A2163339G

Color:

Gold

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

71%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 6W DALI/PUSH DIM TO WARM N

Reference:

A2163339N

Color:

Matt black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

58%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 6W DALI/PUSH DIM TO WARM W

Reference:

A2163339W

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM L 6W DALI/PUSH DIM TO WARM W

Reference:

A2163339W65

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

76%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM L 6W DALI/PUSH DIM TO WARM WN

Reference:

A2163339WN

Color:

White-Black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

58%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L 6W DALI/PUSH DIM TO WARM Z

Reference:

A2163339Z

Color:

Aluminium

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

72%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 2700K G

Reference:

A3163210G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 2700K N

Reference:

A3163210N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 2700K W

Reference:

A3163210W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L SUPERCRI 7W 2700K W

Reference:

A3163210W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM L SUPERCRI 7W 2700K WN

Reference:

A3163210WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 2700K Z

Reference:

A3163210Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 3000K G

Reference:

A3163211G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 3000K N

Reference:

A3163211N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 3000K W

Reference:

A3163211W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L SUPERCRI 7W 3000K W

Reference:

A3163211W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM L SUPERCRI 7W 3000K WN

Reference:

A3163211WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 3000K Z

Reference:

A3163211Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 4000K G

Reference:

A3163212G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 4000K N

Reference:

A3163212N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 4000K W

Reference:

A3163212W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 ASYMM L SUPERCRI 7W 4000K W

Reference:

A3163212W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP ASYMM L SUPERCRI 7W 4000K WN

Reference:

A3163212WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W 4000K Z

Reference:

A3163212Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 2700K G

Reference:

A3163220G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 2700K N

Reference:

A3163220N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 2700K W

Reference:

A3163220W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM L SUPERCRI 7W DIM PH.CUT 2700K W

Reference:

A3163220W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 2700K WN

Reference:

A3163220WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 2700K Z

Reference:

A3163220Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 3000K G

Reference:

A3163221G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 3000K N

Reference:

A3163221N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 3000K W

Reference:

A3163221W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM L SUPERCRI 7W DIM PH.CUT 3000K W

Reference:

A3163221W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 3000K WN

Reference:

A3163221WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 3000K Z

Reference:

A3163221Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 4000K G

Reference:

A3163222G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 4000K N

Reference:

A3163222N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 4000K W

Reference:

A3163222W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 ASYMM L SUPERCRI 7W DIM PH.CUT 4000K W

Reference:

A3163222W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 4000K WN

Reference:

A3163222WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM PH.CUT 4000K Z

Reference:

A3163222Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 2700K G

Reference:

A3163230G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 2700K N

Reference:

A3163230N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 2700K W

Reference:

A3163230W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM L SUPERCRI 7W DIM DALI/PUSH 2700K

Reference:

A3163230W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 2700K WN

Reference:

A3163230WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 2700K Z

Reference:

A3163230Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 3000K G

Reference:

A3163231G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 3000K N

Reference:

A3163231N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 3000K W

Reference:

A3163231W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM L SUPERCRI 7W DIM DALI/PUSH 3000K

Reference:

A3163231W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 3000K WN

Reference:

A3163231WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 3000K Z

Reference:

A3163231Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 4000K G

Reference:

A3163232G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 4000K N

Reference:

A3163232N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 4000K W

Reference:

A3163232W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 ASYMM L SUPERCRI 7W DIM DALI/PUSH 4000K

Reference:

A3163232W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 4000K WN

Reference:

A3163232WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP ASYMM L SUPERCRI 7W DIM DALI/PUSH 4000K Z

Reference:

A3163232Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20

Accessories

IP65 ACCESSORY

ADD-ON BEZEL

Are you interested in this product? Contact us

URL

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

URL

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Swap

CEILING RECESSED

Awards

Red Dot Design Award 2015

German Design Award Nominee 2016

Swap L Asymmetric

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

Shot Light

Lex

Olympia

Deep

Related projects

Restaurante Caliza

B50 Residential villa

Projet MMR

Brassa de Mar

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
