Swap

CEILING RECESSED

Swap is a family of recessed LED spots that comes in 4 sizes (S, M, L, XL), two formats (round and square) and two light beam directions (symmetrical or asymmetrical). These features are embodied in 8 models and, through them, the Swap range offers a very extensive variety of colour options, luminous flux, colour temperatures, chromatic reproduction, sealing and dimming protocols. Minimalist design and easy fitting make it an unbeatable offer.

Awards

Red Dot Design Award 2015
German Design Award Nominee 2016

Swap S

Swap M

Swap L

Swap XL

Swap M Asymmetric

Swap L Asymmetric

Swap Square

Swap Square Asymmetric

Swap S RT

Swap M RT

Swap XL

Luminous flux

640 lm / 675 lm / 700 lm / 705 lm / 710 lm / 770 lm / 800 lm / 820 lm / 910 lm / 940 lm / 955 lm / 960 lm
Lighting efficiency

58% / 64% / 71% / 72% / 76% / 77% / 78% / 80% / 81% / 86%
Power

5 W / 6 W / 7 W
Dimming

No Dim, DALI / Push, Phase Cut
Color temperature

2700K / 3000K / 3500K / 4000K / Dim to warm 3000 - 1800K
Sealing

IP20 / IP65
Chromatic stability

MacAdam Step 2 / MacAdam Step 3
Recess measurements

Ø101mm
Light beam angle

43° / 46°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
SWAP XL 5W 2700K G

Reference:

A2124110G

Color:

Gold

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 2700K N

Reference:

A2124110N

Color:

Matt black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 2700K W

Reference:

A2124110W

Color:

Matt white

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL 5W 2700K W

Reference:

A2124110W65

Color:

Matt white

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP XL 5W 2700K WN

Reference:

A2124110WN

Color:

White-Black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 2700K Z

Reference:

A2124110Z

Color:

Aluminium

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20

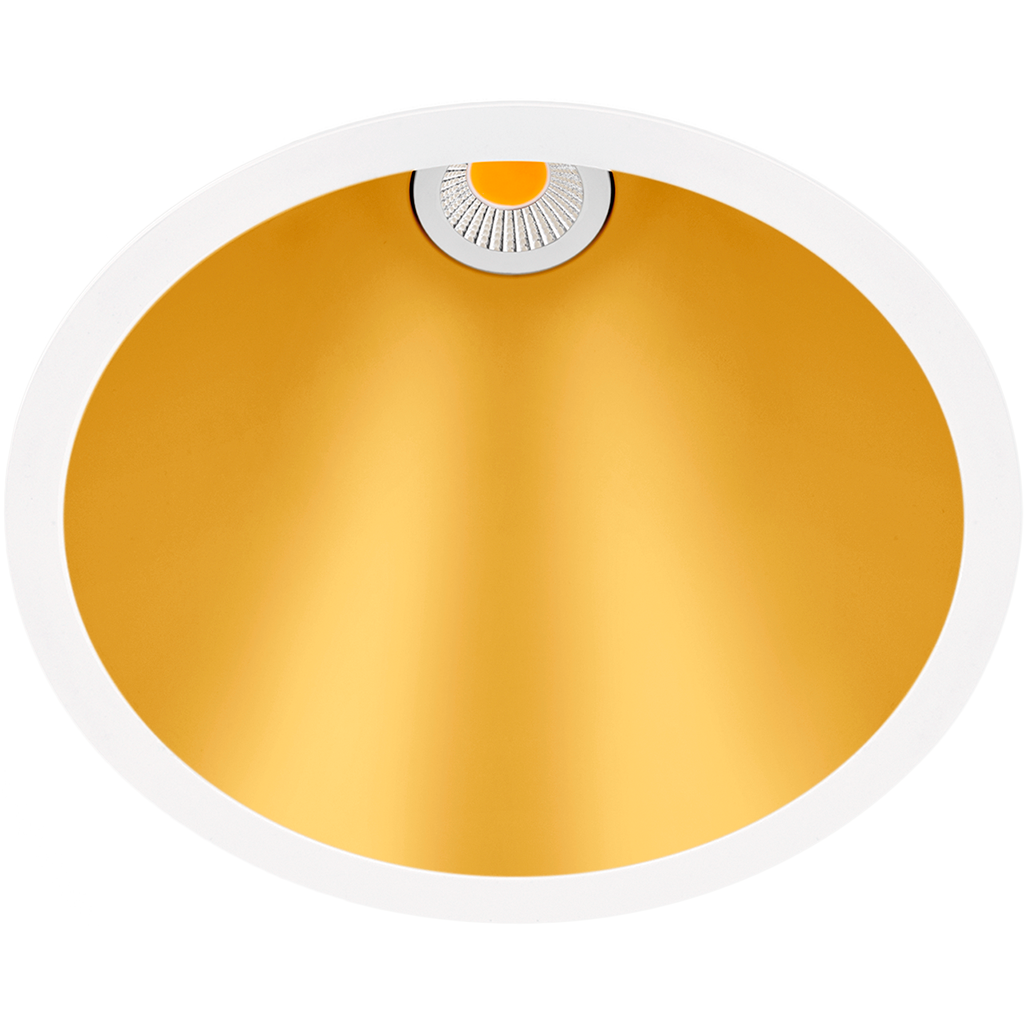

SWAP XL 5W 3000K G

Reference:

A2124111G

Color:

Gold

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20

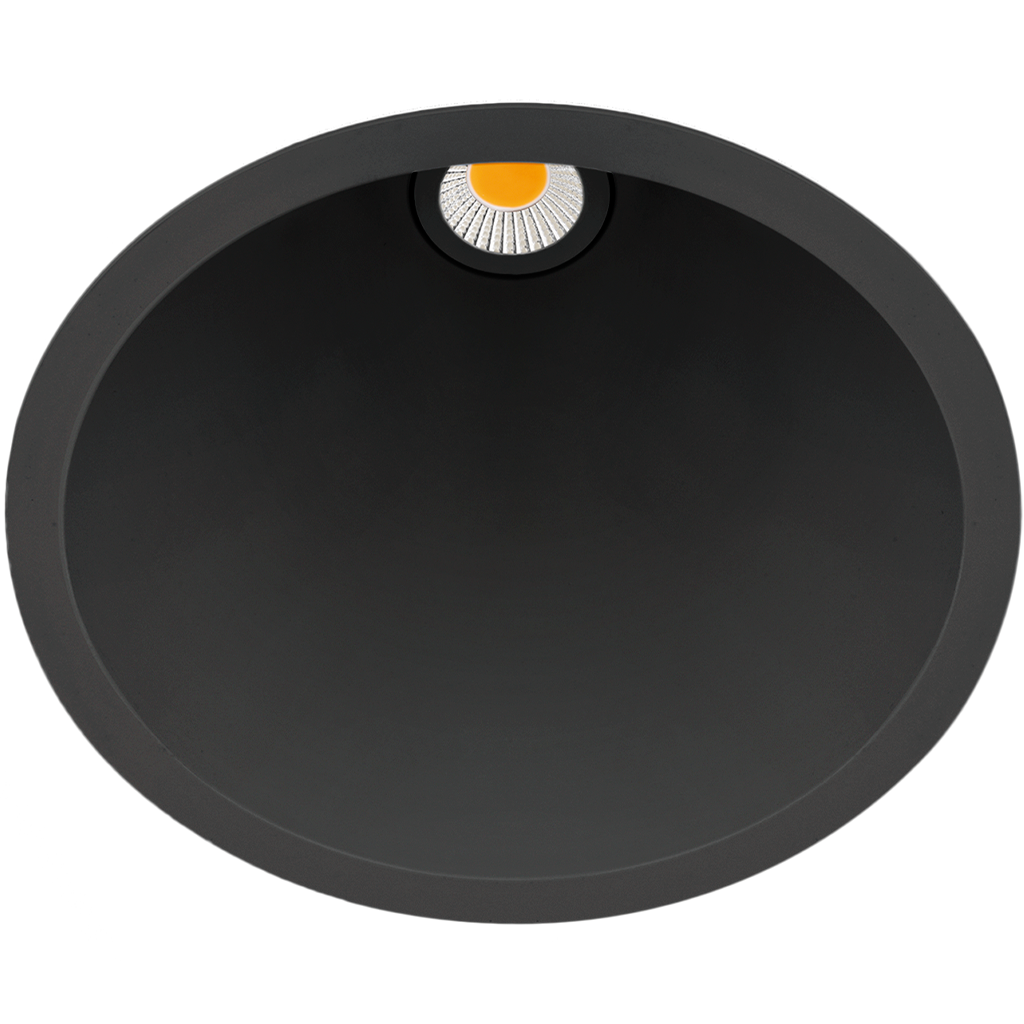

SWAP XL 5W 3000K N

Reference:

A2124111N

Color:

Matt black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20

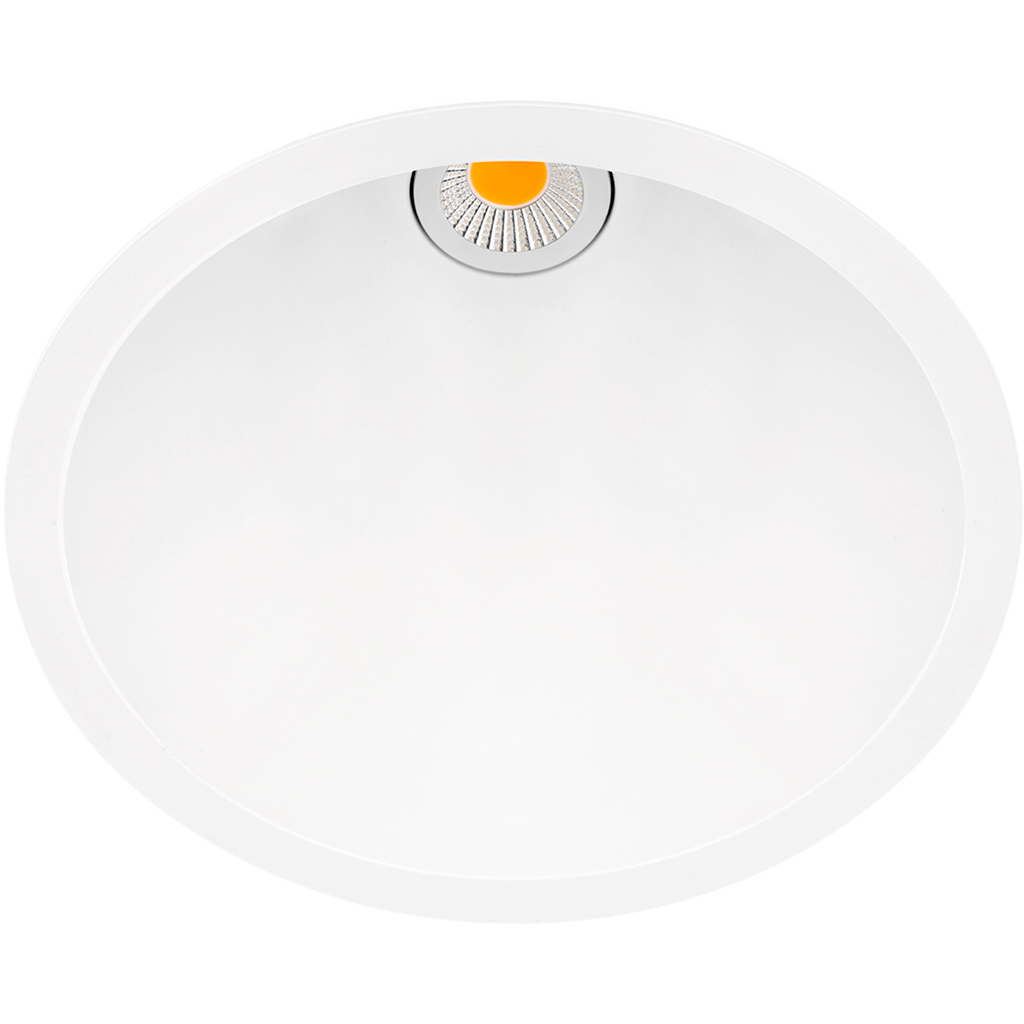

SWAP XL 5W 3000K W

Reference:

A2124111W

Color:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL 5W 3000K W

Reference:

A2124111W65

Color:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65

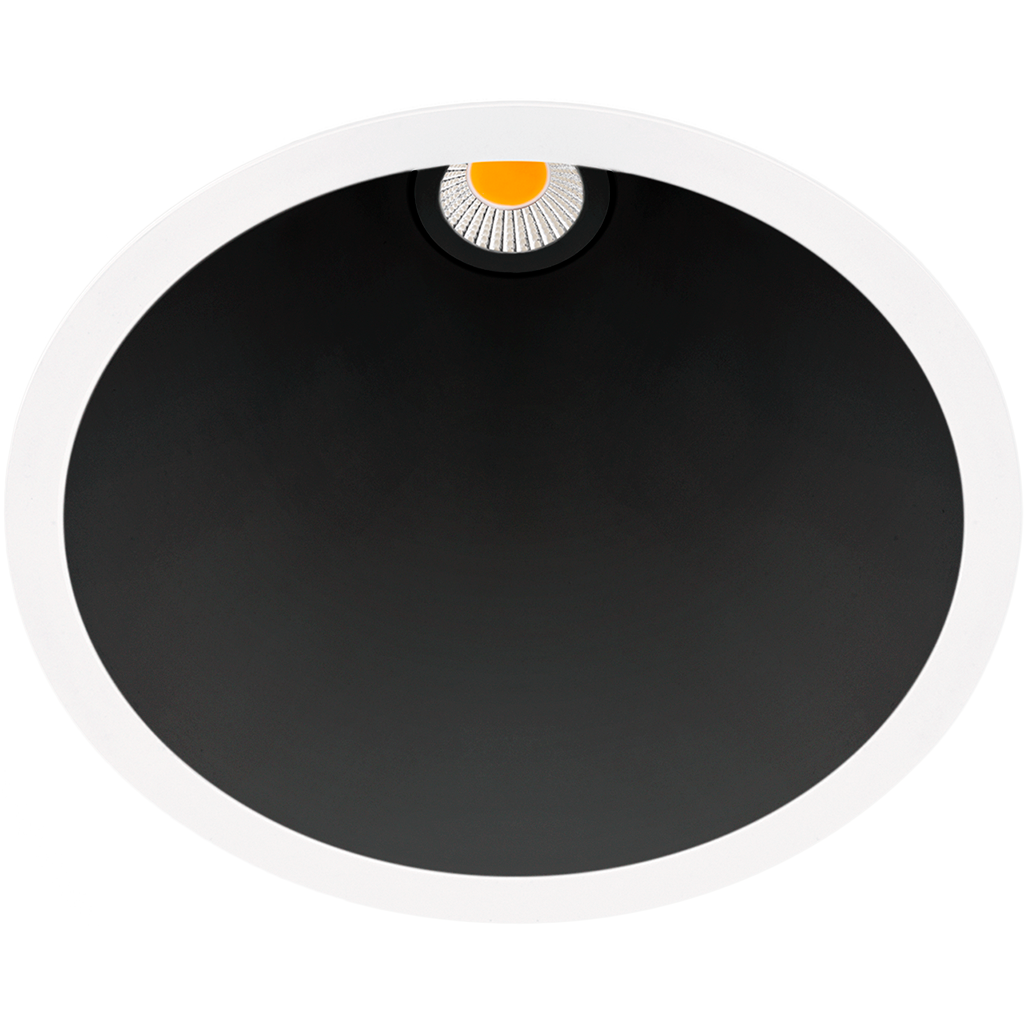

SWAP XL 5W 3000K WN

Reference:

A2124111WN

Color:

White-Black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20

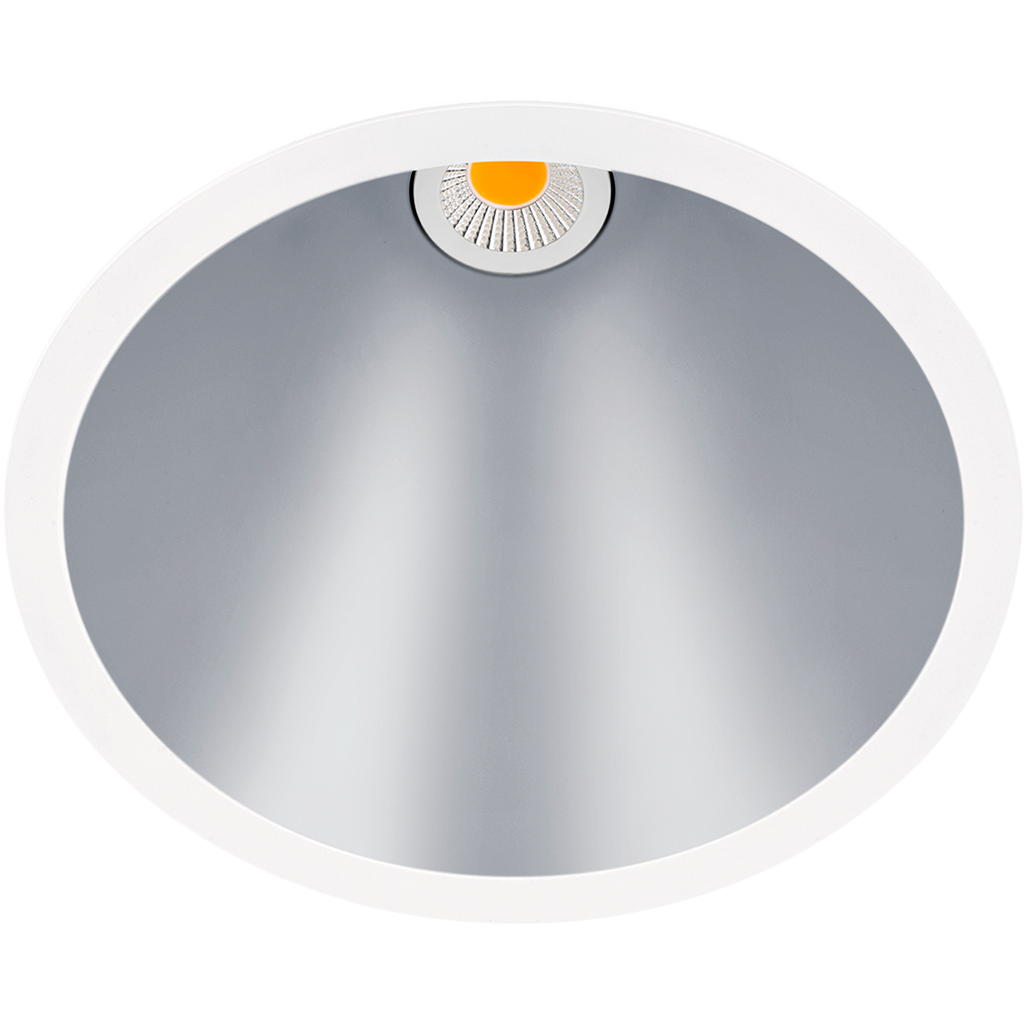

SWAP XL 5W 3000K Z

Reference:

A2124111Z

Color:

Aluminium

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 4000K G

Reference:

A2124112G

Color:

Gold

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 4000K N

Reference:

A2124112N

Color:

Matt black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 4000K W

Reference:

A2124112W

Color:

Matt white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL 5W 4000K W

Reference:

A2124112W65

Color:

Matt white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP XL 5W 4000K WN

Reference:

A2124112WN

Color:

White-Black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 4000K Z

Reference:

A2124112Z

Color:

Aluminium

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 3500K G

Reference:

A2124113G

Color:

Gold

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 3500K N

Reference:

A2124113N

Color:

Matt black

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 3500K W

Reference:

A2124113W

Color:

Matt white

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL 5W 3500K W

Reference:

A2124113W65

Color:

Matt white

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP XL 5W 3500K WN

Reference:

A2124113WN

Color:

White-Black

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 5W 3500K Z

Reference:

A2124113Z

Color:

Aluminium

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 2700K G

Reference:

A2124210G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 2700K N

Reference:

A2124210N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 2700K W

Reference:

A2124210W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL 7W 2700K W

Reference:

A2124210W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP XL 7W 2700K WN

Reference:

A2124210WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 2700K Z

Reference:

A2124210Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 3000K G

Reference:

A2124211G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 3000K N

Reference:

A2124211N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 3000K W

Reference:

A2124211W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL 7W 3000K W

Reference:

A2124211W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP XL 7W 3000K WN

Reference:

A2124211WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 3000K Z

Reference:

A2124211Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 4000K G

Reference:

A2124212G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 4000K N

Reference:

A2124212N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 4000K W

Reference:

A2124212W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL 7W 4000K W

Reference:

A2124212W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP XL 7W 4000K WN

Reference:

A2124212WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 4000K Z

Reference:

A2124212Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 3500K G

Reference:

A2124213G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 3500K N

Reference:

A2124213N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 3500K W

Reference:

A2124213W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL 7W 3500K W

Reference:

A2124213W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP XL 7W 3500K WN

Reference:

A2124213WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W 3500K Z

Reference:

A2124213Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 2700K G

Reference:

A2124220G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 2700K N

Reference:

A2124220N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 2700K W

Reference:

A2124220W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 XL 7W DIM PH.CUT 2700K W

Reference:

A2124220W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP XL 7W DIM PH.CUT 2700K WN

Reference:

A2124220WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 2700K Z

Reference:

A2124220Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 3000K G

Reference:

A2124221G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 3000K N

Reference:

A2124221N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 3000K W

Reference:

A2124221W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 XL 7W DIM PH.CUT 3000K W

Reference:

A2124221W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP XL 7W DIM PH.CUT 3000K WN

Reference:

A2124221WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 3000K Z

Reference:

A2124221Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 4000K G

Reference:

A2124222G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 4000K N

Reference:

A2124222N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 4000K W

Reference:

A2124222W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 XL 7W DIM PH.CUT 4000K W

Reference:

A2124222W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP XL 7W DIM PH.CUT 4000K WN

Reference:

A2124222WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 4000K Z

Reference:

A2124222Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 3500K G

Reference:

A2124223G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 3500K N

Reference:

A2124223N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 3500K W

Reference:

A2124223W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 XL 7W DIM PH.CUT 3500K W

Reference:

A2124223W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP XL 7W DIM PH.CUT 3500K WN

Reference:

A2124223WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM PH.CUT 3500K Z

Reference:

A2124223Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 2700K G

Reference:

A2124230G

Color:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 2700K N

Reference:

A2124230N

Color:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 2700K W

Reference:

A2124230W

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 XL 7W DIM DALI/PUSH 2700K W

Reference:

A2124230W65

Color:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP XL 7W DIM DALI/PUSH 2700K WN

Reference:

A2124230WN

Color:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 2700K Z

Reference:

A2124230Z

Color:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 3000K G

Reference:

A2124231G

Color:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 3000K N

Reference:

A2124231N

Color:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 3000K W

Reference:

A2124231W

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 XL 7W DIM DALI/PUSH 3000K W

Reference:

A2124231W65

Color:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP XL 7W DIM DALI/PUSH 3000K WN

Reference:

A2124231WN

Color:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 3000K Z

Reference:

A2124231Z

Color:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 4000K G

Reference:

A2124232G

Color:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 4000K N

Reference:

A2124232N

Color:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 4000K W

Reference:

A2124232W

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 XL 7W DIM DALI/PUSH 4000K W

Reference:

A2124232W65

Color:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP XL 7W DIM DALI/PUSH 4000K WN

Reference:

A2124232WN

Color:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 4000K Z

Reference:

A2124232Z

Color:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 3500K G

Reference:

A2124233G

Color:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 3500K N

Reference:

A2124233N

Color:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 3500K W

Reference:

A2124233W

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 XL 7W DIM DALI/PUSH 3500K W

Reference:

A2124233W65

Color:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP XL 7W DIM DALI/PUSH 3500K WN

Reference:

A2124233WN

Color:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 7W DIM DALI/PUSH 3500K Z

Reference:

A2124233Z

Color:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 6W PH.CUT DIM TO WARM G

Reference:

A2124329G

Color:

Gold

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 6W PH.CUT DIM TO WARM N

Reference:

A2124329N

Color:

Matt black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

58%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 6W PH.CUT DIM TO WARM W

Reference:

A2124329W

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 XL 6W PH.CUT DIM TO WARM W

Reference:

A2124329W65

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP65
SWAP XL 6W PH.CUT DIM TO WARM WN

Reference:

A2124329WN

Color:

White-Black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

58%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 6W PH.CUT DIM TO WARM Z

Reference:

A2124329Z

Color:

Aluminium

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

72%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL 6W DALI/PUSH DIM TO WARM G

Reference:

A2124339G

Color:

Gold

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

71%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 6W DALI/PUSH DIM TO WARM N

Reference:

A2124339N

Color:

Matt black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

58%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 6W DALI/PUSH DIM TO WARM W

Reference:

A2124339W

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 XL 6W DALI/PUSH DIM TO WARM W

Reference:

A2124339W65

Color:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

46°

Lighting efficiency:

76%

Dimming:

DALI / Push

Sealing:

IP65
SWAP XL 6W DALI/PUSH DIM TO WARM WN

Reference:

A2124339WN

Color:

White-Black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

58%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL 6W DALI/PUSH DIM TO WARM Z

Reference:

A2124339Z

Color:

Aluminium

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

43°

Lighting efficiency:

72%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W 2700K G

Reference:

A3124210G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 2700K N

Reference:

A3124210N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 2700K W

Reference:

A3124210W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL SUPERCRI 7W 2700K W

Reference:

A3124210W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP XL SUPERCRI 7W 2700K WN

Reference:

A3124210WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 2700K Z

Reference:

A3124210Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 3000K G

Reference:

A3124211G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 3000K N

Reference:

A3124211N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 3000K W

Reference:

A3124211W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL SUPERCRI 7W 3000K W

Reference:

A3124211W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP XL SUPERCRI 7W 3000K WN

Reference:

A3124211WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 3000K Z

Reference:

A3124211Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 4000K G

Reference:

A3124212G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 4000K N

Reference:

A3124212N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 4000K W

Reference:

A3124212W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 XL SUPERCRI 7W 4000K W

Reference:

A3124212W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP XL SUPERCRI 7W 4000K WN

Reference:

A3124212WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W 4000K Z

Reference:

A3124212Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 2700K G

Reference:

A3124220G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 2700K N

Reference:

A3124220N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 2700K W

Reference:

A3124220W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 XL SUPERCRI 7W DIM PH.CUT 2700K W

Reference:

A3124220W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP XL SUPERCRI 7W DIM PH.CUT 2700K WN

Reference:

A3124220WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 2700K Z

Reference:

A3124220Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 3000K G

Reference:

A3124221G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 3000K N

Reference:

A3124221N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 3000K W

Reference:

A3124221W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 XL SUPERCRI 7W DIM PH.CUT 3000K W

Reference:

A3124221W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP XL SUPERCRI 7W DIM PH.CUT 3000K WN

Reference:

A3124221WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 3000K Z

Reference:

A3124221Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 4000K G

Reference:

A3124222G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 4000K N

Reference:

A3124222N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 4000K W

Reference:

A3124222W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 XL SUPERCRI 7W DIM PH.CUT 4000K W

Reference:

A3124222W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP XL SUPERCRI 7W DIM PH.CUT 4000K WN

Reference:

A3124222WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM PH.CUT 4000K Z

Reference:

A3124222Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 2700K G

Reference:

A3124230G

Color:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 2700K N

Reference:

A3124230N

Color:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 2700K W

Reference:

A3124230W

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 XL SUPERCRI 7W DIM DALI/PUSH 2700K W

Reference:

A3124230W65

Color:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP XL SUPERCRI 7W DIM DALI/PUSH 2700K WN

Reference:

A3124230WN

Color:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 2700K Z

Reference:

A3124230Z

Color:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 3000K G

Reference:

A3124231G

Color:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 3000K N

Reference:

A3124231N

Color:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 3000K W

Reference:

A3124231W

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 XL SUPERCRI 7W DIM DALI/PUSH 3000K W

Reference:

A3124231W65

Color:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP XL SUPERCRI 7W DIM DALI/PUSH 3000K WN

Reference:

A3124231WN

Color:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 3000K Z

Reference:

A3124231Z

Color:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 4000K G

Reference:

A3124232G

Color:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 4000K N

Reference:

A3124232N

Color:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 4000K W

Reference:

A3124232W

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 XL SUPERCRI 7W DIM DALI/PUSH 4000K W

Reference:

A3124232W65

Color:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

46°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP XL SUPERCRI 7W DIM DALI/PUSH 4000K WN

Reference:

A3124232WN

Color:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP XL SUPERCRI 7W DIM DALI/PUSH 4000K Z

Reference:

A3124232Z

Color:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

43°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20

Accessories

IP65 ACCESSORY

ADD-ON BEZEL

FLAT SPRING ACCESSORY

Are you interested in this product? Contact us

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

URL

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Swap

CEILING RECESSED

Awards

Red Dot Design Award 2015

German Design Award Nominee 2016

Swap XL

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

Shot Light

Lex

Olympia

Deep

Related projects

Restaurante Caliza

B50 Residential villa

Projet MMR

Brassa de Mar

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
