Swap

CEILING RECESSED

Swap is a family of recessed LED spots that comes in 4 sizes (S, M, L, XL), two formats (round and square) and two light beam directions (symmetrical or asymmetrical). These features are embodied in 8 models and, through them, the Swap range offers a very extensive variety of colour options, luminous flux, colour temperatures, chromatic reproduction, sealing and dimming protocols. Minimalist design and easy fitting make it an unbeatable offer.

Awards

Red Dot Design Award 2015
German Design Award Nominee 2016

Swap S

Swap M

Swap L

Swap XL

Swap M Asymmetric

Swap L Asymmetric

Swap Square

Swap Square Asymmetric

Swap S RT

Swap M RT

Swap L

Luminous flux

640 lm / 675 lm / 700 lm / 705 lm / 710 lm / 770 lm / 800 lm / 820 lm / 910 lm / 940 lm / 955 lm / 960 lm
Lighting efficiency

58% / 64% / 71% / 72% / 76% / 77% / 78% / 80% / 81% / 86%
Power

5 W / 6 W / 7 W
Dimming

No Dim, DALI / Push, Phase Cut
Colour temperature

2700K / 3000K / 3500K / 4000K / Dim to warm 3000 - 1800K
Sealing

IP20 / IP65
Chromatic stability

MacAdam Step 2 / MacAdam Step 3
Recess measurements

Ø85mm
Light beam angle

40° / 44°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
SWAP L 5W 2700K G

Reference:

A2123110G

Colour:

Gold

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 2700K N

Reference:

A2123110N

Colour:

Matt black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20

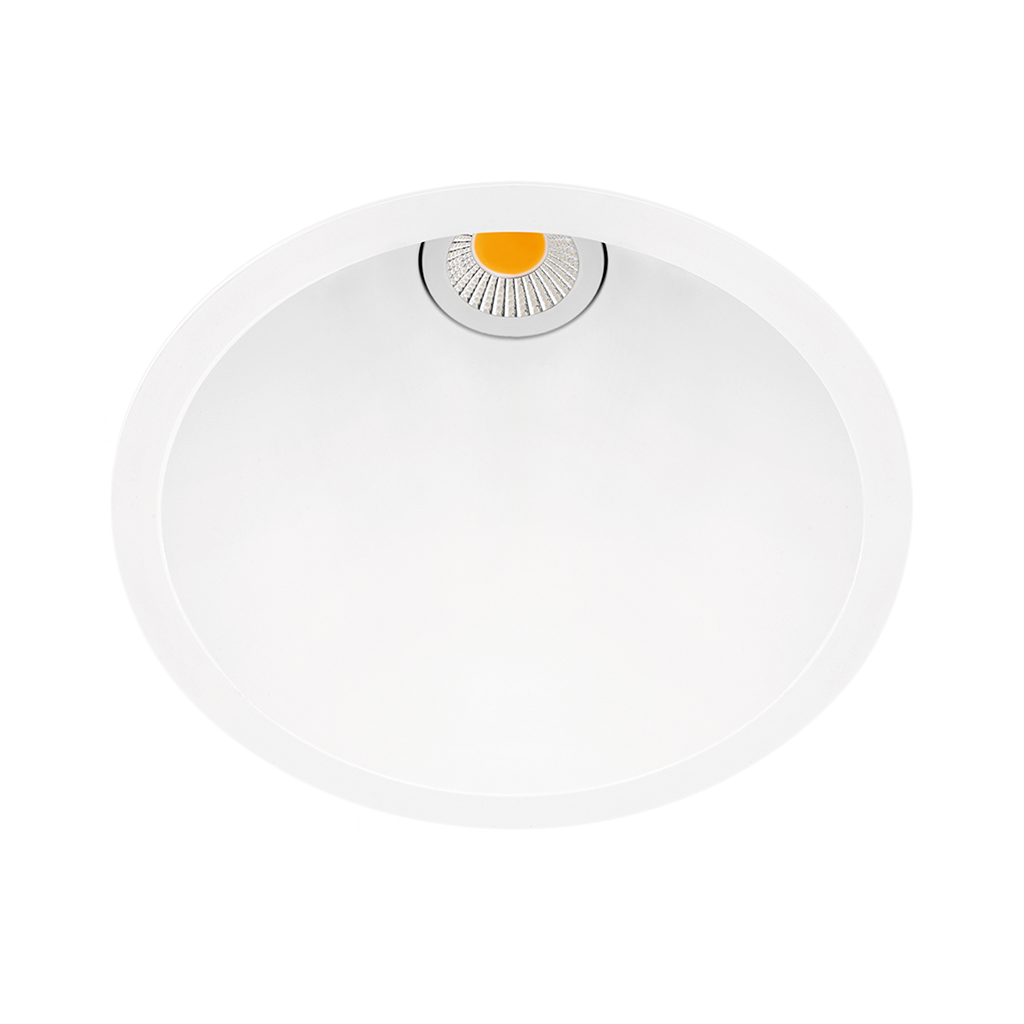

SWAP L 5W 2700K W

Reference:

A2123110W

Colour:

Matt white

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L 5W 2700K W

Reference:

A2123110W65

Colour:

Matt white

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65

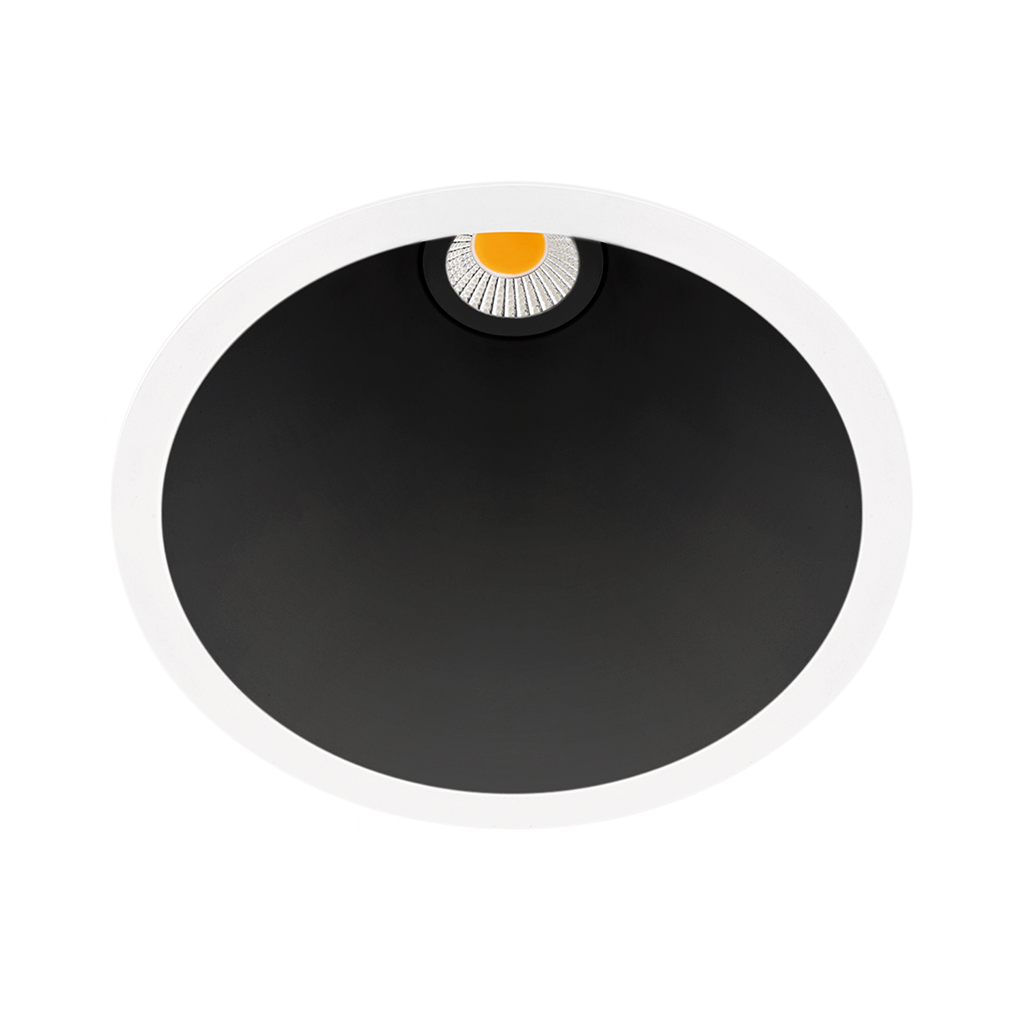

SWAP L 5W 2700K WN

Reference:

A2123110WN

Colour:

White-Black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 2700K Z

Reference:

A2123110Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20

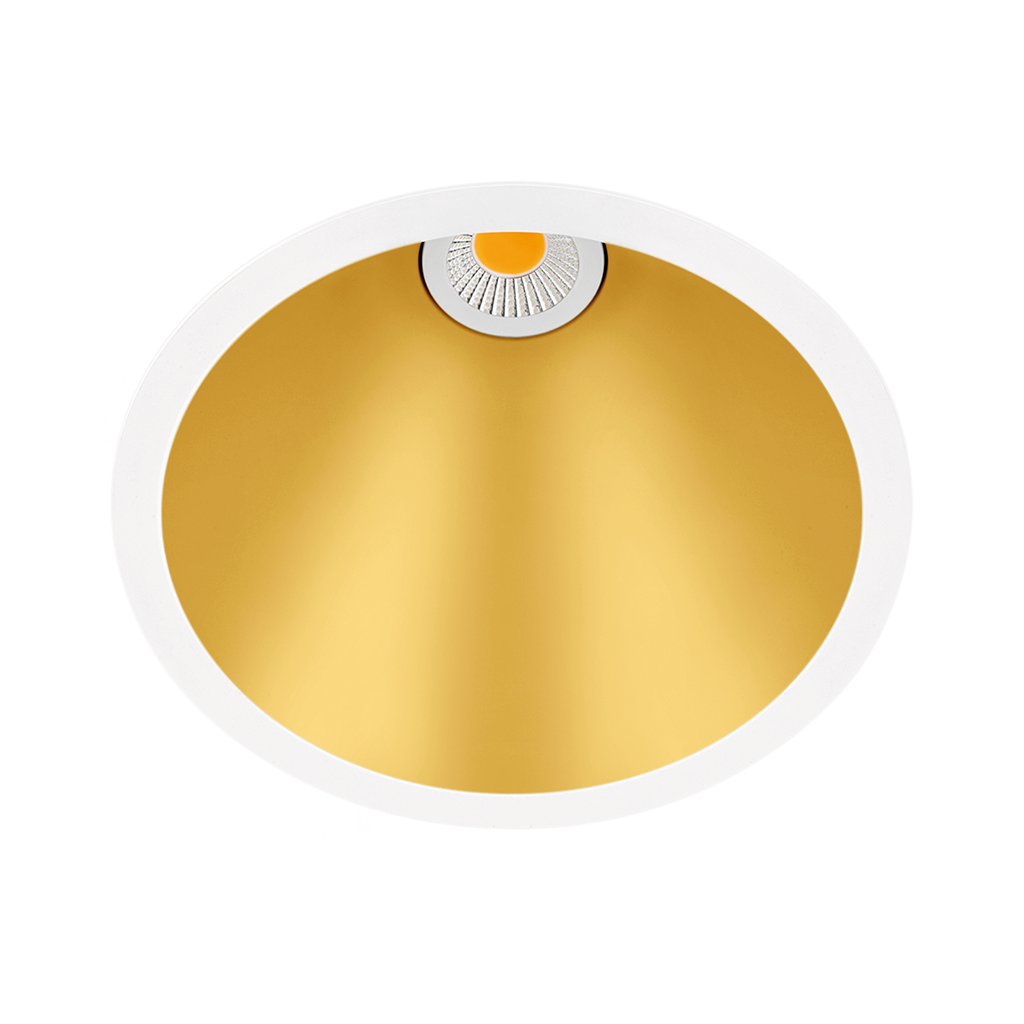

SWAP L 5W 3000K G

Reference:

A2123111G

Colour:

Gold

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20

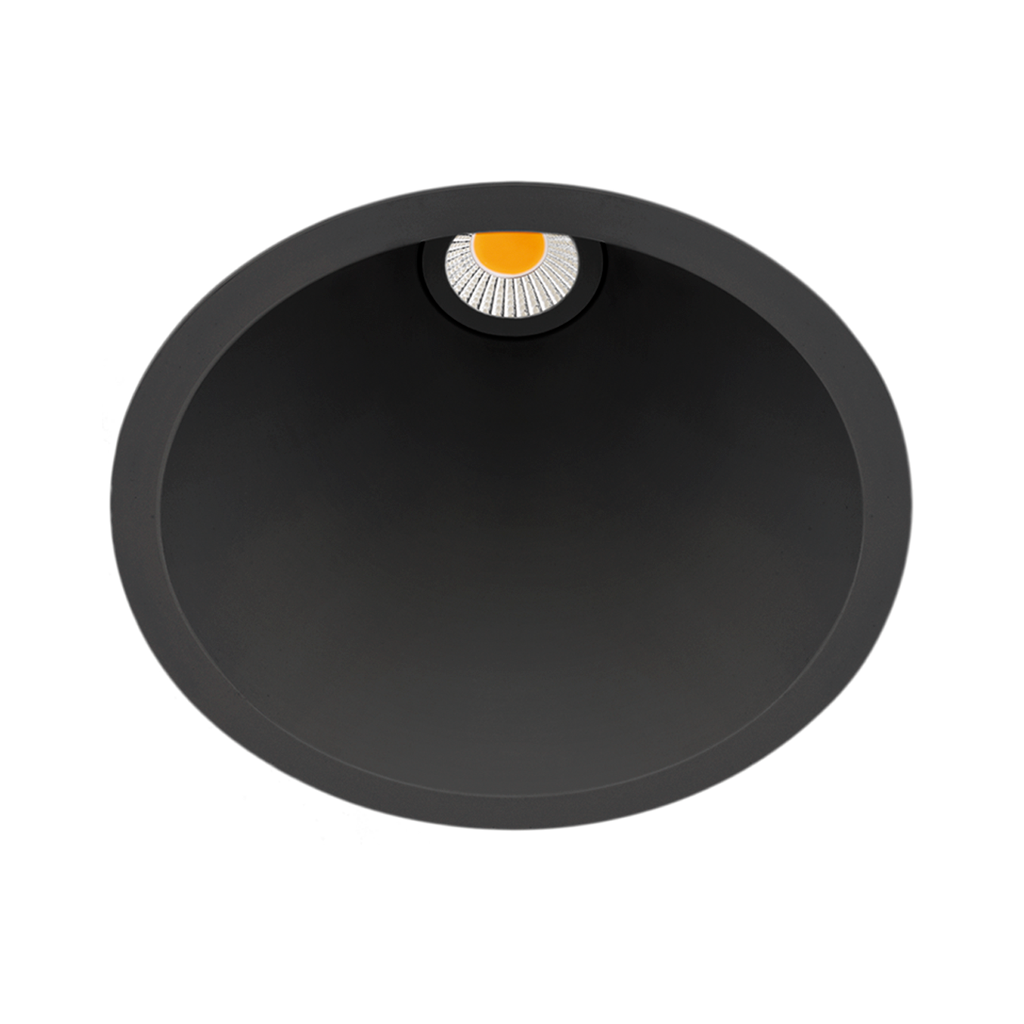

SWAP L 5W 3000K N

Reference:

A2123111N

Colour:

Matt black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 3000K W

Reference:

A2123111W

Colour:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L 5W 3000K W

Reference:

A2123111W65

Colour:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP L 5W 3000K WN

Reference:

A2123111WN

Colour:

White-Black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20

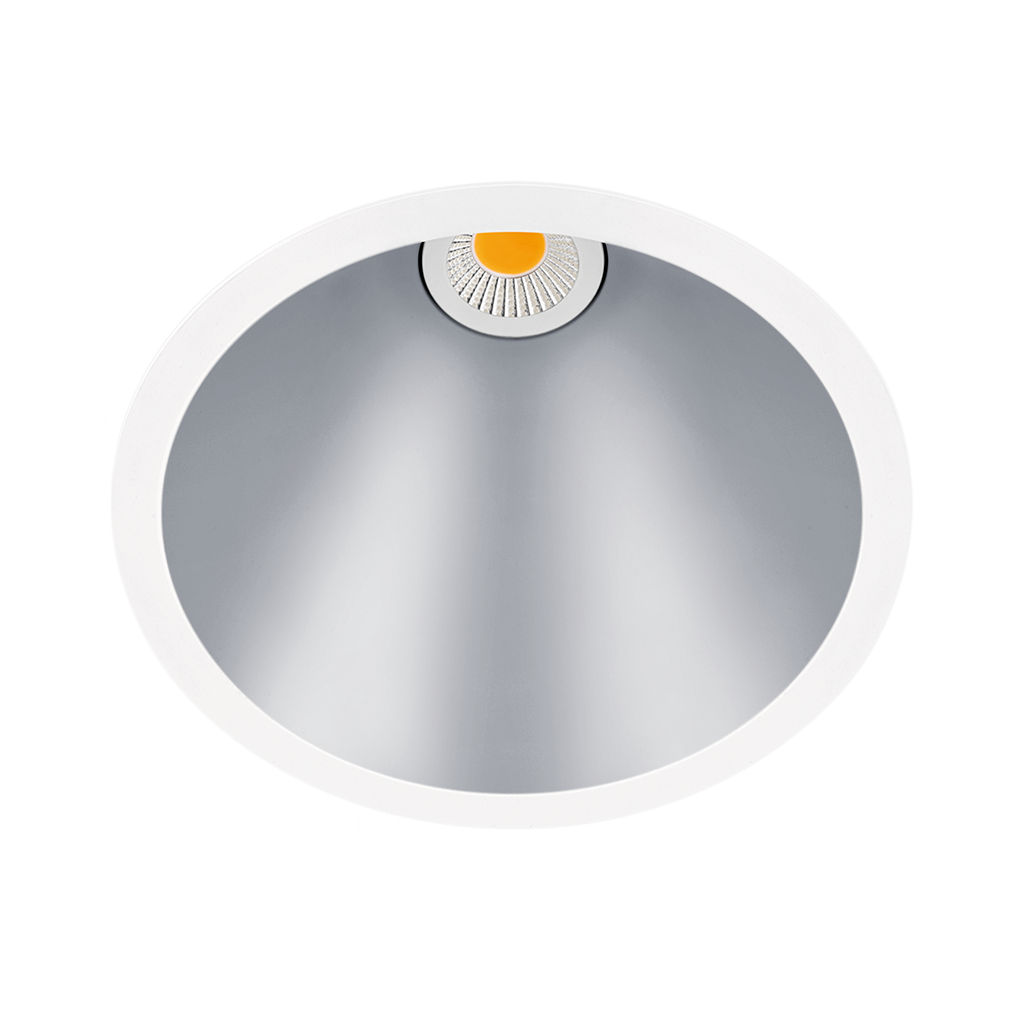

SWAP L 5W 3000K Z

Reference:

A2123111Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 3500K G

Reference:

A2123113G

Colour:

Gold

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 3500K N

Reference:

A2123113N

Colour:

Matt black

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 3500K W

Reference:

A2123113W

Colour:

Matt white

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L 5W 3500K W

Reference:

A2123113W65

Colour:

Matt white

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP L 5W 3500K WN

Reference:

A2123113WN

Colour:

White-Black

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 3500K Z

Reference:

A2123113Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

705 lm

Power:

5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 4000K G

Reference:

A2123112G

Colour:

Gold

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 4000K N

Reference:

A2123112N

Colour:

Matt black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 4000K W

Reference:

A2123112W

Colour:

Matt white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L 5W 4000K W

Reference:

A2123112W65

Colour:

Matt white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP L 5W 4000K WN

Reference:

A2123112WN

Colour:

White-Black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 5W 4000K Z

Reference:

A2123112Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 2700K G

Reference:

A2123210G

Colour:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 2700K N

Reference:

A2123210N

Colour:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 2700K W

Reference:

A2123210W

Colour:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L 7W 2700K W

Reference:

A2123210W65

Colour:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP L 7W 2700K WN

Reference:

A2123210WN

Colour:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 2700K Z

Reference:

A2123210Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 3000K G

Reference:

A2123211G

Colour:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 3000K N

Reference:

A2123211N

Colour:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 3000K W

Reference:

A2123211W

Colour:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L 7W 3000K W

Reference:

A2123211W65

Colour:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP L 7W 3000K WN

Reference:

A2123211WN

Colour:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 3000K Z

Reference:

A2123211Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 3500K G

Reference:

A2123213G

Colour:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 3500K N

Reference:

A2123213N

Colour:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 3500K W

Reference:

A2123213W

Colour:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L 7W 3500K W

Reference:

A2123213W65

Colour:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP L 7W 3500K WN

Reference:

A2123213WN

Colour:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 3500K Z

Reference:

A2123213Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 4000K G

Reference:

A2123212G

Colour:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 4000K N

Reference:

A2123212N

Colour:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 4000K W

Reference:

A2123212W

Colour:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L 7W 4000K W

Reference:

A2123212W65

Colour:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP L 7W 4000K WN

Reference:

A2123212WN

Colour:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W 4000K Z

Reference:

A2123212Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP L 7W DIM PH.CUT 2700K G

Reference:

A2123220G

Colour:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 2700K N

Reference:

A2123220N

Colour:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 2700K W

Reference:

A2123220W

Colour:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 L 7W DIM PH.CUT 2700K W

Reference:

A2123220W65

Colour:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP L 7W DIM PH.CUT 2700K WN

Reference:

A2123220WN

Colour:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 2700K Z

Reference:

A2123220Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 3000K G

Reference:

A2123221G

Colour:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 3000K N

Reference:

A2123221N

Colour:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 3000K W

Reference:

A2123221W

Colour:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 L 7W DIM PH.CUT 3000K W

Reference:

A2123221W65

Colour:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP L 7W DIM PH.CUT 3000K WN

Reference:

A2123221WN

Colour:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 3000K Z

Reference:

A2123221Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 3500K G

Reference:

A2123223G

Colour:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 3500K N

Reference:

A2123223N

Colour:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 3500K W

Reference:

A2123223W

Colour:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 L 7W DIM PH.CUT 3500K W

Reference:

A2123223W65

Colour:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP L 7W DIM PH.CUT 3500K WN

Reference:

A2123223WN

Colour:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 3500K Z

Reference:

A2123223Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 4000K G

Reference:

A2123222G

Colour:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 4000K N

Reference:

A2123222N

Colour:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 4000K W

Reference:

A2123222W

Colour:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 L 7W DIM PH.CUT 4000K W

Reference:

A2123222W65

Colour:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP L 7W DIM PH.CUT 4000K WN

Reference:

A2123222WN

Colour:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM PH.CUT 4000K Z

Reference:

A2123222Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 2700K G

Reference:

A2123230G

Colour:

Gold

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 2700K N

Reference:

A2123230N

Colour:

Matt black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 2700K W

Reference:

A2123230W

Colour:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 L 7W DIM DALI/PUSH 2700K W

Reference:

A2123230W65

Colour:

Matt white

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP L 7W DIM DALI/PUSH 2700K WN

Reference:

A2123230WN

Colour:

White-Black

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 2700K Z

Reference:

A2123230Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

910 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 3000K G

Reference:

A2123231G

Colour:

Gold

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 3000K N

Reference:

A2123231N

Colour:

Matt black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 3000K W

Reference:

A2123231W

Colour:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 L 7W DIM DALI/PUSH 3000K W

Reference:

A2123231W65

Colour:

Matt white

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP L 7W DIM DALI/PUSH 3000K WN

Reference:

A2123231WN

Colour:

White-Black

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 3000K Z

Reference:

A2123231Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

940 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 3500K G

Reference:

A2123233G

Colour:

Gold

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 3500K N

Reference:

A2123233N

Colour:

Matt black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 3500K W

Reference:

A2123233W

Colour:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 L 7W DIM DALI/PUSH 3500K W

Reference:

A2123233W65

Colour:

Matt white

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP L 7W DIM DALI/PUSH 3500K WN

Reference:

A2123233WN

Colour:

White-Black

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 3500K Z

Reference:

A2123233Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

955 lm

Power:

7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 4000K G

Reference:

A2123232G

Colour:

Gold

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 4000K N

Reference:

A2123232N

Colour:

Matt black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 4000K W

Reference:

A2123232W

Colour:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 L 7W DIM DALI/PUSH 4000K W

Reference:

A2123232W65

Colour:

Matt white

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP L 7W DIM DALI/PUSH 4000K WN

Reference:

A2123232WN

Colour:

White-Black

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 7W DIM DALI/PUSH 4000K Z

Reference:

A2123232Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

960 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 6W PH.CUT DIM TO WARM G

Reference:

A2123329G

Colour:

Gold

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 6W PH.CUT DIM TO WARM N

Reference:

A2123329N

Colour:

Matt black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

58%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 6W PH.CUT DIM TO WARM W

Reference:

A2123329W

Colour:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 L 6W PH.CUT DIM TO WARM W

Reference:

A2123329W65

Colour:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP65
SWAP L 6W PH.CUT DIM TO WARM WN

Reference:

A2123329WN

Colour:

White-Black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

58%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 6W PH.CUT DIM TO WARM Z

Reference:

A2123329Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

72%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L 6W DALI/PUSH DIM TO WARM G

Reference:

A2123339G

Colour:

Gold

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

71%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 6W DALI/PUSH DIM TO WARM N

Reference:

A2123339N

Colour:

Matt black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

58%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 6W DALI/PUSH DIM TO WARM W

Reference:

A2123339W

Colour:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 L 6W DALI/PUSH DIM TO WARM W

Reference:

A2123339W65

Colour:

Matt white

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

76%

Dimming:

DALI / Push

Sealing:

IP65
SWAP L 6W DALI/PUSH DIM TO WARM WN

Reference:

A2123339WN

Colour:

White-Black

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

58%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L 6W DALI/PUSH DIM TO WARM Z

Reference:

A2123339Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

640 lm

Power:

6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

72%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W 2700K G

Reference:

A3123210G

Colour:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 2700K N

Reference:

A3123210N

Colour:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 2700K W

Reference:

A3123210W

Colour:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L SUPERCRI 7W 2700K W

Reference:

A3123210W65

Colour:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP L SUPERCRI 7W 2700K WN

Reference:

A3123210WN

Colour:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 2700K Z

Reference:

A3123210Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 3000K G

Reference:

A3123211G

Colour:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 3000K N

Reference:

A3123211N

Colour:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 3000K W

Reference:

A3123211W

Colour:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L SUPERCRI 7W 3000K W

Reference:

A3123211W65

Colour:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP L SUPERCRI 7W 3000K WN

Reference:

A3123211WN

Colour:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 3000K Z

Reference:

A3123211Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 4000K G

Reference:

A3123212G

Colour:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 4000K N

Reference:

A3123212N

Colour:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 4000K W

Reference:

A3123212W

Colour:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SWAP IP65 L SUPERCRI 7W 4000K W

Reference:

A3123212W65

Colour:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

No Dim

Sealing:

IP65
SWAP L SUPERCRI 7W 4000K WN

Reference:

A3123212WN

Colour:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W 4000K Z

Reference:

A3123212Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 2700K G

Reference:

A3123220G

Colour:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 2700K N

Reference:

A3123220N

Colour:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 2700K W

Reference:

A3123220W

Colour:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 L SUPERCRI 7W DIM PH.CUT 2700K W

Reference:

A3123220W65

Colour:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP L SUPERCRI 7W DIM PH.CUT 2700K WN

Reference:

A3123220WN

Colour:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 2700K Z

Reference:

A3123220Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 3000K G

Reference:

A3123221G

Colour:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 3000K N

Reference:

A3123221N

Colour:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 3000K W

Reference:

A3123221W

Colour:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 L SUPERCRI 7W DIM PH.CUT 3000K W

Reference:

A3123221W65

Colour:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP L SUPERCRI 7W DIM PH.CUT 3000K WN

Reference:

A3123221WN

Colour:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 3000K Z

Reference:

A3123221Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 4000K G

Reference:

A3123222G

Colour:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 4000K N

Reference:

A3123222N

Colour:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 4000K W

Reference:

A3123222W

Colour:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SWAP IP65 L SUPERCRI 7W DIM PH.CUT 4000K W

Reference:

A3123222W65

Colour:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

Phase Cut

Sealing:

IP65
SWAP L SUPERCRI 7W DIM PH.CUT 4000K WN

Reference:

A3123222WN

Colour:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM PH.CUT 4000K Z

Reference:

A3123222Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 2700K G

Reference:

A3123230G

Colour:

Gold

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 2700K N

Reference:

A3123230N

Colour:

Matt black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 2700K W

Reference:

A3123230W

Colour:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 L SUPERCRI 7W DIM DALI/PUSH 2700K W

Reference:

A3123230W65

Colour:

Matt white

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP L SUPERCRI 7W DIM DALI/PUSH 2700K WN

Reference:

A3123230WN

Colour:

White-Black

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 2700K Z

Reference:

A3123230Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

770 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 3000K G

Reference:

A3123231G

Colour:

Gold

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 3000K N

Reference:

A3123231N

Colour:

Matt black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 3000K W

Reference:

A3123231W

Colour:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 L SUPERCRI 7W DIM DALI/PUSH 3000K W

Reference:

A3123231W65

Colour:

Matt white

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP L SUPERCRI 7W DIM DALI/PUSH 3000K WN

Reference:

A3123231WN

Colour:

White-Black

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 3000K Z

Reference:

A3123231Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

800 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 4000K G

Reference:

A3123232G

Colour:

Gold

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

77%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 4000K N

Reference:

A3123232N

Colour:

Matt black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 4000K W

Reference:

A3123232W

Colour:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SWAP IP65 L SUPERCRI 7W DIM DALI/PUSH 4000K W

Reference:

A3123232W65

Colour:

Matt white

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

44°

Lighting efficiency:

81%

Dimming:

DALI / Push

Sealing:

IP65
SWAP L SUPERCRI 7W DIM DALI/PUSH 4000K WN

Reference:

A3123232WN

Colour:

White-Black

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

64%

Dimming:

DALI / Push

Sealing:

IP20
SWAP L SUPERCRI 7W DIM DALI/PUSH 4000K Z

Reference:

A3123232Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

820 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>97

Light beam angle:

40°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20

Accessories

IP65 ACCESSORY

ADD-ON BEZEL

FLAT SPRING ACCESSORY

Are you interested in this product? Contact us

Comments

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Swap

CEILING RECESSED

Awards

Red Dot Design Award 2015

German Design Award Nominee 2016

Swap L

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Accessories

Are you interested in this product? Contact us

Related products

Shot Light

Lex

Olympia

Deep

Related projects

Casa Velázquez

Restaurante Caliza

B50 Residential villa

Projet MMR

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
