Hubble

CEILING RECESSED

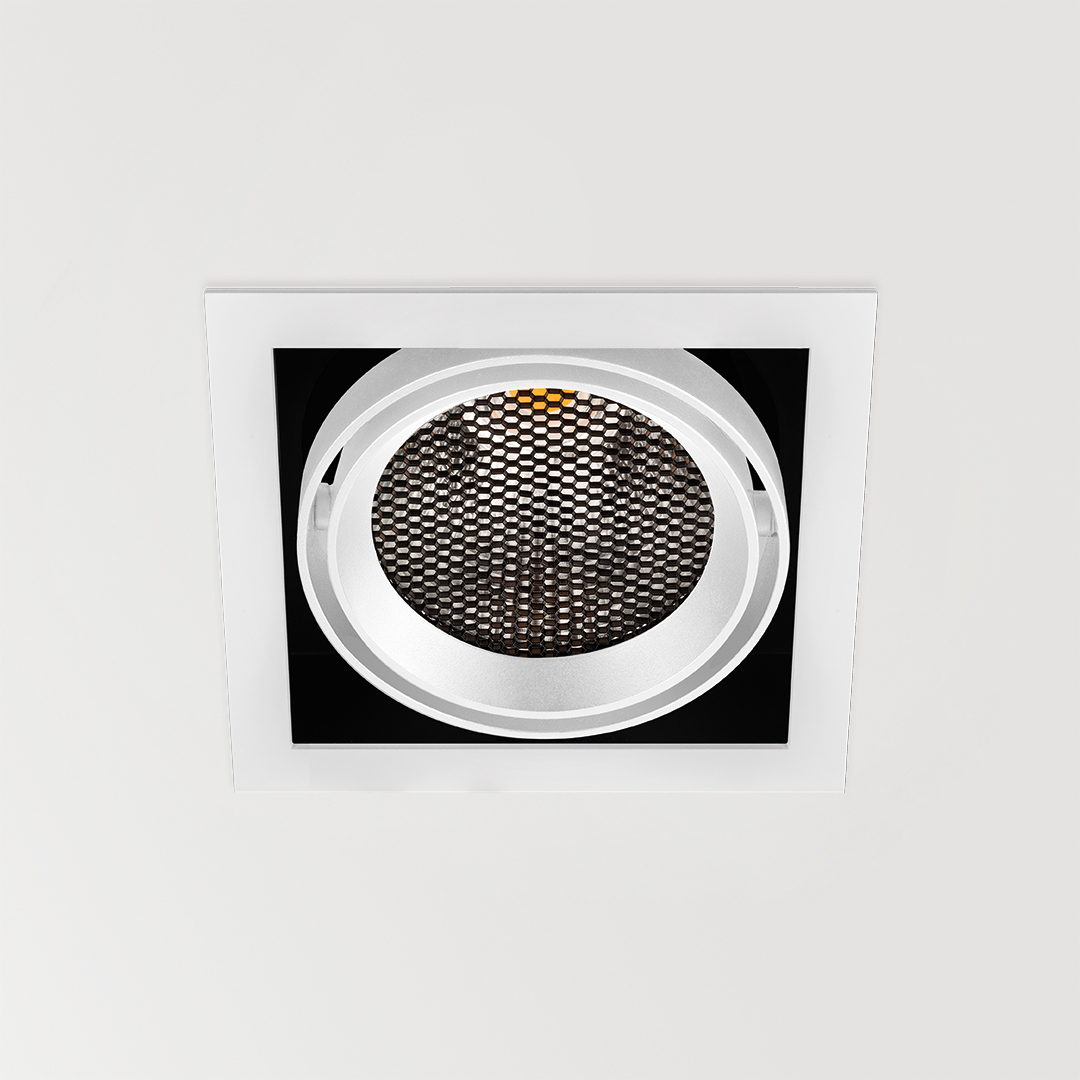

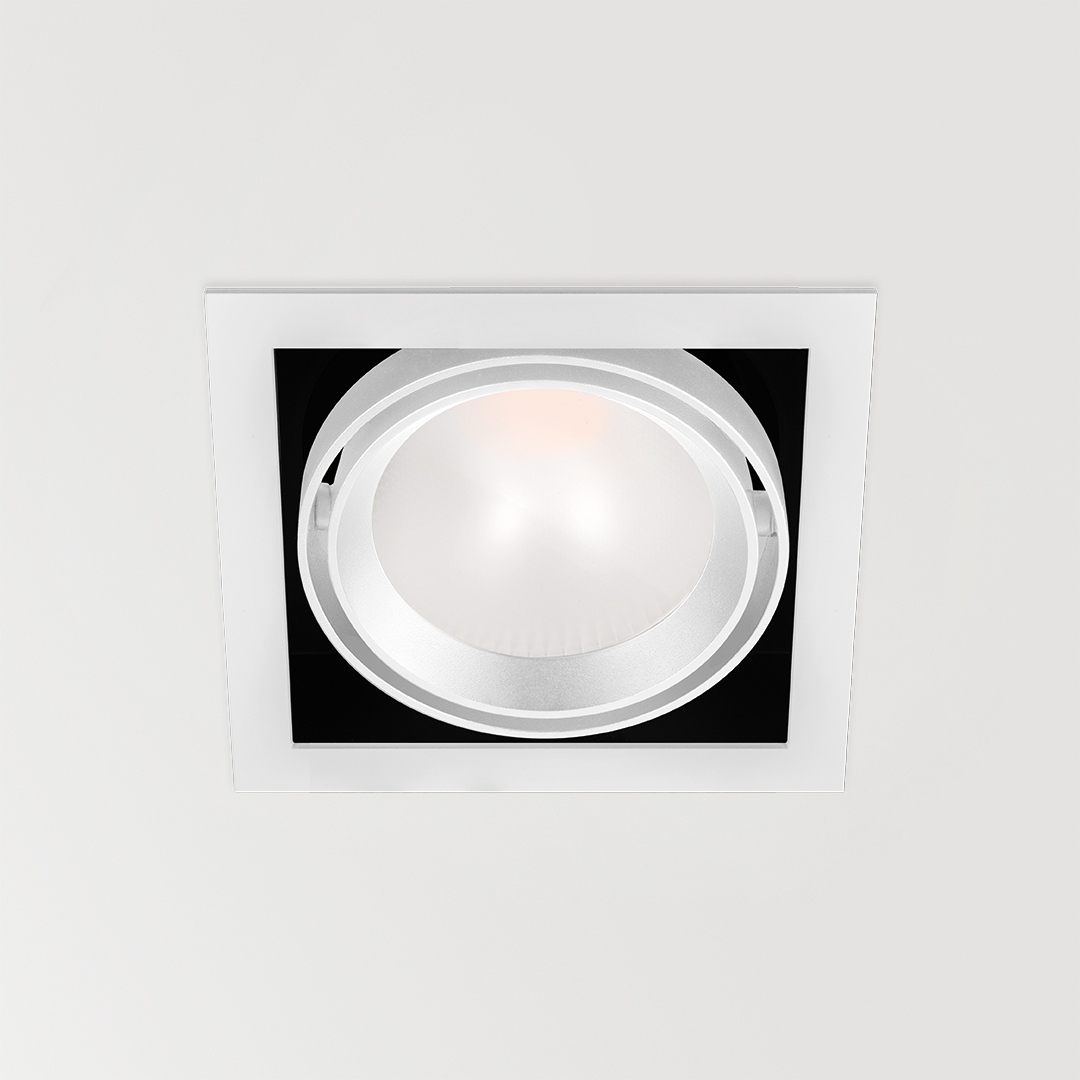

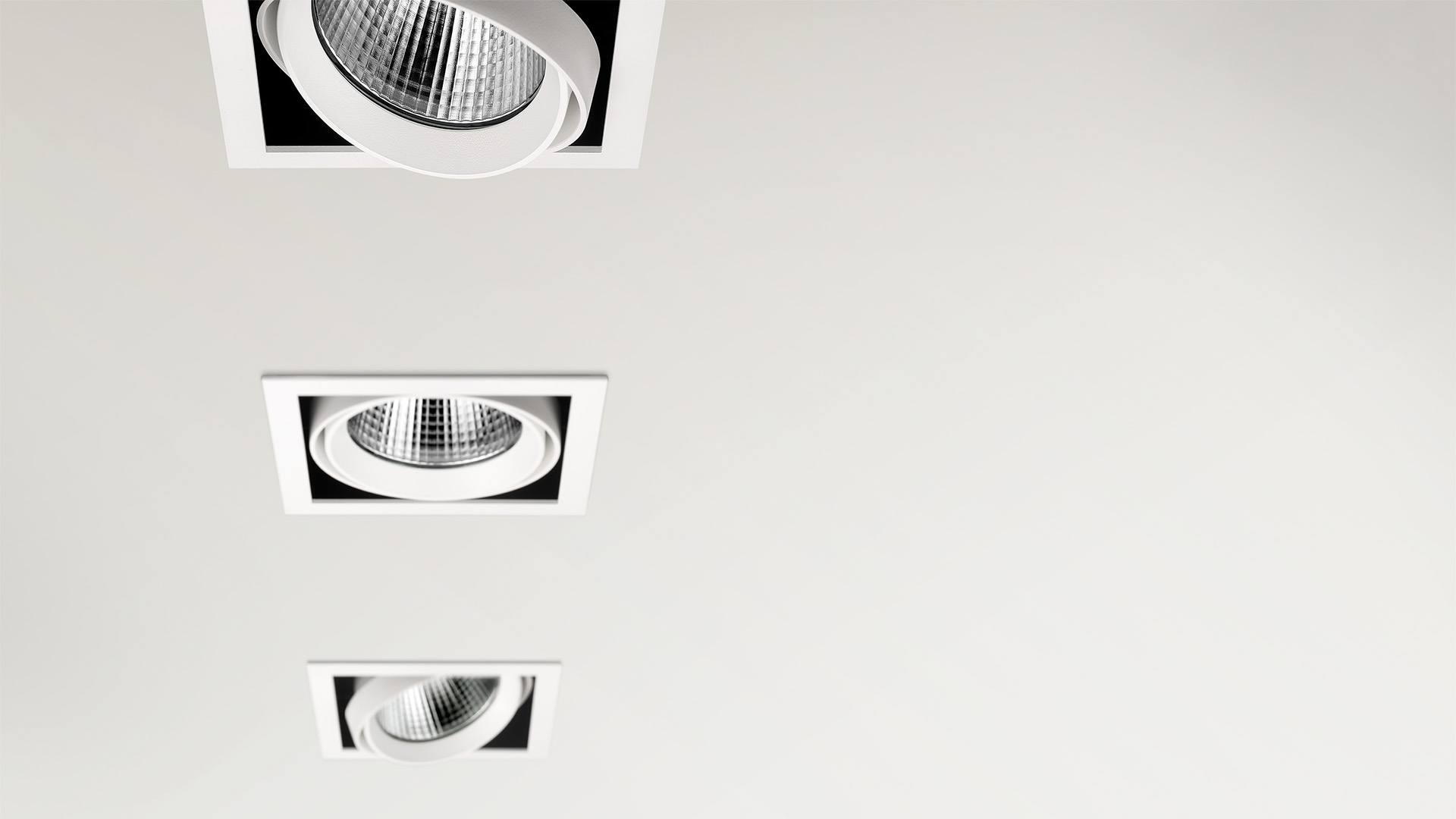

Hubble is a recess-mounted LED with cardan joint type pivot, offering extremely outstanding lumen packages for spaces that require a large amount of light and spotlight type lighting. The capacity of Hubble to be directed without standing out from the ceiling, and its small size related to its lumens, help prevent the luminaire from generating an invasive presence in the area.

Hubble

Hubble Double

Hubble

Luminous flux

2450 lm / 2475 lm / 4050 lm / 4120 lm / 5000 lm / 5100 lm
Lighting efficiency

90%
Power

16,5 W / 30,5 W / 41 W
Dimming

No Dim, DALI, Push
Colour temperature

3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Recess measurements

170 x 170mm
Light beam angle

17° / 28° / 40°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

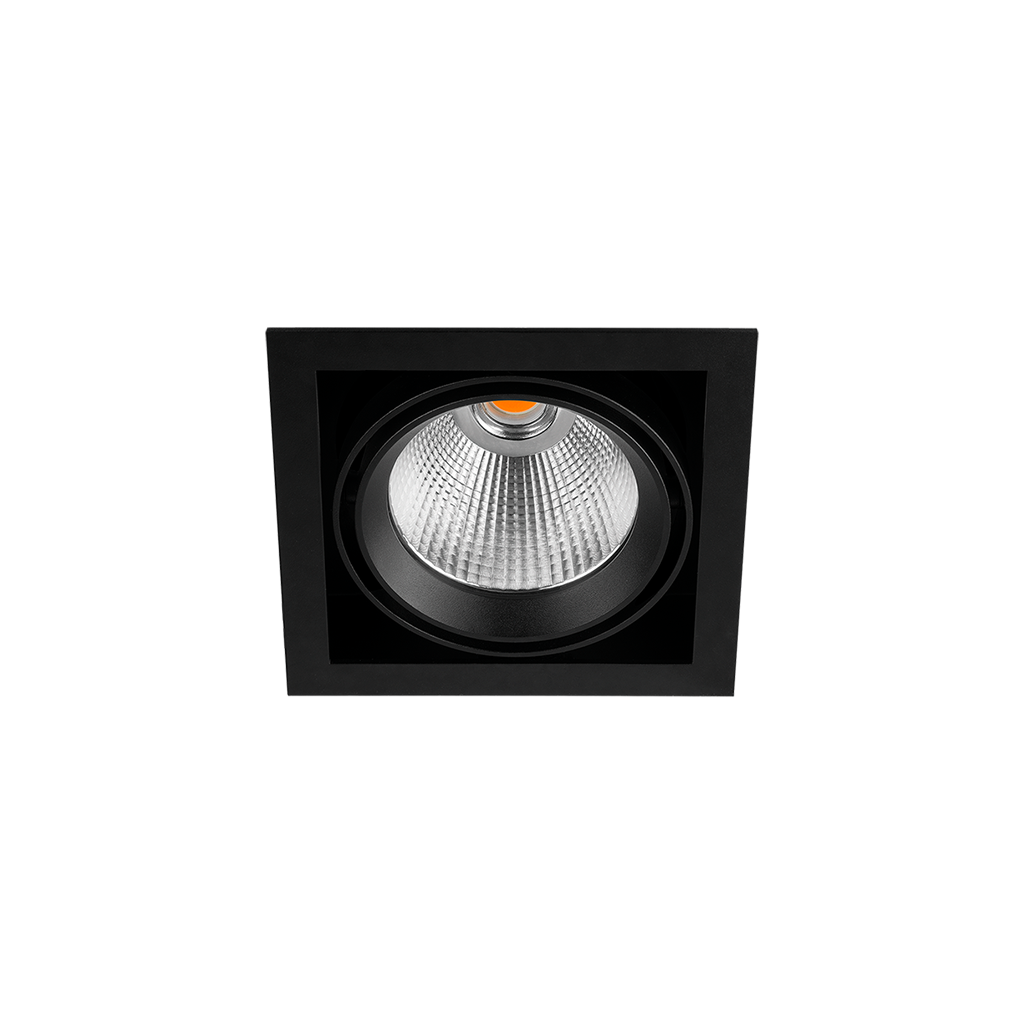

HUBBLE 1 SPOT 17º 3000K NT

Reference:

A2761111NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2450 lm

Power:

16,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20

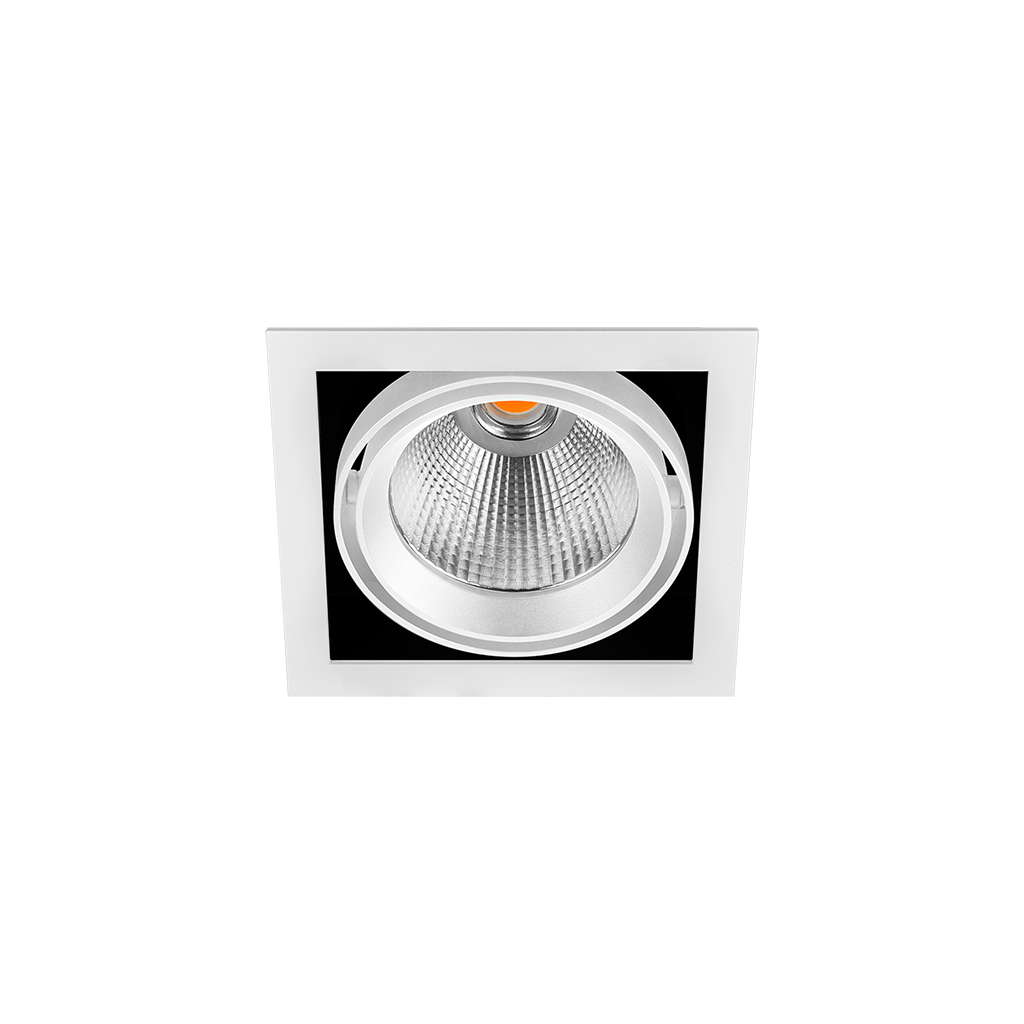

HUBBLE 1 SPOT 17º 3000K WT

Reference:

A2761111WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

16,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 1 SPOT 17º 4000K NT

Reference:

A2761112NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2475 lm

Power:

16,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 1 SPOT 17º 4000K WT

Reference:

A2761112WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2475 lm

Power:

16,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 1 MEDIUM 28º 3000K NT

Reference:

A2761121NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2450 lm

Power:

16,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 1 MEDIUM 28º 3000K WT

Reference:

A2761121WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

16,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 1 MEDIUM 28º 4000K NT

Reference:

A2761122NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2475 lm

Power:

16,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 1 MEDIUM 28º 4000K WT

Reference:

A2761122WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2475 lm

Power:

16,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 1 FLOOD 40º 3000K NT

Reference:

A2761131NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2450 lm

Power:

16,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 1 FLOOD 40º 3000K WT

Reference:

A2761131WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

16,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 1 FLOOD 40º 4000K NT

Reference:

A2761132NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2475 lm

Power:

16,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 1 FLOOD 40º 4000K WT

Reference:

A2761132WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2475 lm

Power:

16,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 SPOT 17º 3000K NT

Reference:

A2762111NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4050 lm

Power:

30,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 SPOT 17º 3000K WT

Reference:

A2762111WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4050 lm

Power:

30,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 SPOT 17º 4000K NT

Reference:

A2762112NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4120 lm

Power:

30,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 SPOT 17º 4000K WT

Reference:

A2762112WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4120 lm

Power:

30,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 MEDIUM 28º 3000K NT

Reference:

A2762121NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4050 lm

Power:

30,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 MEDIUM 28º 3000K WT

Reference:

A2762121WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4050 lm

Power:

30,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 MEDIUM 28º 4000K NT

Reference:

A2762122NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4120 lm

Power:

30,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 MEDIUM 28º 4000K WT

Reference:

A2762122WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4120 lm

Power:

30,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 FLOOD 40º 3000K NT

Reference:

A2762131NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4050 lm

Power:

30,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 FLOOD 40º 3000K WT

Reference:

A2762131WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4050 lm

Power:

30,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 FLOOD 40º 4000K NT

Reference:

A2762132NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4120 lm

Power:

30,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 2 FLOOD 40º 4000K WT

Reference:

A2762132WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4120 lm

Power:

30,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 SPOT 17º 3000K NT

Reference:

A2763111NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 SPOT 17º 3000K WT

Reference:

A2763111WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 SPOT 17º 4000K NT

Reference:

A2763112NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 SPOT 17º 4000K WT

Reference:

A2763112WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 MEDIUM 28º 3000K NT

Reference:

A2763121NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 MEDIUM 28º 3000K WT

Reference:

A2763121WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 MEDIUM 28º 4000K NT

Reference:

A2763122NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 MEDIUM 28º 4000K WT

Reference:

A2763122WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 FLOOD 40º 3000K NT

Reference:

A2763131NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 FLOOD 40º 3000K WT

Reference:

A2763131WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 FLOOD 40º 4000K NT

Reference:

A2763132NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 FLOOD 40º 4000K WT

Reference:

A2763132WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
HUBBLE 3 SPOT 17º DIM PUSH 3000K NT

Reference:

A2763211NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 SPOT 17º DIM PUSH 3000K WT

Reference:

A2763211WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 SPOT 17º DIM PUSH 4000K NT

Reference:

A2763212NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 SPOT 17º DIM PUSH 4000K WT

Reference:

A2763212WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 MEDIUM 28º DIM PUSH 3000K NT

Reference:

A2763221NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 MEDIUM 28º DIM PUSH 3000K WT

Reference:

A2763221WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 MEDIUM 28º DIM PUSH 4000K NT

Reference:

A2763222NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 MEDIUM 28º DIM PUSH 4000K WT

Reference:

A2763222WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 FLOOD 40º DIM PUSH 3000K NT

Reference:

A2763231NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 FLOOD 40º DIM PUSH 3000K WT

Reference:

A2763231WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 FLOOD 40º DIM PUSH 4000K NT

Reference:

A2763232NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 FLOOD 40º DIM PUSH 4000K WT

Reference:

A2763232WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

Push

Sealing:

IP20
HUBBLE 3 SPOT 17º DIM DALI 3000K NT

Reference:

A2763411NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 SPOT 17º DIM DALI 3000K WT

Reference:

A2763411WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 SPOT 17º DIM DALI 4000K NT

Reference:

A2763412NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 SPOT 17º DIM DALI 4000K WT

Reference:

A2763412WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 MEDIUM 28º DIM DALI 3000K NT

Reference:

A2763421NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 MEDIUM 28º DIM DALI 3000K WT

Reference:

A2763421WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 MEDIUM 28º DIM DALI 4000K NT

Reference:

A2763422NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 MEDIUM 28º DIM DALI 4000K WT

Reference:

A2763422WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 FLOOD 40º DIM DALI 3000K NT

Reference:

A2763431NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 FLOOD 40º DIM DALI 3000K WT

Reference:

A2763431WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5000 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 FLOOD 40º DIM DALI 4000K NT

Reference:

A2763432NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
HUBBLE 3 FLOOD 40º DIM DALI 4000K WT

Reference:

A2763432WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5100 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20

Accessories

ANTI-GLARE HONEYCOMB LOUVER

ELLIPTICAL REFRACTOR

BEAM MIXER DIFFUSER

HIGH CHROMATIC LED

Are you interested in this product? Contact us

Comments

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Company

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Hubble

CEILING RECESSED

Hubble

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Accessories

Are you interested in this product? Contact us

Related products

Shot Light

Swap

Lex

Olympia

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
