Tray

SUSPENSION

Tray is conceived as an offering to light: a subtle suspended tray that embraces and delicately projects it. This precise exercise in proportions balances vertical and horizontal planes, resulting in a timeless icon. Its sculptural yet light presence floats naturally within domestic and contract spaces. Designed by Víctor Carrasco, Tray stands out for its clean geometry and serene character, making it a distinctive focal point without being intrusive. Its direct and indirect light distribution makes it ideal for illuminating lounge areas or spaces with a unique character.

Tray 35

Tray 35 Wire Trimless

Tray 35 Base

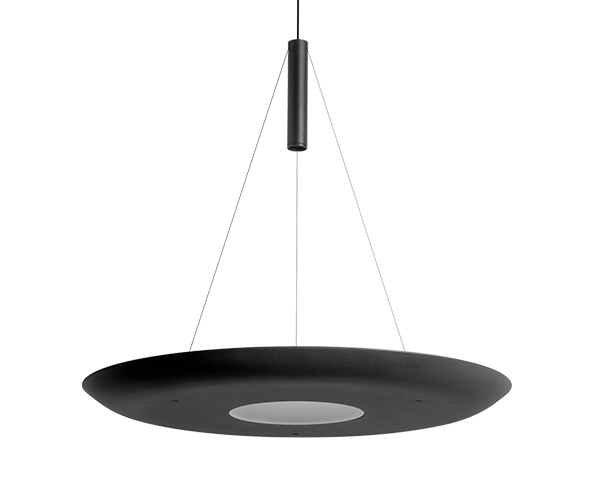

Tray 55

Tray 55 Wire Trimless

Tray 55 Base

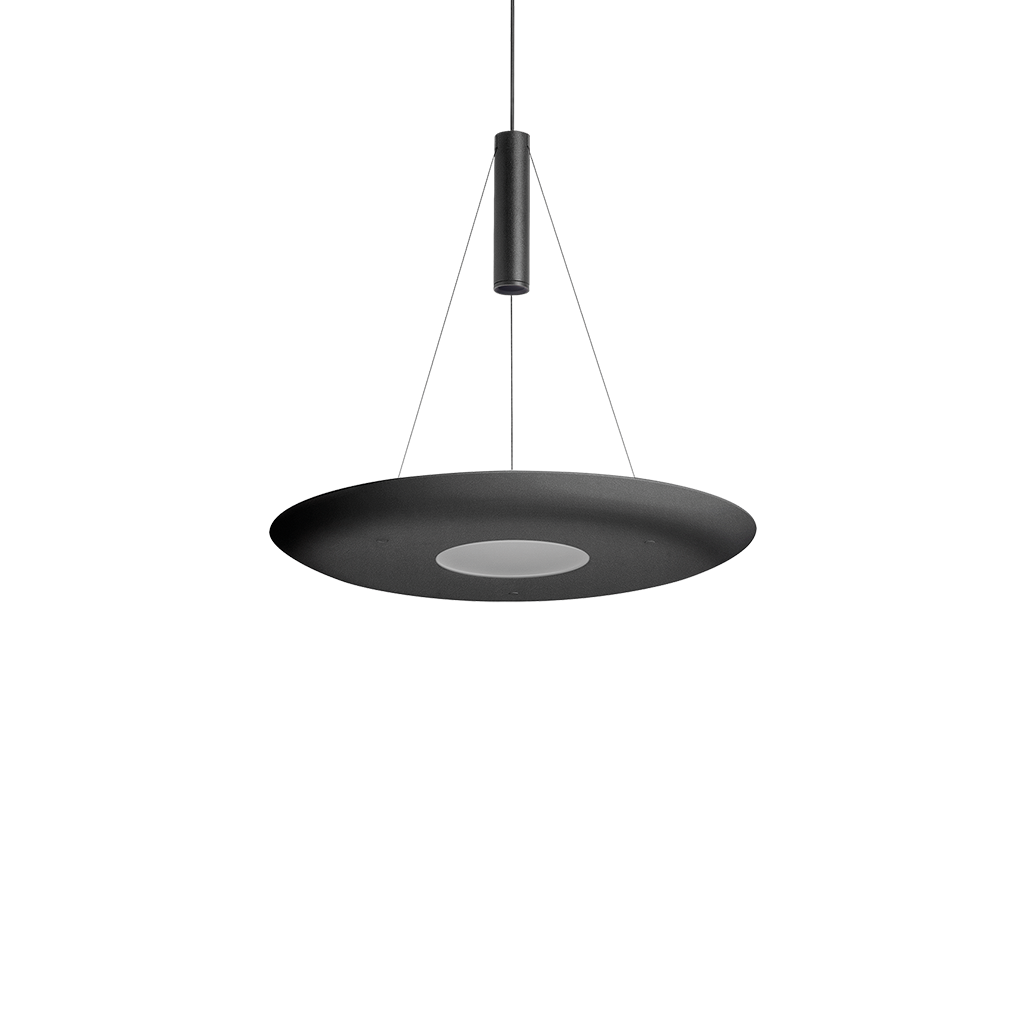

Tray 35

Luminous flux

530 lm / 570 lm
Lighting efficiency

73%
Power

5,6 W
Dimming

DALI, Phase Cut
Colour temperature

2700K / 3000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Recess measurements

Ø50mm
Light beam angle

Up: 120° - Down: 42°
Cord length

Max. 2 m / Max. 3 m / Max. 5 m

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
TRAY 35 2M DIM DALI 2700K NT

Reference:

A5610020NT

Colour:

Textured black

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 2M DIM DALI 2700K RP

Reference:

A5610020RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 2M DIM DALI 2700K WT

Reference:

A5610020WT

Colour:

Textured white

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 2M DIM DALI 3000K NT

Reference:

A5610021NT

Colour:

Textured black

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20

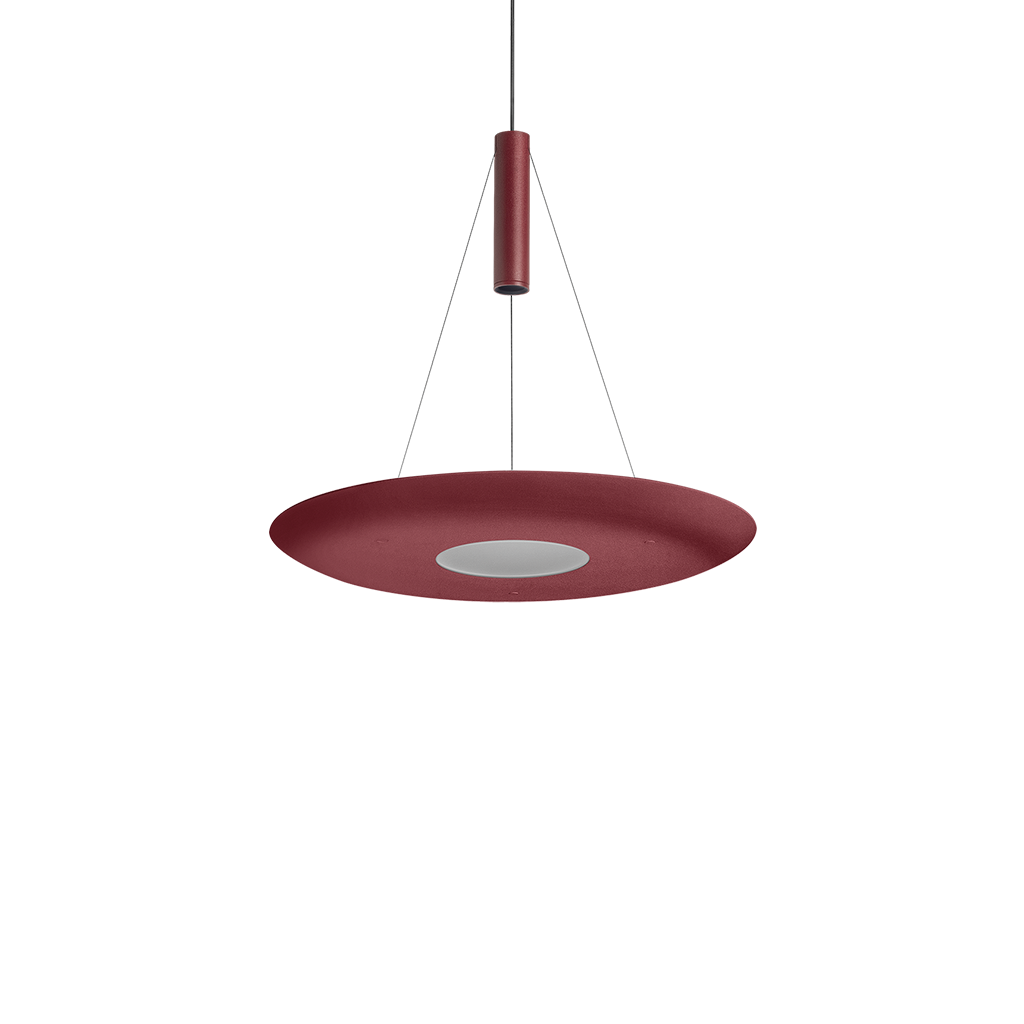

TRAY 35 2M DIM DALI 3000K RP

Reference:

A5610021RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20

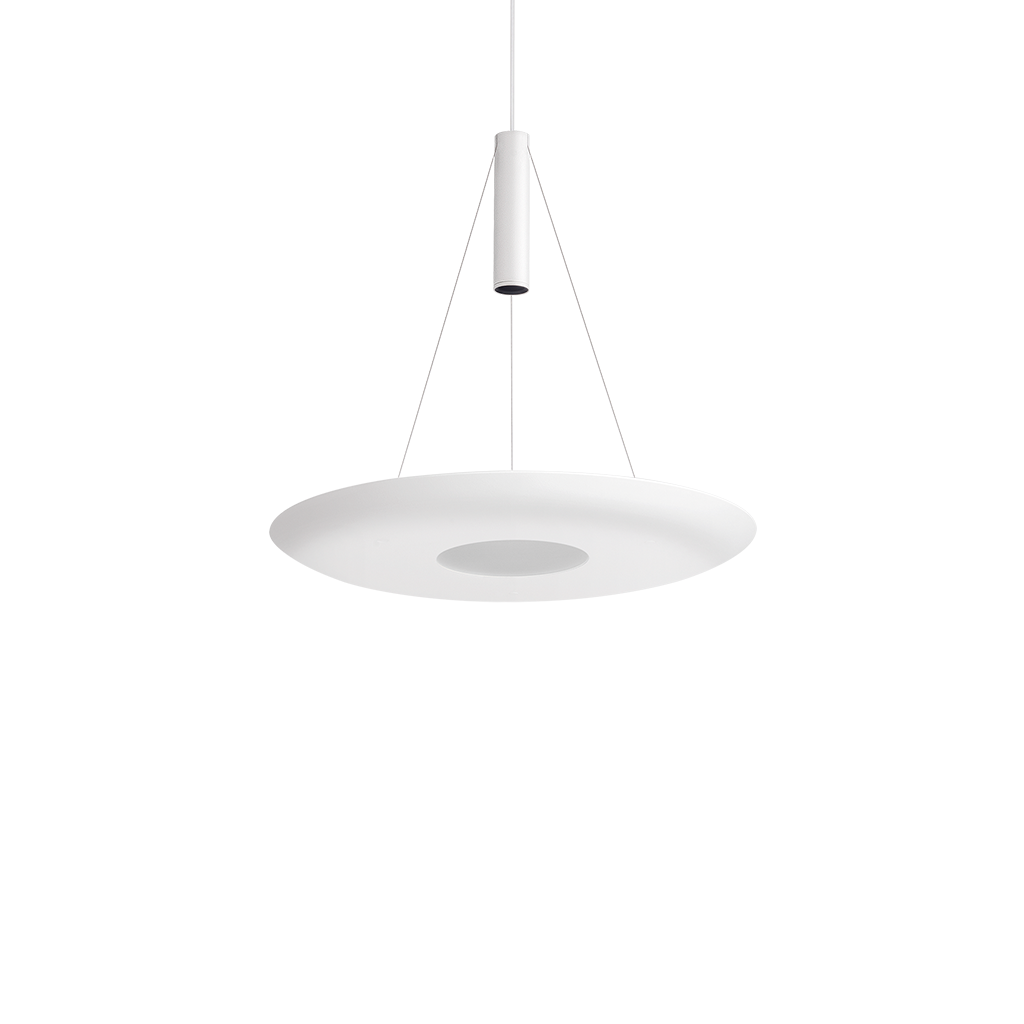

TRAY 35 2M DIM DALI 3000K WT

Reference:

A5610021WT

Colour:

Textured white

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 2M DIM PH.CUT 2700K NT

Reference:

A5610050NT

Colour:

Textured black

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 2M DIM PH.CUT 2700K RP

Reference:

A5610050RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 2M DIM PH.CUT 2700K WT

Reference:

A5610050WT

Colour:

Textured white

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 2M DIM PH.CUT 3000K NT

Reference:

A5610051NT

Colour:

Textured black

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 2M DIM PH.CUT 3000K RP

Reference:

A5610051RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 2M DIM PH.CUT 3000K WT

Reference:

A5610051WT

Colour:

Textured white

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 3M DIM DALI 2700K NT

Reference:

A5610120NT

Colour:

Textured black

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 3M DIM DALI 2700K RP

Reference:

A5610120RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 3M DIM DALI 2700K WT

Reference:

A5610120WT

Colour:

Textured white

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 3M DIM DALI 3000K NT

Reference:

A5610121NT

Colour:

Textured black

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 3M DIM DALI 3000K RP

Reference:

A5610121RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 3M DIM DALI 3000K WT

Reference:

A5610121WT

Colour:

Textured white

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 3M DIM PH.CUT 2700K NT

Reference:

A5610150NT

Colour:

Textured black

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 3M DIM PH.CUT 2700K RP

Reference:

A5610150RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 3M DIM PH.CUT 2700K WT

Reference:

A5610150WT

Colour:

Textured white

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 3M DIM PH.CUT 3000K NT

Reference:

A5610151NT

Colour:

Textured black

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 3M DIM PH.CUT 3000K RP

Reference:

A5610151RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 3M DIM PH.CUT 3000K WT

Reference:

A5610151WT

Colour:

Textured white

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 5M DIM DALI 2700K NT

Reference:

A5610220NT

Colour:

Textured black

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 5M DIM DALI 2700K RP

Reference:

A5610220RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 5M DIM DALI 2700K WT

Reference:

A5610220WT

Colour:

Textured white

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 5M DIM DALI 3000K NT

Reference:

A5610221NT

Colour:

Textured black

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 5M DIM DALI 3000K RP

Reference:

A5610221RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 5M DIM DALI 3000K WT

Reference:

A5610221WT

Colour:

Textured white

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

DALI

Sealing:

IP20
TRAY 35 5M DIM PH.CUT 2700K NT

Reference:

A5610250NT

Colour:

Textured black

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 5M DIM PH.CUT 2700K RP

Reference:

A5610250RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 5M DIM PH.CUT 2700K WT

Reference:

A5610250WT

Colour:

Textured white

Light source:

LED

Luminous flux:

530 lm

Power:

5,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 5M DIM PH.CUT 3000K NT

Reference:

A5610251NT

Colour:

Textured black

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 5M DIM PH.CUT 3000K RP

Reference:

A5610251RP

Colour:

Red Purple

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20
TRAY 35 5M DIM PH.CUT 3000K WT

Reference:

A5610251WT

Colour:

Textured white

Light source:

LED

Luminous flux:

570 lm

Power:

5,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

Up: 120° - Down: 42°

Lighting efficiency:

73%

Dimming:

Phase Cut

Sealing:

IP20

Accessories

CORD ACCESSORY

Are you interested in this product? Contact us

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

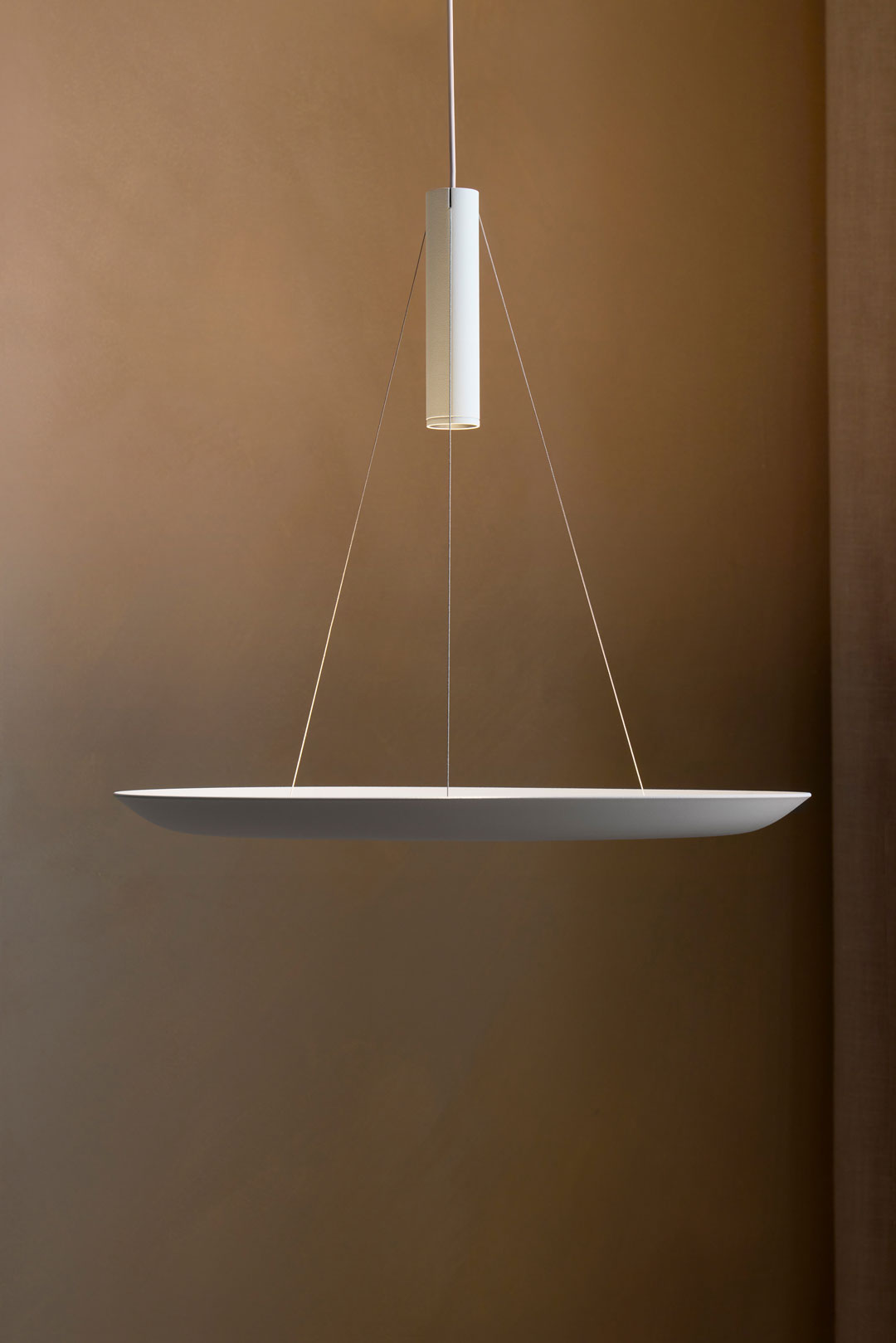

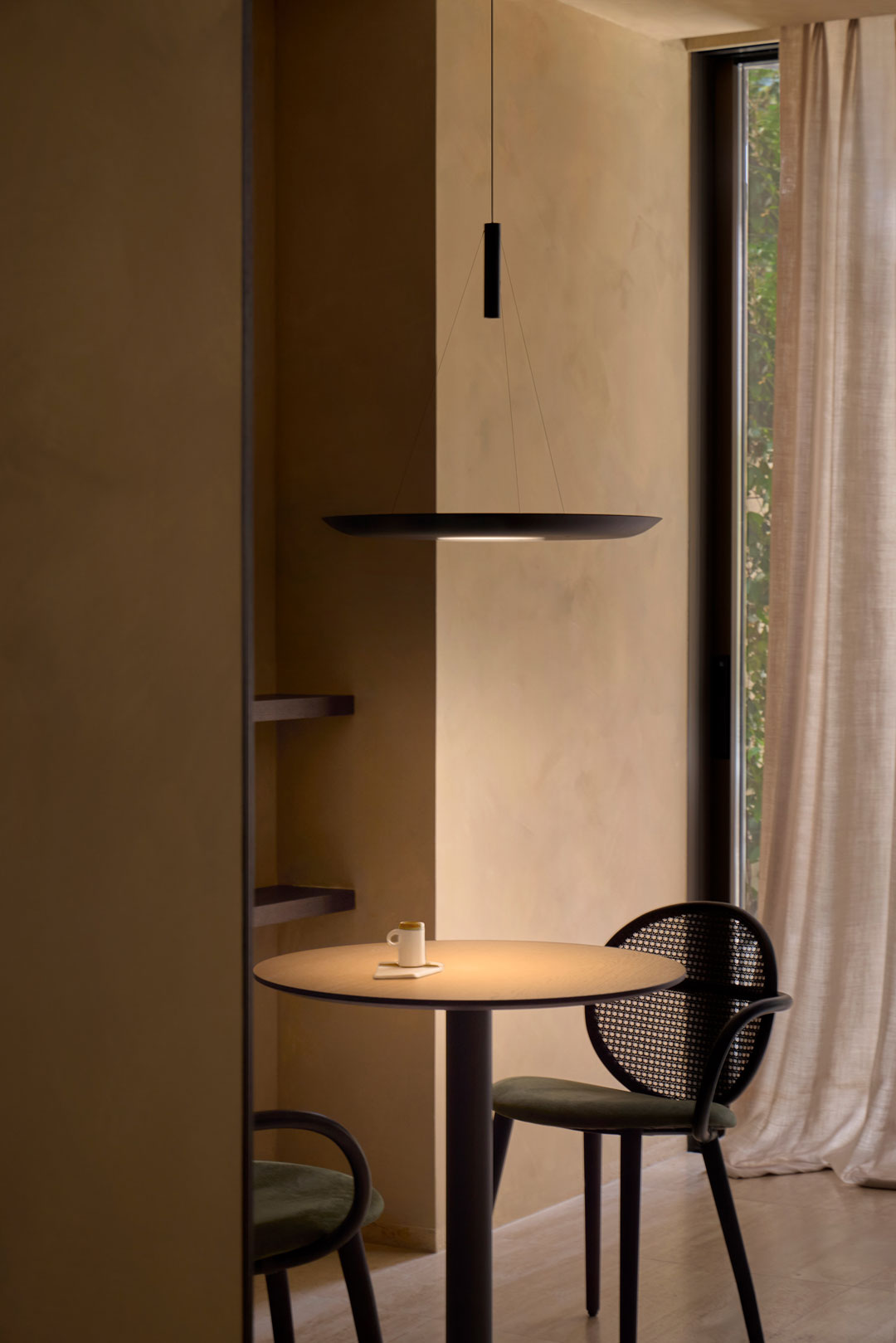

Tray

SUSPENSION

Tray 35

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Accessories

Are you interested in this product? Contact us

Related products

Stick

Scope

Spin

Salt

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

EPD

Downloads

Register

Log in

Select your location
