Stram

CEILING RECESSED

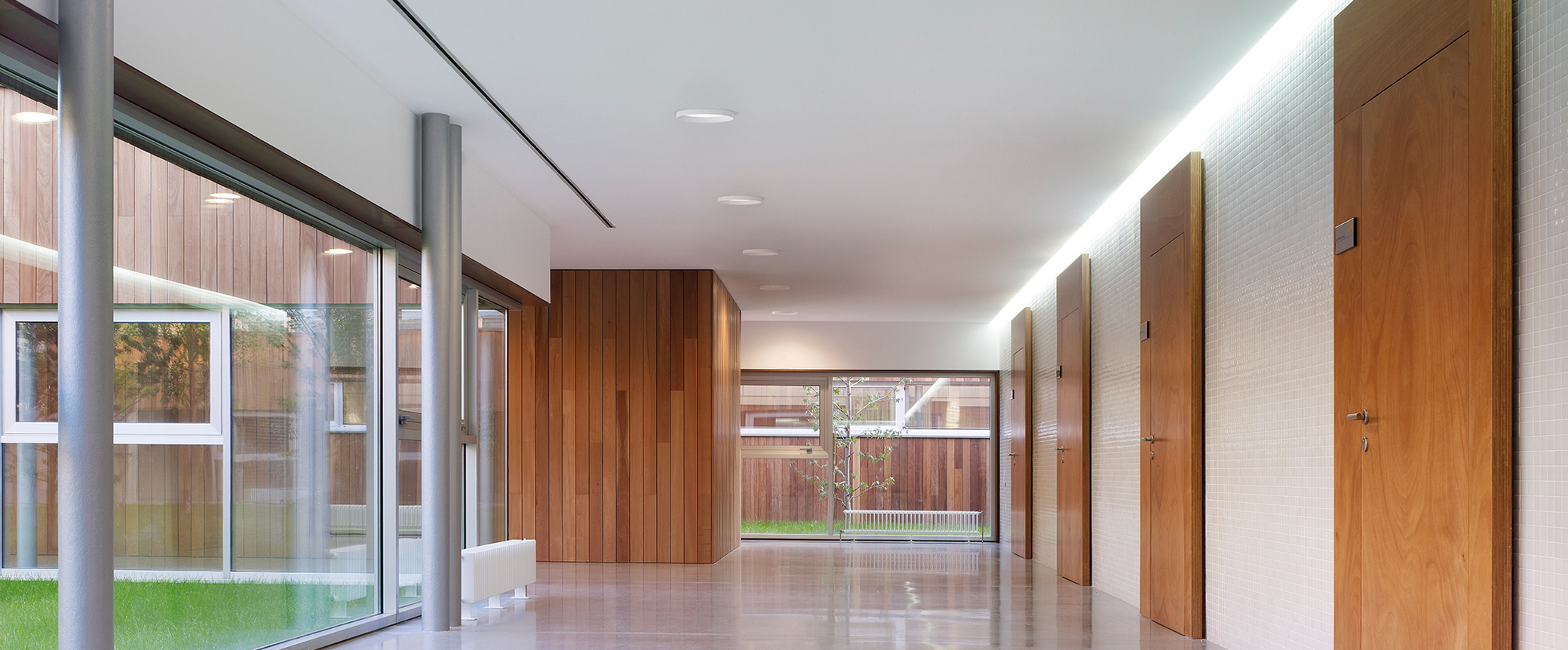

A recessed downlight with one bezel, with marked presence. In the Prismatic version you will discover the attractive and efficient effect of its diffusor’s light waves which, in addition, reduces the UGR.

Awards

  • Delta Awards´14 Selected

    Delta Awards´14 Selected

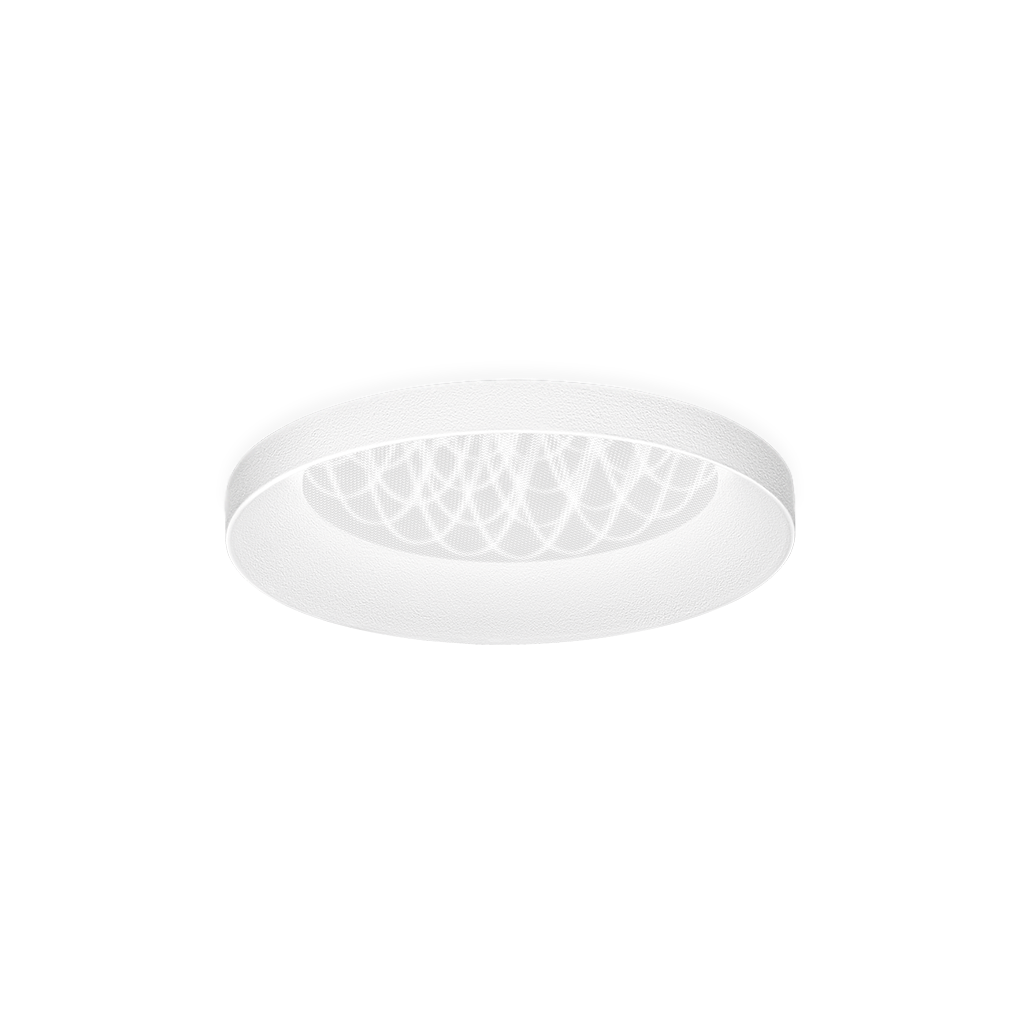

Stram Mini Prismatic
Stram Mini Prismatic
Stram Prismatic
Stram Prismatic
Stram Mini
Stram Mini
Stram
Stram

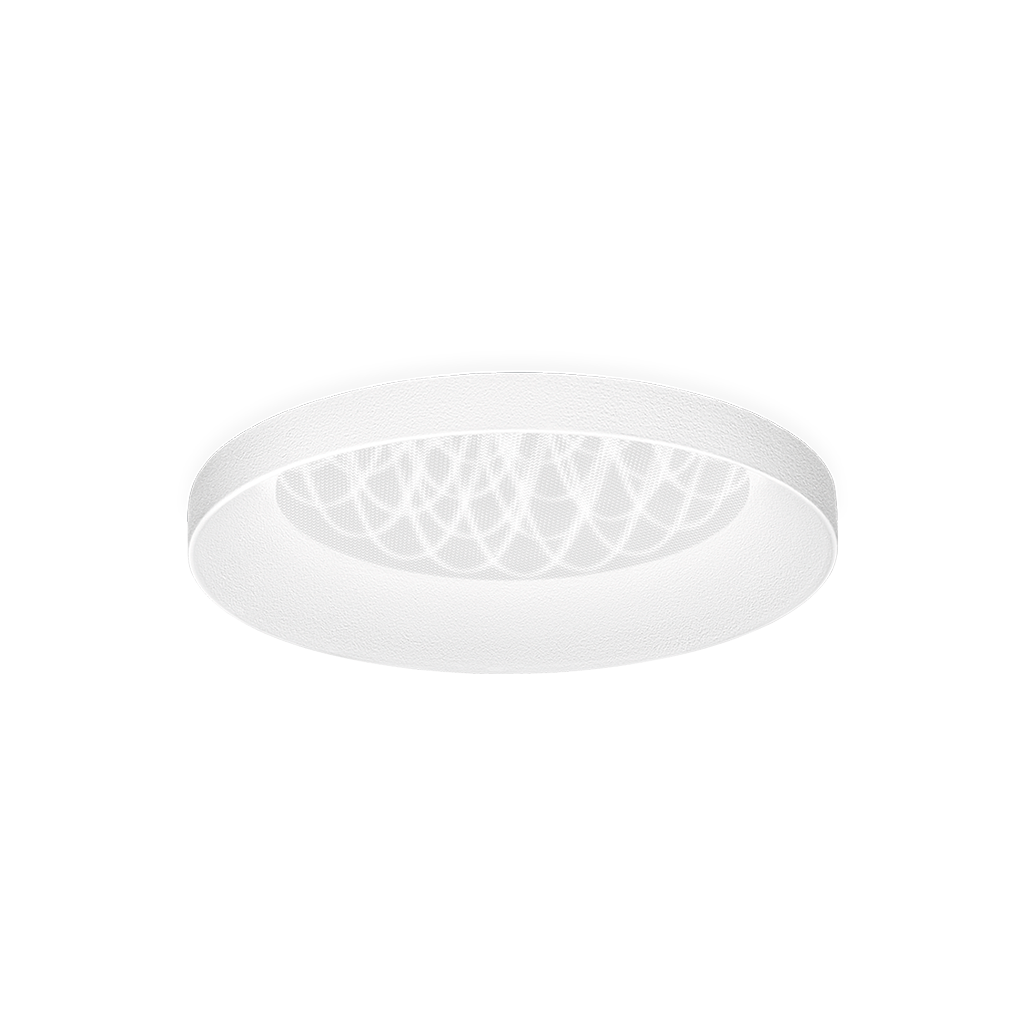

Stram Mini Prismatic

  • Luminous flux

    975 lm / 1050 lm / 1075 lm / 1275 lm / 1375 lm / 1400 lm

  • Lighting efficiency

    80%

  • Power

    7 W / 10 W

  • Dimming

    No Dim, DALI, Push

  • Colour temperature

    2700K / 3000K / 4000K

  • Sealing

    IP43/54**

  • Chromatic stability

    MacAdam Step 2

  • Recess measurements

    Ø122mm

  • Light beam angle

    87°

Instructions BIM
Luminous Flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • CRI
      Light beam angle
        Dimming
          Sealing
            Cord length
              Distance of suspension
                Base Finishing
                  Colour

                    • Model

                      Ref.

                      Colour

                      Source

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      Sealing

                    • STRAM MINI PRISMATIC 2 2700K WT
                      Reference:

                      A2370210WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      975 lm

                      Power:

                      7 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 2 3000K WT
                      Reference:

                      A2370211WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1050 lm

                      Power:

                      7 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 2 4000K WT
                      Reference:

                      A2370212WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1075 lm

                      Power:

                      7 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 2 DIM PUSH 2700K WT
                      Reference:

                      A2370220WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      975 lm

                      Power:

                      7 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Push

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 2 DIM PUSH 3000K WT
                      Reference:

                      A2370221WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1050 lm

                      Power:

                      7 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Push

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 2 DIM PUSH 4000K WT
                      Reference:

                      A2370222WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1075 lm

                      Power:

                      7 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Push

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 2 DIM DALI 2700K WT
                      Reference:

                      A2370240WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      975 lm

                      Power:

                      7 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      DALI

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 2 DIM DALI 3000K WT
                      Reference:

                      A2370241WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1050 lm

                      Power:

                      7 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      DALI

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 2 DIM DALI 4000K WT
                      Reference:

                      A2370242WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1075 lm

                      Power:

                      7 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      DALI

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 3 2700K WT
                      Reference:

                      A2370310WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1275 lm

                      Power:

                      10 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 3 3000K WT
                      Reference:

                      A2370311WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1375 lm

                      Power:

                      10 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 3 4000K WT
                      Reference:

                      A2370312WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1400 lm

                      Power:

                      10 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 3 DIM PUSH 2700K WT
                      Reference:

                      A2370320WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1275 lm

                      Power:

                      10 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Push

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 3 DIM PUSH 3000K WT
                      Reference:

                      A2370321WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1375 lm

                      Power:

                      10 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Push

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 3 DIM PUSH 4000K WT
                      Reference:

                      A2370322WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1400 lm

                      Power:

                      10 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Push

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 3 DIM DALI 2700K WT
                      Reference:

                      A2370340WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1275 lm

                      Power:

                      10 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      DALI

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 3 DIM DALI 3000K WT
                      Reference:

                      A2370341WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1375 lm

                      Power:

                      10 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      DALI

                      Sealing:

                      IP43/54**

                    • STRAM MINI PRISMATIC 3 DIM DALI 4000K WT
                      Reference:

                      A2370342WT

                      Colour:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1400 lm

                      Power:

                      10 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      DALI

                      Sealing:

                      IP43/54**
