Step

OUTDOOR

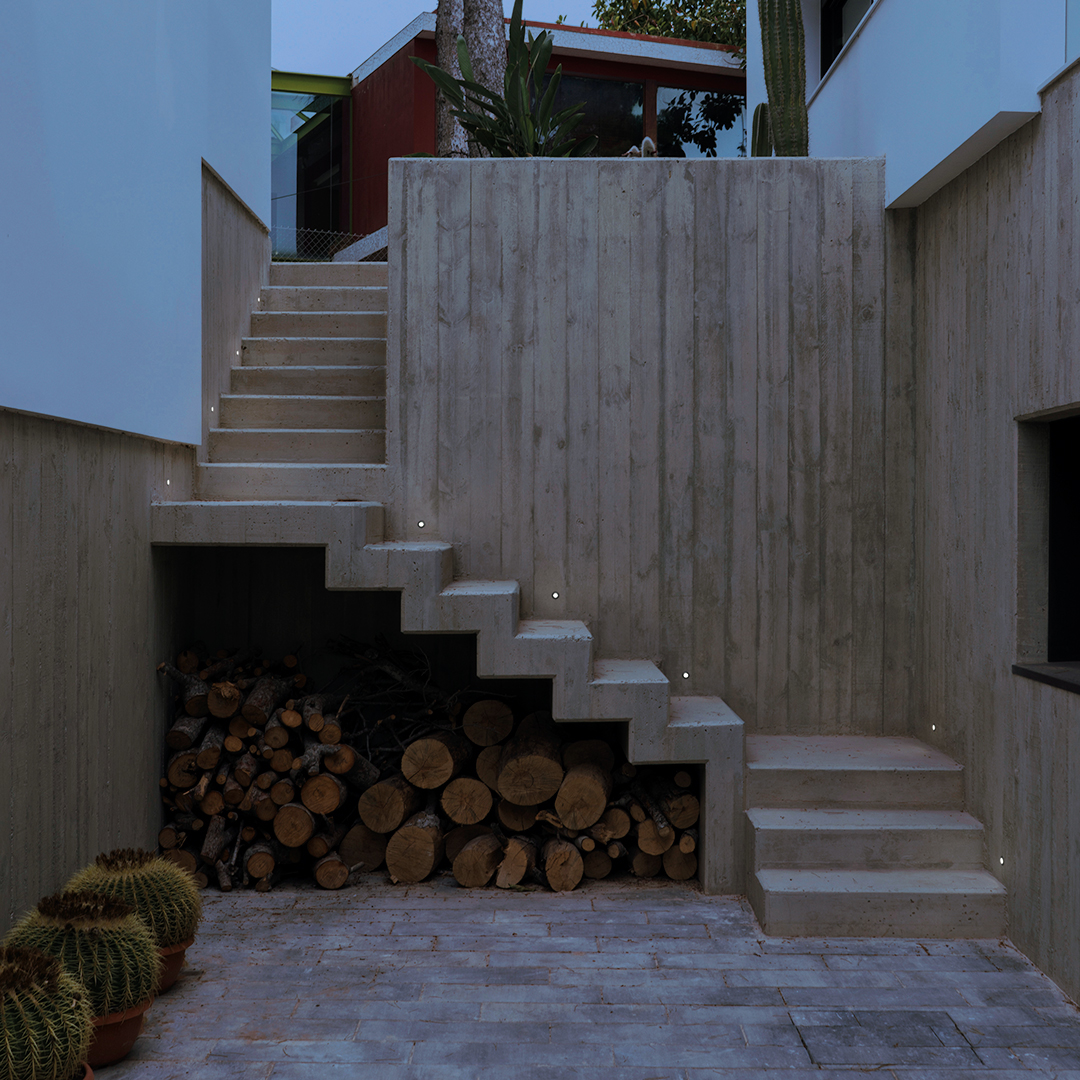

Step is a floor-recessed luminaire for signage functions. Discrete, elegant and functional, it offers the technical features of a leaktight LED luminaire that is able to support weight loads. It is applicable in pedestrian areas, both outdoors and indoors. Other outstanding features are its small size, low consumption and considerable durability.

Step XS

Step S

Step

Step S

Luminous flux

100 lm / 120 lm / 130 lm
Lighting efficiency

10%
Power

1 W
Dimming

No Dim
Colour temperature

2700K / 3000K / 4000K
Sealing

IP65
Chromatic stability

MacAdam Step 3
Recess measurements

Ø32mm
Light beam angle

112°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

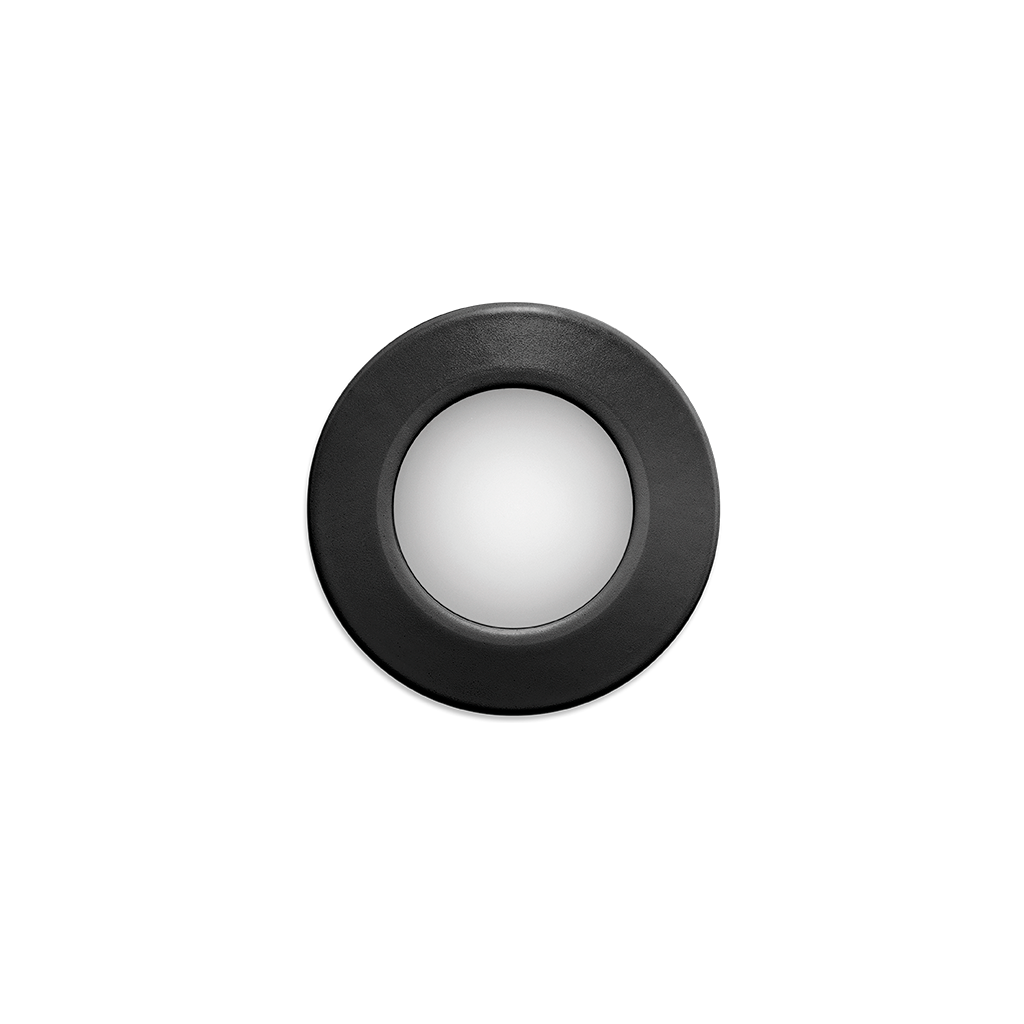

STEP S 2700K N

Reference:

A3920000N

Colour:

Black

Light source:

LED

Luminous flux:

100 lm

Power:

1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65

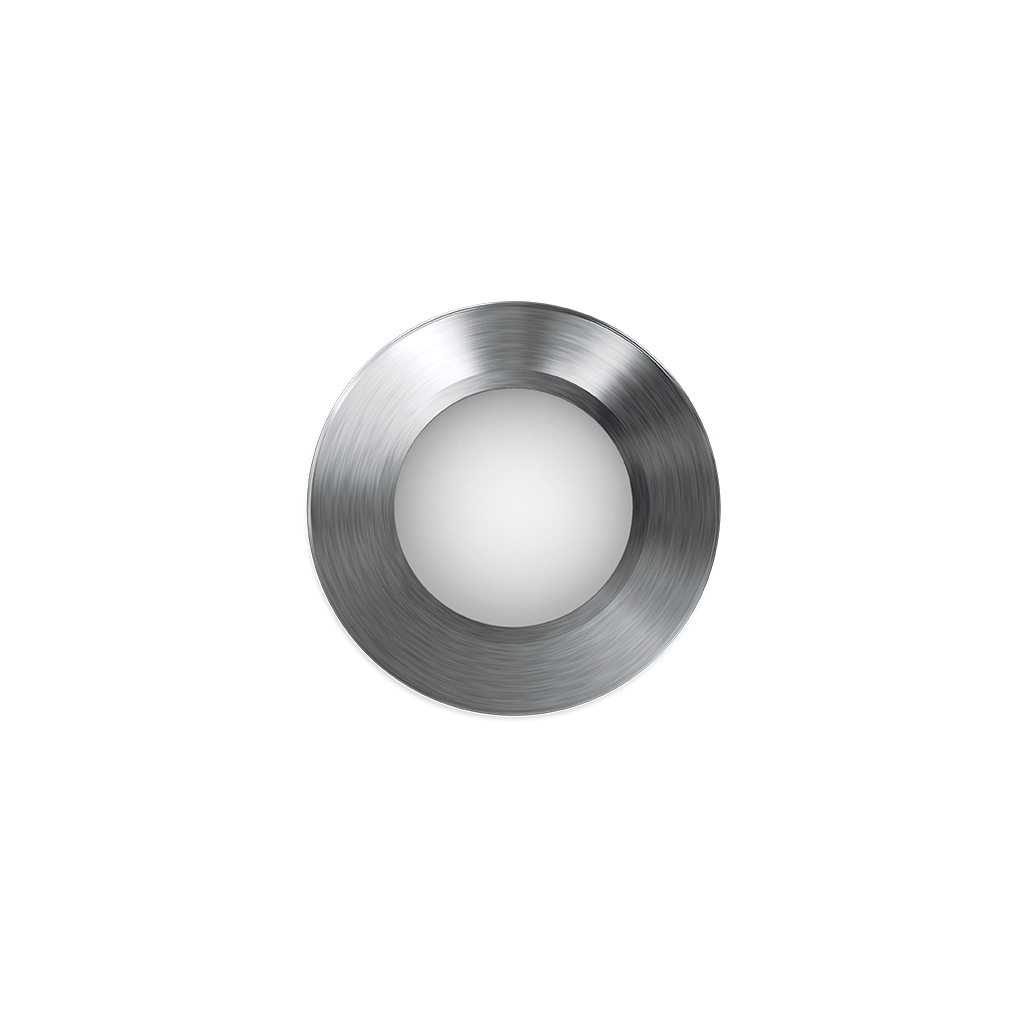

STEP S 2700K NX

Reference:

A3920000NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

100 lm

Power:

1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65

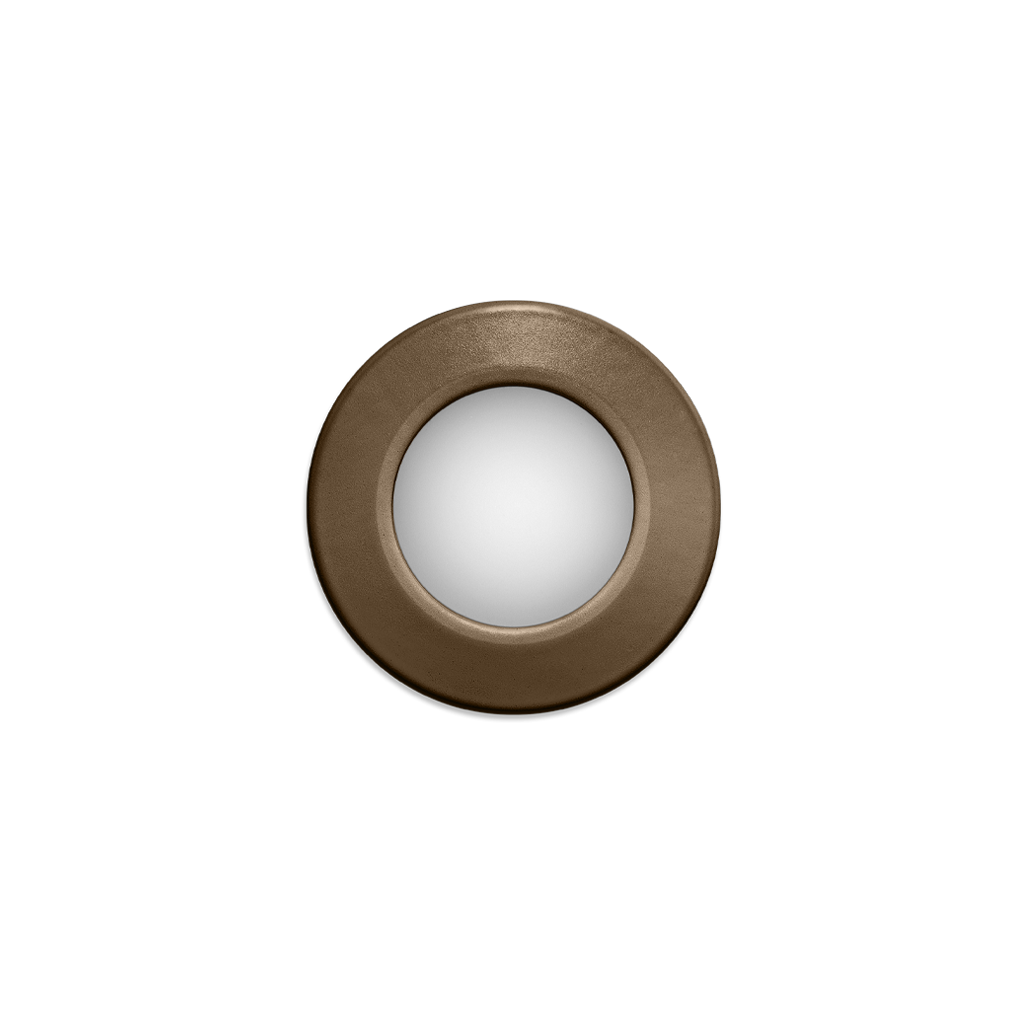

STEP S 2700K OX

Reference:

A3920000OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

100 lm

Power:

1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65

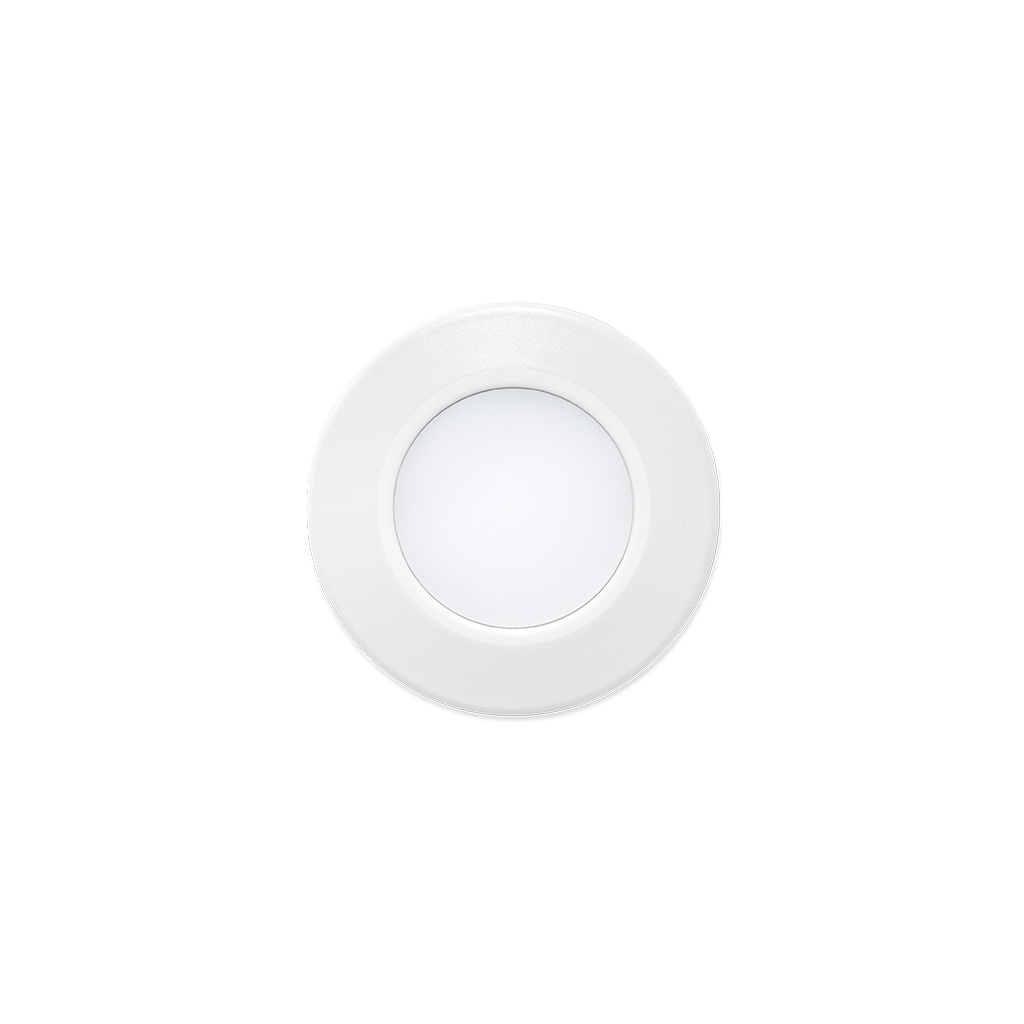

STEP S 2700K W

Reference:

A3920000W

Colour:

White

Light source:

LED

Luminous flux:

100 lm

Power:

1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65
STEP S 3000K N

Reference:

A3920001N

Colour:

Black

Light source:

LED

Luminous flux:

120 lm

Power:

1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65
STEP S 3000K NX

Reference:

A3920001NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

120 lm

Power:

1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65
STEP S 3000K OX

Reference:

A3920001OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

120 lm

Power:

1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65
STEP S 3000K W

Reference:

A3920001W

Colour:

White

Light source:

LED

Luminous flux:

120 lm

Power:

1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65
STEP S 4000K N

Reference:

A3920002N

Colour:

Black

Light source:

LED

Luminous flux:

130 lm

Power:

1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65
STEP S 4000K NX

Reference:

A3920002NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

130 lm

Power:

1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65
STEP S 4000K OX

Reference:

A3920002OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

130 lm

Power:

1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65
STEP S 4000K W

Reference:

A3920002W

Colour:

White

Light source:

LED

Luminous flux:

130 lm

Power:

1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

112°

Lighting efficiency:

10%

Dimming:

No Dim

Sealing:

IP65

Accessories
