Pointer

CEILING RECESSED

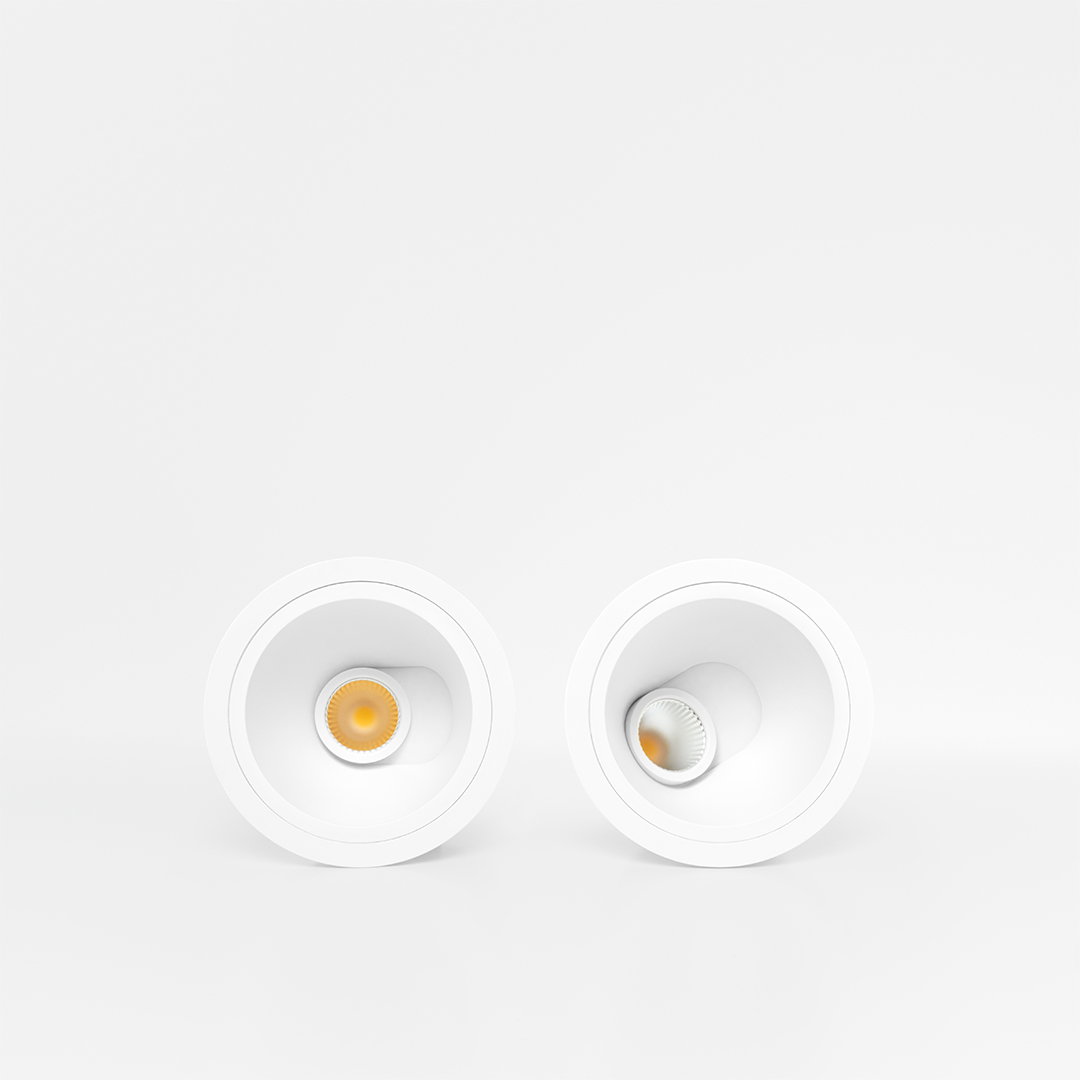

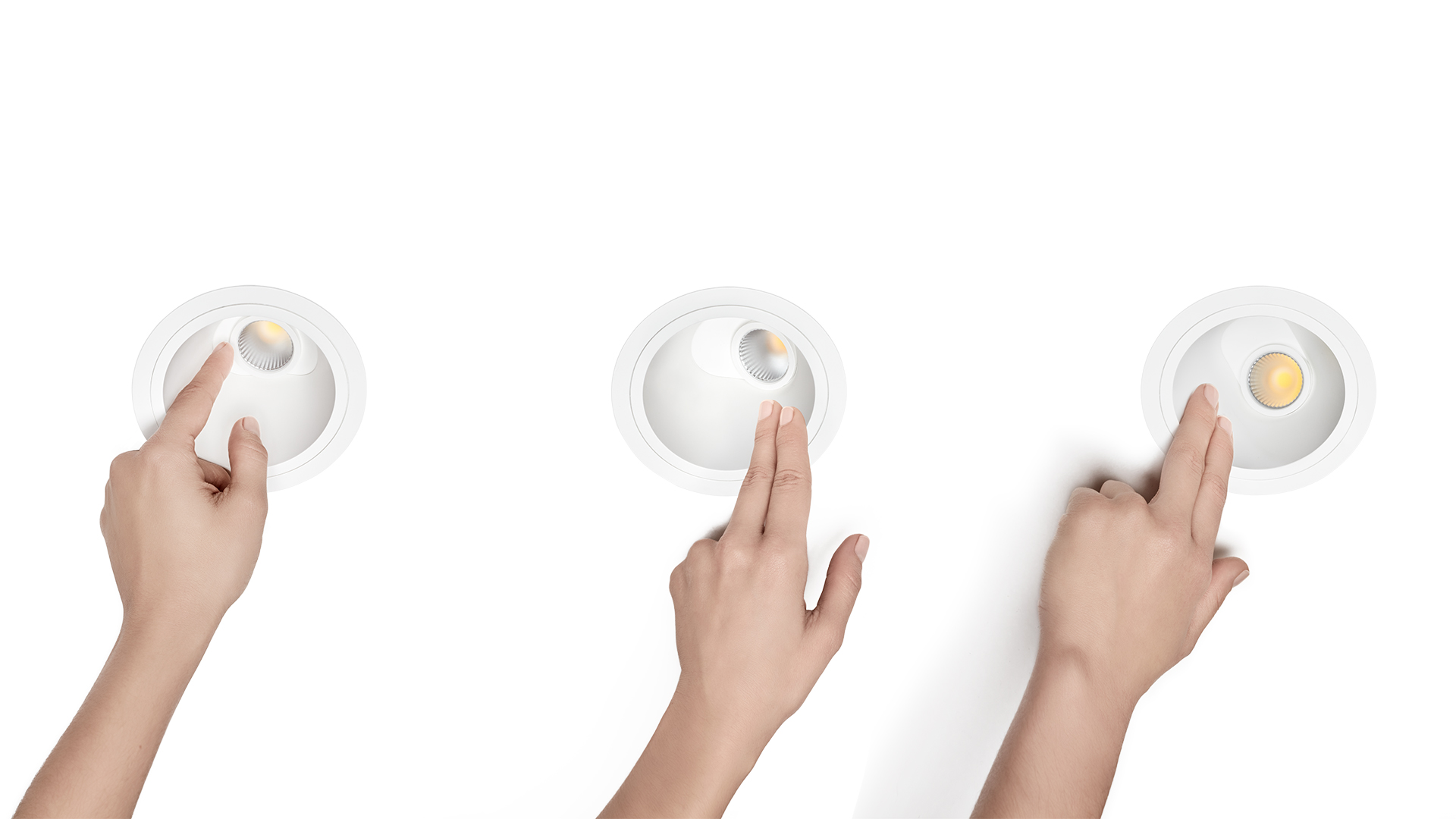

Pointer is a directional LED downlight for recess-mounting applications. With a fine and narrow bezel, it stands out for its minimalist aesthetics, its perfect integration into the ceiling and the possibility of being easily directed towards any angle, as many times as required, just with a very gentle hand motion. Whatever may be the orientation of the adjustable light beam, Pointer always maintains the same aesthetic appearance. An advantage that increases the sensation of visual order of the ceiling and which makes Pointer unique in the market.

Awards

Archiproducts Design Award Winner 2017
Silver Delta Adi Awards 2018

Pointer

Luminous flux

680 lm / 700 lm / 720 lm / 860 lm / 900 lm / 920 lm / 1200 lm / 1250 lm / 1280 lm
Lighting efficiency

68% / 78%
Power

5 W / 7 W / 11 W
Dimming

No Dim, DALI / Push, Phase Cut
Colour temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Recess measurements

Ø105mm
Light beam angle

37° / 56°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

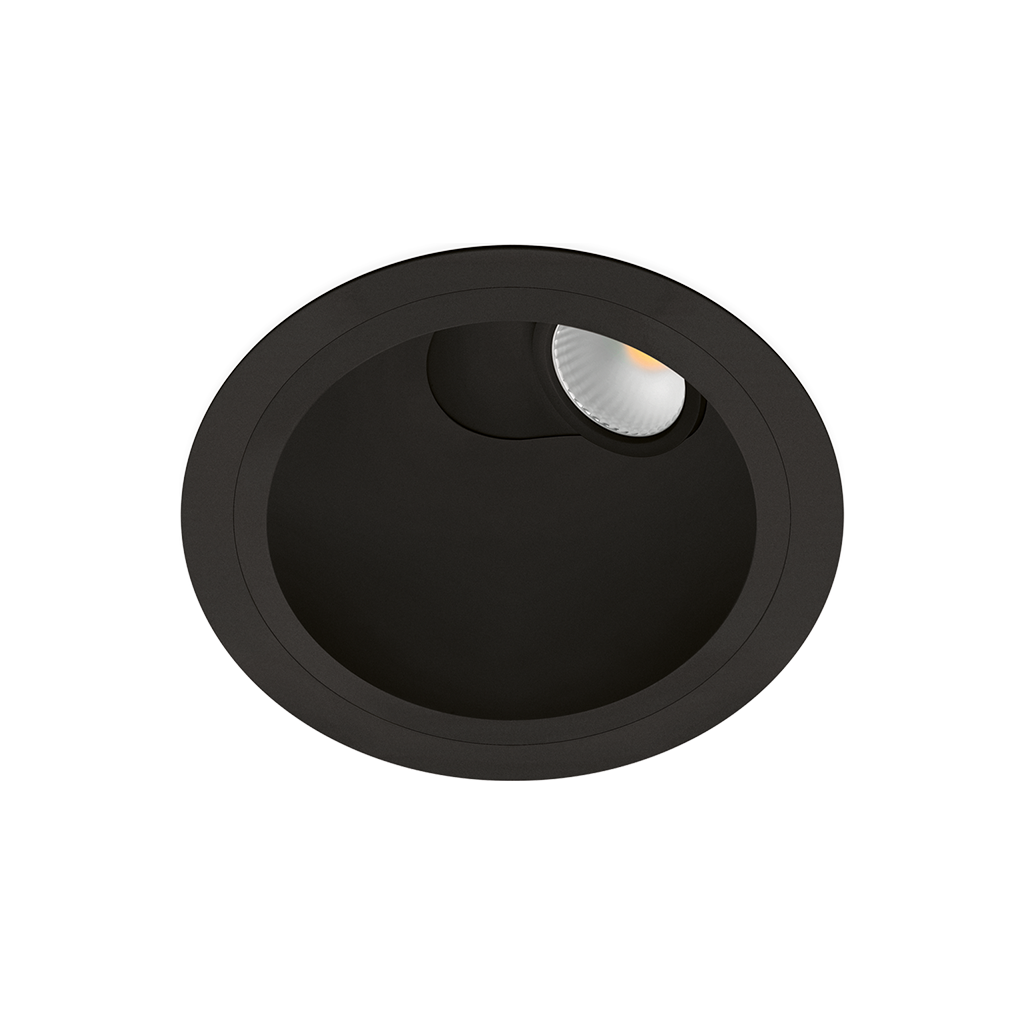

POINTER 5W 37º 2700K N

Reference:

A2711110N

Colour:

Matt black

Light source:

LED

Luminous flux:

680 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20

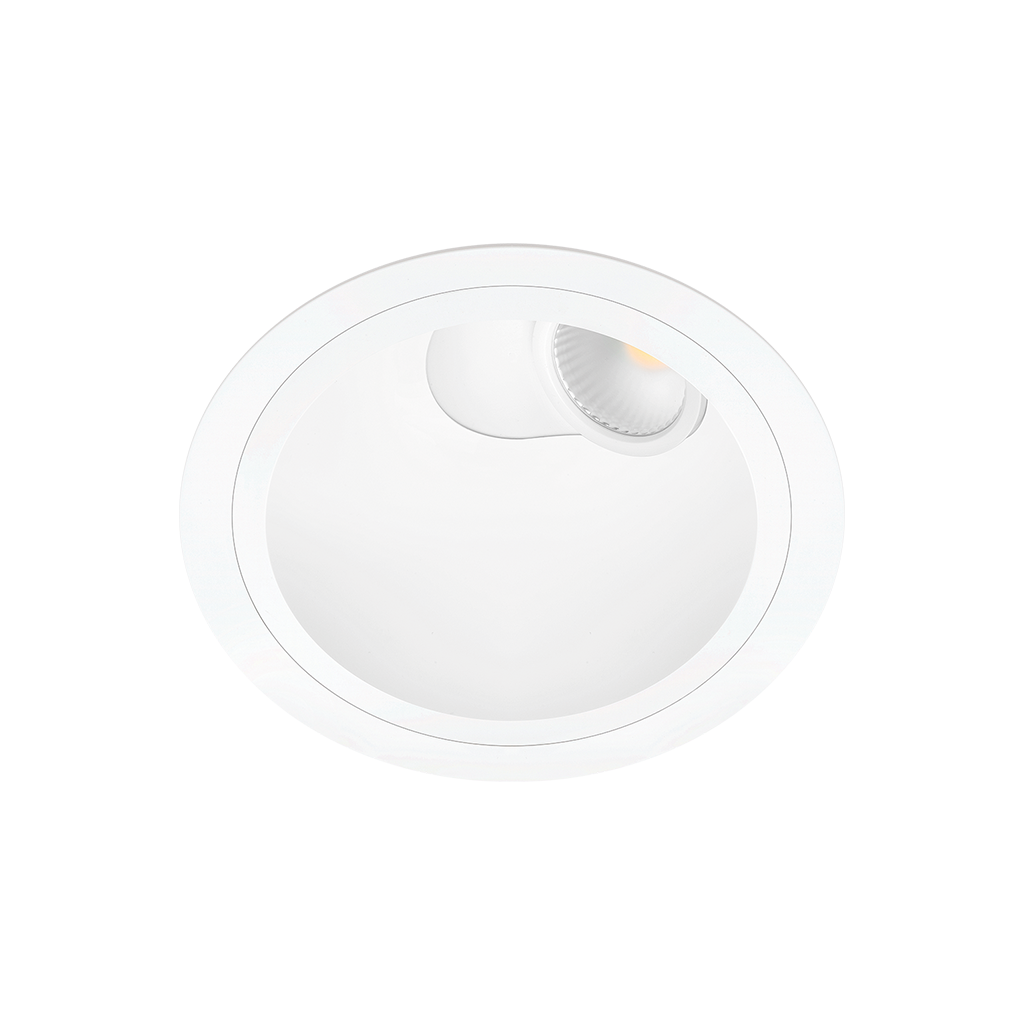

POINTER 5W 37º 2700K W

Reference:

A2711110W

Colour:

Matt white

Light source:

LED

Luminous flux:

680 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 5W 37º 3000K N

Reference:

A2711111N

Colour:

Matt black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 5W 37º 3000K W

Reference:

A2711111W

Colour:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 5W 37º 4000K N

Reference:

A2711112N

Colour:

Matt black

Light source:

LED

Luminous flux:

720 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 5W 37º 4000K W

Reference:

A2711112W

Colour:

Matt white

Light source:

LED

Luminous flux:

720 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 5W 56º 2700K N

Reference:

A2711120N

Colour:

Matt black

Light source:

LED

Luminous flux:

680 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 5W 56º 2700K W

Reference:

A2711120W

Colour:

Matt white

Light source:

LED

Luminous flux:

680 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 5W 56º 3000K N

Reference:

A2711121N

Colour:

Matt black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 5W 56º 3000K W

Reference:

A2711121W

Colour:

Matt white

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 5W 56º 4000K N

Reference:

A2711122N

Colour:

Matt black

Light source:

LED

Luminous flux:

720 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 5W 56º 4000K W

Reference:

A2711122W

Colour:

Matt white

Light source:

LED

Luminous flux:

720 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 37º 2700K N

Reference:

A2712110N

Colour:

Matt black

Light source:

LED

Luminous flux:

860 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 37º 2700K W

Reference:

A2712110W

Colour:

Matt white

Light source:

LED

Luminous flux:

860 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 37º 3000K N

Reference:

A2712111N

Colour:

Matt black

Light source:

LED

Luminous flux:

900 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 37º 3000K W

Reference:

A2712111W

Colour:

Matt white

Light source:

LED

Luminous flux:

900 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 37º 4000K N

Reference:

A2712112N

Colour:

Matt black

Light source:

LED

Luminous flux:

920 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 37º 4000K W

Reference:

A2712112W

Colour:

Matt white

Light source:

LED

Luminous flux:

920 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 56º 2700K N

Reference:

A2712120N

Colour:

Matt black

Light source:

LED

Luminous flux:

860 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 56º 2700K W

Reference:

A2712120W

Colour:

Matt white

Light source:

LED

Luminous flux:

860 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 56º 3000K N

Reference:

A2712121N

Colour:

Matt black

Light source:

LED

Luminous flux:

900 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 56º 3000K W

Reference:

A2712121W

Colour:

Matt white

Light source:

LED

Luminous flux:

900 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 56º 4000K N

Reference:

A2712122N

Colour:

Matt black

Light source:

LED

Luminous flux:

920 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 7W 56º 4000K W

Reference:

A2712122W

Colour:

Matt white

Light source:

LED

Luminous flux:

920 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 37º 2700K N

Reference:

A2713110N

Colour:

Matt black

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 37º 2700K W

Reference:

A2713110W

Colour:

Matt white

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 37º 3000K N

Reference:

A2713111N

Colour:

Matt black

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 37º 3000K W

Reference:

A2713111W

Colour:

Matt white

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 37º 4000K N

Reference:

A2713112N

Colour:

Matt black

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 37º 4000K W

Reference:

A2713112W

Colour:

Matt white

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 56º 2700K N

Reference:

A2713120N

Colour:

Matt black

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 56º 2700K W

Reference:

A2713120W

Colour:

Matt white

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 56º 3000K N

Reference:

A2713121N

Colour:

Matt black

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 56º 3000K W

Reference:

A2713121W

Colour:

Matt white

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 56º 4000K N

Reference:

A2713122N

Colour:

Matt black

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W 56º 4000K W

Reference:

A2713122W

Colour:

Matt white

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP20
POINTER 11W DIM PH.CUT 37º 2700K N

Reference:

A2713210N

Colour:

Matt black

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 37º 2700K W

Reference:

A2713210W

Colour:

Matt white

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 37º 3000K N

Reference:

A2713211N

Colour:

Matt black

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 37º 3000K W

Reference:

A2713211W

Colour:

Matt white

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 37º 4000K N

Reference:

A2713212N

Colour:

Matt black

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 37º 4000K W

Reference:

A2713212W

Colour:

Matt white

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 56º 2700K N

Reference:

A2713220N

Colour:

Matt black

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 56º 2700K W

Reference:

A2713220W

Colour:

Matt white

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 56º 3000K N

Reference:

A2713221N

Colour:

Matt black

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 56º 3000K W

Reference:

A2713221W

Colour:

Matt white

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 56º 4000K N

Reference:

A2713222N

Colour:

Matt black

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM PH.CUT 56º 4000K W

Reference:

A2713222W

Colour:

Matt white

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 37º 2700K N

Reference:

A2713310N

Colour:

Matt black

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 37º 2700K W

Reference:

A2713310W

Colour:

Matt white

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 37º 3000K N

Reference:

A2713311N

Colour:

Matt black

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 37º 3000K W

Reference:

A2713311W

Colour:

Matt white

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 37º 4000K N

Reference:

A2713312N

Colour:

Matt black

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

68%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 37º 4000K W

Reference:

A2713312W

Colour:

Matt white

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 56º 2700K N

Reference:

A2713320N

Colour:

Matt black

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 56º 2700K W

Reference:

A2713320W

Colour:

Matt white

Light source:

LED

Luminous flux:

1200 lm

Power:

11 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 56º 3000K N

Reference:

A2713321N

Colour:

Matt black

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 56º 3000K W

Reference:

A2713321W

Colour:

Matt white

Light source:

LED

Luminous flux:

1250 lm

Power:

11 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 56º 4000K N

Reference:

A2713322N

Colour:

Matt black

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

68%

Dimming:

DALI / Push

Sealing:

IP20
POINTER 11W DIM DALI/PUSH 56º 4000K W

Reference:

A2713322W

Colour:

Matt white

Light source:

LED

Luminous flux:

1280 lm

Power:

11 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP20

Are you interested in this product? Contact us

X/Twitter

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

URL

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Pointer

CEILING RECESSED

Awards

Archiproducts Design Award Winner 2017

Silver Delta Adi Awards 2018

Pointer

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Are you interested in this product? Contact us

Related products

Shot Light

Swap

Lex

Olympia

Related projects

Sofía Cortés Dental Clinic

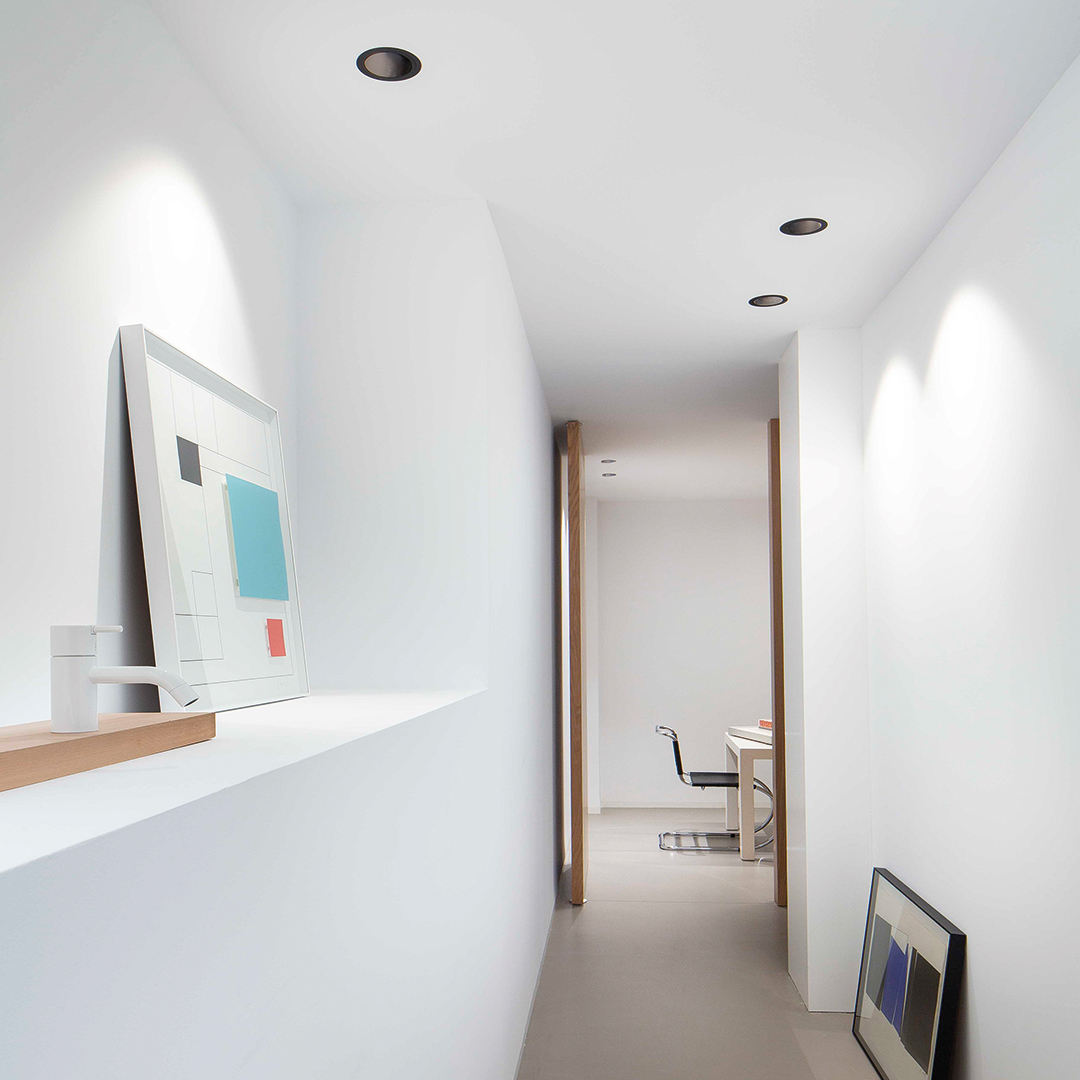

Víctor García Architecture Studio

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
