Magnetic 24V System
CEILING RECESSED
From the Minimal Track product family, our miniaturised spotlights have been consigned to a new installation system with recessed magnetic connection. The Magnetics system enables a seamless integration of the ceiling fastening so that the luminaire is the only star in the spotlight.
Awards
-
European Product Design Winner 2022
-
Archiproducts Design Award Winner 2022
-
If Product Design Award 2023 Winner

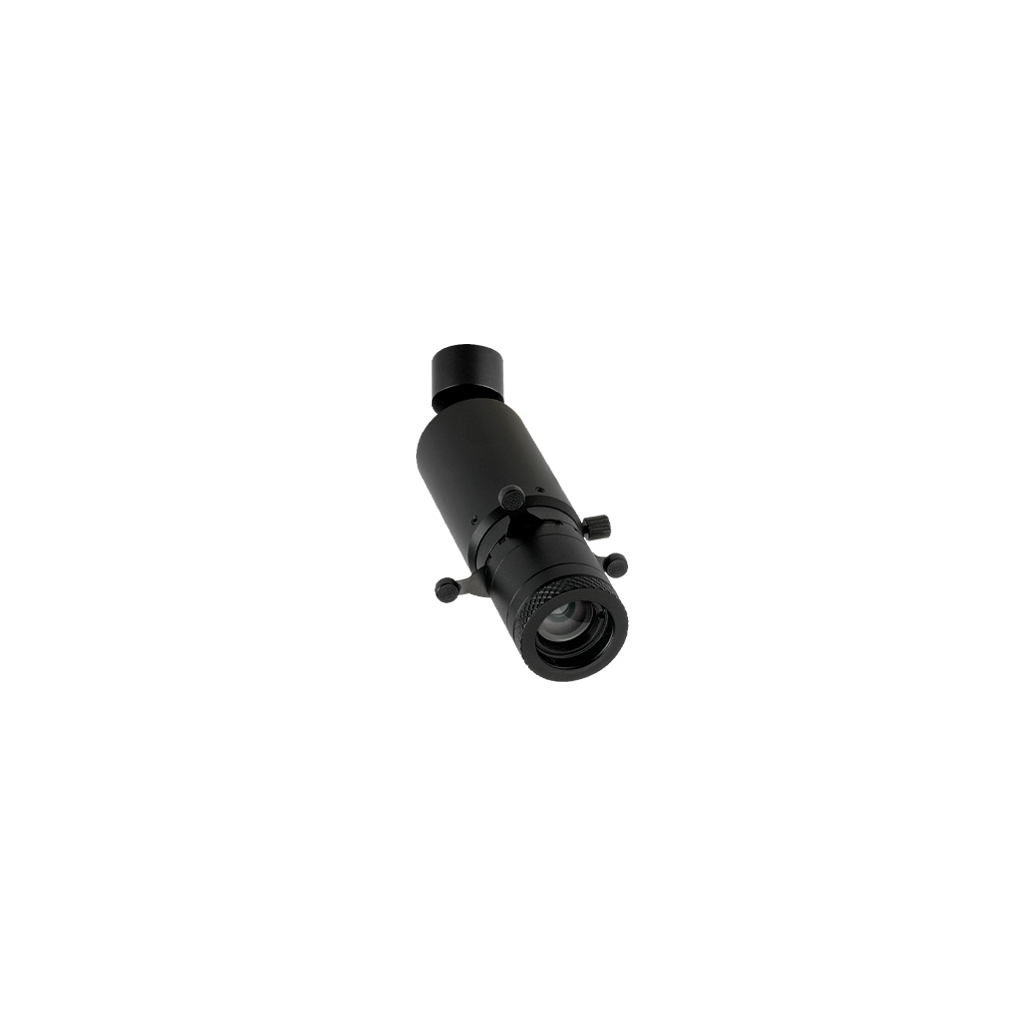

Magnetic 24V Micro Shaper
-
Luminous flux
190 lm / 210 lm / 250 lm
-
Lighting efficiency
19-27% / 29%
-
Power
2,2 W
-
Dimming
DIM options
-
Color temperature
2700K / 3000K / 4000K
-
Sealing
IP20
-
Chromatic stability
MacAdam Step 3
-
Light beam angle
18°-34° / 52°
-
Model
Ref.
Color
Source
Lum. flux
Power
Temp.
CRI
Beam angle
Efficiency
Dimming
Sealing
-
Reference:
A5450000N
Color:Black
Light source:LED
Luminous flux:190 lm
Power:2,2 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:18°-34°
Lighting efficiency:19-27%
Dimming:DIM options
Sealing:IP20
-
Reference:
A5450001N
Color:Black
Light source:LED
Luminous flux:210 lm
Power:2,2 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:18°-34°
Lighting efficiency:19-27%
Dimming:DIM options
Sealing:IP20
-
Reference:
A5450002N
Color:Black
Light source:LED
Luminous flux:250 lm
Power:2,2 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:18°-34°
Lighting efficiency:19-27%
Dimming:DIM options
Sealing:IP20
-
Reference:
A5450010N
Color:Black
Light source:LED
Luminous flux:190 lm
Power:2,2 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:52°
Lighting efficiency:29%
Dimming:DIM options
Sealing:IP20
-
Reference:
A5450011N
Color:Black
Light source:LED
Luminous flux:210 lm
Power:2,2 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:52°
Lighting efficiency:29%
Dimming:DIM options
Sealing:IP20
-
Reference:
A5450012N
Color:Black
Light source:LED
Luminous flux:250 lm
Power:2,2 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:52°
Lighting efficiency:29%
Dimming:DIM options
Sealing:IP20
