Line Suspension

SUSPENSION

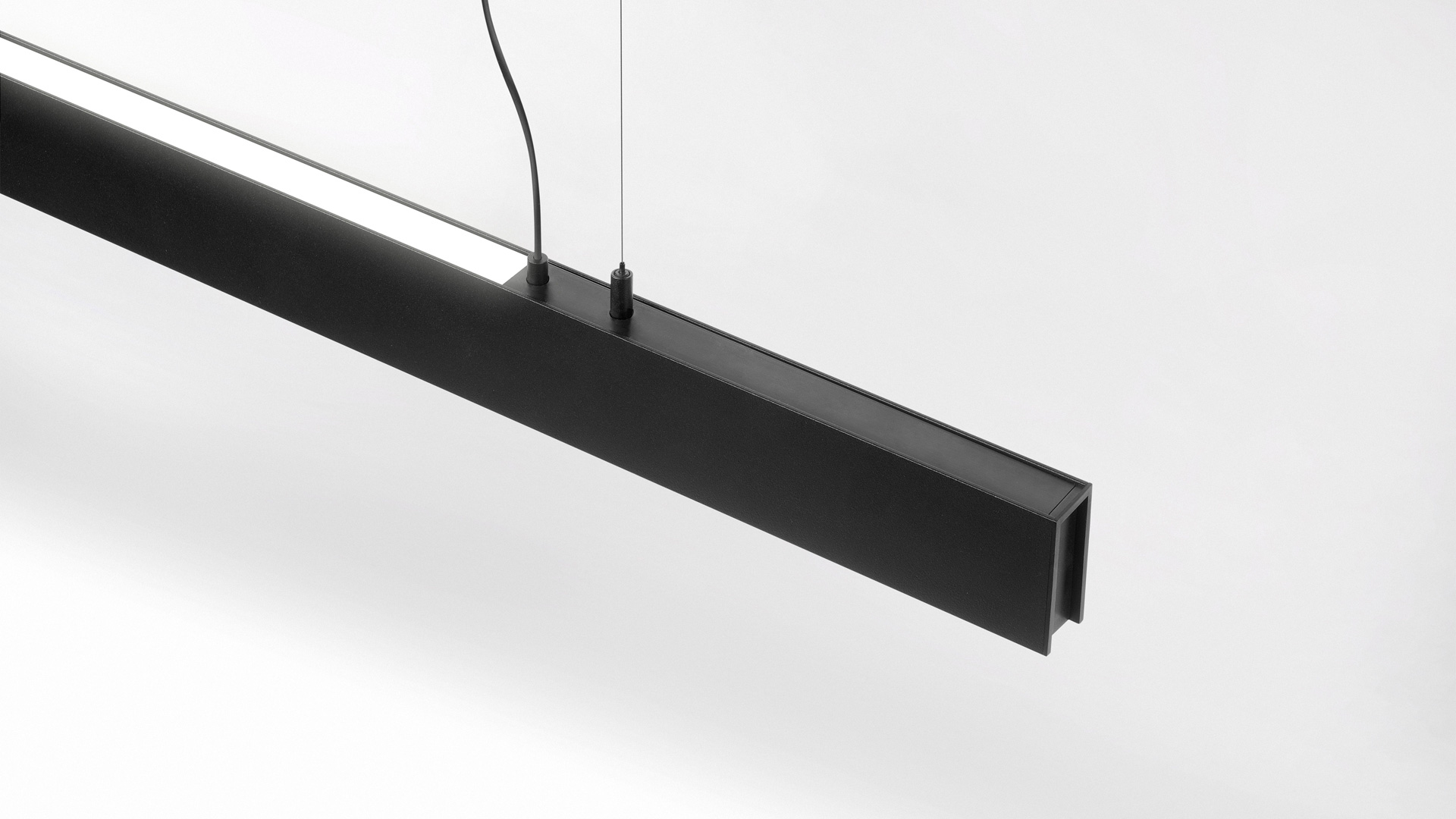

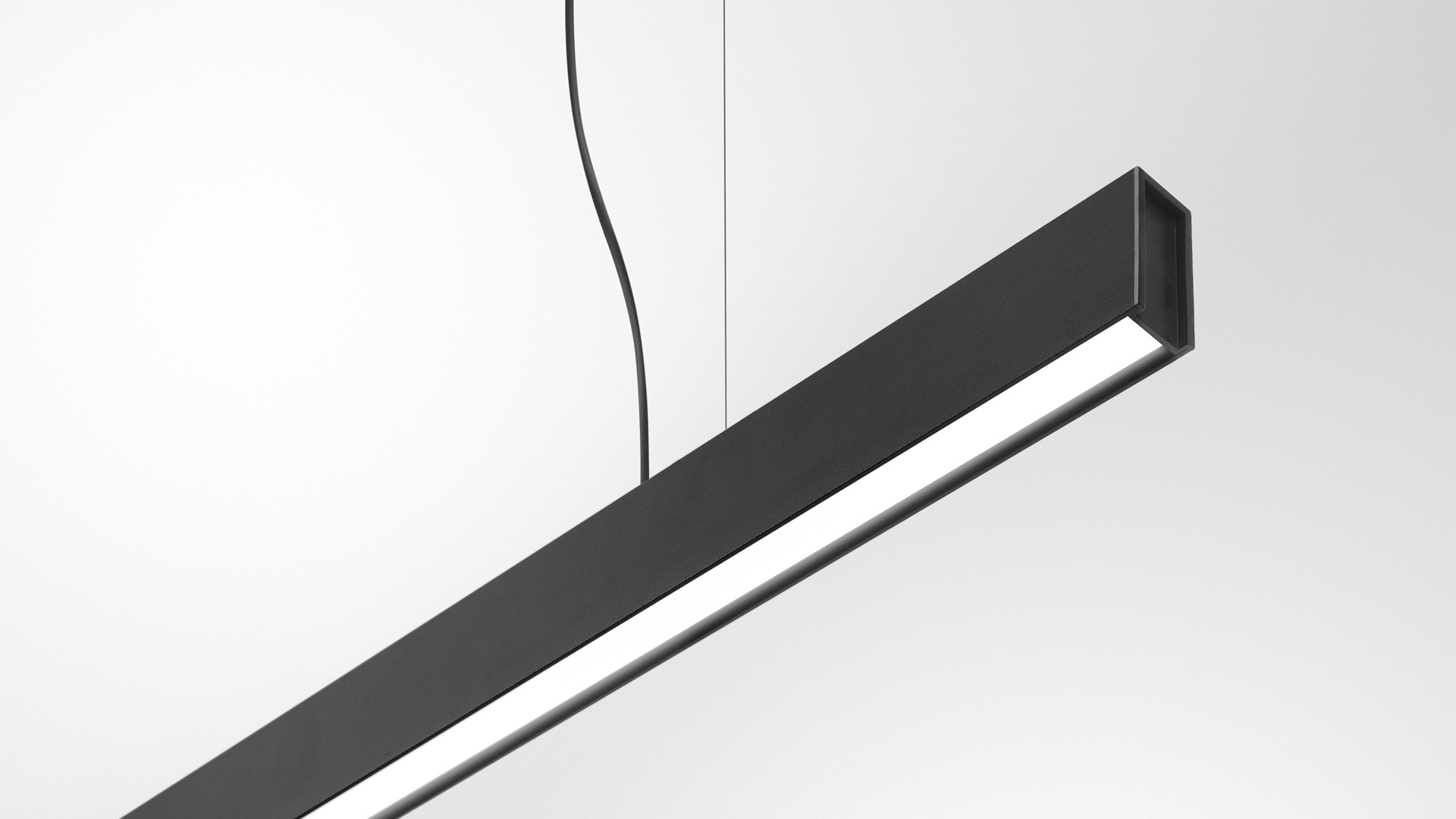

Line Suspension is an elegant luminaire composed of a linear light which can combine direct and indirect light... Its pure volumes – a diffuser inserted in the aluminium core - and its miniaturised components make its integration into the architectural space extraordinary. The range consists of 3 versions: Line Suspension, Line Suspension Direct&Indirect and a Micro version. All these products are available in two lengths.

Line Suspension

Line Suspension Base

Line Suspension Direct & Indirect

Line Suspension Direct & Indirect Base

Line Micro Suspension

Line Micro Suspension Base

Line Suspension Direct & Indirect

Luminous flux

Up:2030 - Down:4060 lm / Up:2080 - Down:4160 lm / Up:2100 - Down:3120 lm / Up:2140 - Down:3210 lm / Up:2180 - Down:4370 lm / Up:2250 - Down:3360 lm
Lighting efficiency

40% / 61%
Power

35 W / 41 W
Dimming

No Dim, DALI, Push
Color temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Recess measurements

Ø62mm
Light beam angle

100°
Cord length

Max. 2 m

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

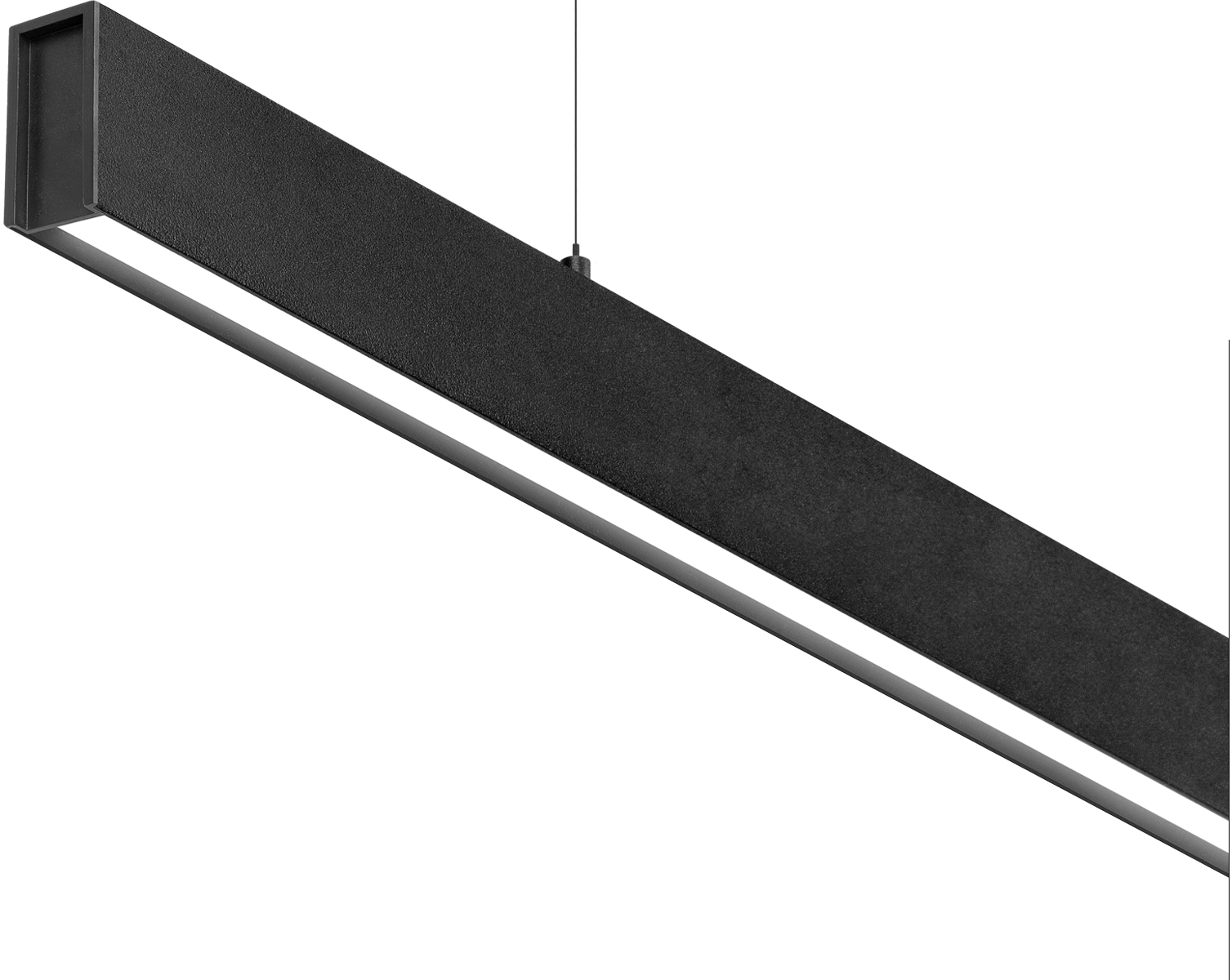

LINE SUSP D&I 1500 2700K NT

Reference:

A4371010NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2100 - Down:3120 lm

Power:

35 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

No Dim

Sealing:

IP20

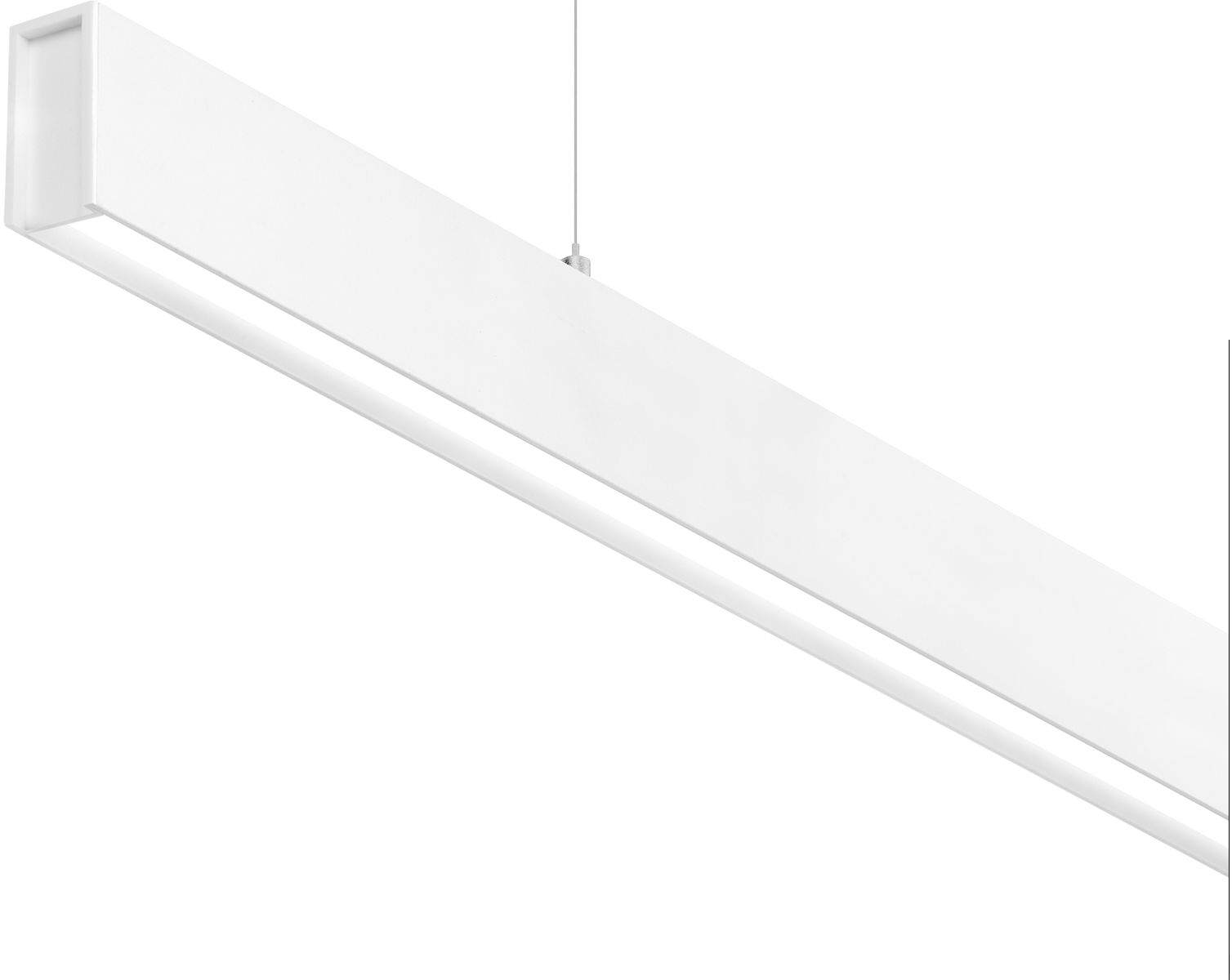

LINE SUSP D&I 1500 2700K WT

Reference:

A4371010WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2100 - Down:3120 lm

Power:

35 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 1500 3000K NT

Reference:

A4371011NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2140 - Down:3210 lm

Power:

35 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 1500 3000K WT

Reference:

A4371011WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2140 - Down:3210 lm

Power:

35 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 1500 4000K NT

Reference:

A4371012NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2250 - Down:3360 lm

Power:

35 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 1500 4000K WT

Reference:

A4371012WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2250 - Down:3360 lm

Power:

35 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 1500 DIM DALI 2700K NT

Reference:

A4371020NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2100 - Down:3120 lm

Power:

35 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 1500 DIM DALI 2700K WT

Reference:

A4371020WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2100 - Down:3120 lm

Power:

35 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 1500 DIM DALI 3000K NT

Reference:

A4371021NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2140 - Down:3210 lm

Power:

35 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 1500 DIM DALI 3000K WT

Reference:

A4371021WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2140 - Down:3210 lm

Power:

35 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 1500 DIM DALI 4000K NT

Reference:

A4371022NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2250 - Down:3360 lm

Power:

35 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 1500 DIM DALI 4000K WT

Reference:

A4371022WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2250 - Down:3360 lm

Power:

35 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 1500 DIM PUSH 2700K NT

Reference:

A4371030NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2100 - Down:3120 lm

Power:

35 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 1500 DIM PUSH 2700K WT

Reference:

A4371030WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2100 - Down:3120 lm

Power:

35 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 1500 DIM PUSH 3000K NT

Reference:

A4371031NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2140 - Down:3210 lm

Power:

35 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 1500 DIM PUSH 3000K WT

Reference:

A4371031WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2140 - Down:3210 lm

Power:

35 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 1500 DIM PUSH 4000K NT

Reference:

A4371032NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2250 - Down:3360 lm

Power:

35 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 1500 DIM PUSH 4000K WT

Reference:

A4371032WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2250 - Down:3360 lm

Power:

35 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 2000 2700K NT

Reference:

A4372010NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2030 - Down:4060 lm

Power:

41 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 2000 2700K WT

Reference:

A4372010WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2030 - Down:4060 lm

Power:

41 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 2000 3000K NT

Reference:

A4372011NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2080 - Down:4160 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 2000 3000K WT

Reference:

A4372011WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2080 - Down:4160 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 2000 4000K NT

Reference:

A4372012NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2180 - Down:4370 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 2000 4000K WT

Reference:

A4372012WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2180 - Down:4370 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

No Dim

Sealing:

IP20
LINE SUSP D&I 2000 DIM DALI 2700K NT

Reference:

A4372020NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2030 - Down:4060 lm

Power:

41 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 2000 DIM DALI 2700K WT

Reference:

A4372020WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2030 - Down:4060 lm

Power:

41 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 2000 DIM DALI 3000K NT

Reference:

A4372021NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2080 - Down:4160 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 2000 DIM DALI 3000K WT

Reference:

A4372021WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2080 - Down:4160 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 2000 DIM DALI 4000K NT

Reference:

A4372022NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2180 - Down:4370 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 2000 DIM DALI 4000K WT

Reference:

A4372022WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2180 - Down:4370 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

DALI

Sealing:

IP20
LINE SUSP D&I 2000 DIM PUSH 2700K NT

Reference:

A4372030NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2030 - Down:4060 lm

Power:

41 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 2000 DIM PUSH 2700K WT

Reference:

A4372030WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2030 - Down:4060 lm

Power:

41 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 2000 DIM PUSH 3000K NT

Reference:

A4372031NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2080 - Down:4160 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 2000 DIM PUSH 3000K WT

Reference:

A4372031WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2080 - Down:4160 lm

Power:

41 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 2000 DIM PUSH 4000K NT

Reference:

A4372032NT

Color:

Textured black

Light source:

LED

Luminous flux:

Up:2180 - Down:4370 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

40%

Dimming:

Push

Sealing:

IP20
LINE SUSP D&I 2000 DIM PUSH 4000K WT

Reference:

A4372032WT

Color:

Textured white

Light source:

LED

Luminous flux:

Up:2180 - Down:4370 lm

Power:

41 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

100°

Lighting efficiency:

61%

Dimming:

Push

Sealing:

IP20

Accessories

WIRE TRIMLESS ACCESSORY

TRIMLESS TOOL

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Phone

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Name

This field is for validation purposes and should be left unchanged.

Line Suspension

SUSPENSION

Line Suspension Direct & Indirect

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

Stick

Scope

Spin

Salt

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
