Line 48V

TRACK LIGHTS

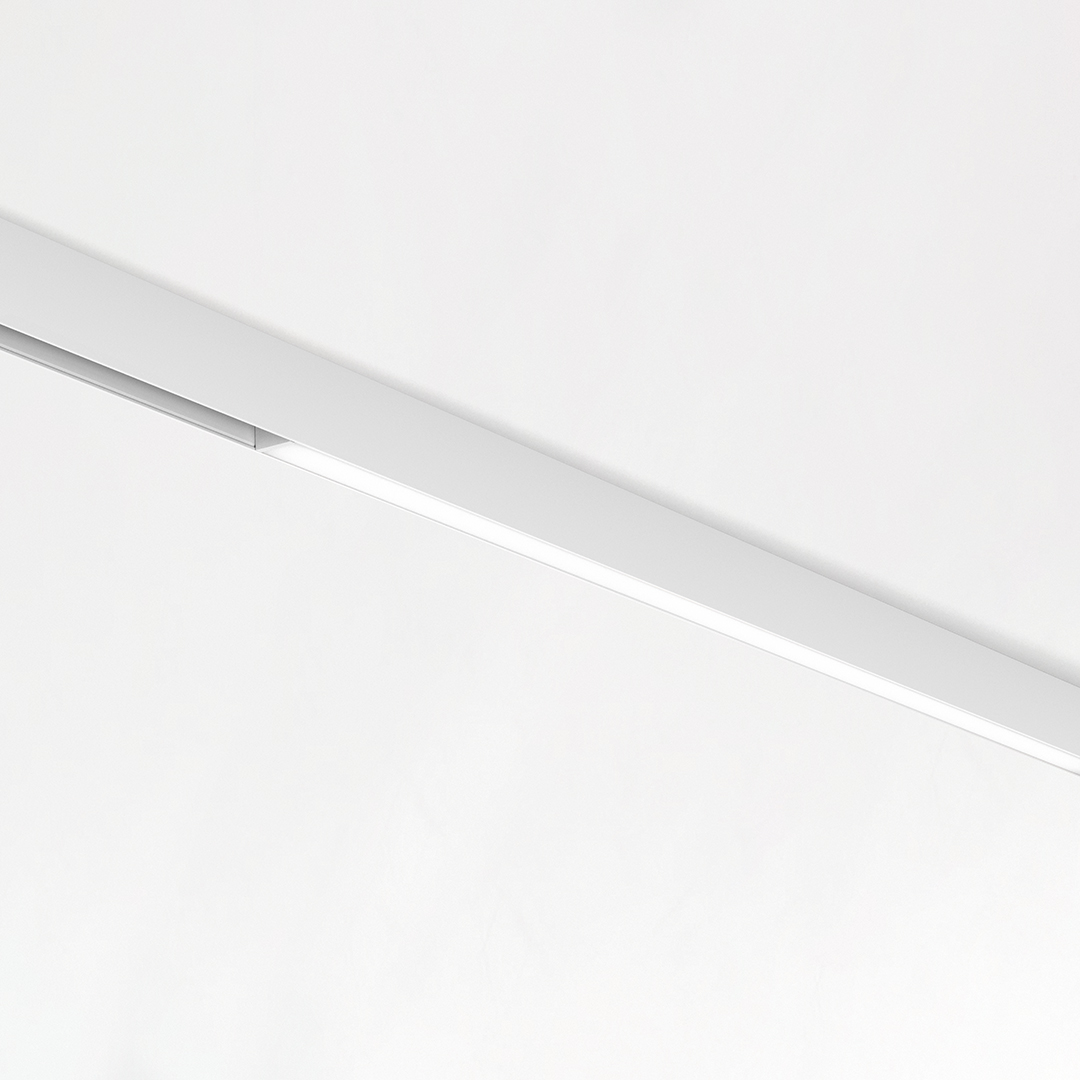

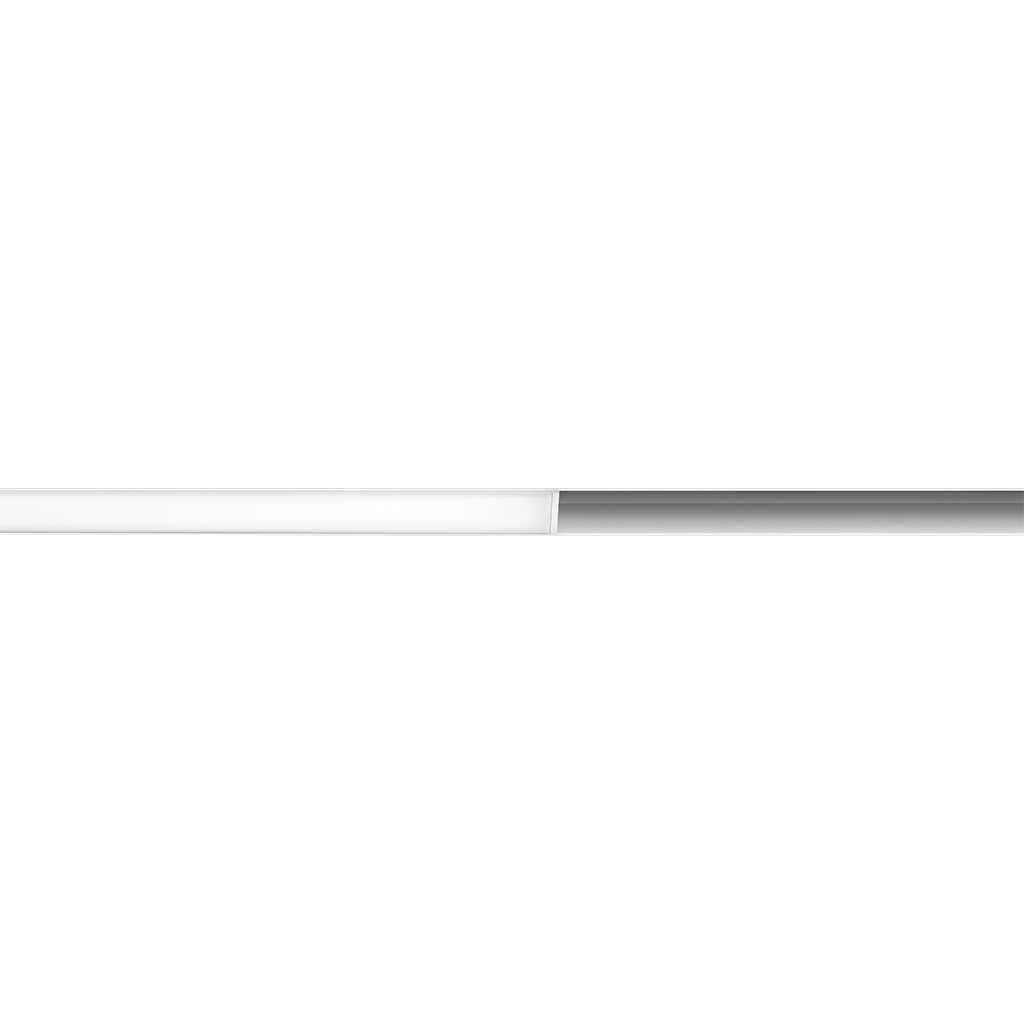

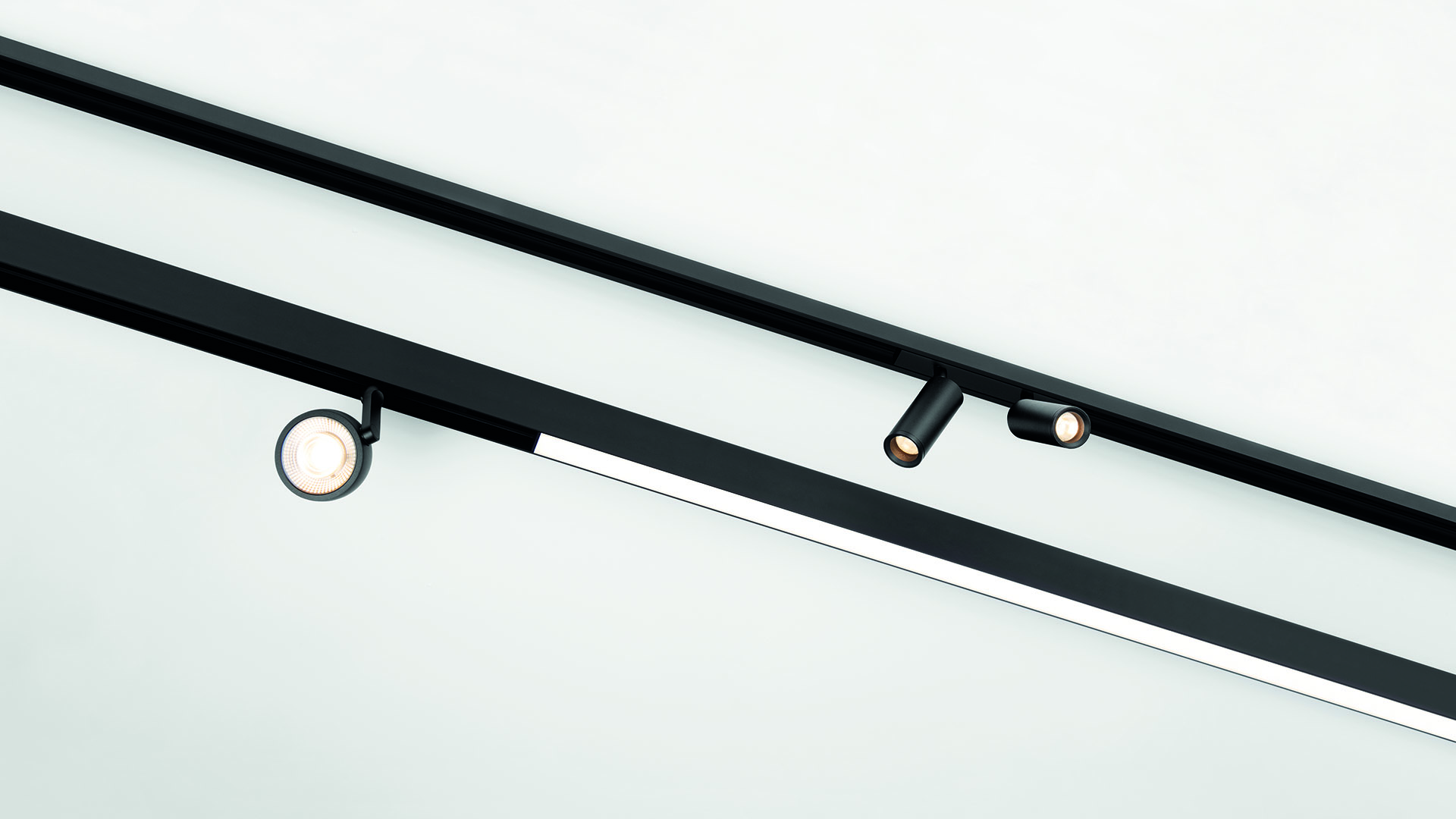

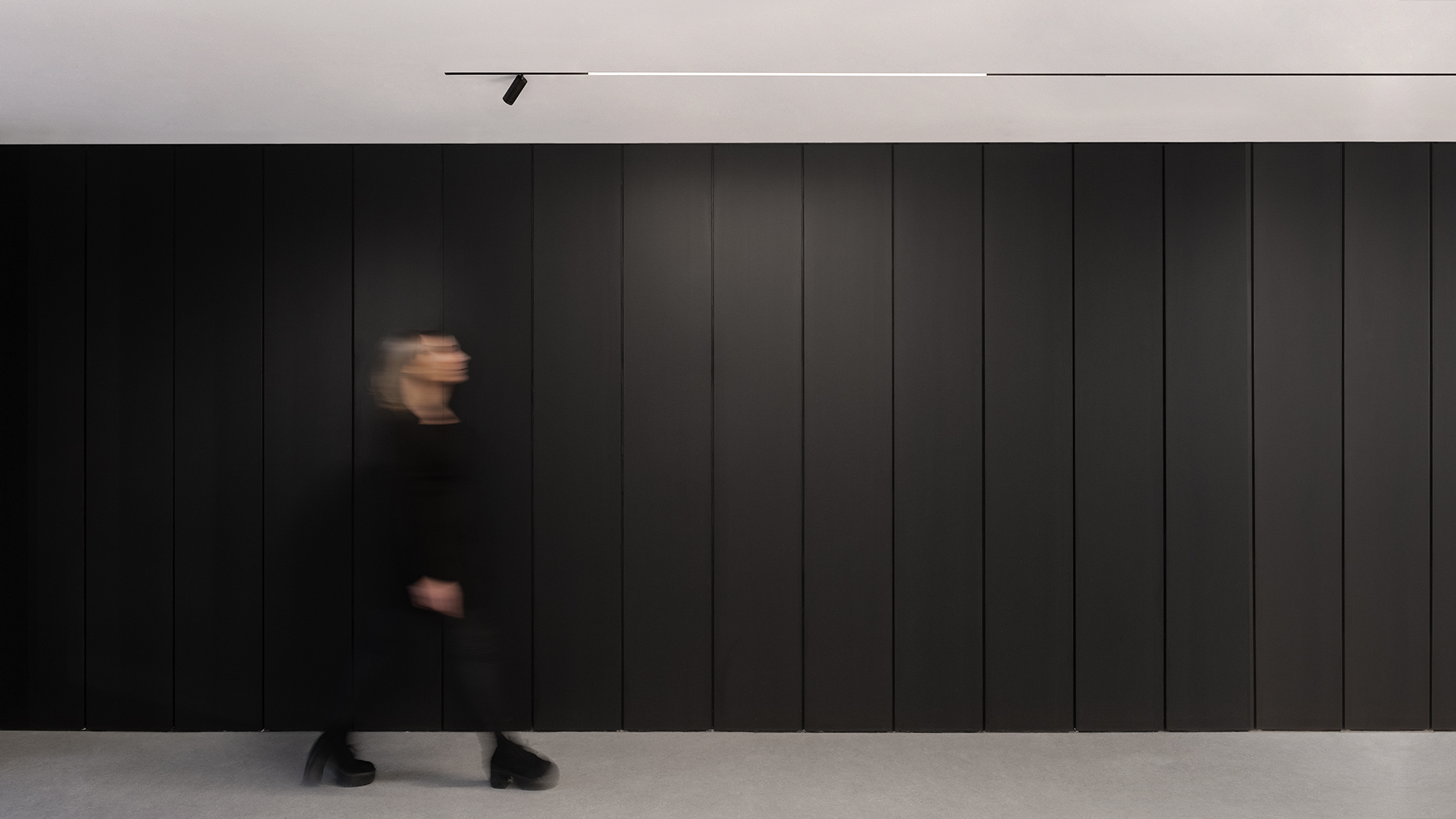

Line 48V, is the line-luminary of diffused light for 48 voltage tracklight applications. This lighting solution allows Arkoslight’s 48V tracklight to combine accent lighting with longitudinal general lighting where required.

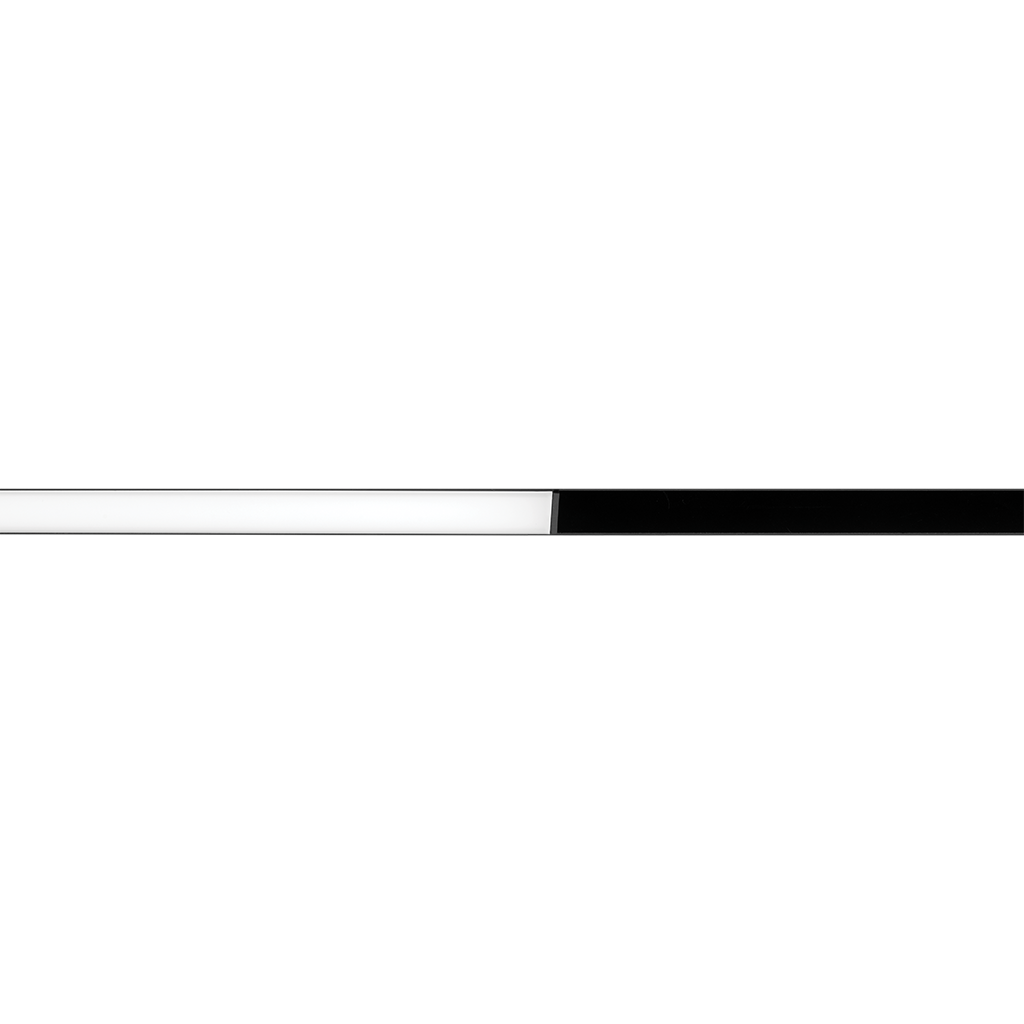

Line 48V 500
Line 48V 500
Line 48V 1000
Line 48V 1000
Line 48V 2000
Line 48V 2000

Line 48V 2000

  • Luminous flux

    6000 lm / 6400 lm / 6600 lm

  • Lighting efficiency

    43% / 65%

  • Power

    42 W

  • Dimming

    No Dim, DALI

  • Color temperature

    2700K / 3000K / 4000K

  • Sealing

    IP20

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    98°

Custom configuration
Instructions BIM Brochure
Luminous Flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • CRI
      Light beam angle
        Dimming
          Sealing
            Cord length
              Distance of suspension
                Base Finishing
                  Color

                    • Model

                      Ref.

                      Color

                      Source

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      Sealing

                    • LINE 2000 48V 2700K N
                      Reference:

                      A3763010N

                      Color:

                      Matt black

                      Light source:

                      LED

                      Luminous flux:

                      6000 lm

                      Power:

                      42 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      43%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • LINE 2000 48V 2700K WT
                      Reference:

                      A3763010WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      6000 lm

                      Power:

                      42 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      65%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • LINE 2000 48V 3000K N
                      Reference:

                      A3763011N

                      Color:

                      Matt black

                      Light source:

                      LED

                      Luminous flux:

                      6400 lm

                      Power:

                      42 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      43%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • LINE 2000 48V 3000K WT
                      Reference:

                      A3763011WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      6400 lm

                      Power:

                      42 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      65%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • LINE 2000 48V 4000K N
                      Reference:

                      A3763012N

                      Color:

                      Matt black

                      Light source:

                      LED

                      Luminous flux:

                      6600 lm

                      Power:

                      42 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      43%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • LINE 2000 48V 4000K WT
                      Reference:

                      A3763012WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      6600 lm

                      Power:

                      42 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      65%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • LINE 2000 48V DIM DALI 2700K N
                      Reference:

                      A3763020N

                      Color:

                      Matt black

                      Light source:

                      LED

                      Luminous flux:

                      6000 lm

                      Power:

                      42 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      43%

                      Dimming:

                      DALI

                      Sealing:

                      IP20

                    • LINE 2000 48V DIM DALI 2700K WT
                      Reference:

                      A3763020WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      6000 lm

                      Power:

                      42 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      65%

                      Dimming:

                      DALI

                      Sealing:

                      IP20

                    • LINE 2000 48V DIM DALI 3000K N
                      Reference:

                      A3763021N

                      Color:

                      Matt black

                      Light source:

                      LED

                      Luminous flux:

                      6400 lm

                      Power:

                      42 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      43%

                      Dimming:

                      DALI

                      Sealing:

                      IP20

                    • LINE 2000 48V DIM DALI 3000K WT
                      Reference:

                      A3763021WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      6400 lm

                      Power:

                      42 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      65%

                      Dimming:

                      DALI

                      Sealing:

                      IP20

                    • LINE 2000 48V DIM DALI 4000K N
                      Reference:

                      A3763022N

                      Color:

                      Matt black

                      Light source:

                      LED

                      Luminous flux:

                      6600 lm

                      Power:

                      42 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      43%

                      Dimming:

                      DALI

                      Sealing:

                      IP20

                    • LINE 2000 48V DIM DALI 4000K WT
                      Reference:

                      A3763022WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      6600 lm

                      Power:

                      42 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      65%

                      Dimming:

                      DALI

                      Sealing:

                      IP20

                    Accessories

                    TRACK 48V OPTIONS

                    Are you interested in this product? Contact us

                    *
                    This field is for validation purposes and should be left unchanged.

                    Related products

                    Related projects

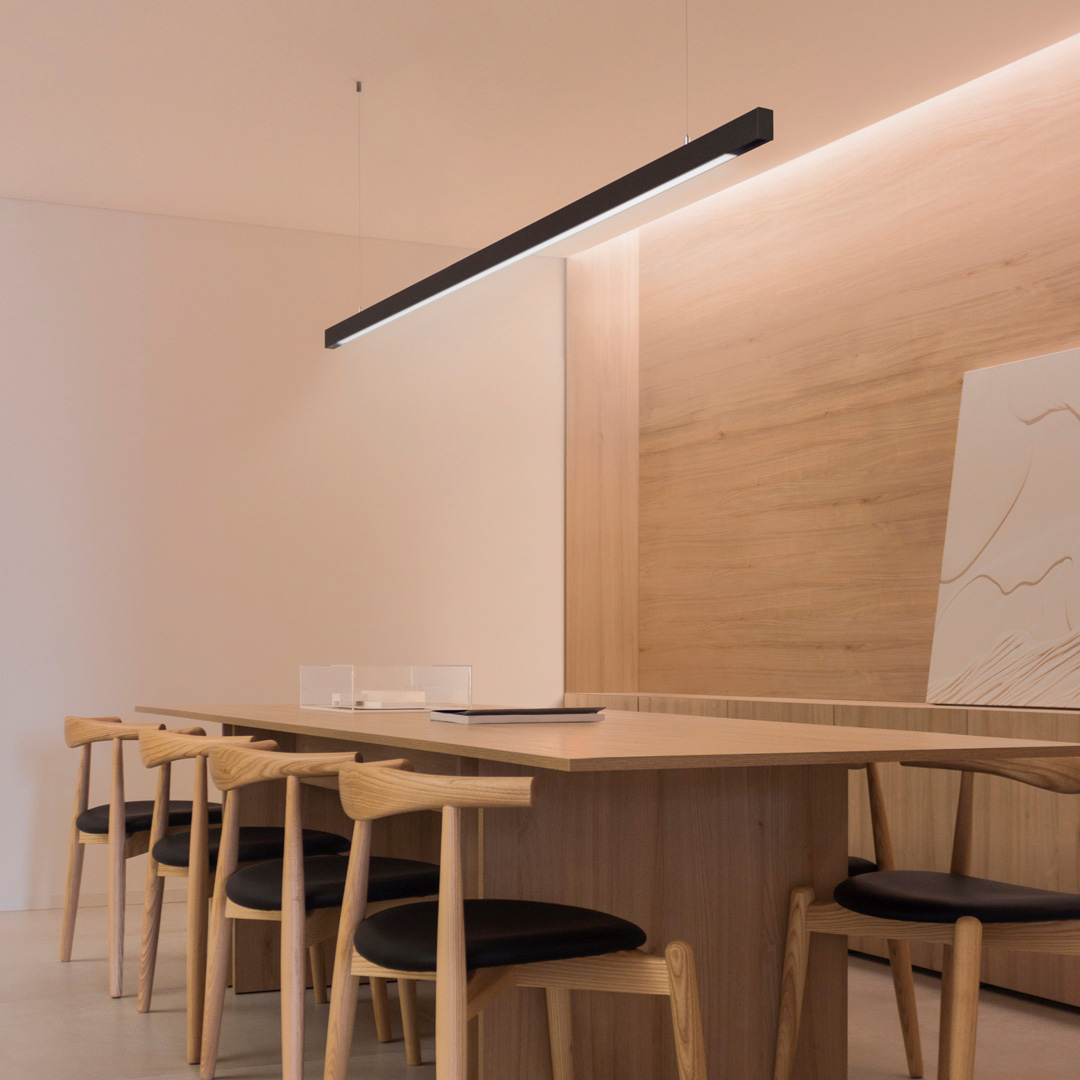

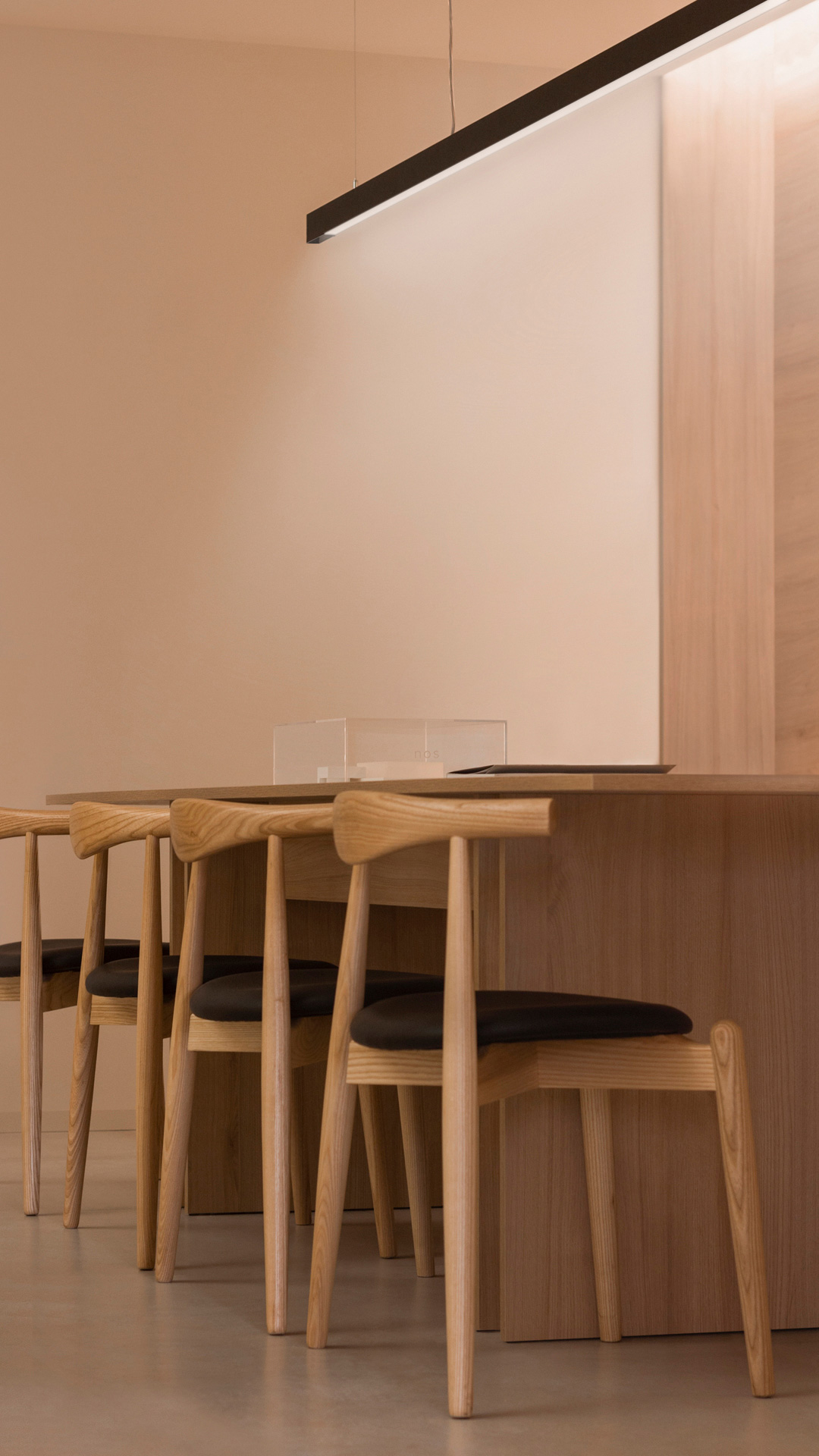

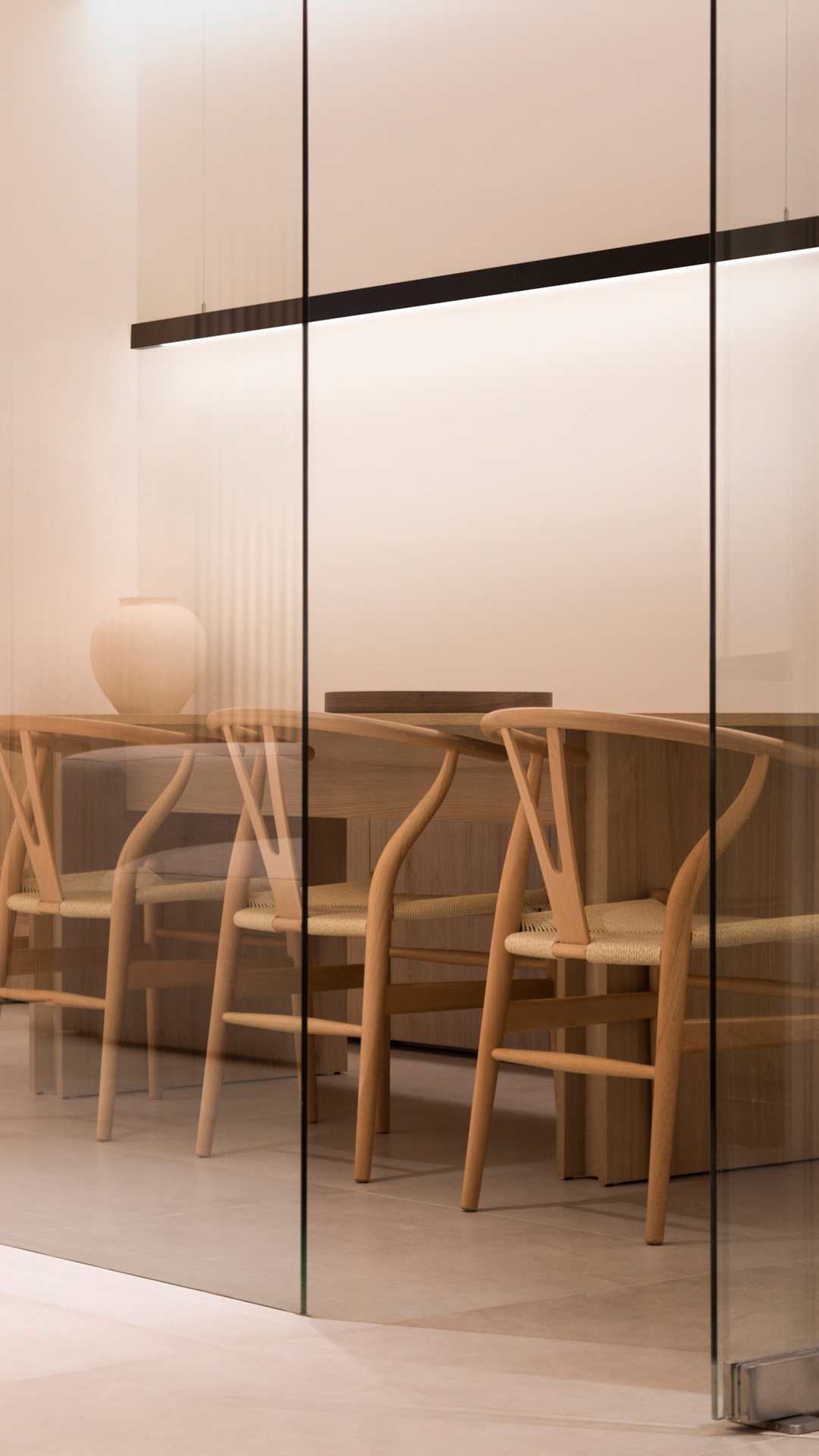

                    Ebro Notary Office
