Dark

OUTDOOR

Dark is a floor-recessed LED luminaire used together with elements that we wish to illuminate upwards, to be able to highlight their architectonic presence (structures, walls, trees, gardens, cornices, etc.).

Dark

Dark Honeycomb

Dark M

Dark M Honeycomb

Dark M Asymmetric

Dark M Wall Washer

Dark M Honeycomb

Luminous flux

640 lm / 640 / 865 / 1220 lm / 665 lm / 665 / 900 / 1265 lm / 675 lm / 675 / 915 / 1290 lm / 865 lm / 900 lm / 915 lm / 1220 lm / 1265 lm / 1290 lm
Lighting efficiency

53%
Power

4,6 W / 4,6 / 6,7 / 10,5 W / 6,7 W / 10,5 W
Dimming

No Dim, DALI - Push / WIFI
Colour temperature

2700K / 3000K / 4000K
Sealing

IP67
Chromatic stability

MacAdam Step 2
Recess measurements

Ø92mm
Light beam angle

34°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

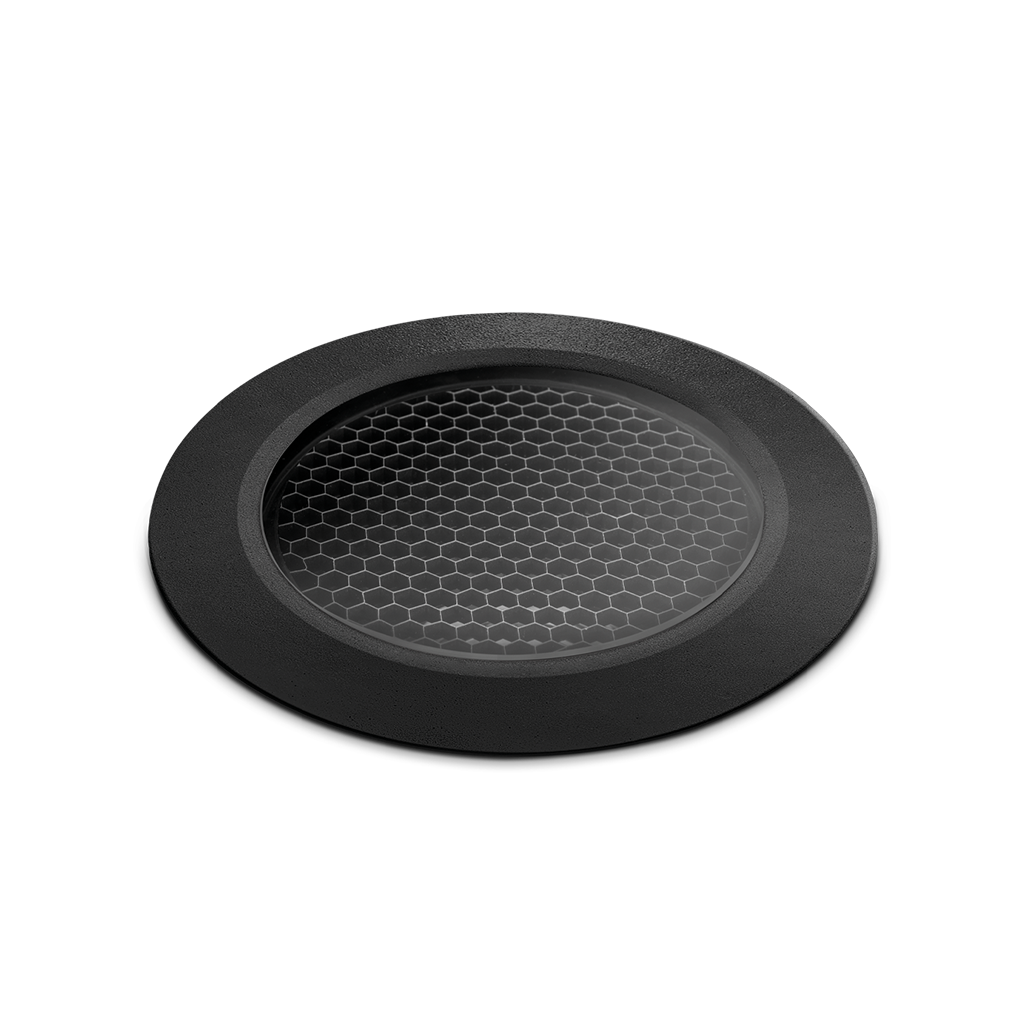

DARK M HONEYCOMB 2700K N

Reference:

A5140010N

Colour:

Black

Light source:

LED

Luminous flux:

640 / 865 / 1220 lm

Power:

4,6 / 6,7 / 10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67

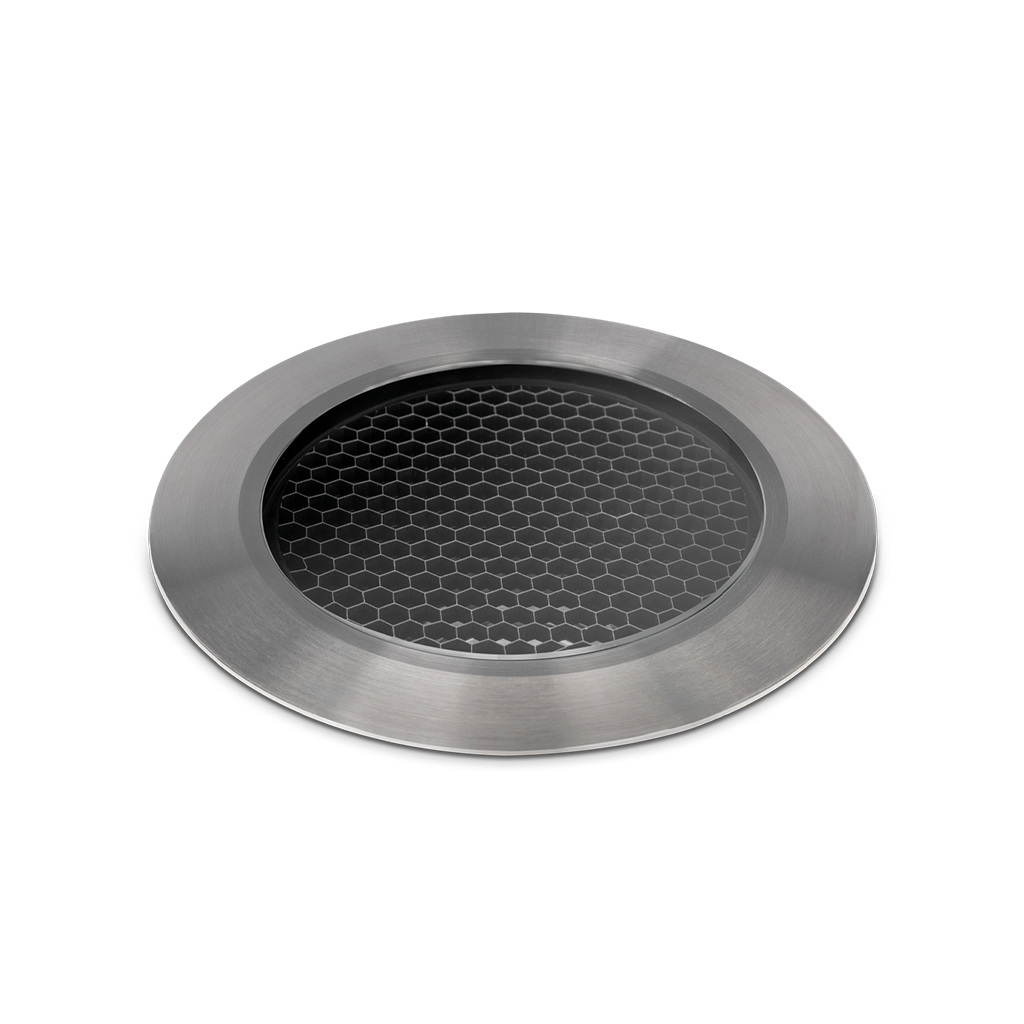

DARK M HONEYCOMB 2700K NX

Reference:

A5140010NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

640 / 865 / 1220 lm

Power:

4,6 / 6,7 / 10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67

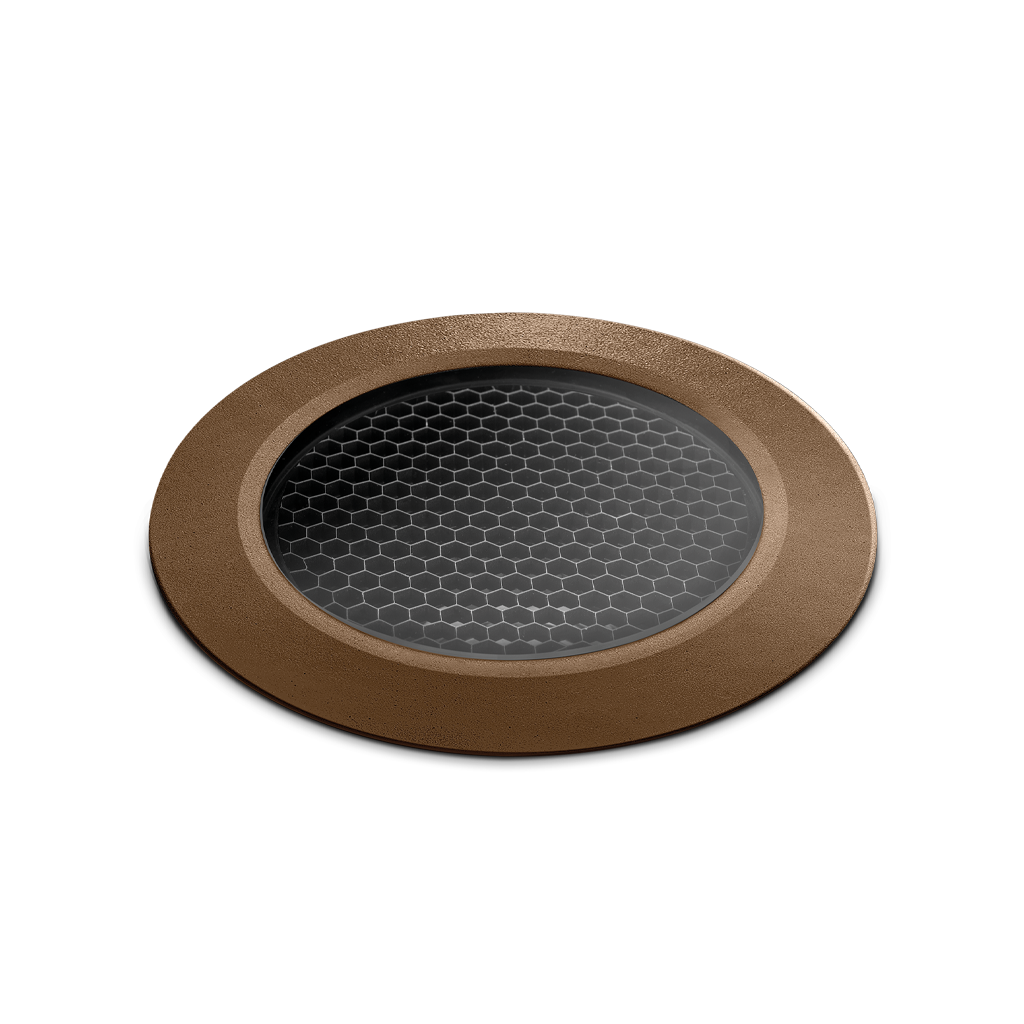

DARK M HONEYCOMB 2700K OX

Reference:

A5140010OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

640 / 865 / 1220 lm

Power:

4,6 / 6,7 / 10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK M HONEYCOMB 3000K N

Reference:

A5140011N

Colour:

Black

Light source:

LED

Luminous flux:

665 / 900 / 1265 lm

Power:

4,6 / 6,7 / 10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK M HONEYCOMB 3000K NX

Reference:

A5140011NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

665 / 900 / 1265 lm

Power:

4,6 / 6,7 / 10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK M HONEYCOMB 3000K OX

Reference:

A5140011OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

665 / 900 / 1265 lm

Power:

4,6 / 6,7 / 10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK M HONEYCOMB 4000K N

Reference:

A5140012N

Colour:

Black

Light source:

LED

Luminous flux:

675 / 915 / 1290 lm

Power:

4,6 / 6,7 / 10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK M HONEYCOMB 4000K NX

Reference:

A5140012NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

675 / 915 / 1290 lm

Power:

4,6 / 6,7 / 10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK M HONEYCOMB 4000K OX

Reference:

A5140012OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

675 / 915 / 1290 lm

Power:

4,6 / 6,7 / 10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK M 48V HONEYCOMB 1 2700K N

Reference:

A5230110N

Colour:

Black

Light source:

LED

Luminous flux:

640 lm

Power:

4,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 1 2700K NX

Reference:

A5230110NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

640 lm

Power:

4,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 1 2700K OX

Reference:

A5230110OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

640 lm

Power:

4,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 1 3000K N

Reference:

A5230111N

Colour:

Black

Light source:

LED

Luminous flux:

665 lm

Power:

4,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 1 3000K NX

Reference:

A5230111NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

665 lm

Power:

4,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 1 3000K OX

Reference:

A5230111OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

665 lm

Power:

4,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 1 4000K N

Reference:

A5230112N

Colour:

Black

Light source:

LED

Luminous flux:

675 lm

Power:

4,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 1 4000K NX

Reference:

A5230112NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

675 lm

Power:

4,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 1 4000K OX

Reference:

A5230112OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

675 lm

Power:

4,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 2 2700K N

Reference:

A5230210N

Colour:

Black

Light source:

LED

Luminous flux:

865 lm

Power:

6,7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 2 2700K NX

Reference:

A5230210NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

865 lm

Power:

6,7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 2 2700K OX

Reference:

A5230210OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

865 lm

Power:

6,7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 2 3000K N

Reference:

A5230211N

Colour:

Black

Light source:

LED

Luminous flux:

900 lm

Power:

6,7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 2 3000K NX

Reference:

A5230211NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

900 lm

Power:

6,7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 2 3000K OX

Reference:

A5230211OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

900 lm

Power:

6,7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 2 4000K N

Reference:

A5230212N

Colour:

Black

Light source:

LED

Luminous flux:

915 lm

Power:

6,7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 2 4000K NX

Reference:

A5230212NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

915 lm

Power:

6,7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 2 4000K OX

Reference:

A5230212OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

915 lm

Power:

6,7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 3 2700K N

Reference:

A5230310N

Colour:

Black

Light source:

LED

Luminous flux:

1220 lm

Power:

10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 3 2700K NX

Reference:

A5230310NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

1220 lm

Power:

10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 3 2700K OX

Reference:

A5230310OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

1220 lm

Power:

10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 3 3000K N

Reference:

A5230311N

Colour:

Black

Light source:

LED

Luminous flux:

1265 lm

Power:

10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 3 3000K NX

Reference:

A5230311NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

1265 lm

Power:

10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 3 3000K OX

Reference:

A5230311OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

1265 lm

Power:

10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 3 4000K N

Reference:

A5230312N

Colour:

Black

Light source:

LED

Luminous flux:

1290 lm

Power:

10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 3 4000K NX

Reference:

A5230312NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

1290 lm

Power:

10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67
DARK M 48V HONEYCOMB 3 4000K OX

Reference:

A5230312OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

1290 lm

Power:

10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

53%

Dimming:

DALI - Push / WIFI

Sealing:

IP67

Accessories

DRIVER OPTIONS

CONNECTOR IP67

Are you interested in this product? Contact us

Company

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

X/Twitter

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Dark

OUTDOOR

Dark M Honeycomb

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Accessories

Are you interested in this product? Contact us

Related products

Step

Yoru Spike

Skip

Slim

Related projects

Miphai Store

Raymat Castle

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
