Dark

OUTDOOR

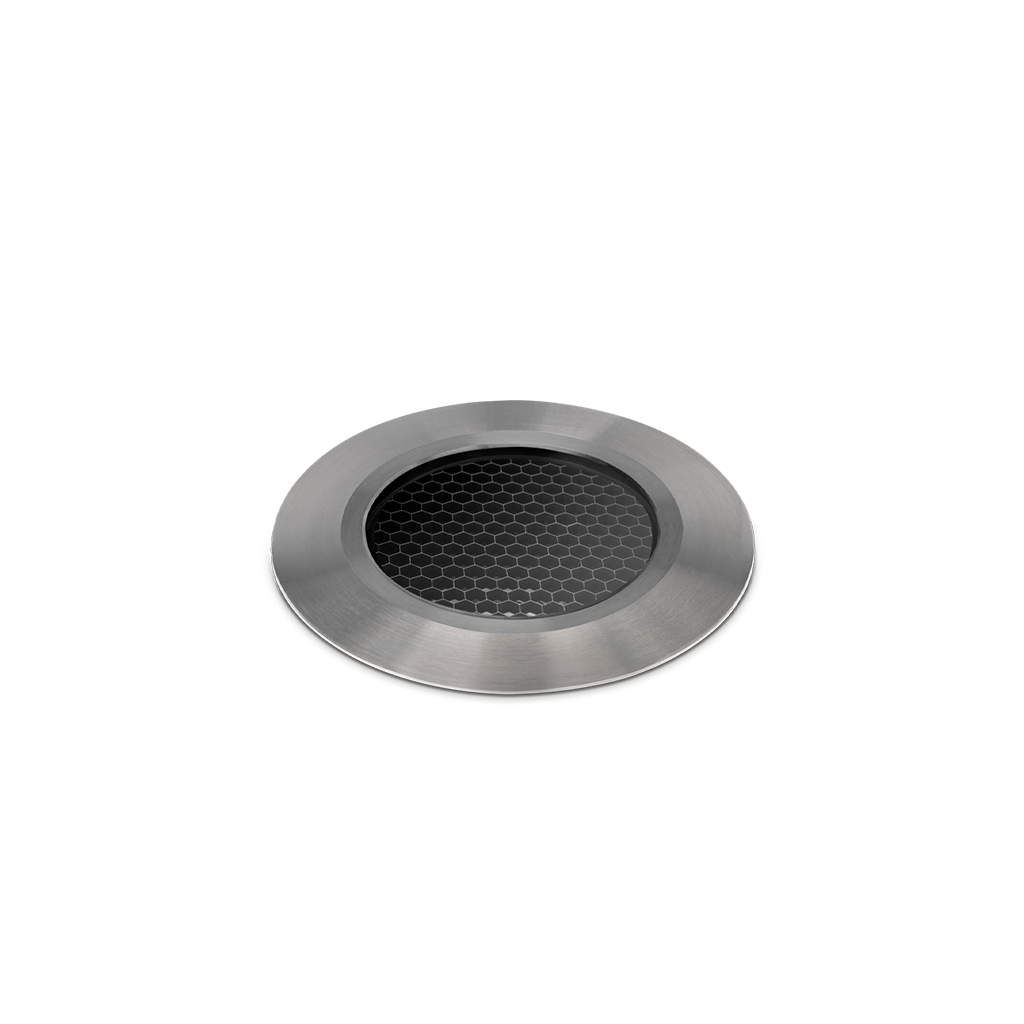

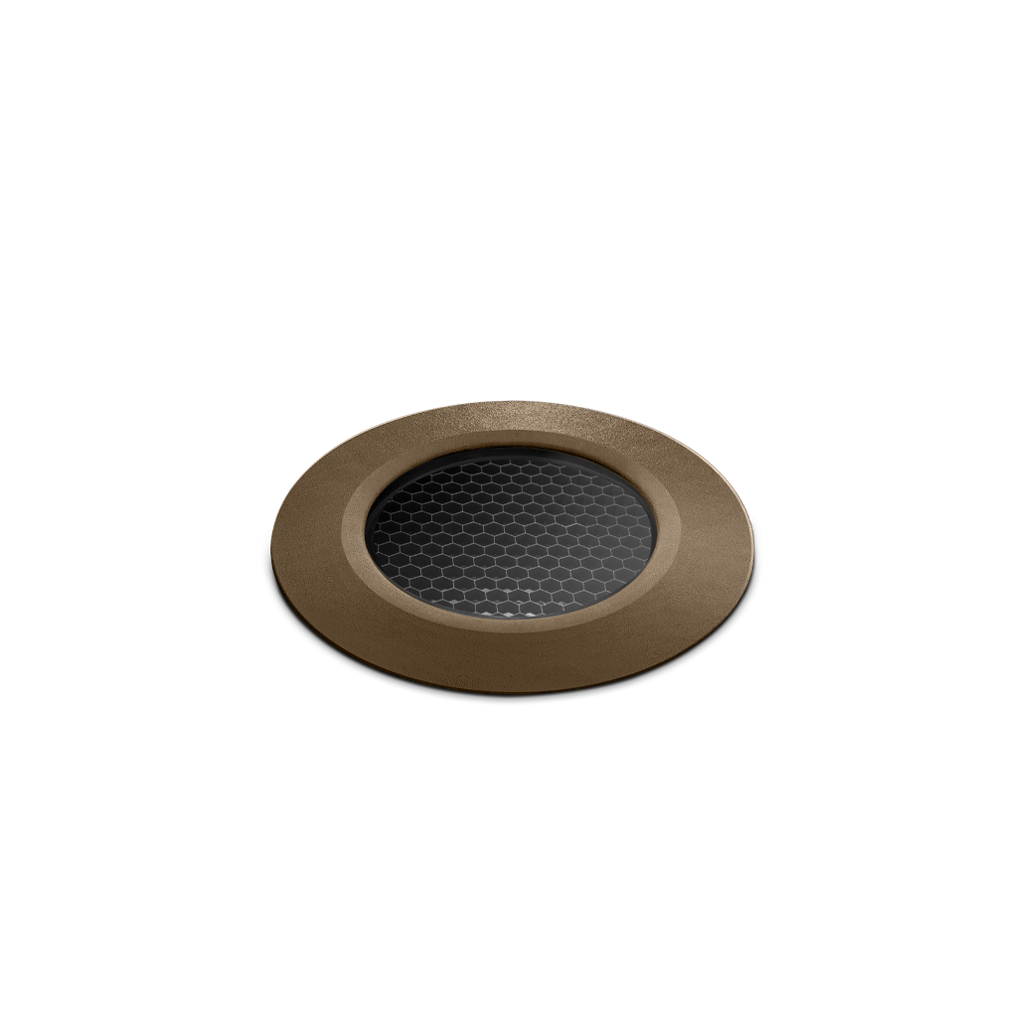

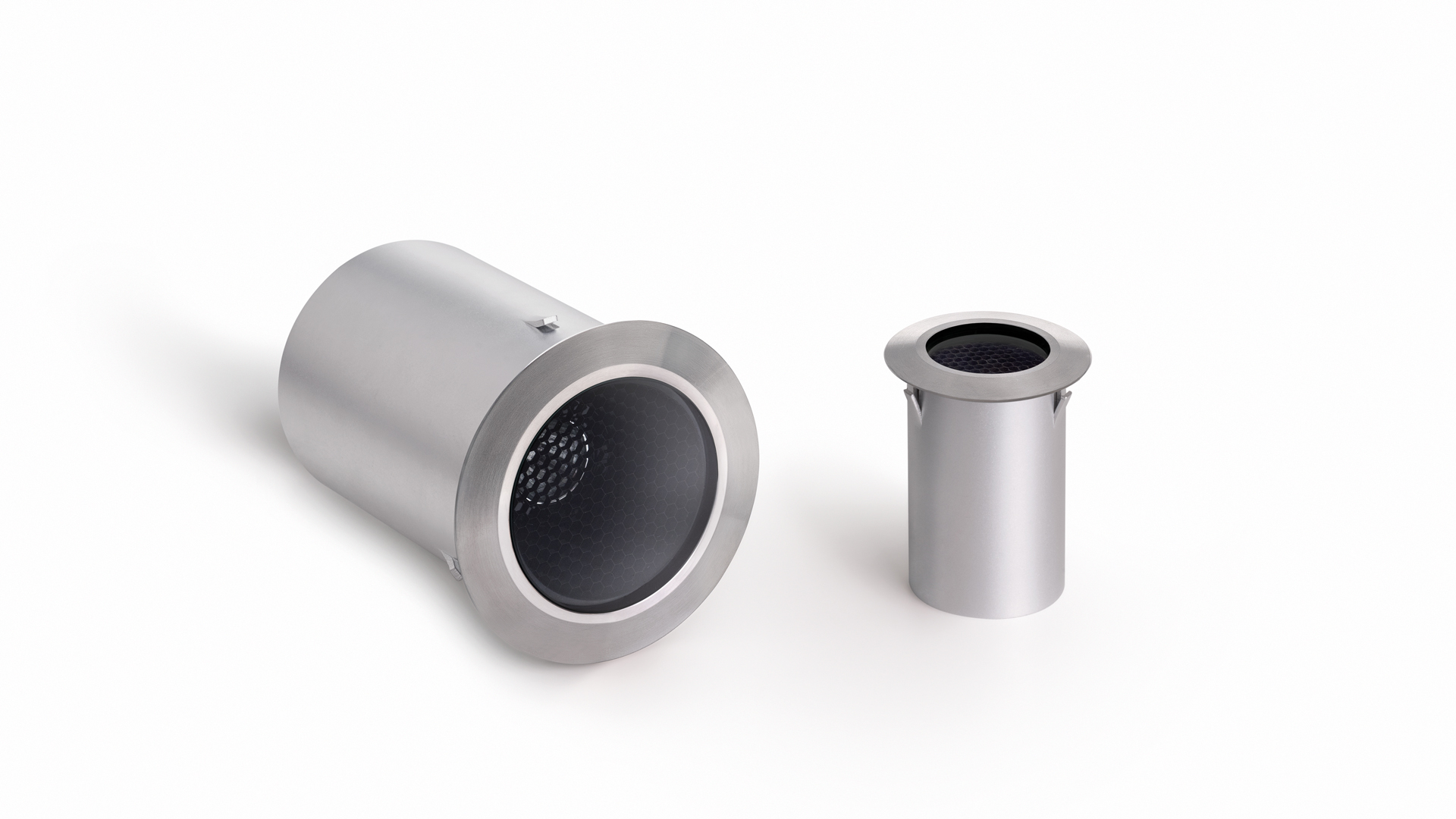

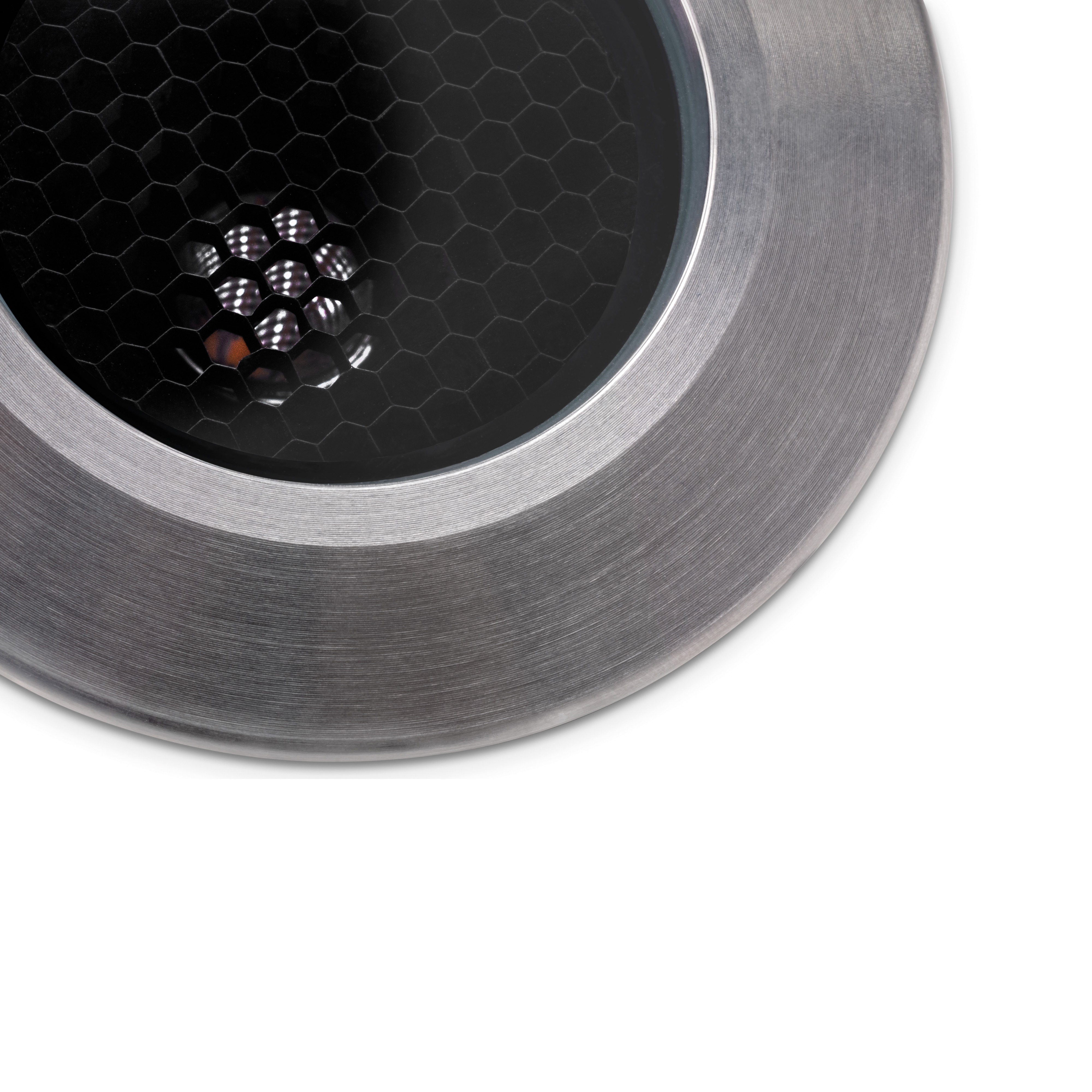

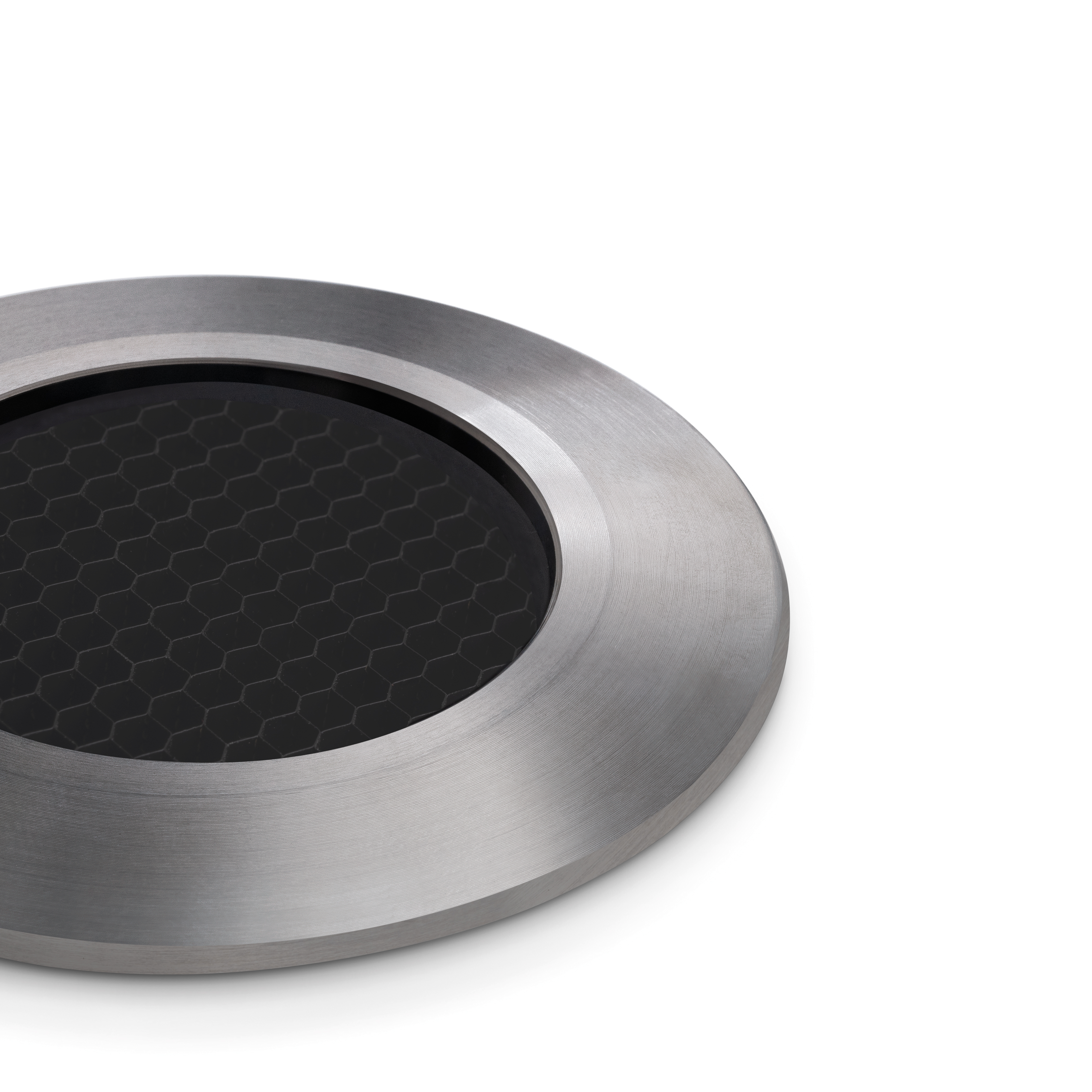

Dark is a floor-recessed LED luminaire used together with elements that we wish to illuminate upwards, to be able to highlight their architectonic presence (structures, walls, trees, gardens, cornices, etc.).

Dark

Dark Honeycomb

Dark M

Dark M Honeycomb

Dark M Asymmetric

Dark M Wall Washer

Dark Honeycomb

Luminous flux

100 / 180 / 250 lm / 120 / 200 / 280 lm / 130 / 240 / 325 lm
Lighting efficiency

53% / 54%
Power

1 / 2,1 / 3,2 W
Dimming

No Dim
Colour temperature

2700K / 3000K / 4000K
Sealing

IP67
Chromatic stability

MacAdam Step 3
Recess measurements

Ø52mm
Light beam angle

17° / 30°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
DARK HONEYCOMB SPOT 2700K N

Reference:

A5130010N

Colour:

Black

Light source:

LED

Luminous flux:

100 / 180 / 250 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

54%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB SPOT 2700K NX

Reference:

A5130010NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

100 / 180 / 250 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

54%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB SPOT 2700K OX

Reference:

A5130010OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

100 / 180 / 250 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

54%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB SPOT 3000K N

Reference:

A5130011N

Colour:

Black

Light source:

LED

Luminous flux:

120 / 200 / 280 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

54%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB SPOT 3000K NX

Reference:

A5130011NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

120 / 200 / 280 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

54%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB SPOT 3000K OX

Reference:

A5130011OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

120 / 200 / 280 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

54%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB SPOT 4000K N

Reference:

A5130012N

Colour:

Black

Light source:

LED

Luminous flux:

130 / 240 / 325 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

54%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB SPOT 4000K NX

Reference:

A5130012NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

130 / 240 / 325 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

54%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB SPOT 4000K OX

Reference:

A5130012OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

130 / 240 / 325 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

54%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB FLOOD 2700K N

Reference:

A5130020N

Colour:

Black

Light source:

LED

Luminous flux:

100 / 180 / 250 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB FLOOD 2700K NX

Reference:

A5130020NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

100 / 180 / 250 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB FLOOD 2700K OX

Reference:

A5130020OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

100 / 180 / 250 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB FLOOD 3000K N

Reference:

A5130021N

Colour:

Black

Light source:

LED

Luminous flux:

120 / 200 / 280 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB FLOOD 3000K NX

Reference:

A5130021NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

120 / 200 / 280 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB FLOOD 3000K OX

Reference:

A5130021OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

120 / 200 / 280 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB FLOOD 4000K N

Reference:

A5130022N

Colour:

Black

Light source:

LED

Luminous flux:

130 / 240 / 325 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB FLOOD 4000K NX

Reference:

A5130022NX

Colour:

Stainless steel

Light source:

LED

Luminous flux:

130 / 240 / 325 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67
DARK HONEYCOMB FLOOD 4000K OX

Reference:

A5130022OX

Colour:

Textured oxidon

Light source:

LED

Luminous flux:

130 / 240 / 325 lm

Power:

1 / 2,1 / 3,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

53%

Dimming:

No Dim

Sealing:

IP67

Accessories

DRIVER OPTIONS

CONNECTOR IP67
