Wiz 48V

TRACK LIGHTS

The Wiz 48V downlight integrates "The invisible Black" effect into the Track system. Its design is based on conical geometry to be effective in its role and harmonious in its acrobatic appearance.

Wiz 48V

Wiz 48V Short

Luminous flux

1470 lm / 1530 lm / 1550 lm
Lighting efficiency

86%
Power

12,4 W
Dimming

No Dim, DALI
Color temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

38°

Custom configuration

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

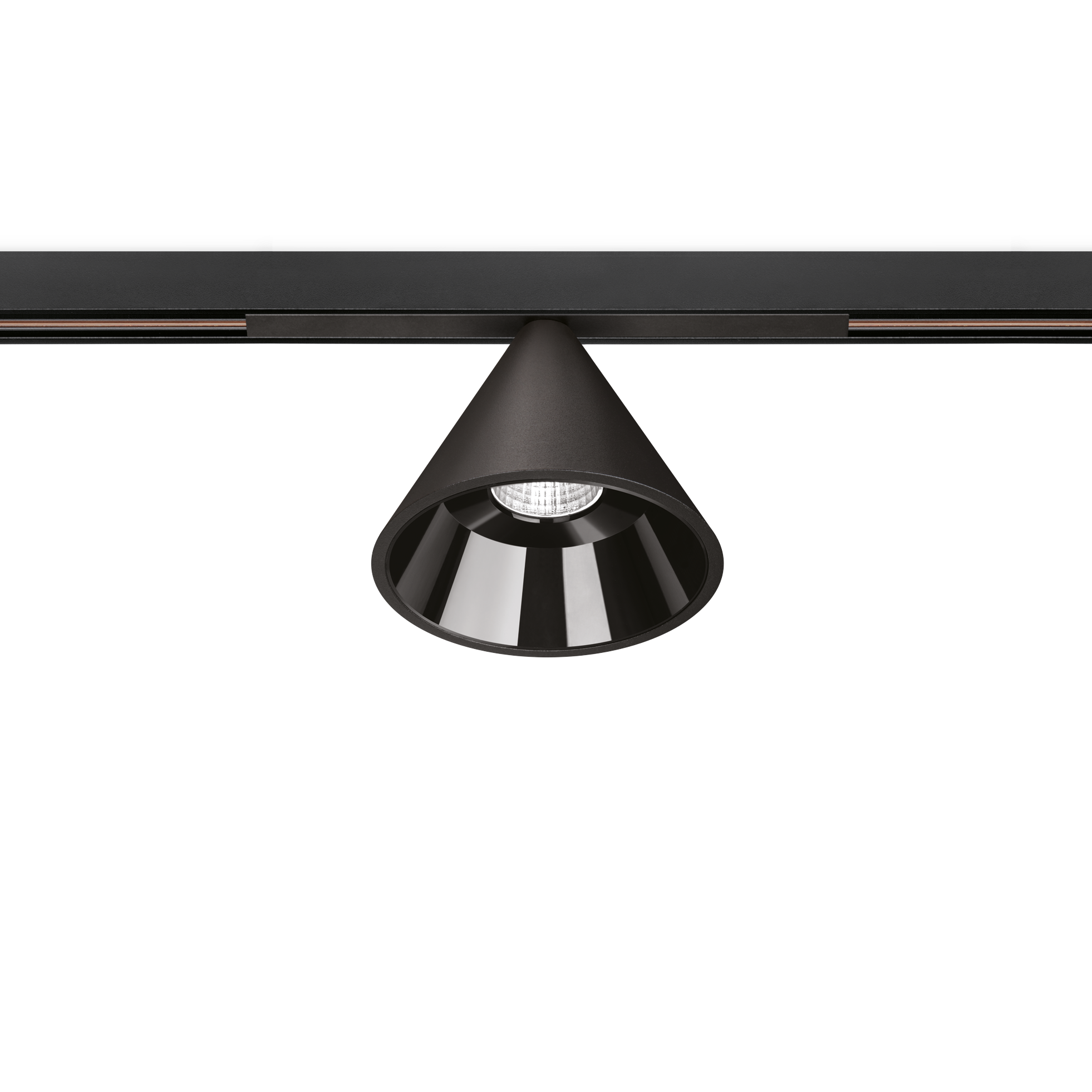

WIZ 48V SHORT 2700K NT

Reference:

A4650110NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

1470 lm

Power:

12,4 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20

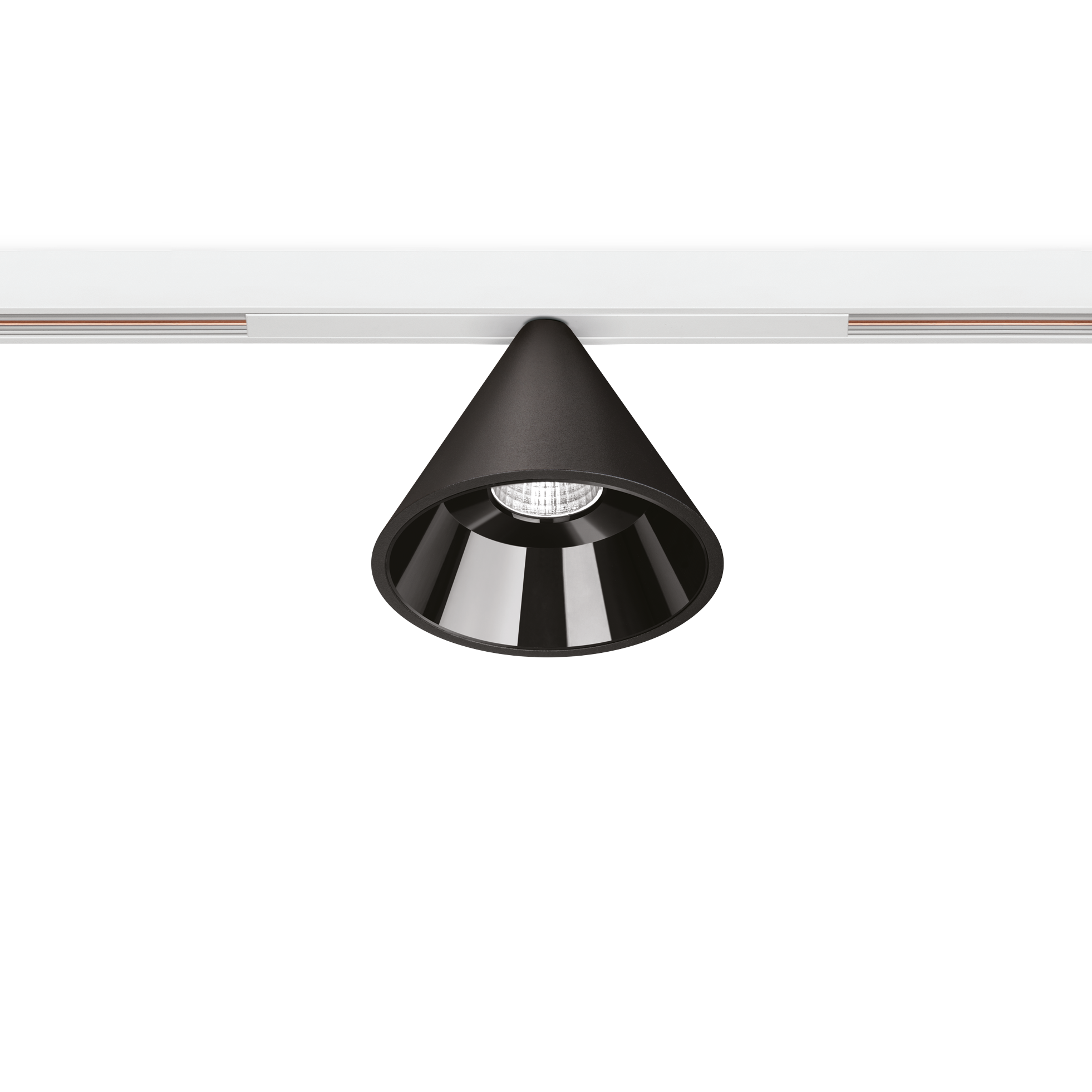

WIZ 48V SHORT 2700K NTW

Reference:

A4650110NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

1470 lm

Power:

12,4 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20

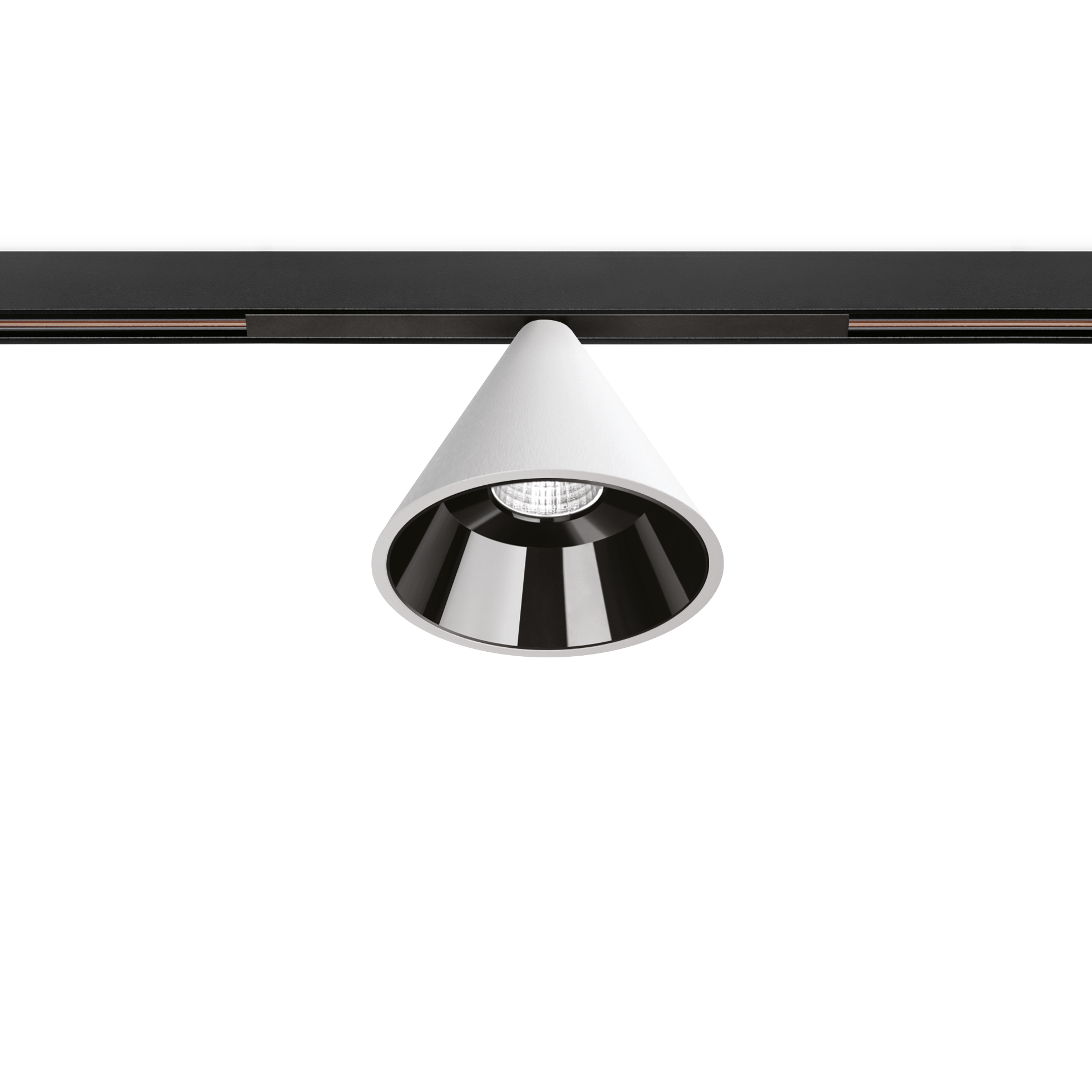

WIZ 48V SHORT 2700K WT

Reference:

A4650110WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

1470 lm

Power:

12,4 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20

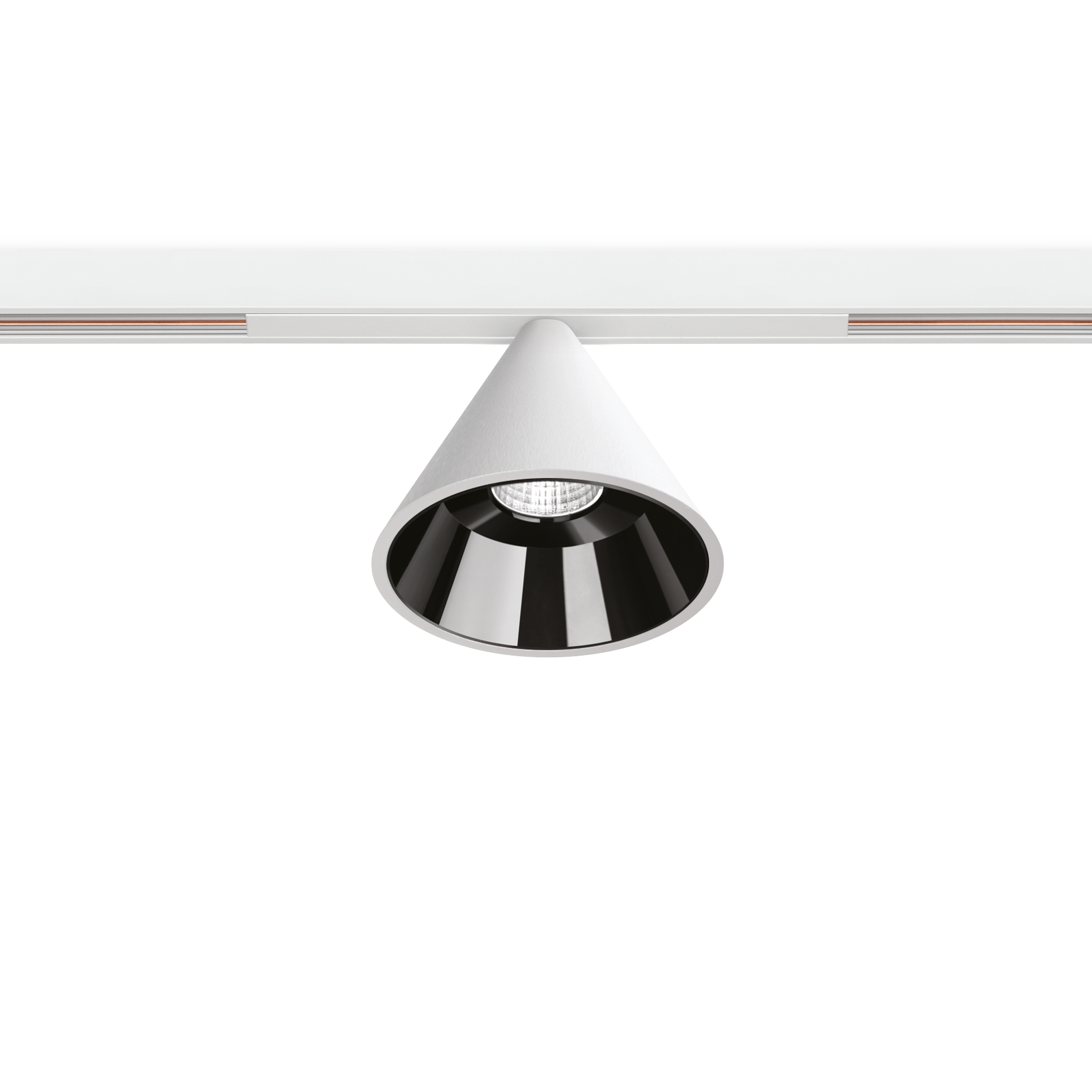

WIZ 48V SHORT 2700K WTW

Reference:

A4650110WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

1470 lm

Power:

12,4 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
WIZ 48V SHORT 3000K NT

Reference:

A4650111NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

1530 lm

Power:

12,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
WIZ 48V SHORT 3000K NTW

Reference:

A4650111NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

1530 lm

Power:

12,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
WIZ 48V SHORT 3000K WT

Reference:

A4650111WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

1530 lm

Power:

12,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
WIZ 48V SHORT 3000K WTW

Reference:

A4650111WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

1530 lm

Power:

12,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
WIZ 48V SHORT 4000K NT

Reference:

A4650112NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

1550 lm

Power:

12,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
WIZ 48V SHORT 4000K NTW

Reference:

A4650112NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

1550 lm

Power:

12,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
WIZ 48V SHORT 4000K WT

Reference:

A4650112WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

1550 lm

Power:

12,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
WIZ 48V SHORT 4000K WTW

Reference:

A4650112WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

1550 lm

Power:

12,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
WIZ 48V SHORT DIM DALI 2700K NT

Reference:

A4650210NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

1470 lm

Power:

12,4 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 2700K NTW

Reference:

A4650210NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

1470 lm

Power:

12,4 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 2700K WT

Reference:

A4650210WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

1470 lm

Power:

12,4 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 2700K WTW

Reference:

A4650210WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

1470 lm

Power:

12,4 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 3000K NT

Reference:

A4650211NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

1530 lm

Power:

12,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 3000K NTW

Reference:

A4650211NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

1530 lm

Power:

12,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 3000K WT

Reference:

A4650211WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

1530 lm

Power:

12,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 3000K WTW

Reference:

A4650211WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

1530 lm

Power:

12,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 4000K NT

Reference:

A4650212NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

1550 lm

Power:

12,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 4000K NTW

Reference:

A4650212NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

1550 lm

Power:

12,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 4000K WT

Reference:

A4650212WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

1550 lm

Power:

12,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
WIZ 48V SHORT DIM DALI 4000K WTW

Reference:

A4650212WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

1550 lm

Power:

12,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
