Twist

CEILING RECESSED

Configured with one or two light sources, Twist is an LED luminary, with adjustable beams, with remarkable performance and small format. Twist is ideal for applications that require máximum directionability and outstanding luminous flux.

Twist

Twist Double

Luminous flux

2 X 900 lm / 2 X 930 lm / 2 X 950 lm / 2 X 1270 lm / 2 X 1320 lm / 2 X 1340 lm
Lighting efficiency

86% / 92%
Power

2 X 7 W / 2 X 10,5 W
Dimming

Phase Cut
Colour temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Recess measurements

119 x 219mm
Light beam angle

19° / 40°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

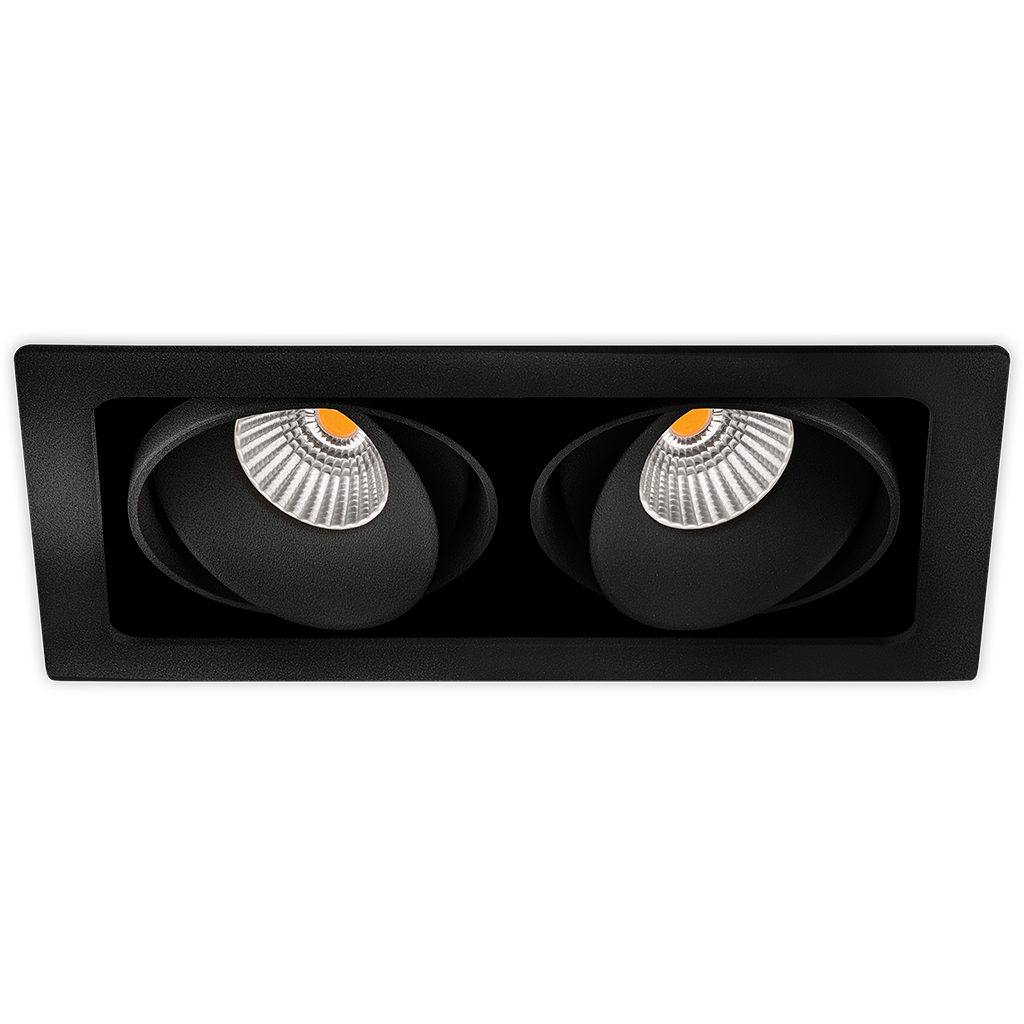

TWIST DOUBLE 1 SPOT DIM TR.EDGE 2700K NT

Reference:

A2042210NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 900 lm

Power:

2 X 7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20

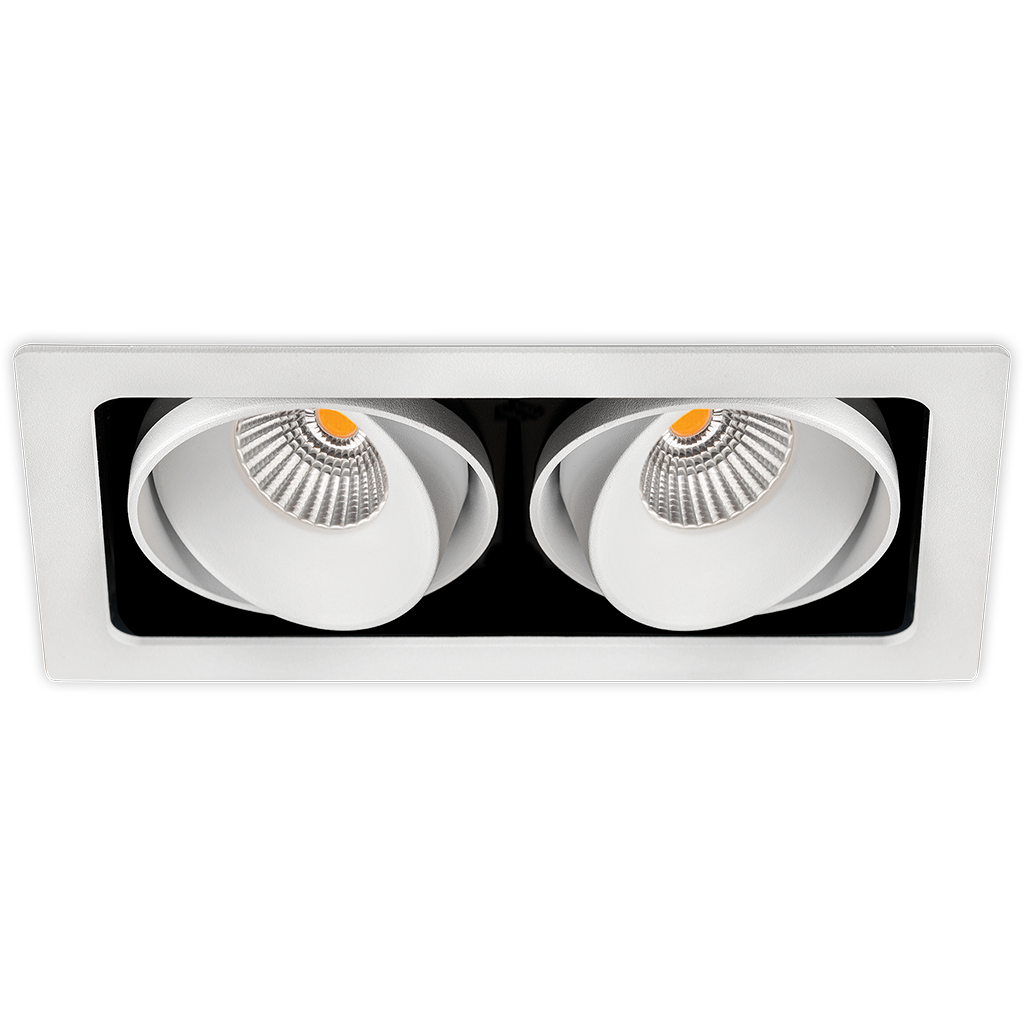

TWIST DOUBLE 1 SPOT DIM TR.EDGE 2700K WT

Reference:

A2042210WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 900 lm

Power:

2 X 7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 1 SPOT DIM TR.EDGE 3000K NT

Reference:

A2042211NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 930 lm

Power:

2 X 7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 1 SPOT DIM TR.EDGE 3000K WT

Reference:

A2042211WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 930 lm

Power:

2 X 7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 1 SPOT DIM TR.EDGE 4000K NT

Reference:

A2042212NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 950 lm

Power:

2 X 7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 1 SPOT DIM TR.EDGE 4000K WT

Reference:

A2042212WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 950 lm

Power:

2 X 7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 1 FLOOD DIM TR.EDGE 2700K NT

Reference:

A2042220NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 900 lm

Power:

2 X 7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 1 FLOOD DIM TR.EDGE 2700K WT

Reference:

A2042220WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 900 lm

Power:

2 X 7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 1 FLOOD DIM TR.EDGE 3000K NT

Reference:

A2042221NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 930 lm

Power:

2 X 7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 1 FLOOD DIM TR.EDGE 3000K WT

Reference:

A2042221WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 930 lm

Power:

2 X 7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 1 FLOOD DIM TR.EDGE 4000K NT

Reference:

A2042222NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 950 lm

Power:

2 X 7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 1 FLOOD DIM TR.EDGE 4000K WT

Reference:

A2042222WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 950 lm

Power:

2 X 7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 SPOT DIM TR.EDGE 2700K NT

Reference:

A2044210NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 1270 lm

Power:

2 X 10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 SPOT DIM TR.EDGE 2700K WT

Reference:

A2044210WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 1270 lm

Power:

2 X 10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 SPOT DIM TR.EDGE 3000K NT

Reference:

A2044211NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 1320 lm

Power:

2 X 10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 SPOT DIM TR.EDGE 3000K WT

Reference:

A2044211WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 1320 lm

Power:

2 X 10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 SPOT DIM TR.EDGE 4000K NT

Reference:

A2044212NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 1340 lm

Power:

2 X 10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 SPOT DIM TR.EDGE 4000K WT

Reference:

A2044212WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 1340 lm

Power:

2 X 10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

92%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 FLOOD DIM TR.EDGE 2700K NT

Reference:

A2044220NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 1270 lm

Power:

2 X 10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 FLOOD DIM TR.EDGE 2700K WT

Reference:

A2044220WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 1270 lm

Power:

2 X 10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 FLOOD DIM TR.EDGE 3000K NT

Reference:

A2044221NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 1320 lm

Power:

2 X 10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 FLOOD DIM TR.EDGE 3000K WT

Reference:

A2044221WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 1320 lm

Power:

2 X 10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 FLOOD DIM TR.EDGE 4000K NT

Reference:

A2044222NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2 X 1340 lm

Power:

2 X 10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
TWIST DOUBLE 2 FLOOD DIM TR.EDGE 4000K WT

Reference:

A2044222WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2 X 1340 lm

Power:

2 X 10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20

Accessories
