Six 48V

TRACK LIGHTS

Six 48V is a family of spotlights for low voltage tracklight applications that stands out for its lightness and elegance. Available in L, M, S, XS and XS Double, its body; disk looking, rounded shaped, encloses an innovative combination of reflector and lens. The combined action of both, allows Six to direct light rays with the maximum uniformity in a very small distance that, at the same time, has made possible its differential design-reduced and minimalist-. In addition, Six can be freely articulated due to its airy arm which allows the spotlight to be orientated in any direction.

Awards

German Design Award Winner 2019
Good Design Award 2018

Six XS 48V

Six XS 48V Double

Six S 48V

Six M 48V

Six L 48V

Six XS 48V Short

Six XS 48V Double Short

Six S 48V Short

Six M 48V Short

Six L 48V Short

Six XS 48V Double Short

Luminous flux

2 x 470 lm / 2 x 500 lm / 2 x 530 lm
Lighting efficiency

86% / 88% / 90%
Power

9 W
Dimming

No Dim, DALI
Color temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

17° / 23° / 34°

Custom configuration

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

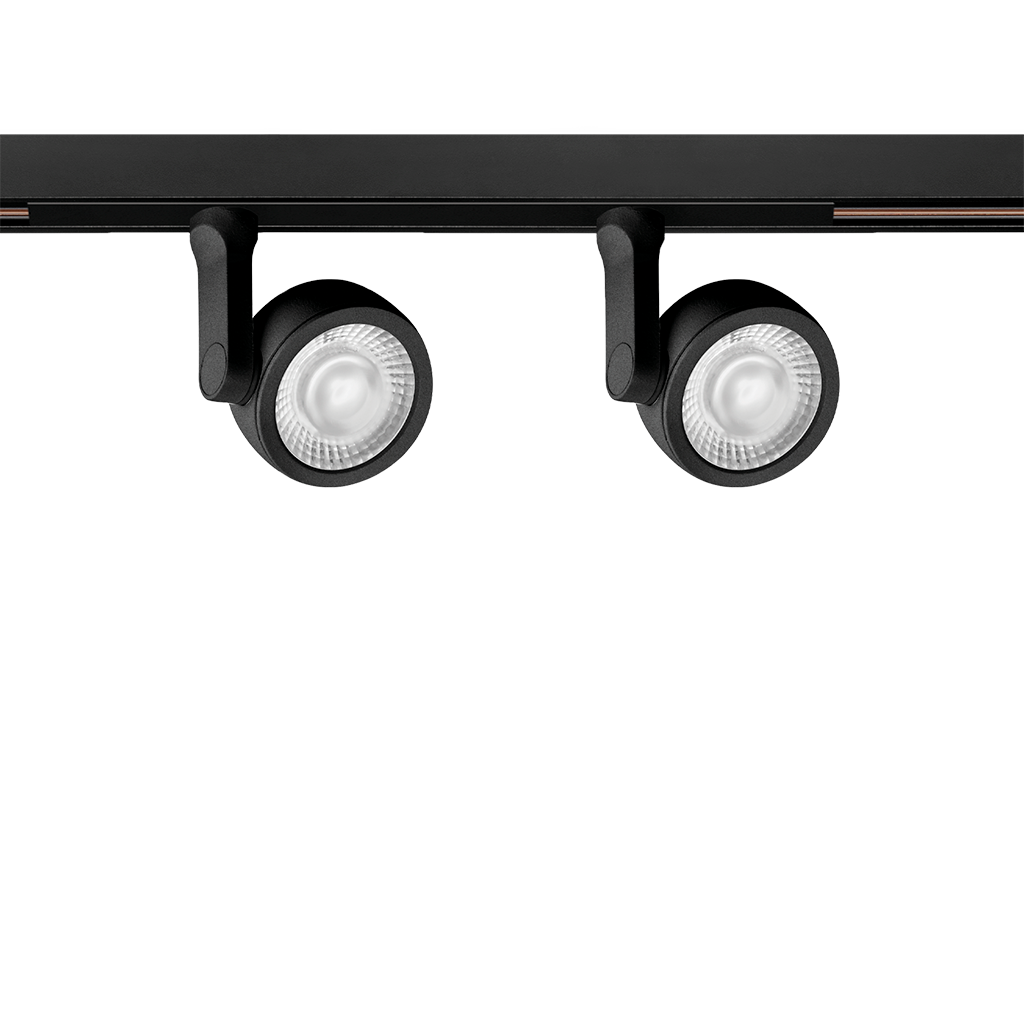

SIX XS 48V SHORT DOUBLE 17º 2700K NT

Reference:

A3351110NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20

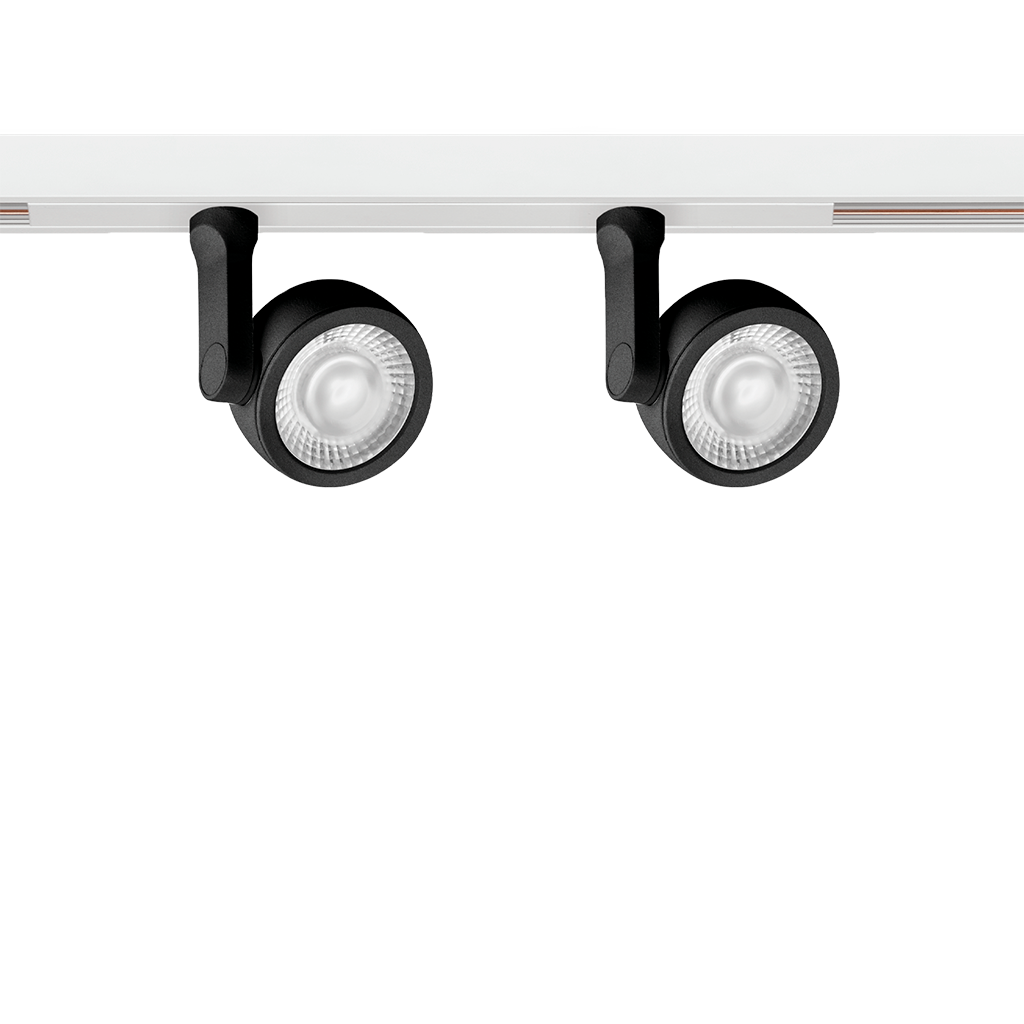

SIX XS 48V SHORT DOUBLE 17º 2700K NTW

Reference:

A3351110NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20

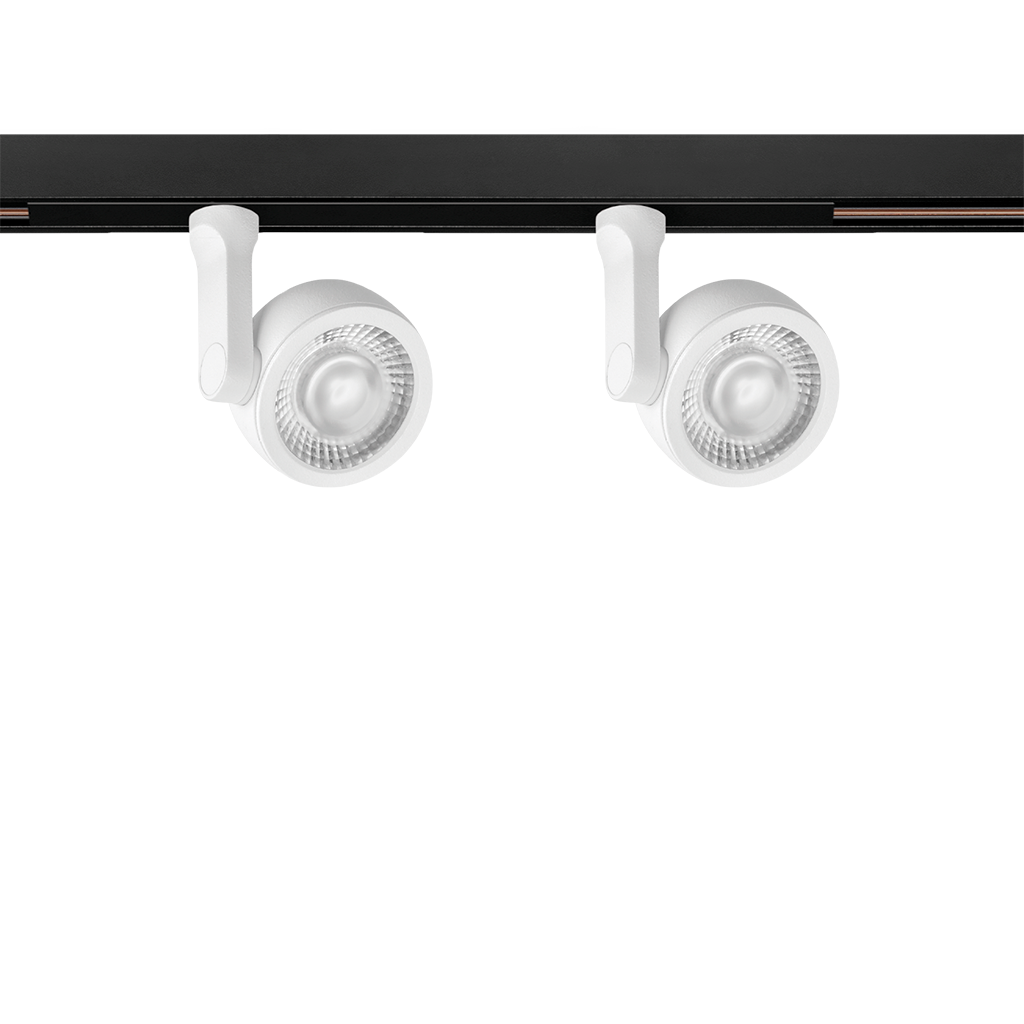

SIX XS 48V SHORT DOUBLE 17º 2700K WT

Reference:

A3351110WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20

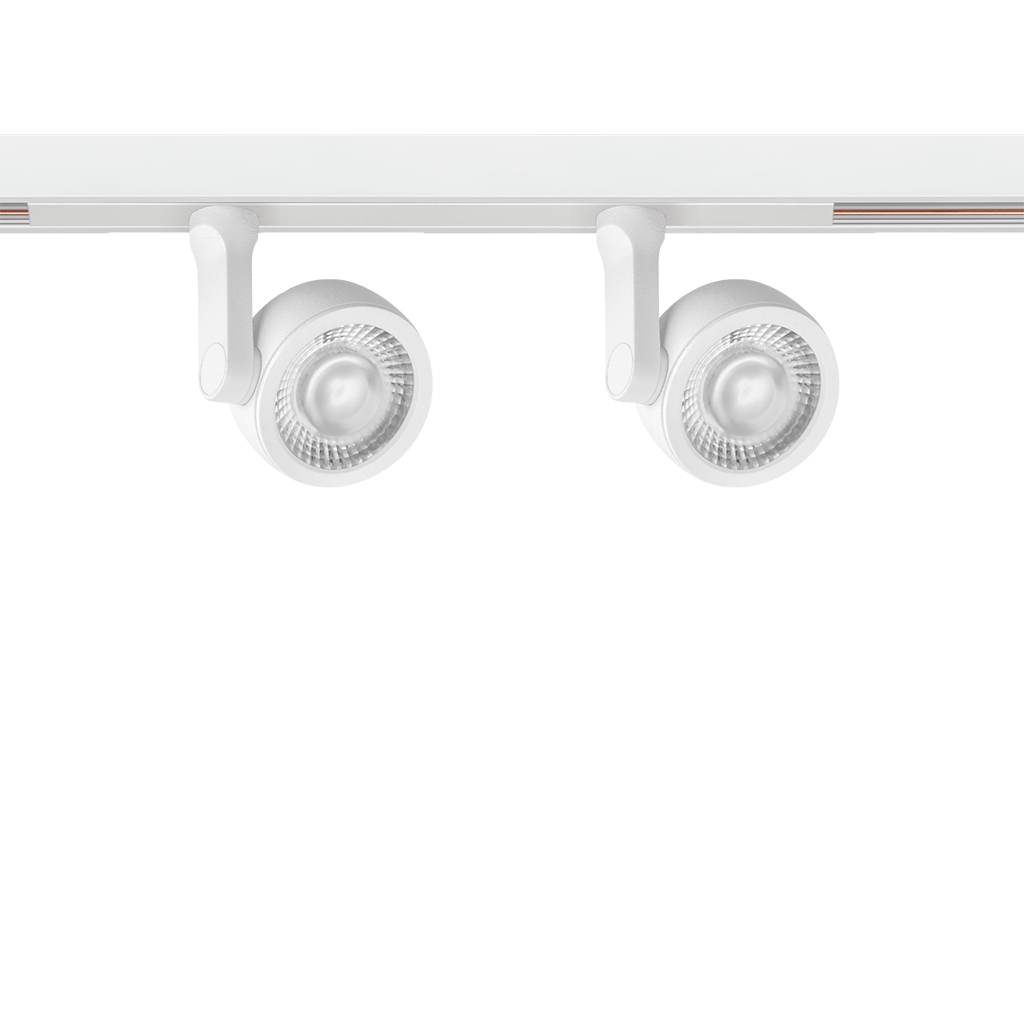

SIX XS 48V SHORT DOUBLE 17º 2700K WTW

Reference:

A3351110WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 17º 3000K NT

Reference:

A3351111NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 17º 3000K NTW

Reference:

A3351111NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 17º 3000K WT

Reference:

A3351111WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 17º 3000K WTW

Reference:

A3351111WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 17º 4000K NT

Reference:

A3351112NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 17º 4000K NTW

Reference:

A3351112NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 17º 4000K WT

Reference:

A3351112WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 17º 4000K WTW

Reference:

A3351112WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 2700K NT

Reference:

A3351120NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 2700K NTW

Reference:

A3351120NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 2700K WT

Reference:

A3351120WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 2700K WTW

Reference:

A3351120WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 3000K NT

Reference:

A3351121NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 3000K NTW

Reference:

A3351121NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 3000K WT

Reference:

A3351121WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 3000K WTW

Reference:

A3351121WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 4000K NT

Reference:

A3351122NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 4000K NTW

Reference:

A3351122NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 4000K WT

Reference:

A3351122WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 23º 4000K WTW

Reference:

A3351122WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 2700K NT

Reference:

A3351130NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 2700K NTW

Reference:

A3351130NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 2700K WT

Reference:

A3351130WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 2700K WTW

Reference:

A3351130WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 3000K NT

Reference:

A3351131NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 3000K NTW

Reference:

A3351131NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 3000K WT

Reference:

A3351131WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 3000K WTW

Reference:

A3351131WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 4000K NT

Reference:

A3351132NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 4000K NTW

Reference:

A3351132NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 4000K WT

Reference:

A3351132WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE 34º 4000K WTW

Reference:

A3351132WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

No Dim

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 2700K NT

Reference:

A3351210NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 2700K NTW

Reference:

A3351210NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 2700K WT

Reference:

A3351210WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 2700K WTW

Reference:

A3351210WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 3000K NT

Reference:

A3351211NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 3000K NTW

Reference:

A3351211NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 3000K WT

Reference:

A3351211WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 3000K WTW

Reference:

A3351211WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 4000K NT

Reference:

A3351212NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 4000K NTW

Reference:

A3351212NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 4000K WT

Reference:

A3351212WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 17º 4000K WTW

Reference:

A3351212WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 2700K NT

Reference:

A3351220NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 2700K NTW

Reference:

A3351220NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 2700K WT

Reference:

A3351220WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 2700K WTW

Reference:

A3351220WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 3000K NT

Reference:

A3351221NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 3000K NTW

Reference:

A3351221NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 3000K WT

Reference:

A3351221WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 3000K WTW

Reference:

A3351221WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 4000K NT

Reference:

A3351222NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 4000K NTW

Reference:

A3351222NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 4000K WT

Reference:

A3351222WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 23º 4000K WTW

Reference:

A3351222WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 2700K NT

Reference:

A3351230NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 2700K NTW

Reference:

A3351230NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 2700K WT

Reference:

A3351230WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 2700K WTW

Reference:

A3351230WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 470 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 3000K NT

Reference:

A3351231NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 3000K NTW

Reference:

A3351231NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 3000K WT

Reference:

A3351231WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 3000K WTW

Reference:

A3351231WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 500 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 4000K NT

Reference:

A3351232NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 4000K NTW

Reference:

A3351232NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 4000K WT

Reference:

A3351232WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20
SIX XS 48V SHORT DOUBLE DIM DALI 34º 4000K WTW

Reference:

A3351232WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2 x 530 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

Sealing:

IP20

Accessories

HIGH CHROMATIC LED

TRACK 48V OPTIONS

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Name

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

This field is for validation purposes and should be left unchanged.

Six 48V

TRACK LIGHTS

Awards

German Design Award Winner 2019

Good Design Award 2018

Six XS 48V Double Short

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

iO

Zen Tube

Thor

Fit 65 1L

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
