Plus 48V

TRACK LIGHTS

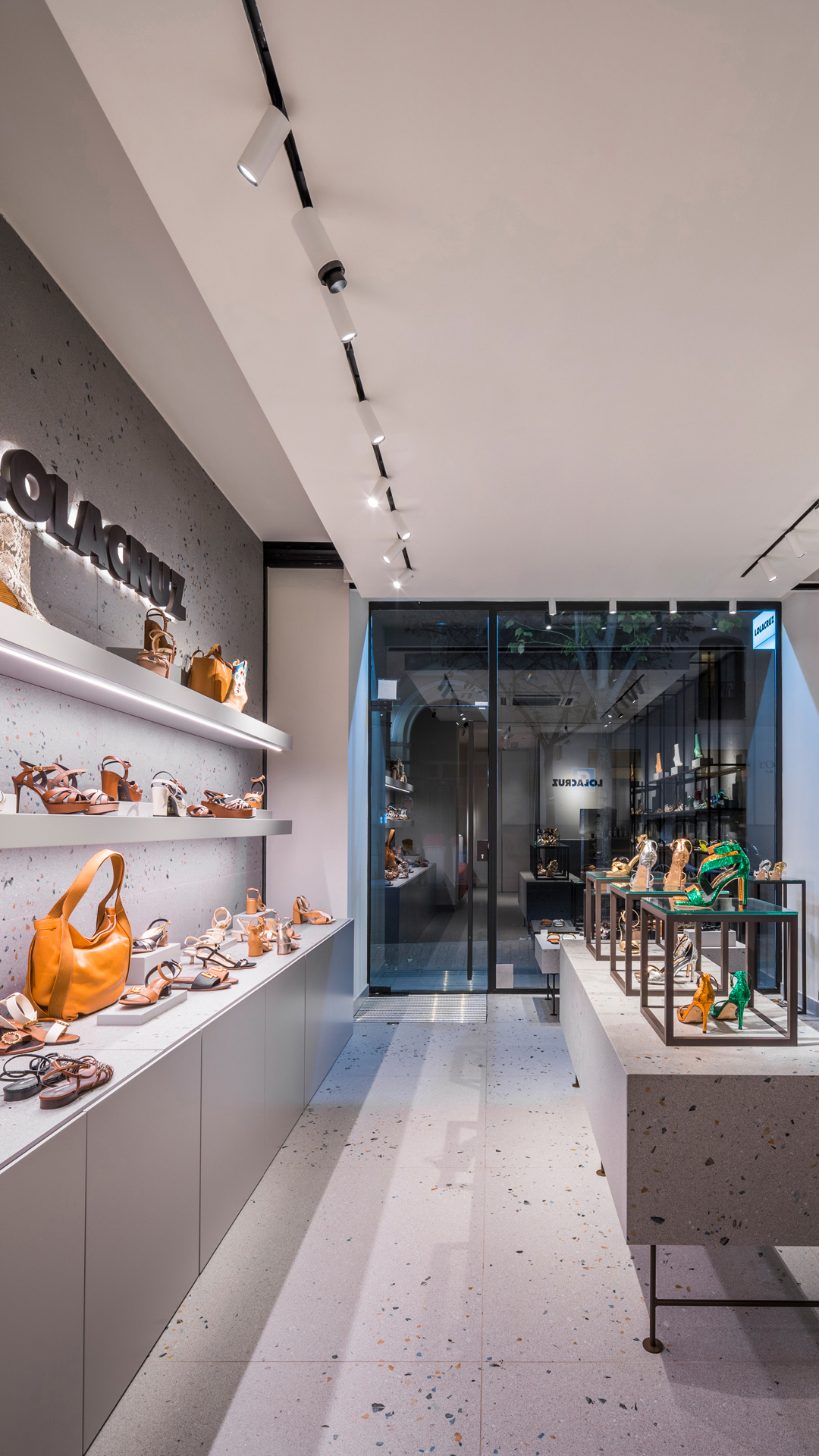

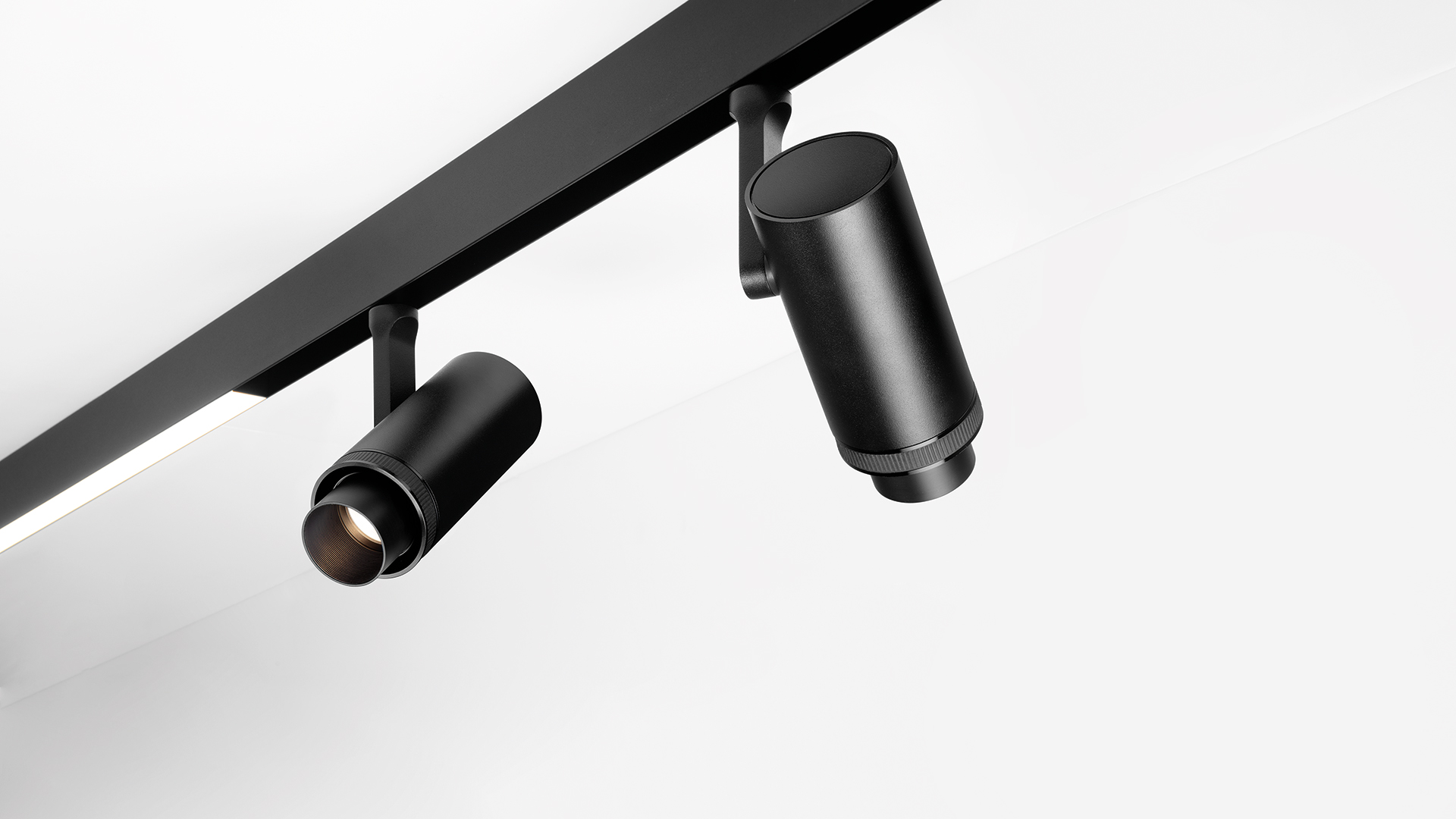

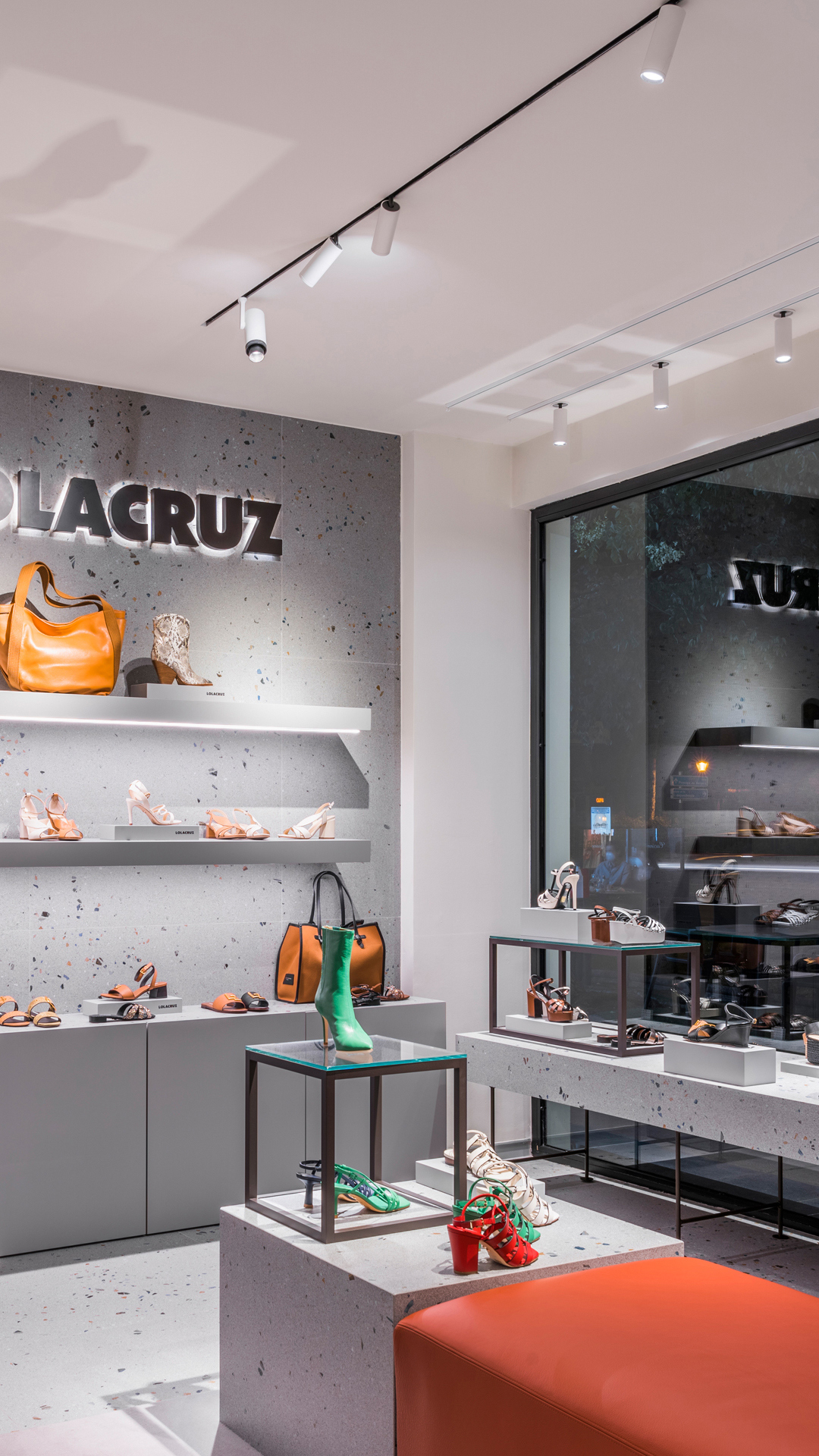

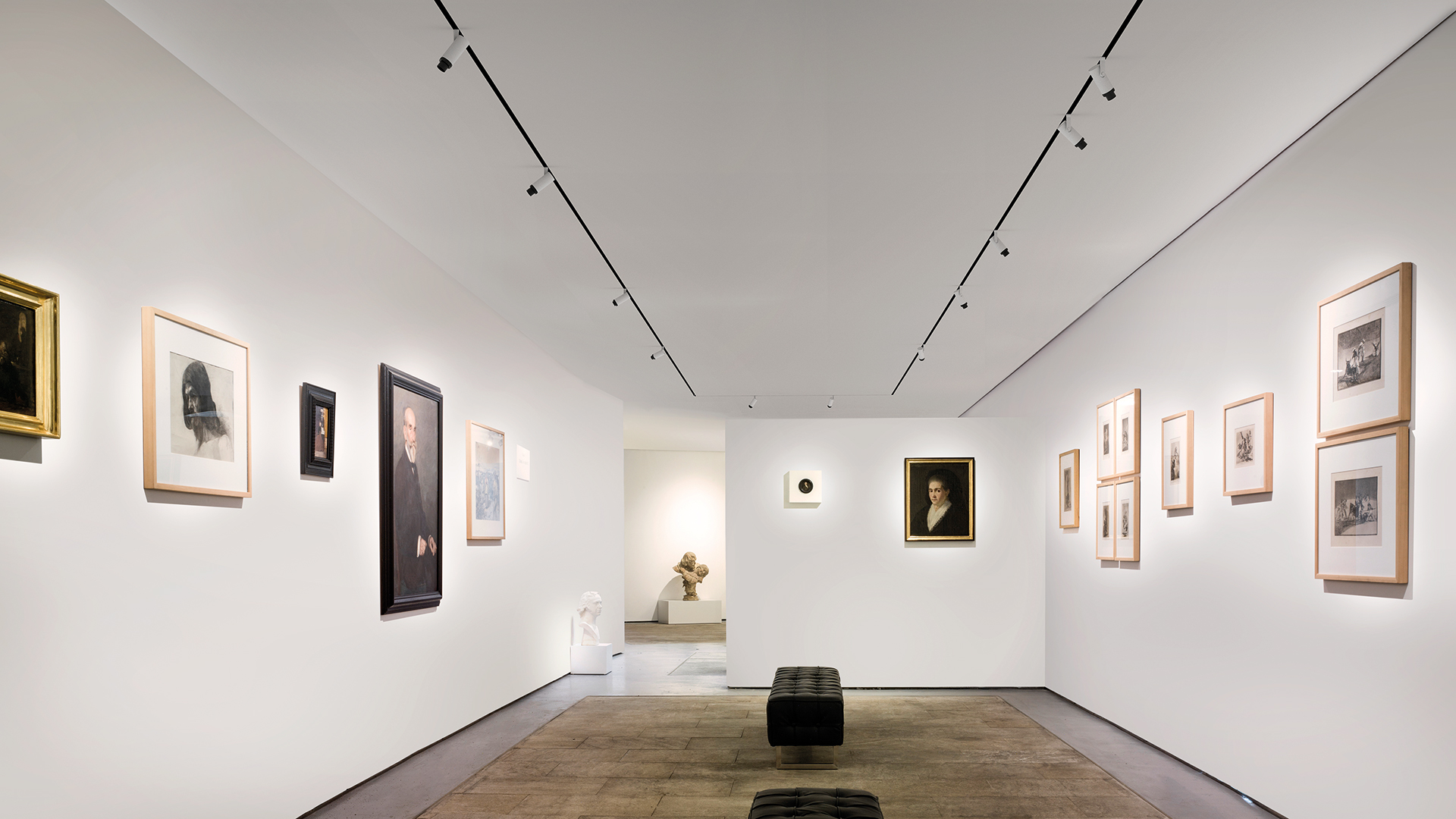

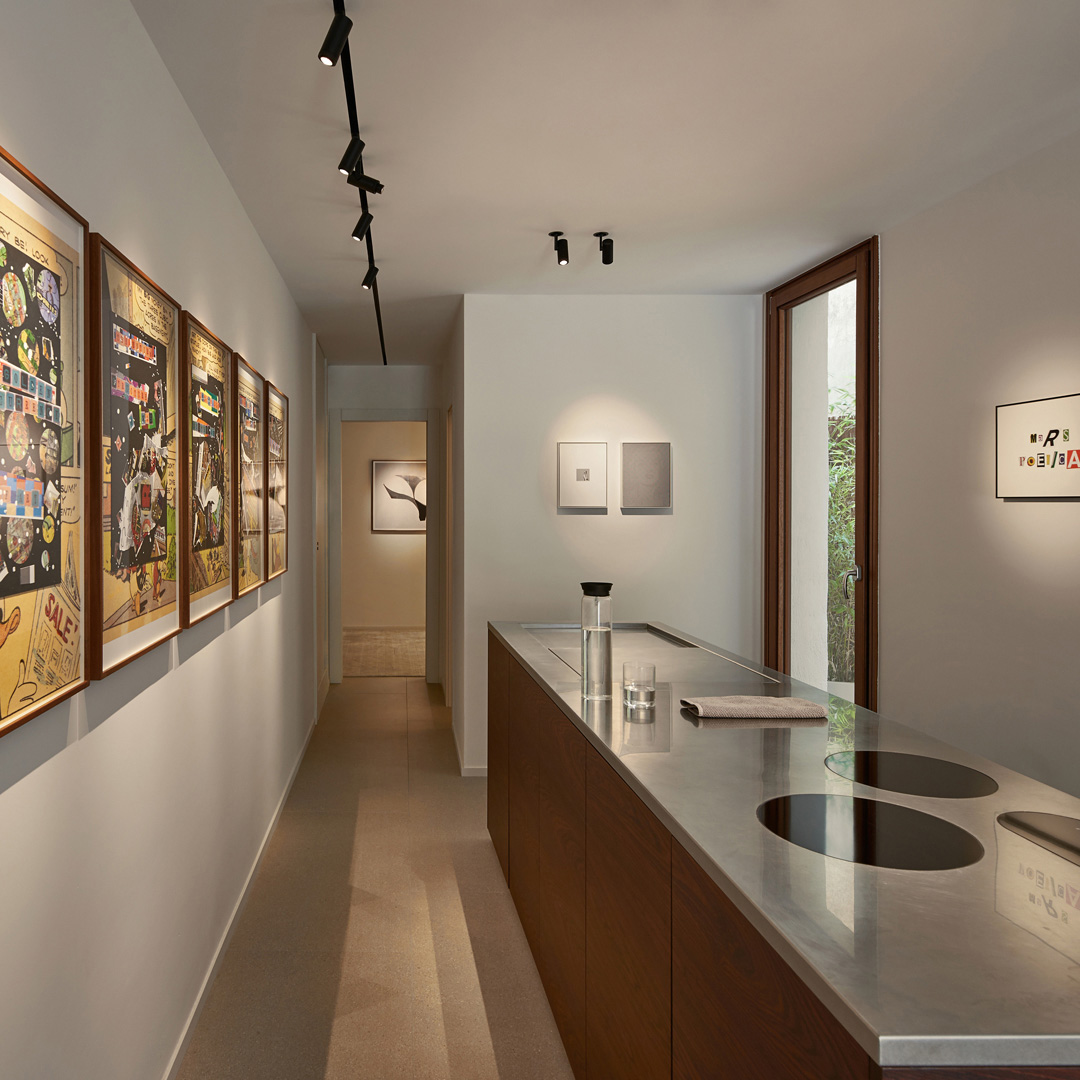

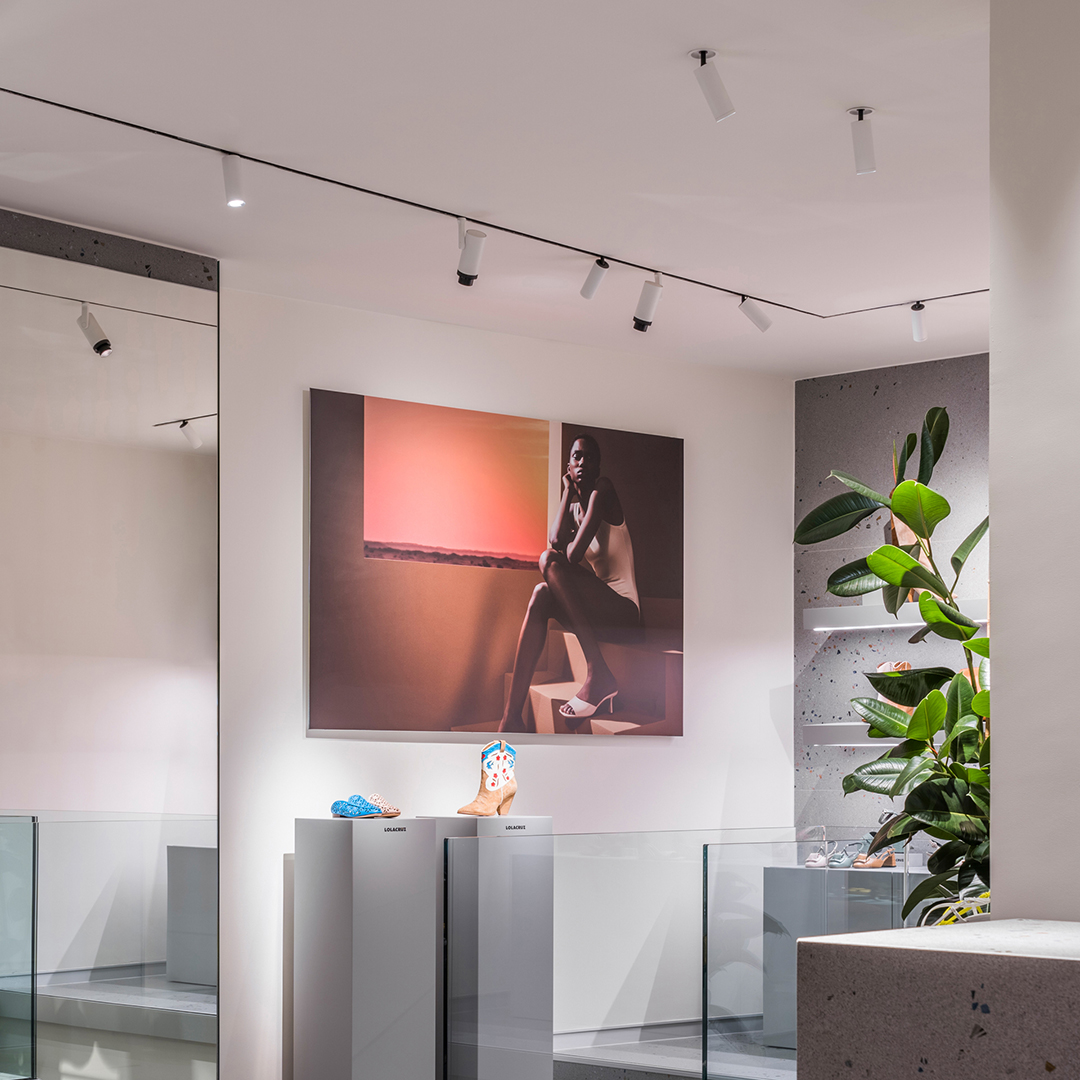

Plus 48V is a spotlight for low voltage tracklight applications that offers the possibility of expanding or concentrating the beam light with just a smooth manual gesture. This characteristic makes Plus the ideal alternative for applications where the precision whithin the beam of light is essential- like for example: museums, expositions, retail or accent lighting applications.

Awards

Adcv Gold 2019
Fx International Interior Design Award Shortlist 2019

Plus Mini 48V

Plus 48V

Plus Mini 48V Short

Plus Mini 48V Short

Plus 48V Short

Plus 48V Short

Luminous flux

1920 lm / 2000 lm / 2030 lm
Lighting efficiency

26-40%
Power

18 W
Dimming

No Dim, DALI
Color temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

12°-51°

Custom configuration

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

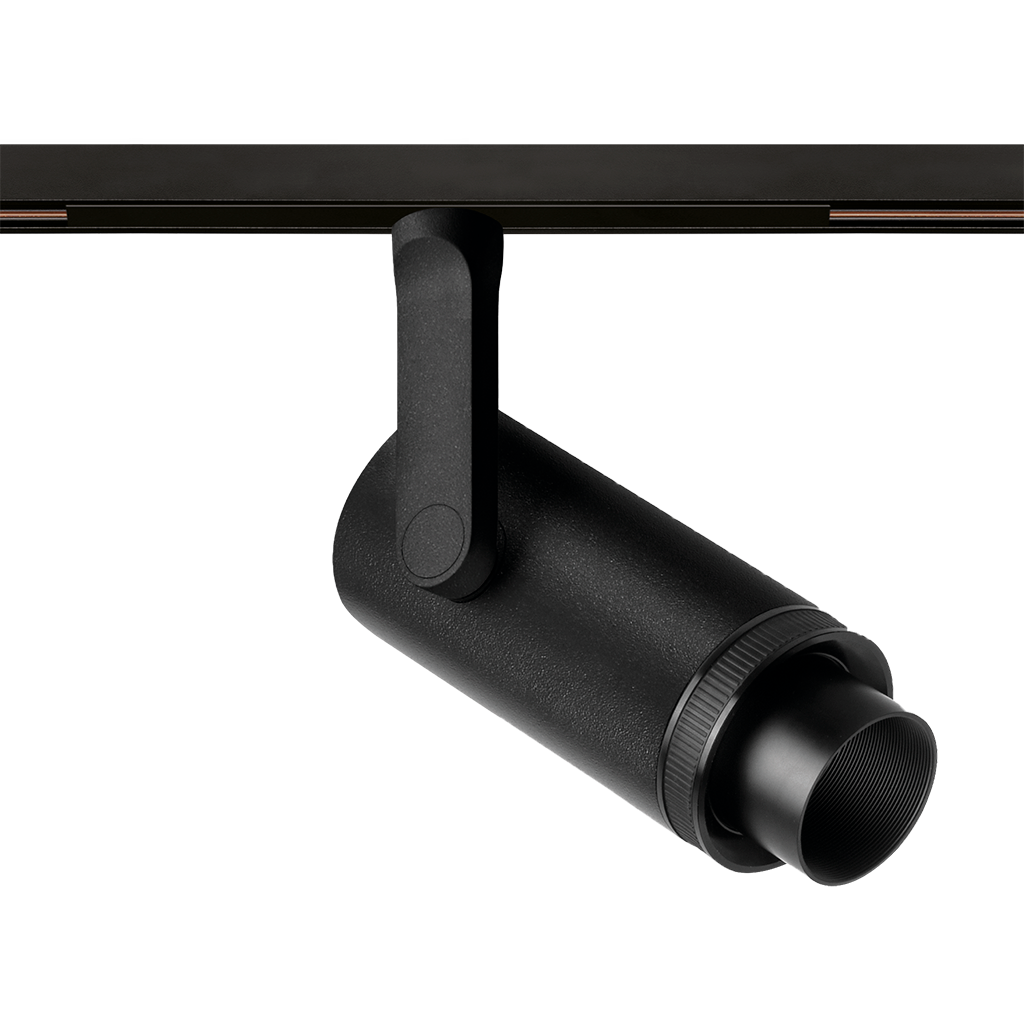

PLUS 48V SHORT 2700K NT

Reference:

A3230010NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

1920 lm

Power:

18 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20

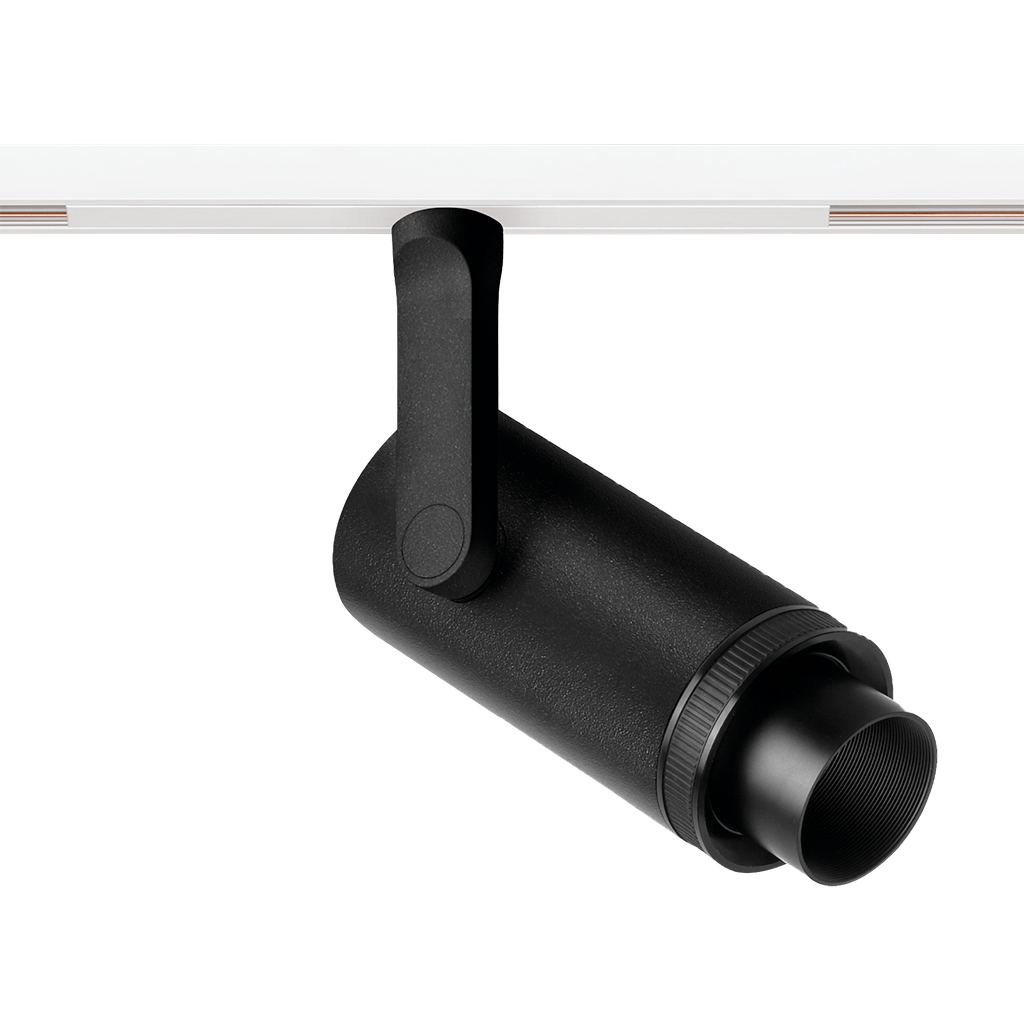

PLUS 48V SHORT 2700K NTW

Reference:

A3230010NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

1920 lm

Power:

18 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20
PLUS 48V SHORT 2700K WT

Reference:

A3230010WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

1920 lm

Power:

18 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20

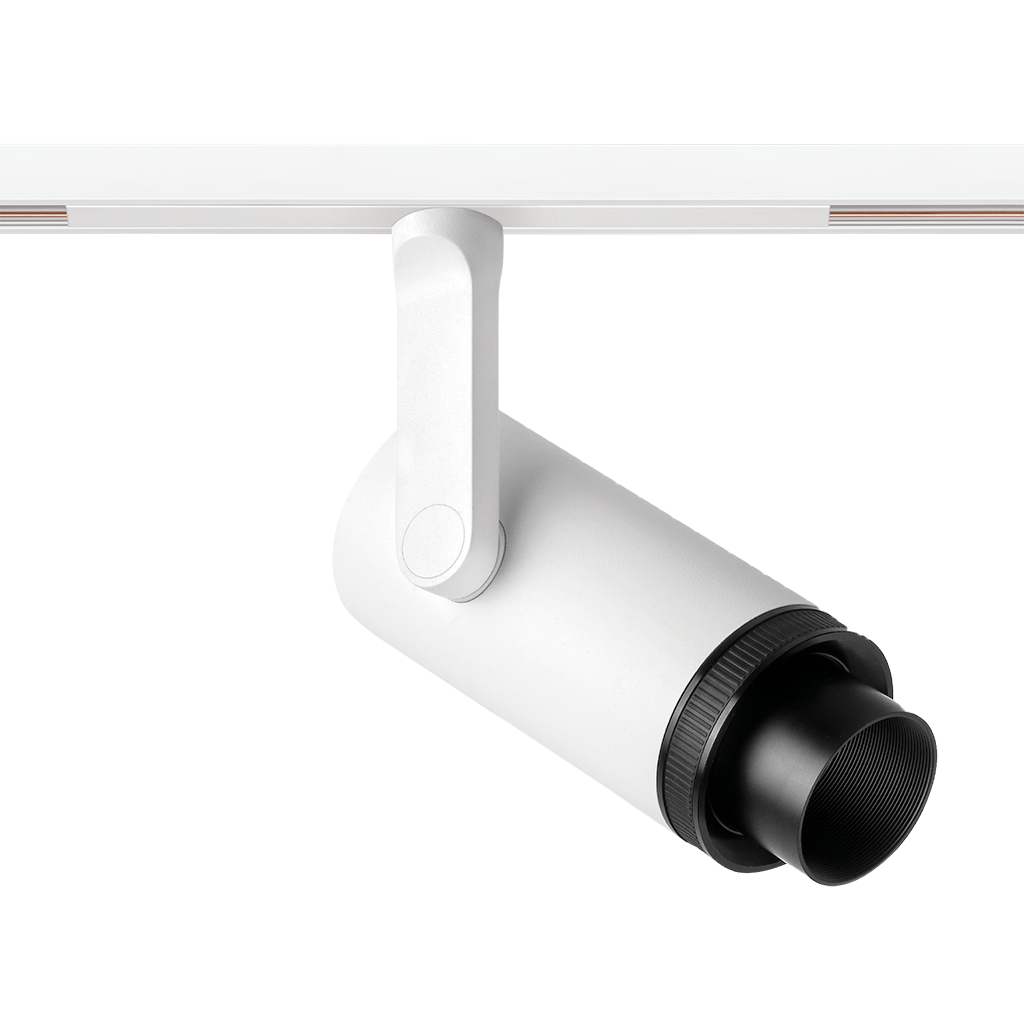

PLUS 48V SHORT 2700K WTW

Reference:

A3230010WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

1920 lm

Power:

18 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20
PLUS 48V SHORT 3000K NT

Reference:

A3230011NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2000 lm

Power:

18 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20
PLUS 48V SHORT 3000K NTW

Reference:

A3230011NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2000 lm

Power:

18 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20
PLUS 48V SHORT 3000K WT

Reference:

A3230011WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2000 lm

Power:

18 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20
PLUS 48V SHORT 3000K WTW

Reference:

A3230011WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2000 lm

Power:

18 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20
PLUS 48V SHORT 4000K NT

Reference:

A3230012NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2030 lm

Power:

18 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20
PLUS 48V SHORT 4000K NTW

Reference:

A3230012NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2030 lm

Power:

18 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20
PLUS 48V SHORT 4000K WT

Reference:

A3230012WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2030 lm

Power:

18 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20
PLUS 48V SHORT 4000K WTW

Reference:

A3230012WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2030 lm

Power:

18 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

No Dim

Sealing:

IP20
PLUS 48V SHORT DIM DALI 2700K NT

Reference:

A3230020NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

1920 lm

Power:

18 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 2700K NTW

Reference:

A3230020NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

1920 lm

Power:

18 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 2700K WT

Reference:

A3230020WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

1920 lm

Power:

18 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 2700K WTW

Reference:

A3230020WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

1920 lm

Power:

18 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 3000K NT

Reference:

A3230021NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2000 lm

Power:

18 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 3000K NTW

Reference:

A3230021NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2000 lm

Power:

18 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 3000K WT

Reference:

A3230021WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2000 lm

Power:

18 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 3000K WTW

Reference:

A3230021WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2000 lm

Power:

18 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 4000K NT

Reference:

A3230022NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

2030 lm

Power:

18 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 4000K NTW

Reference:

A3230022NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

2030 lm

Power:

18 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 4000K WT

Reference:

A3230022WT-S

Color:

Textured white

Light source:

LED

Luminous flux:

2030 lm

Power:

18 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20
PLUS 48V SHORT DIM DALI 4000K WTW

Reference:

A3230022WTW-S

Color:

Textured white - White track

Light source:

LED

Luminous flux:

2030 lm

Power:

18 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

12°-51°

Lighting efficiency:

26-40%

Dimming:

DALI

Sealing:

IP20

Accessories

HIGH CHROMATIC LED

TRACK 48V OPTIONS
