Magnetic 24V System

CEILING RECESSED

From the Minimal Track product family, our miniaturised spotlights have been consigned to a new installation system with recessed magnetic connection. The Magnetics system enables a seamless integration of the ceiling fastening so that the luminaire is the only star in the spotlight.

Awards

  • European Product Design Winner 2022

    European Product Design Winner 2022

  • Archiproducts Design Award Winner 2022

    Archiproducts Design Award Winner 2022

  • If Product Design Award 2023 Winner

    If Product Design Award 2023 Winner

Magnetic 24V Coco
Magnetic 24V Coco
Magnetic 24V Coco Super Spot
Magnetic 24V Coco Super Spot
Magnetic 24V Flip
Magnetic 24V Flip
Magnetic 24V Fit 20
Magnetic 24V Fit 20
Magnetic 24V Fit 27
Magnetic 24V Fit 27
Magnetic 24V iO Micro
Magnetic 24V iO Micro
Magnetic 24V Plus Micro
Magnetic 24V Plus Micro
Magnetic 24V Top Micro
Magnetic 24V Top Micro
Magnetic 24V Six XS
Magnetic 24V Six XS

Magnetic 24V Top Micro

  • Luminous flux

    190 lm / 210 lm

  • Lighting efficiency

    90% / 92%

  • Power

    2,1 W

  • Dimming

    DIM options

  • Color temperature

    2700K / 3000K

  • Sealing

    IP20

  • Chromatic stability

    MacAdam Step 3

  • Light beam angle

    19° / 38°

Instructions BIM
Luminous Flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • CRI
      Light beam angle
        Dimming
          Sealing
            Cord length
              Distance of suspension
                Base Finishing
                  Color

                    • Model

                      Ref.

                      Color

                      Source

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      Sealing

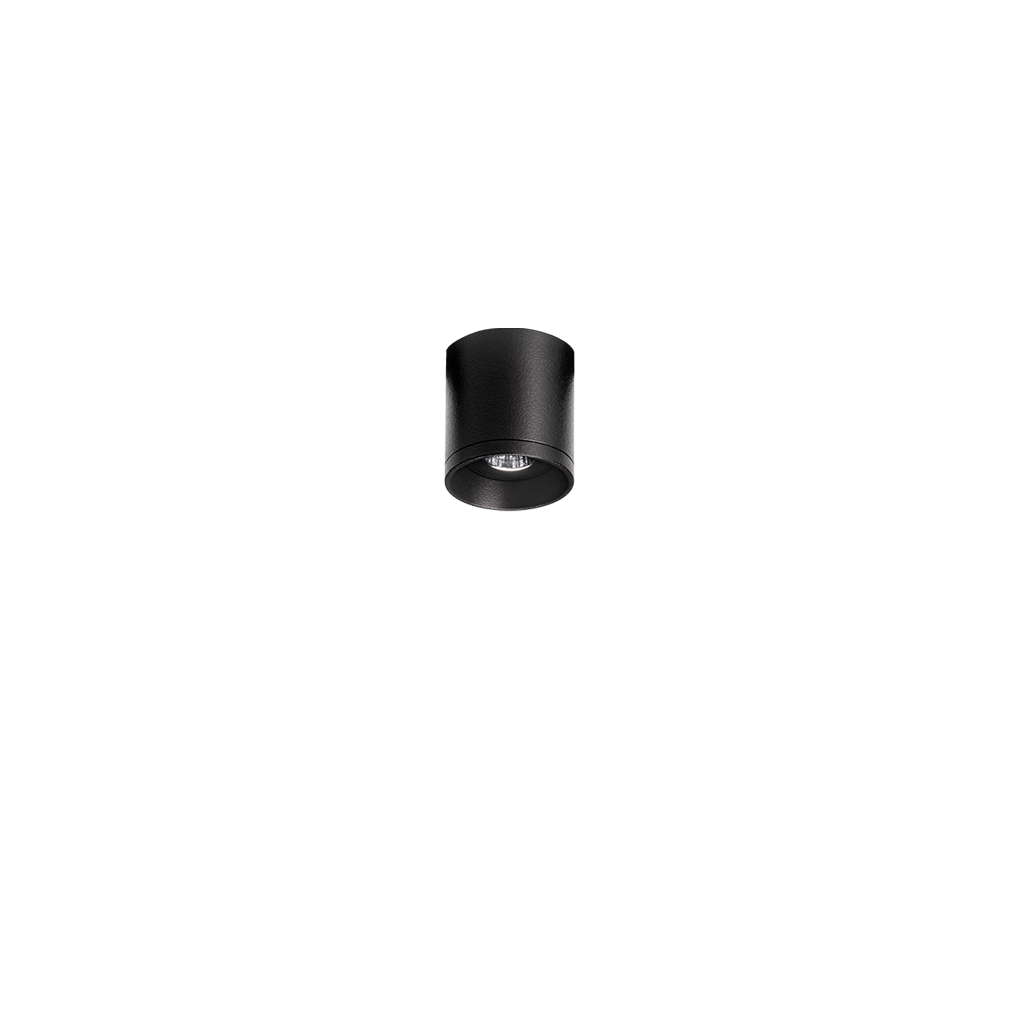

                    • MAGNETIC 24V TOP MICRO 19º 2700K NT
                      Reference:

                      A4300110NT

                      Color:

                      Textured black

                      Light source:

                      LED

                      Luminous flux:

                      190 lm

                      Power:

                      2,1 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19°

                      Lighting efficiency:

                      90%

                      Dimming:

                      DIM options

                      Sealing:

                      IP20

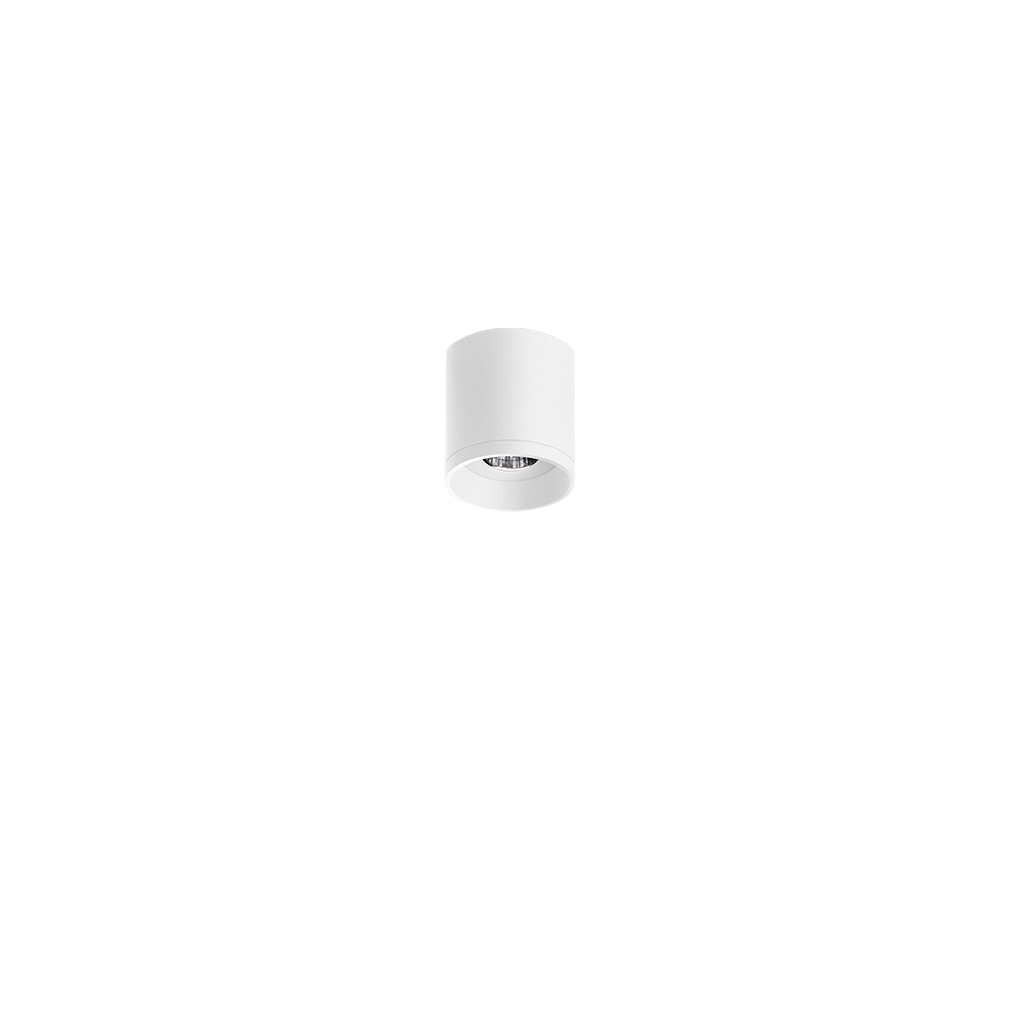

                    • MAGNETIC 24V TOP MICRO 19º 2700K WT
                      Reference:

                      A4300110WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      190 lm

                      Power:

                      2,1 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19°

                      Lighting efficiency:

                      90%

                      Dimming:

                      DIM options

                      Sealing:

                      IP20

                    • MAGNETIC 24V TOP MICRO 19º 3000K NT
                      Reference:

                      A4300111NT

                      Color:

                      Textured black

                      Light source:

                      LED

                      Luminous flux:

                      210 lm

                      Power:

                      2,1 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19°

                      Lighting efficiency:

                      90%

                      Dimming:

                      DIM options

                      Sealing:

                      IP20

                    • MAGNETIC 24V TOP MICRO 19º 3000K WT
                      Reference:

                      A4300111WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      210 lm

                      Power:

                      2,1 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19°

                      Lighting efficiency:

                      90%

                      Dimming:

                      DIM options

                      Sealing:

                      IP20

                    • MAGNETIC 24V TOP MICRO 38º 2700K NT
                      Reference:

                      A4300120NT

                      Color:

                      Textured black

                      Light source:

                      LED

                      Luminous flux:

                      190 lm

                      Power:

                      2,1 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      92%

                      Dimming:

                      DIM options

                      Sealing:

                      IP20

                    • MAGNETIC 24V TOP MICRO 38º 2700K WT
                      Reference:

                      A4300120WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      190 lm

                      Power:

                      2,1 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      92%

                      Dimming:

                      DIM options

                      Sealing:

                      IP20

                    • MAGNETIC 24V TOP MICRO 38º 3000K NT
                      Reference:

                      A4300121NT

                      Color:

                      Textured black

                      Light source:

                      LED

                      Luminous flux:

                      210 lm

                      Power:

                      2,1 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      92%

                      Dimming:

                      DIM options

                      Sealing:

                      IP20

                    • MAGNETIC 24V TOP MICRO 38º 3000K WT
                      Reference:

                      A4300121WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      210 lm

                      Power:

                      2,1 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      92%

                      Dimming:

                      DIM options

                      Sealing:

                      IP20

                    Accessories

                    MAGNETIC CONNECTOR (MANDATORY)
                    DRIVER OPTIONS
                    TRIMLESS TOOL
