Magnetic 24V System

CEILING RECESSED

From the Minimal Track product family, our miniaturised spotlights have been consigned to a new installation system with recessed magnetic connection. The Magnetics system enables a seamless integration of the ceiling fastening so that the luminaire is the only star in the spotlight.

Awards

European Product Design Winner 2022
Archiproducts Design Award Winner 2022
If Product Design Award 2023 Winner

Magnetic 24V Coco

Magnetic 24V Coco Super Spot

Magnetic 24V Flip

Magnetic 24V Fit 20

Magnetic 24V Fit 27

Magnetic 24V iO Micro

Magnetic 24V Plus Micro

Magnetic 24V Top Micro

Magnetic 24V Six XS

Magnetic 24V Fit 20

Luminous flux

127 lm / 150 lm / 160 lm
Lighting efficiency

81% / 87% / 88%
Power

2,1 W
Dimming

DIM options
Color temperature

2700K / 3000K / 3500K
Sealing

IP20
Chromatic stability

MacAdam Step 3
Light beam angle

12° / 30° / 54°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

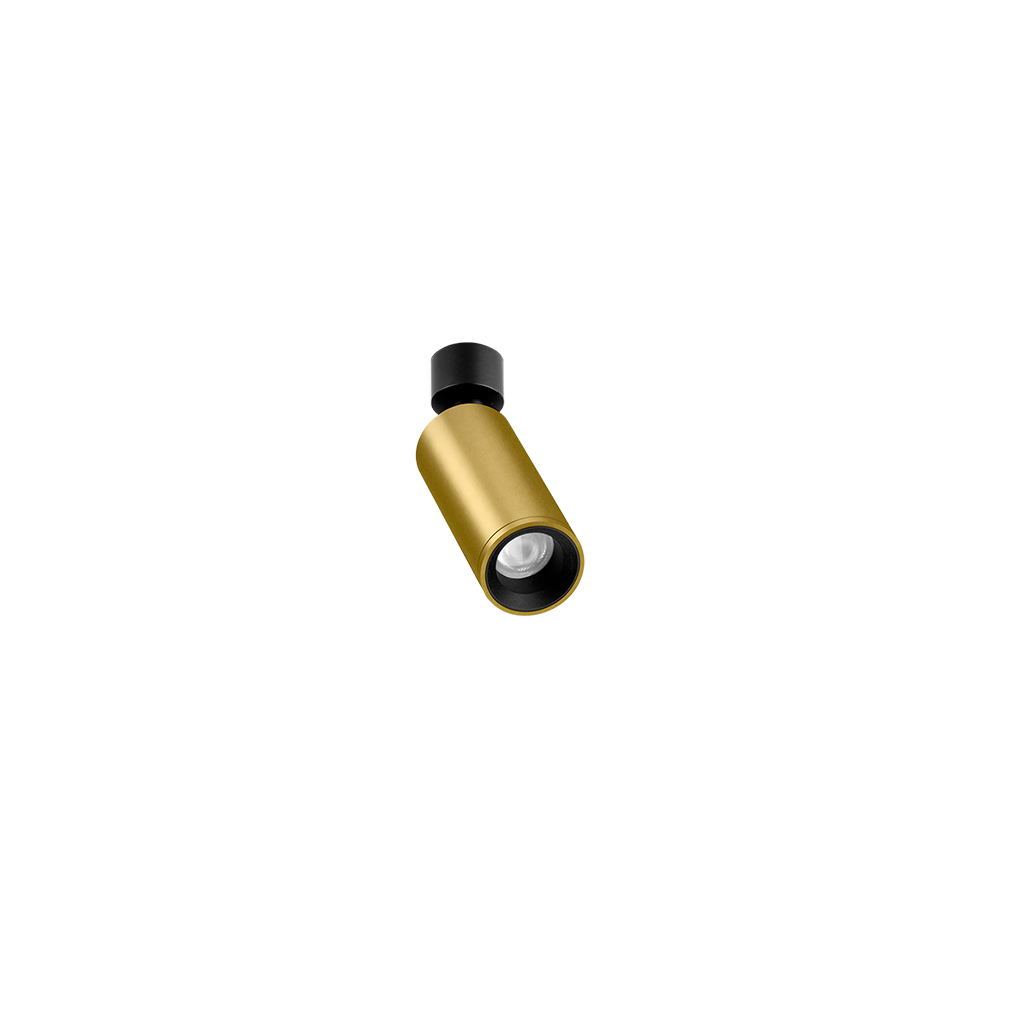

MAGNETIC 24V FIT 20 12º 2700K G

Reference:

A4310110G

Color:

Gold

Light source:

LED

Luminous flux:

127 lm

Power:

2,1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DIM options

Sealing:

IP20

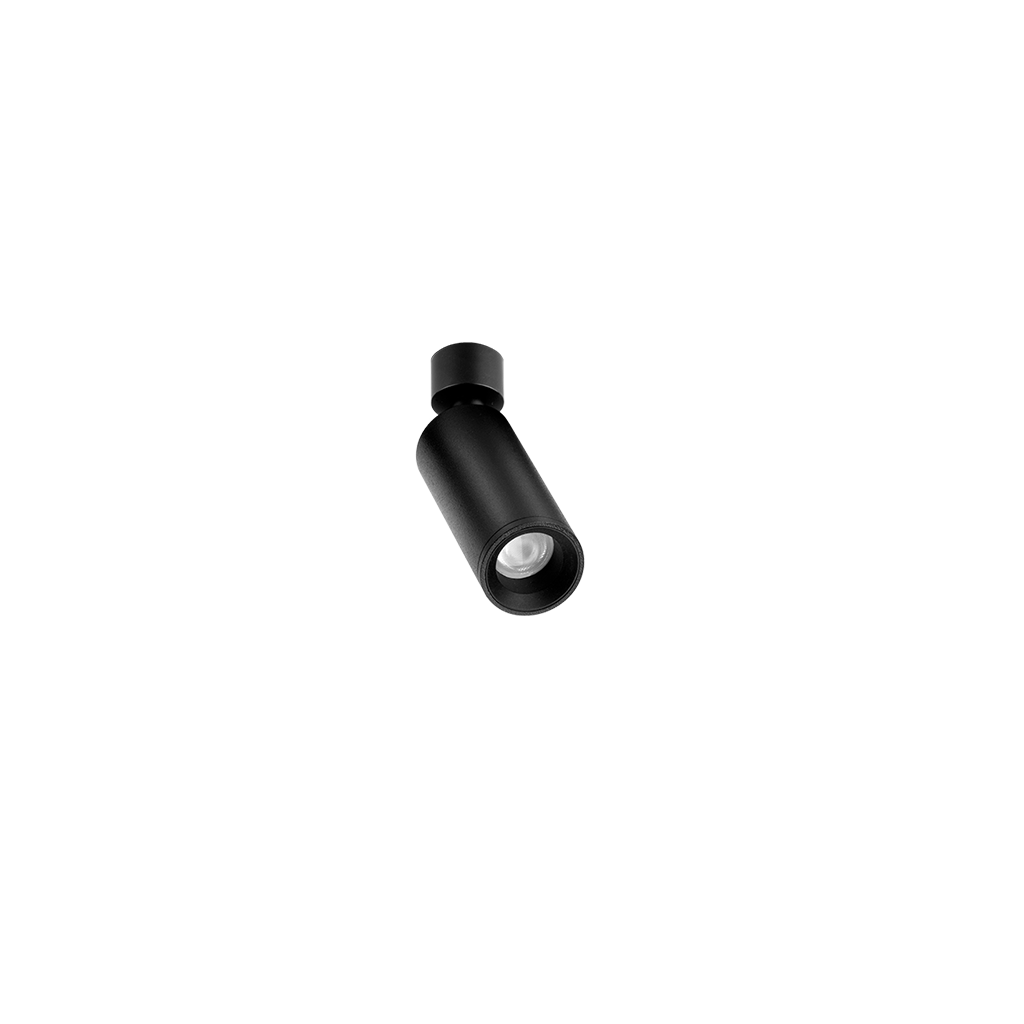

MAGNETIC 24V FIT 20 12º 2700K NT

Reference:

A4310110NT

Color:

Textured black

Light source:

LED

Luminous flux:

127 lm

Power:

2,1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DIM options

Sealing:

IP20

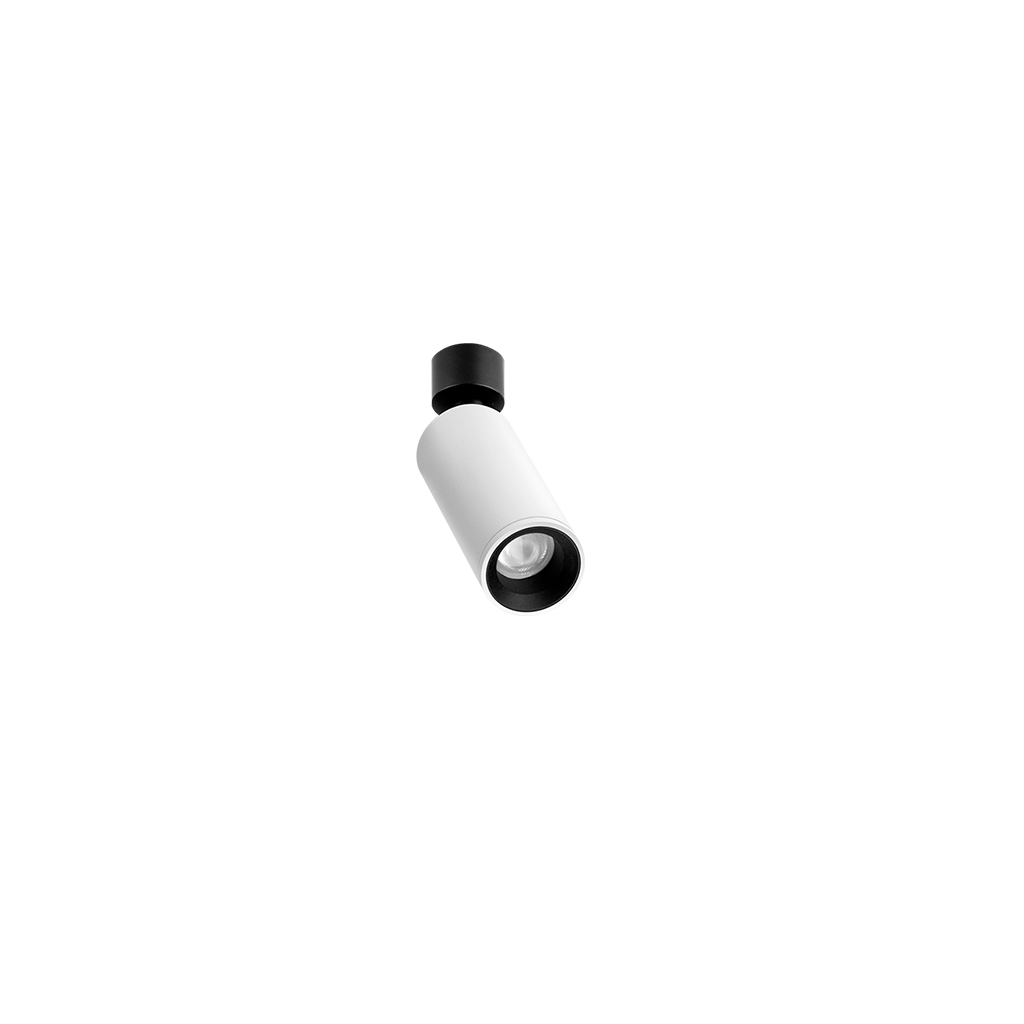

MAGNETIC 24V FIT 20 12º 2700K WT

Reference:

A4310110WT

Color:

Textured white

Light source:

LED

Luminous flux:

127 lm

Power:

2,1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 12º 3000K G

Reference:

A4310111G

Color:

Gold

Light source:

LED

Luminous flux:

150 lm

Power:

2,1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 12º 3000K NT

Reference:

A4310111NT

Color:

Textured black

Light source:

LED

Luminous flux:

150 lm

Power:

2,1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 12º 3000K WT

Reference:

A4310111WT

Color:

Textured white

Light source:

LED

Luminous flux:

150 lm

Power:

2,1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 12º 3500K G

Reference:

A4310113G

Color:

Gold

Light source:

LED

Luminous flux:

160 lm

Power:

2,1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 12º 3500K NT

Reference:

A4310113NT

Color:

Textured black

Light source:

LED

Luminous flux:

160 lm

Power:

2,1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 12º 3500K WT

Reference:

A4310113WT

Color:

Textured white

Light source:

LED

Luminous flux:

160 lm

Power:

2,1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 30º 2700K G

Reference:

A4310120G

Color:

Gold

Light source:

LED

Luminous flux:

127 lm

Power:

2,1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 30º 2700K NT

Reference:

A4310120NT

Color:

Textured black

Light source:

LED

Luminous flux:

127 lm

Power:

2,1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 30º 2700K WT

Reference:

A4310120WT

Color:

Textured white

Light source:

LED

Luminous flux:

127 lm

Power:

2,1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 30º 3000K G

Reference:

A4310121G

Color:

Gold

Light source:

LED

Luminous flux:

150 lm

Power:

2,1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 30º 3000K NT

Reference:

A4310121NT

Color:

Textured black

Light source:

LED

Luminous flux:

150 lm

Power:

2,1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 30º 3000K WT

Reference:

A4310121WT

Color:

Textured white

Light source:

LED

Luminous flux:

150 lm

Power:

2,1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 30º 3500K G

Reference:

A4310123G

Color:

Gold

Light source:

LED

Luminous flux:

160 lm

Power:

2,1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 30º 3500K NT

Reference:

A4310123NT

Color:

Textured black

Light source:

LED

Luminous flux:

160 lm

Power:

2,1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 30º 3500K WT

Reference:

A4310123WT

Color:

Textured white

Light source:

LED

Luminous flux:

160 lm

Power:

2,1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 54º 2700K G

Reference:

A4310130G

Color:

Gold

Light source:

LED

Luminous flux:

127 lm

Power:

2,1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 54º 2700K NT

Reference:

A4310130NT

Color:

Textured black

Light source:

LED

Luminous flux:

127 lm

Power:

2,1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 54º 2700K WT

Reference:

A4310130WT

Color:

Textured white

Light source:

LED

Luminous flux:

127 lm

Power:

2,1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 54º 3000K G

Reference:

A4310131G

Color:

Gold

Light source:

LED

Luminous flux:

150 lm

Power:

2,1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 54º 3000K NT

Reference:

A4310131NT

Color:

Textured black

Light source:

LED

Luminous flux:

150 lm

Power:

2,1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 54º 3000K WT

Reference:

A4310131WT

Color:

Textured white

Light source:

LED

Luminous flux:

150 lm

Power:

2,1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 54º 3500K G

Reference:

A4310133G

Color:

Gold

Light source:

LED

Luminous flux:

160 lm

Power:

2,1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 54º 3500K NT

Reference:

A4310133NT

Color:

Textured black

Light source:

LED

Luminous flux:

160 lm

Power:

2,1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DIM options

Sealing:

IP20
MAGNETIC 24V FIT 20 54º 3500K WT

Reference:

A4310133WT

Color:

Textured white

Light source:

LED

Luminous flux:

160 lm

Power:

2,1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DIM options

Sealing:

IP20

Accessories

MAGNETIC CONNECTOR (MANDATORY)

DRIVER OPTIONS

TRIMLESS TOOL

Are you interested in this product? Contact us
