Lex

CEILING RECESSED

As the location of its LED is set back, Lex achieves great visual comfort. Its matte finish shade fosters this aspect and offers elegant aesthetics. Lex Blue offers a dim blue presence light. The ‘blue’ source can be switched off completely or, thanks to its very low consumption, be kept on permanently, showing its blue half-light effect only when the main lighting is turned off.

Awards

Design Plus 2012 Award
Premios Delta´12 SelecciÓn

Lex Mini

Lex Mini Asymmetric

Lex

Lex Asymmetric

Lex

Luminous flux

1370 lm / 1420 lm / 1435 lm / 1440 lm / 2070 lm / 2150 lm / 2170 lm / 2180 lm / 2300 lm / 2690 lm / 2800 lm / 2830 lm / 2840 lm
Lighting efficiency

60% / 66% / 67% / 70%
Power

10 W / 17 W / 20 W / 21,5 W / 24 W
Dimming

No Dim, DALI, Push
Colour temperature

2700K / 3000K / 3500K / 4000K / Dim to warm 3000 - 1800K / Tunable White 2700 - 5000K
Sealing

IP20
Chromatic stability

MacAdam Step 2 / MacAdam Step 3
Recess measurements

Ø140mm
Light beam angle

71° / 76°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

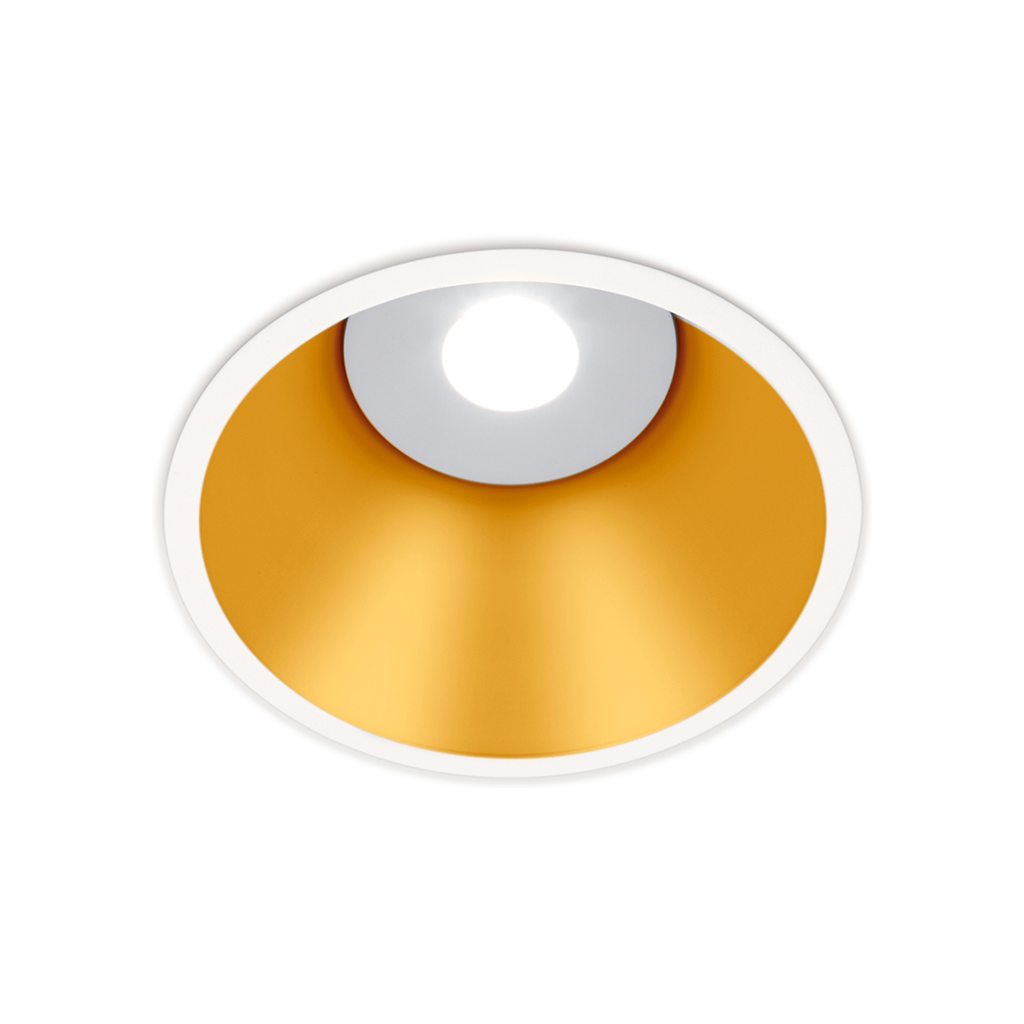

LEX 1 2700K G

Reference:

A0700125G

Colour:

Gold

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20

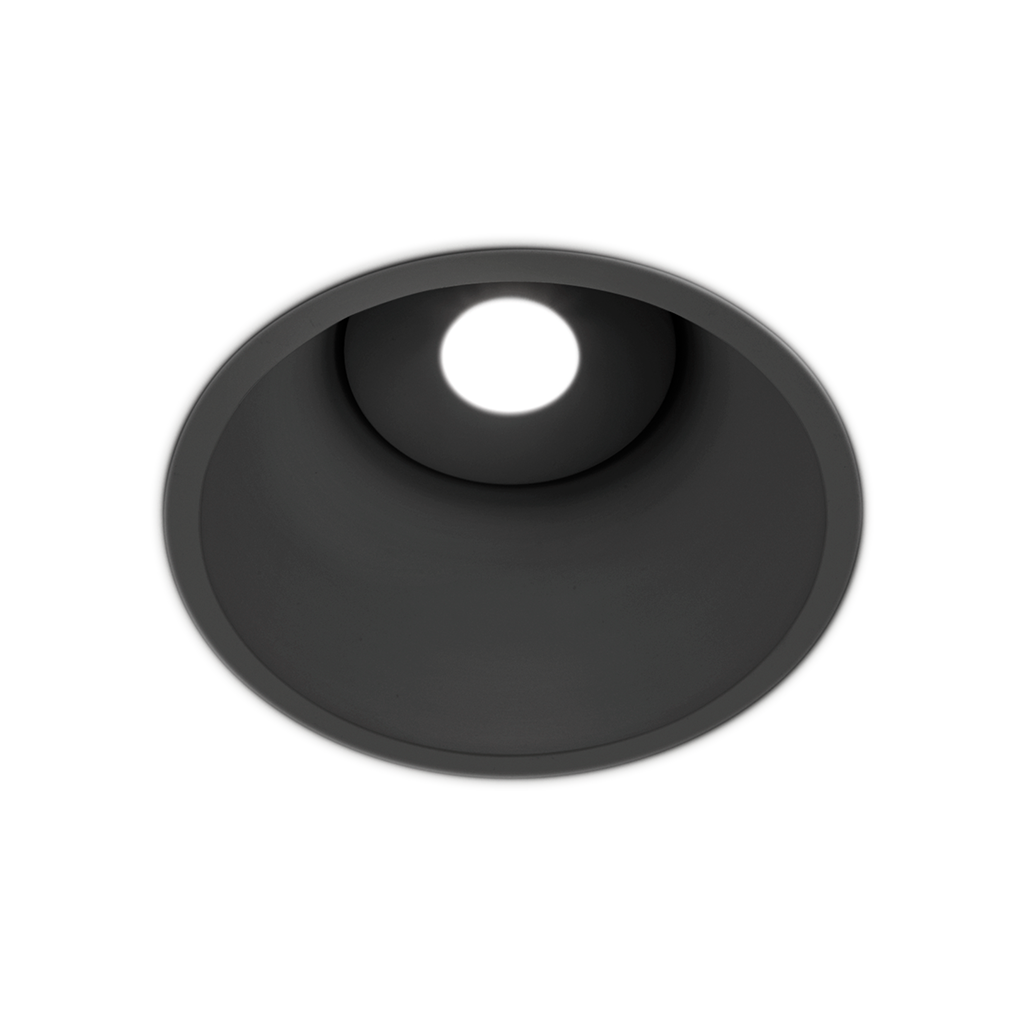

LEX 1 2700K N

Reference:

A0700125N

Colour:

Matt black

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20

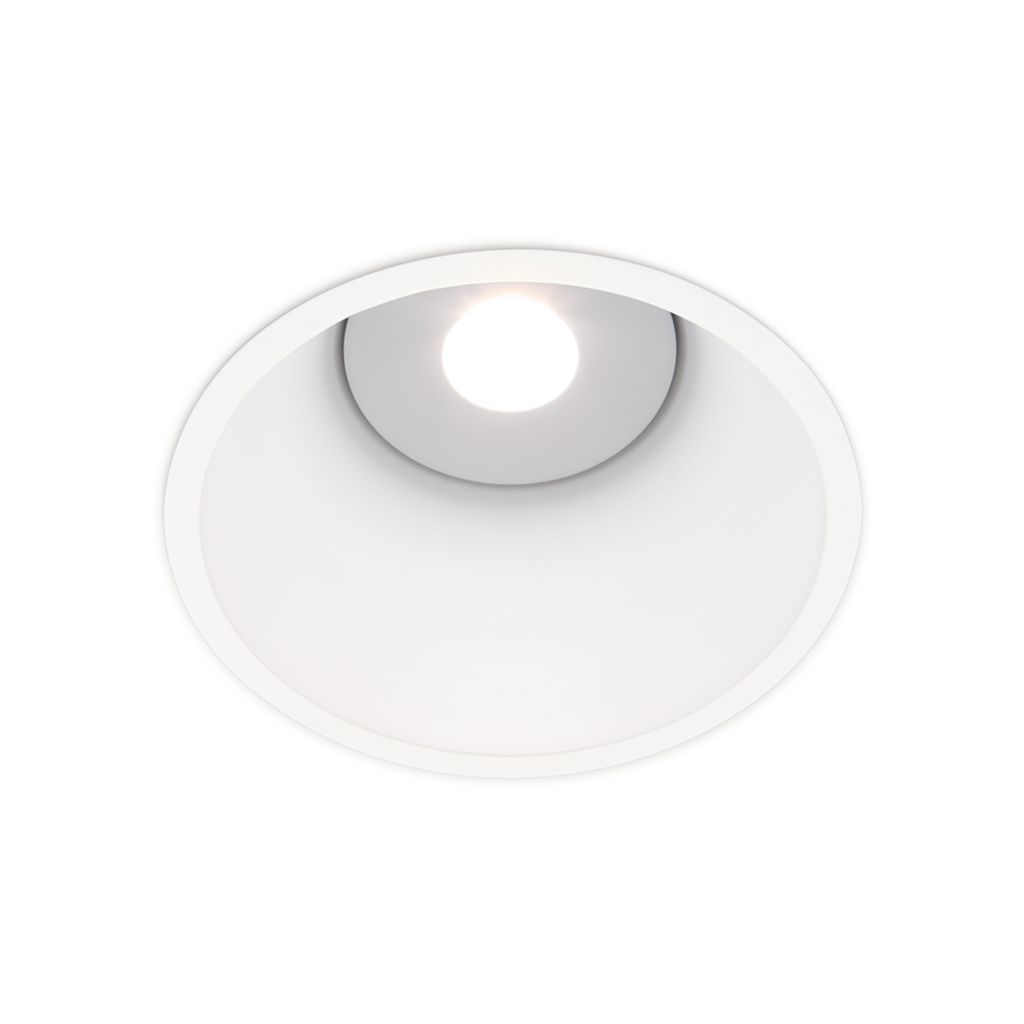

LEX 1 2700K W

Reference:

A0700125W

Colour:

Matt white

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20

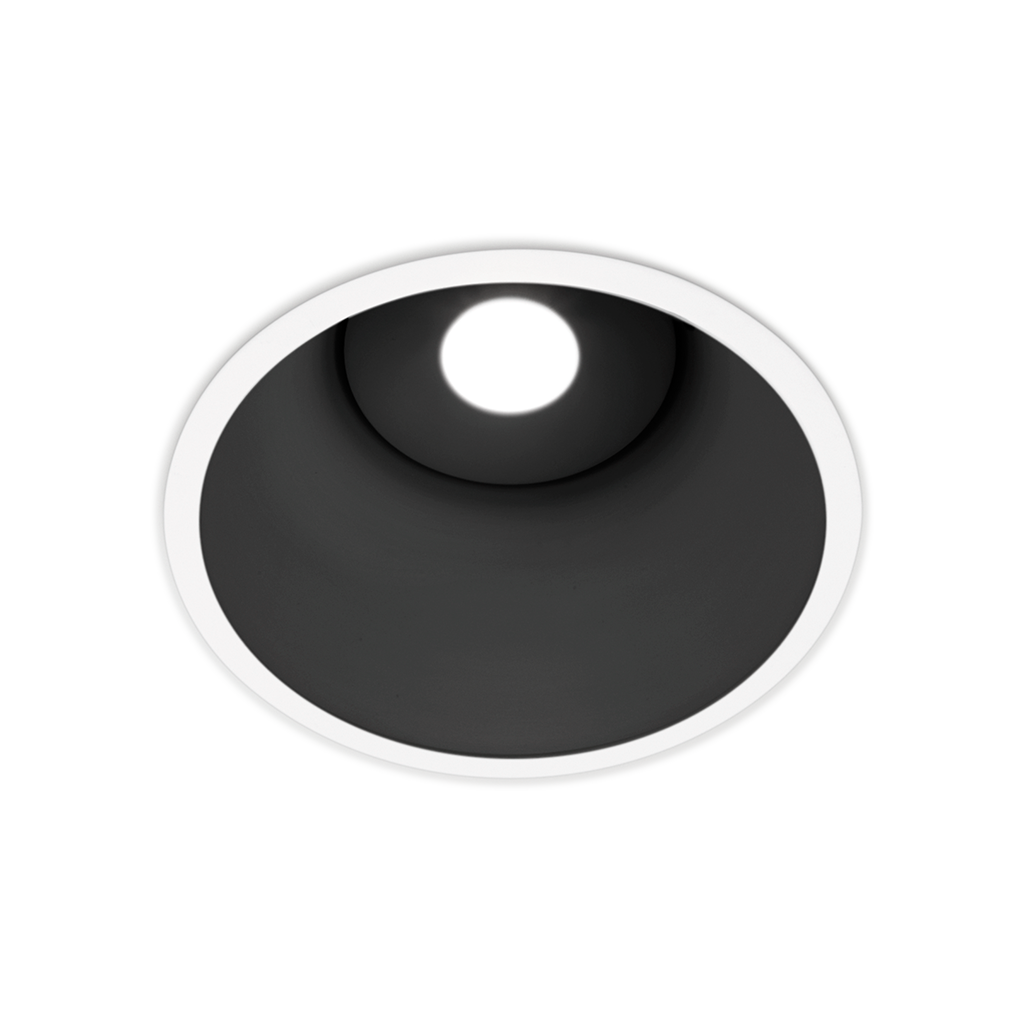

LEX 1 2700K WN

Reference:

A0700125WN

Colour:

White-Black

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20

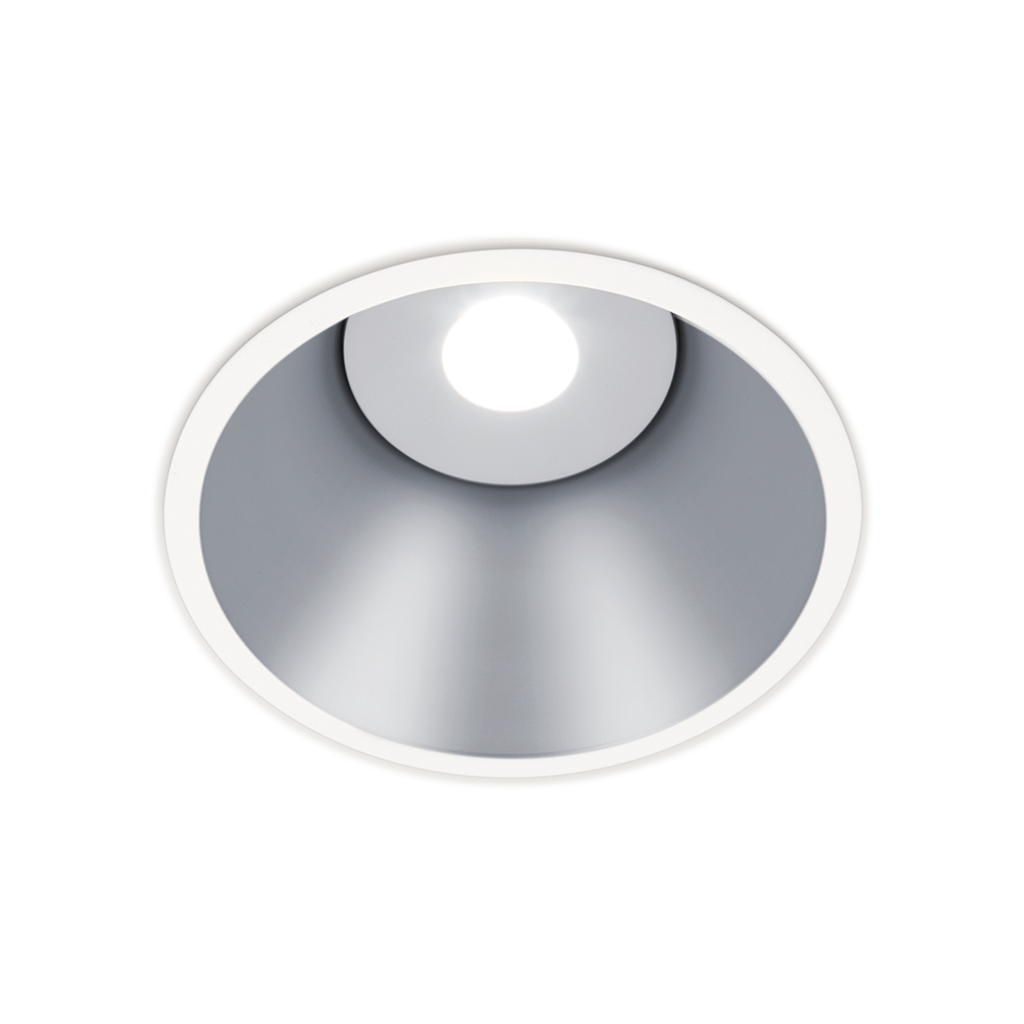

LEX 1 2700K Z

Reference:

A0700125Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 1 3000K G

Reference:

A0700101G

Colour:

Gold

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 1 3000K N

Reference:

A0700101N

Colour:

Matt black

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 1 3000K W

Reference:

A0700101W

Colour:

Matt white

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 1 3000K WN

Reference:

A0700101WN

Colour:

White-Black

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 1 3000K Z

Reference:

A0700101Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 1 3500K G

Reference:

A0700134G

Colour:

Gold

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 1 3500K N

Reference:

A0700134N

Colour:

Matt black

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 1 3500K W

Reference:

A0700134W

Colour:

Matt white

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 1 3500K WN

Reference:

A0700134WN

Colour:

White-Black

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 1 3500K Z

Reference:

A0700134Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 1 4000K G

Reference:

A0700102G

Colour:

Gold

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 1 4000K N

Reference:

A0700102N

Colour:

Matt black

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 1 4000K W

Reference:

A0700102W

Colour:

Matt white

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 1 4000K WN

Reference:

A0700102WN

Colour:

White-Black

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 1 4000K Z

Reference:

A0700102Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 2 2700K G

Reference:

A0700126G

Colour:

Gold

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 2 2700K N

Reference:

A0700126N

Colour:

Matt black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 2 2700K W

Reference:

A0700126W

Colour:

Matt white

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 2 2700K WN

Reference:

A0700126WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 2 2700K Z

Reference:

A0700126Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 2 3000K G

Reference:

A0700103G

Colour:

Gold

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 2 3000K N

Reference:

A0700103N

Colour:

Matt black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 2 3000K W

Reference:

A0700103W

Colour:

Matt white

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 2 3000K WN

Reference:

A0700103WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 2 3000K Z

Reference:

A0700103Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 2 3500K G

Reference:

A0700135G

Colour:

Gold

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 2 3500K N

Reference:

A0700135N

Colour:

Matt black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 2 3500K W

Reference:

A0700135W

Colour:

Matt white

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 2 3500K WN

Reference:

A0700135WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 2 3500K Z

Reference:

A0700135Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 2 4000K G

Reference:

A0700104G

Colour:

Gold

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 2 4000K N

Reference:

A0700104N

Colour:

Matt black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 2 4000K W

Reference:

A0700104W

Colour:

Matt white

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 2 4000K WN

Reference:

A0700104WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 2 4000K Z

Reference:

A0700104Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 2 DIM PUSH 2700K G

Reference:

A0700127G

Colour:

Gold

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 2700K N

Reference:

A0700127N

Colour:

Matt black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 2700K W

Reference:

A0700127W

Colour:

Matt white

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 2700K WN

Reference:

A0700127WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 2700K Z

Reference:

A0700127Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 3000K G

Reference:

A0700107G

Colour:

Gold

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 3000K N

Reference:

A0700107N

Colour:

Matt black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 3000K W

Reference:

A0700107W

Colour:

Matt white

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 3000K WN

Reference:

A0700107WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 3000K Z

Reference:

A0700107Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 3500K G

Reference:

A0700136G

Colour:

Gold

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 3500K N

Reference:

A0700136N

Colour:

Matt black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 3500K W

Reference:

A0700136W

Colour:

Matt white

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 3500K WN

Reference:

A0700136WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 3500K Z

Reference:

A0700136Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 4000K G

Reference:

A0700108G

Colour:

Gold

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 4000K N

Reference:

A0700108N

Colour:

Matt black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 4000K W

Reference:

A0700108W

Colour:

Matt white

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 4000K WN

Reference:

A0700108WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM PUSH 4000K Z

Reference:

A0700108Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX 2 DIM DALI 2700K G

Reference:

A0700129G

Colour:

Gold

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 2700K N

Reference:

A0700129N

Colour:

Matt black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 2700K W

Reference:

A0700129W

Colour:

Matt white

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 2700K WN

Reference:

A0700129WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 2700K Z

Reference:

A0700129Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 3000K G

Reference:

A0700115G

Colour:

Gold

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 3000K N

Reference:

A0700115N

Colour:

Matt black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 3000K W

Reference:

A0700115W

Colour:

Matt white

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 3000K WN

Reference:

A0700115WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 3000K Z

Reference:

A0700115Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 3500K G

Reference:

A0700137G

Colour:

Gold

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 3500K N

Reference:

A0700137N

Colour:

Matt black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 3500K W

Reference:

A0700137W

Colour:

Matt white

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 3500K WN

Reference:

A0700137WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 3500K Z

Reference:

A0700137Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 4000K G

Reference:

A0700116G

Colour:

Gold

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 4000K N

Reference:

A0700116N

Colour:

Matt black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 4000K W

Reference:

A0700116W

Colour:

Matt white

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 4000K WN

Reference:

A0700116WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 2 DIM DALI 4000K Z

Reference:

A0700116Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX 3 2700K G

Reference:

A0700130G

Colour:

Gold

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 3 2700K N

Reference:

A0700130N

Colour:

Matt black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 3 2700K W

Reference:

A0700130W

Colour:

Matt white

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 3 2700K WN

Reference:

A0700130WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 3 2700K Z

Reference:

A0700130Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 3 3000K G

Reference:

A0700117G

Colour:

Gold

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 3 3000K N

Reference:

A0700117N

Colour:

Matt black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 3 3000K W

Reference:

A0700117W

Colour:

Matt white

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 3 3000K WN

Reference:

A0700117WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 3 3000K Z

Reference:

A0700117Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 3 3500K G

Reference:

A0700138G

Colour:

Gold

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 3 3500K N

Reference:

A0700138N

Colour:

Matt black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 3 3500K W

Reference:

A0700138W

Colour:

Matt white

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 3 3500K WN

Reference:

A0700138WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 3 3500K Z

Reference:

A0700138Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 3 4000K G

Reference:

A0700118G

Colour:

Gold

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX 3 4000K N

Reference:

A0700118N

Colour:

Matt black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 3 4000K W

Reference:

A0700118W

Colour:

Matt white

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX 3 4000K WN

Reference:

A0700118WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX 3 4000K Z

Reference:

A0700118Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX 3 DIM DALI 2700K G

Reference:

A0700133G

Colour:

Gold

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 2700K N

Reference:

A0700133N

Colour:

Matt black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 2700K W

Reference:

A0700133W

Colour:

Matt white

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 2700K WN

Reference:

A0700133WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 2700K Z

Reference:

A0700133Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 3000K G

Reference:

A0700121G

Colour:

Gold

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 3000K N

Reference:

A0700121N

Colour:

Matt black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 3000K W

Reference:

A0700121W

Colour:

Matt white

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 3000K WN

Reference:

A0700121WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 3000K Z

Reference:

A0700121Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 3500K G

Reference:

A0700140G

Colour:

Gold

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 3500K N

Reference:

A0700140N

Colour:

Matt black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 3500K W

Reference:

A0700140W

Colour:

Matt white

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 3500K WN

Reference:

A0700140WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 3500K Z

Reference:

A0700140Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 4000K G

Reference:

A0700122G

Colour:

Gold

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 4000K N

Reference:

A0700122N

Colour:

Matt black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 4000K W

Reference:

A0700122W

Colour:

Matt white

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 4000K WN

Reference:

A0700122WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM DALI 4000K Z

Reference:

A0700122Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX 3 DIM PUSH 2700K G

Reference:

A0700131G

Colour:

Gold

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 2700K N

Reference:

A0700131N

Colour:

Matt black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 2700K W

Reference:

A0700131W

Colour:

Matt white

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 2700K WN

Reference:

A0700131WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 2700K Z

Reference:

A0700131Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 3000K G

Reference:

A0700123G

Colour:

Gold

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 3000K N

Reference:

A0700123N

Colour:

Matt black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 3000K W

Reference:

A0700123W

Colour:

Matt white

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 3000K WN

Reference:

A0700123WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 3000K Z

Reference:

A0700123Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 3500K G

Reference:

A0700139G

Colour:

Gold

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 3500K N

Reference:

A0700139N

Colour:

Matt black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 3500K W

Reference:

A0700139W

Colour:

Matt white

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 3500K WN

Reference:

A0700139WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 3500K Z

Reference:

A0700139Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 4000K G

Reference:

A0700124G

Colour:

Gold

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 4000K N

Reference:

A0700124N

Colour:

Matt black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 4000K W

Reference:

A0700124W

Colour:

Matt white

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 4000K WN

Reference:

A0700124WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX 3 DIM PUSH 4000K Z

Reference:

A0700124Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX TUNABLE WHITE G

Reference:

A3680100G

Colour:

Gold

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX TUNABLE WHITE N

Reference:

A3680100N

Colour:

Matt black

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX TUNABLE WHITE W

Reference:

A3680100W

Colour:

Matt white

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX TUNABLE WHITE WN

Reference:

A3680100WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX TUNABLE WHITE Z

Reference:

A3680100Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX DIM TO WARM G

Reference:

A3680200G

Colour:

Gold

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX DIM TO WARM N

Reference:

A3680200N

Colour:

Matt black

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX DIM TO WARM W

Reference:

A3680200W

Colour:

Matt white

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX DIM TO WARM WN

Reference:

A3680200WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX DIM TO WARM Z

Reference:

A3680200Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX BLUE 1 2700K W

Reference:

A0700225W

Colour:

White-Blue

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 1 3000K W

Reference:

A0700201W

Colour:

White-Blue

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 1 3500K W

Reference:

A0700234W

Colour:

White-Blue

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 1 4000K W

Reference:

A0700202W

Colour:

White-Blue

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 2 2700K W

Reference:

A0700226W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 2 3000K W

Reference:

A0700203W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 2 3500K W

Reference:

A0700235W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 2 4000K W

Reference:

A0700204W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 2 DIM PUSH 2700K W

Reference:

A0700227W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX BLUE 2 DIM PUSH 3000K W

Reference:

A0700207W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX BLUE 2 DIM PUSH 3500K W

Reference:

A0700236W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX BLUE 2 DIM PUSH 4000K W

Reference:

A0700208W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX BLUE 2 DIM DALI 2700K W

Reference:

A0700229W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX BLUE 2 DIM DALI 3000K W

Reference:

A0700215W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX BLUE 2 DIM DALI 3500K W

Reference:

A0700237W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX BLUE 2 DIM DALI 4000K W

Reference:

A0700216W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX BLUE 3 2700K W

Reference:

A0700230W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 3 3000K W

Reference:

A0700217W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 3 3500K W

Reference:

A0700238W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 3 4000K W

Reference:

A0700218W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX BLUE 3 DIM DALI 2700K W

Reference:

A0700233W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX BLUE 3 DIM DALI 3000K W

Reference:

A0700221W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX BLUE 3 DIM DALI 3500K W

Reference:

A0700240W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX BLUE 3 DIM DALI 4000K W

Reference:

A0700222W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX BLUE 3 DIM PUSH 2700K W

Reference:

A0700231W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX BLUE 3 DIM PUSH 3000K W

Reference:

A0700223W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX BLUE 3 DIM PUSH 3500K W

Reference:

A0700239W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX BLUE 3 DIM PUSH 4000K W

Reference:

A0700224W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX BLUE TUNABLE WHITE W

Reference:

A3681100W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX BLUE DIM TO WARM W

Reference:

A3681200W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

76°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20

Accessories

HIGH CHROMATIC LED

Are you interested in this product? Contact us

Name

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Company

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Lex

CEILING RECESSED

Awards

Design Plus 2012 Award

Premios Delta´12 SelecciÓn

Lex

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Accessories

Are you interested in this product? Contact us

Related products

Shot Light

Swap

Olympia

Deep

Related projects

All in One – Caixabank

Mar de Fulles

Phnom Penh International Airport

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
