Lex

CEILING RECESSED

As the location of its LED is set back, Lex achieves great visual comfort. Its matte finish shade fosters this aspect and offers elegant aesthetics. Lex Blue offers a dim blue presence light. The ‘blue’ source can be switched off completely or, thanks to its very low consumption, be kept on permanently, showing its blue half-light effect only when the main lighting is turned off.

Awards

Design Plus 2012 Award
Premios Delta´12 SelecciÓn

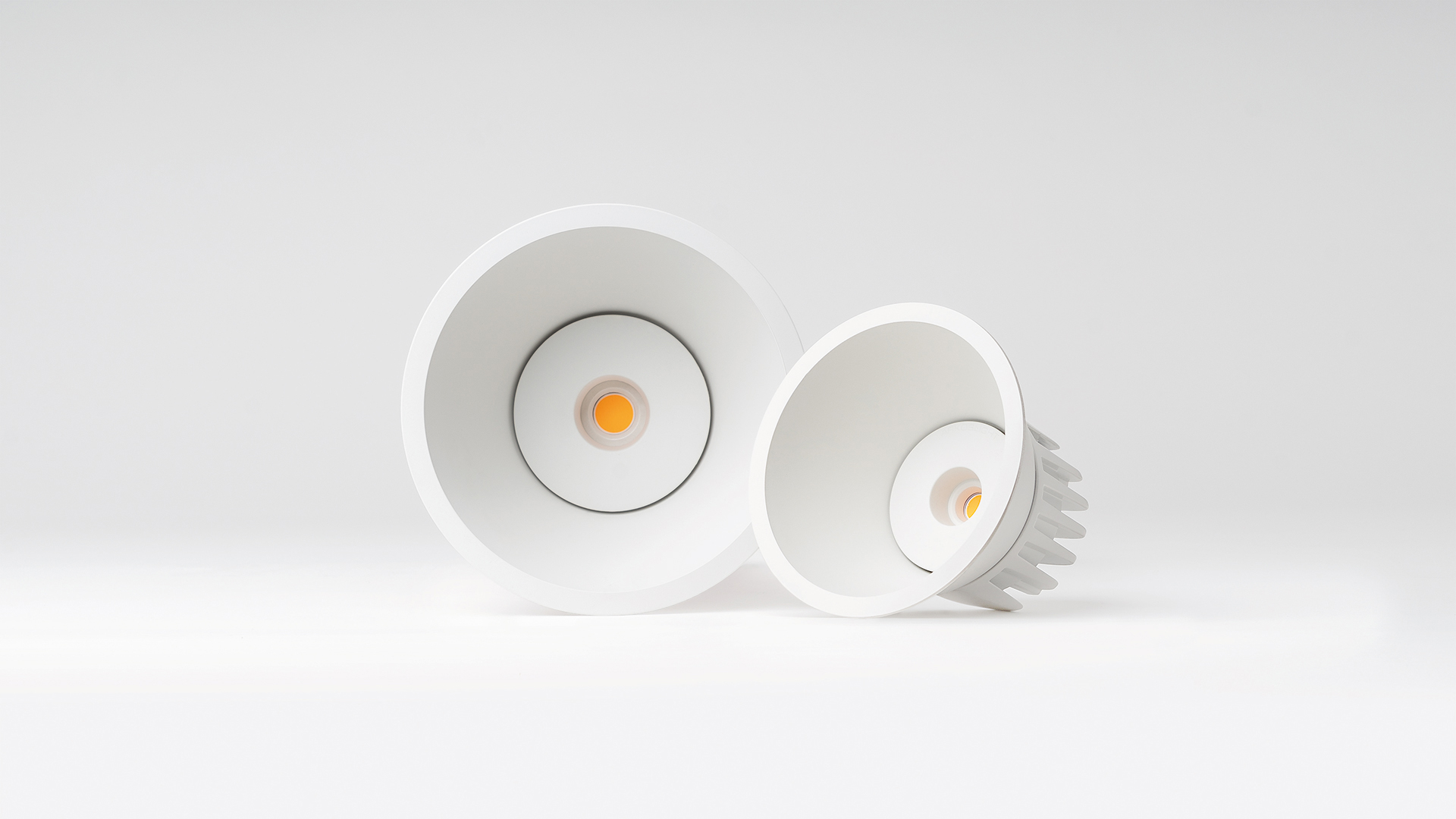

Lex Mini

Lex Mini Asymmetric

Lex

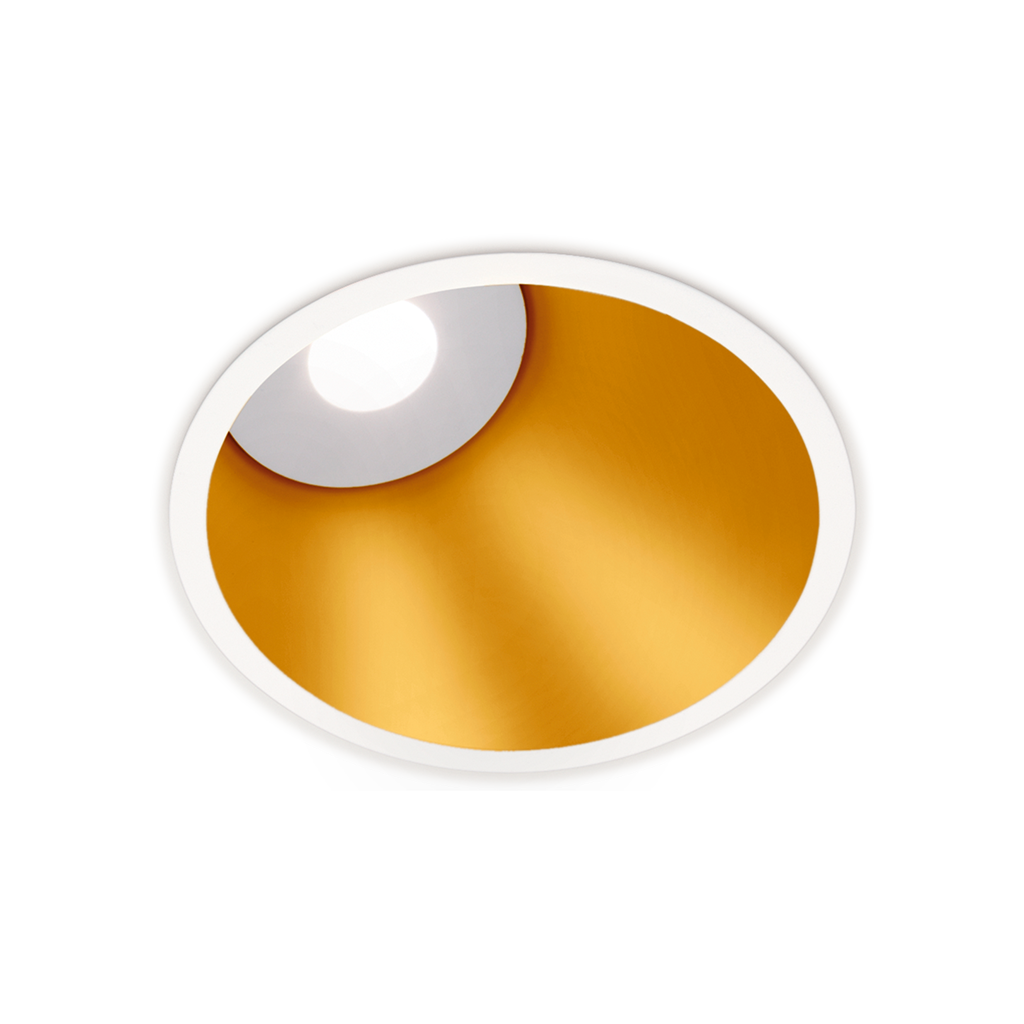

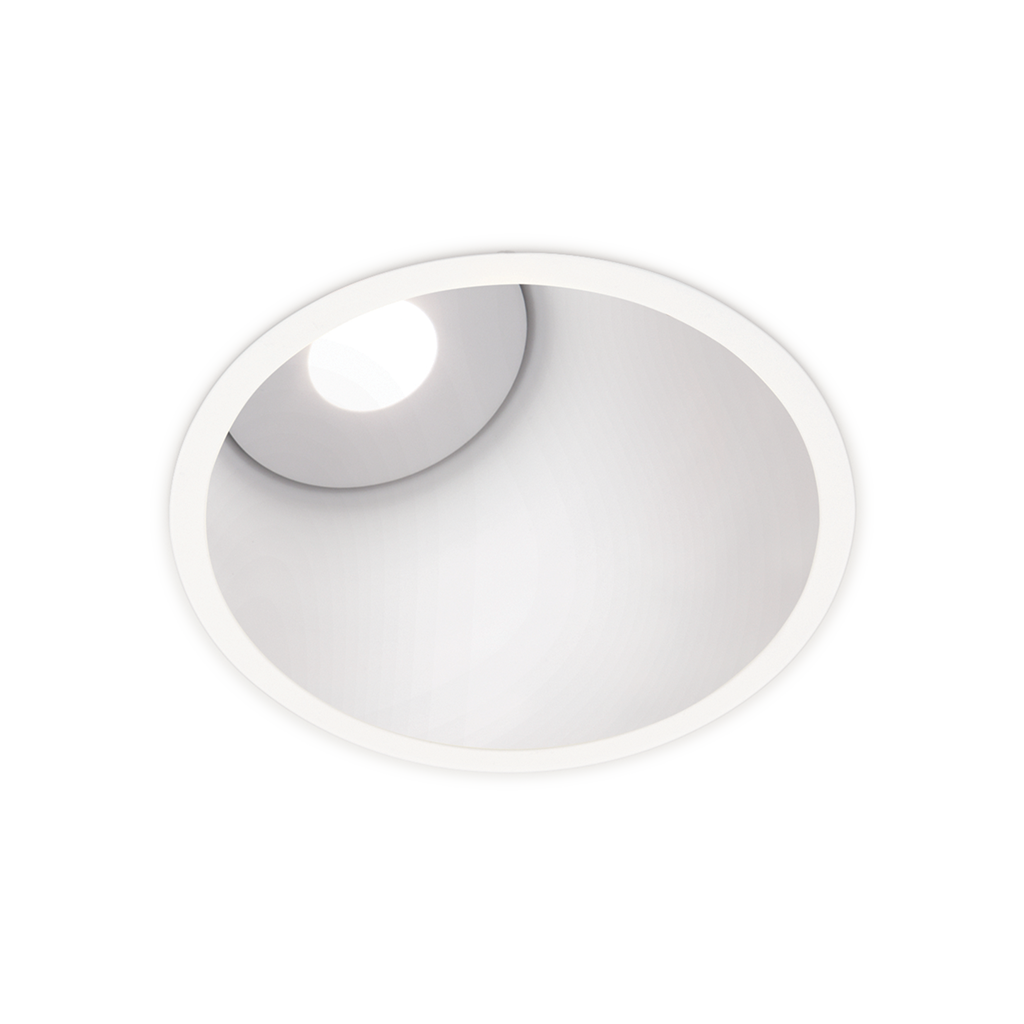

Lex Asymmetric

Luminous flux

1370 lm / 1420 lm / 1435 lm / 1440 lm / 2070 lm / 2150 lm / 2170 lm / 2180 lm / 2300 lm / 2690 lm / 2800 lm / 2830 lm / 2840 lm
Lighting efficiency

60% / 66% / 67% / 70%
Power

10 W / 17 W / 20 W / 21,5 W / 24 W
Dimming

No Dim, DALI, Push
Colour temperature

2700K / 3000K / 3500K / 4000K / Dim to warm 3000 - 1800K / Tunable White 2700 - 5000K
Sealing

IP20
Chromatic stability

MacAdam Step 2 / MacAdam Step 3
Recess measurements

Ø140mm
Light beam angle

60° / 68°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
LEX ASYMM 1 2700K G

Reference:

A0710125G

Colour:

Gold

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 2700K N

Reference:

A0710125N

Colour:

Matt black

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 2700K W

Reference:

A0710125W

Colour:

Matt white

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 2700K WN

Reference:

A0710125WN

Colour:

White-Black

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 2700K Z

Reference:

A0710125Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 3000K G

Reference:

A0710101G

Colour:

Gold

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20

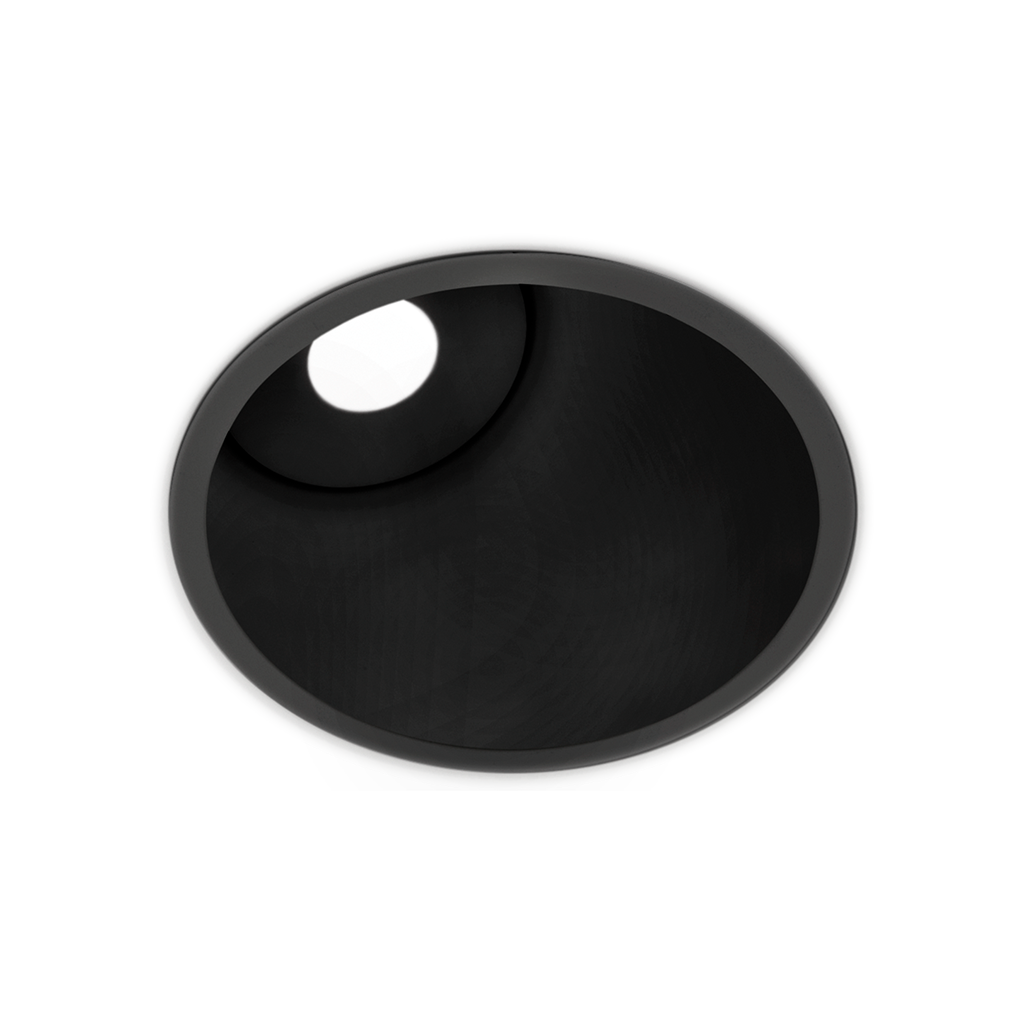

LEX ASYMM 1 3000K N

Reference:

A0710101N

Colour:

Matt black

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 3000K W

Reference:

A0710101W

Colour:

Matt white

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20

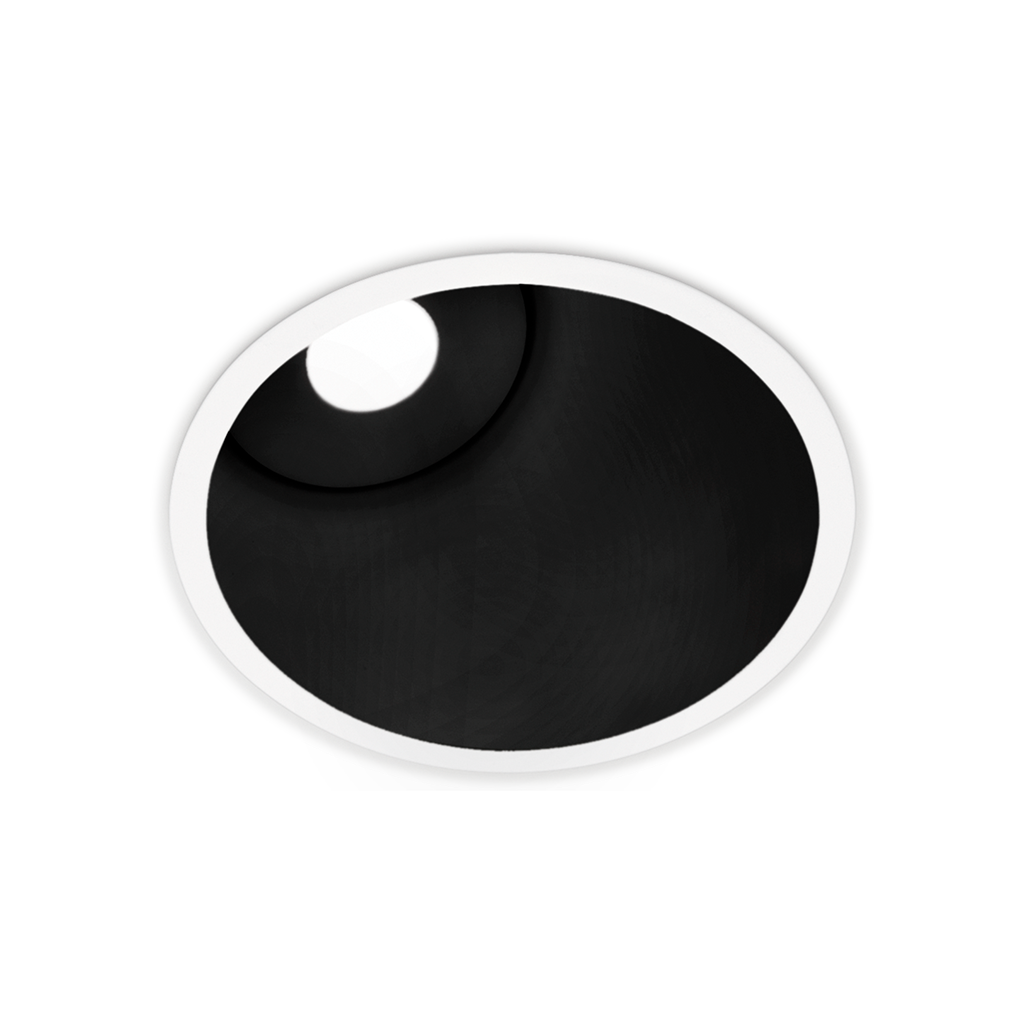

LEX ASYMM 1 3000K WN

Reference:

A0710101WN

Colour:

White-Black

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20

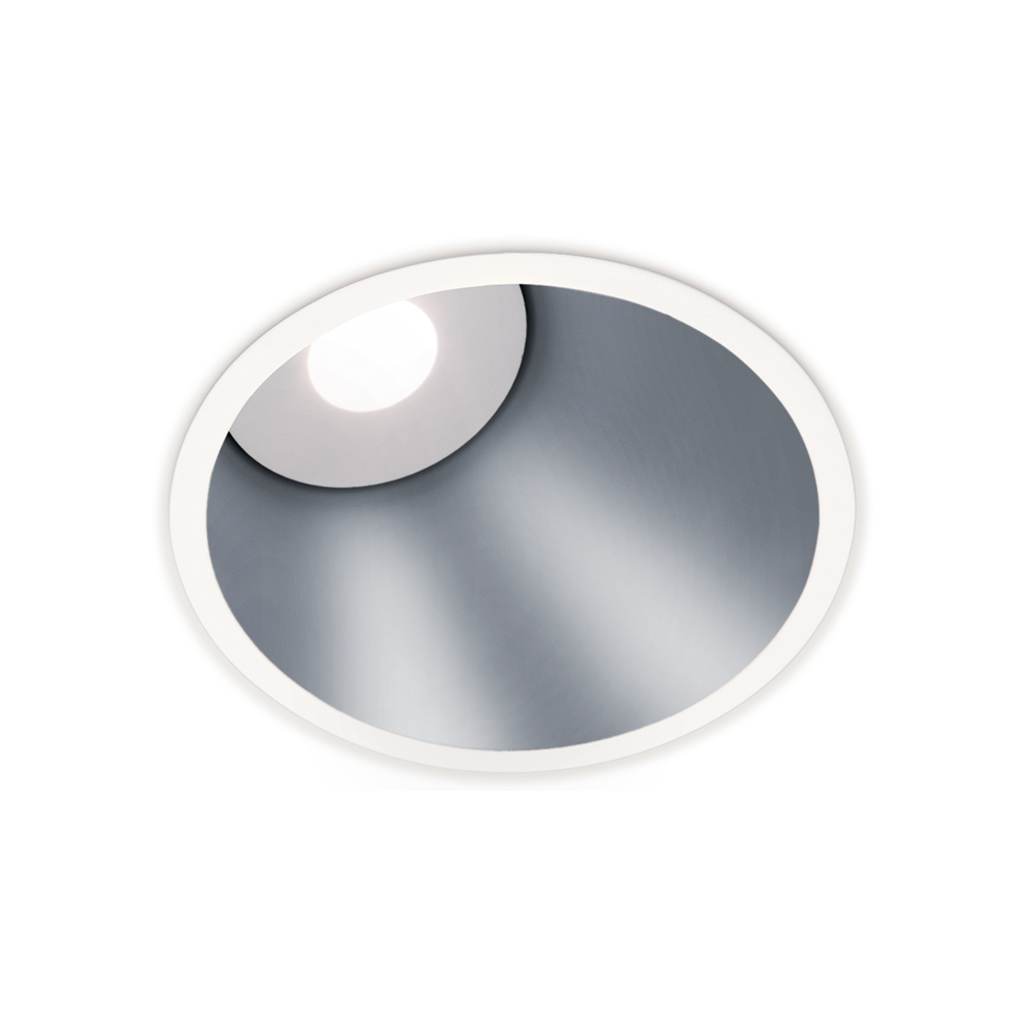

LEX ASYMM 1 3000K Z

Reference:

A0710101Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 3500K G

Reference:

A0710134G

Colour:

Gold

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 3500K N

Reference:

A0710134N

Colour:

Matt black

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 3500K W

Reference:

A0710134W

Colour:

Matt white

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 3500K WN

Reference:

A0710134WN

Colour:

White-Black

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 3500K Z

Reference:

A0710134Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

1435 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 4000K G

Reference:

A0710102G

Colour:

Gold

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 4000K N

Reference:

A0710102N

Colour:

Matt black

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 4000K W

Reference:

A0710102W

Colour:

Matt white

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 4000K WN

Reference:

A0710102WN

Colour:

White-Black

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 1 4000K Z

Reference:

A0710102Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 2700K G

Reference:

A0710126G

Colour:

Gold

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 2700K N

Reference:

A0710126N

Colour:

Matt black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 2700K W

Reference:

A0710126W

Colour:

Matt white

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 2700K WN

Reference:

A0710126WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 2700K Z

Reference:

A0710126Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 3000K G

Reference:

A0710103G

Colour:

Gold

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 3000K N

Reference:

A0710103N

Colour:

Matt black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 3000K W

Reference:

A0710103W

Colour:

Matt white

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 3000K WN

Reference:

A0710103WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 3000K Z

Reference:

A0710103Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 3500K G

Reference:

A0710135G

Colour:

Gold

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 3500K N

Reference:

A0710135N

Colour:

Matt black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 3500K W

Reference:

A0710135W

Colour:

Matt white

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 3500K WN

Reference:

A0710135WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 3500K Z

Reference:

A0710135Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 4000K G

Reference:

A0710104G

Colour:

Gold

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 4000K N

Reference:

A0710104N

Colour:

Matt black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 4000K W

Reference:

A0710104W

Colour:

Matt white

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 4000K WN

Reference:

A0710104WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 4000K Z

Reference:

A0710104Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 2700K G

Reference:

A0710127G

Colour:

Gold

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 2700K N

Reference:

A0710127N

Colour:

Matt black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 2700K W

Reference:

A0710127W

Colour:

Matt white

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 2700K WN

Reference:

A0710127WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 2700K Z

Reference:

A0710127Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 3000K G

Reference:

A0710107G

Colour:

Gold

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 3000K N

Reference:

A0710107N

Colour:

Matt black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 3000K W

Reference:

A0710107W

Colour:

Matt white

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 3000K WN

Reference:

A0710107WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 3000K Z

Reference:

A0710107Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 3500K G

Reference:

A0710136G

Colour:

Gold

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 3500K N

Reference:

A0710136N

Colour:

Matt black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 3500K W

Reference:

A0710136W

Colour:

Matt white

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 3500K WN

Reference:

A0710136WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 3500K Z

Reference:

A0710136Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 4000K G

Reference:

A0710108G

Colour:

Gold

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 4000K N

Reference:

A0710108N

Colour:

Matt black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 4000K W

Reference:

A0710108W

Colour:

Matt white

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 4000K WN

Reference:

A0710108WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM PUSH 4000K Z

Reference:

A0710108Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 2 DIM DALI 2700K G

Reference:

A0710129G

Colour:

Gold

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 2700K N

Reference:

A0710129N

Colour:

Matt black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 2700K W

Reference:

A0710129W

Colour:

Matt white

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 2700K WN

Reference:

A0710129WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 2700K Z

Reference:

A0710129Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 3000K G

Reference:

A0710115G

Colour:

Gold

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 3000K N

Reference:

A0710115N

Colour:

Matt black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 3000K W

Reference:

A0710115W

Colour:

Matt white

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 3000K WN

Reference:

A0710115WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 3000K Z

Reference:

A0710115Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 3500K G

Reference:

A0710137G

Colour:

Gold

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 3500K N

Reference:

A0710137N

Colour:

Matt black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 3500K W

Reference:

A0710137W

Colour:

Matt white

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 3500K WN

Reference:

A0710137WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 3500K Z

Reference:

A0710137Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2170 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 4000K G

Reference:

A0710116G

Colour:

Gold

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 4000K N

Reference:

A0710116N

Colour:

Matt black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 4000K W

Reference:

A0710116W

Colour:

Matt white

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 4000K WN

Reference:

A0710116WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 2 DIM DALI 4000K Z

Reference:

A0710116Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 2700K G

Reference:

A0710130G

Colour:

Gold

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 2700K N

Reference:

A0710130N

Colour:

Matt black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 2700K W

Reference:

A0710130W

Colour:

Matt white

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 2700K WN

Reference:

A0710130WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 2700K Z

Reference:

A0710130Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 3000K G

Reference:

A0710117G

Colour:

Gold

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 3000K N

Reference:

A0710117N

Colour:

Matt black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 3000K W

Reference:

A0710117W

Colour:

Matt white

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 3000K WN

Reference:

A0710117WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 3000K Z

Reference:

A0710117Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 3500K G

Reference:

A0710138G

Colour:

Gold

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 3500K N

Reference:

A0710138N

Colour:

Matt black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 3500K W

Reference:

A0710138W

Colour:

Matt white

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 3500K WN

Reference:

A0710138WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 3500K Z

Reference:

A0710138Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 4000K G

Reference:

A0710118G

Colour:

Gold

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 4000K N

Reference:

A0710118N

Colour:

Matt black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 4000K W

Reference:

A0710118W

Colour:

Matt white

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 4000K WN

Reference:

A0710118WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 4000K Z

Reference:

A0710118Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM 3 DIM DALI 2700K G

Reference:

A0710133G

Colour:

Gold

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 2700K N

Reference:

A0710133N

Colour:

Matt black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 2700K W

Reference:

A0710133W

Colour:

Matt white

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 2700K WN

Reference:

A0710133WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 2700K Z

Reference:

A0710133Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 3000K G

Reference:

A0710121G

Colour:

Gold

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 3000K N

Reference:

A0710121N

Colour:

Matt black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 3000K W

Reference:

A0710121W

Colour:

Matt white

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 3000K WN

Reference:

A0710121WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 3000K Z

Reference:

A0710121Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 3500K G

Reference:

A0710140G

Colour:

Gold

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 3500K N

Reference:

A0710140N

Colour:

Matt black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 3500K W

Reference:

A0710140W

Colour:

Matt white

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 3500K WN

Reference:

A0710140WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 3500K Z

Reference:

A0710140Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 4000K G

Reference:

A0710122G

Colour:

Gold

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 4000K N

Reference:

A0710122N

Colour:

Matt black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 4000K W

Reference:

A0710122W

Colour:

Matt white

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 4000K WN

Reference:

A0710122WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM DALI 4000K Z

Reference:

A0710122Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 2700K G

Reference:

A0710131G

Colour:

Gold

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 2700K N

Reference:

A0710131N

Colour:

Matt black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 2700K W

Reference:

A0710131W

Colour:

Matt white

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 2700K WN

Reference:

A0710131WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 2700K Z

Reference:

A0710131Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 3000K G

Reference:

A0710123G

Colour:

Gold

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 3000K N

Reference:

A0710123N

Colour:

Matt black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 3000K W

Reference:

A0710123W

Colour:

Matt white

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 3000K WN

Reference:

A0710123WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 3000K Z

Reference:

A0710123Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 3500K G

Reference:

A0710139G

Colour:

Gold

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 3500K N

Reference:

A0710139N

Colour:

Matt black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 3500K W

Reference:

A0710139W

Colour:

Matt white

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 3500K WN

Reference:

A0710139WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 3500K Z

Reference:

A0710139Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 4000K G

Reference:

A0710124G

Colour:

Gold

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

67%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 4000K N

Reference:

A0710124N

Colour:

Matt black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 4000K W

Reference:

A0710124W

Colour:

Matt white

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 4000K WN

Reference:

A0710124WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

60%

Dimming:

Push

Sealing:

IP20
LEX ASYMM 3 DIM PUSH 4000K Z

Reference:

A0710124Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

66%

Dimming:

Push

Sealing:

IP20
LEX ASYMM TUNABLE WHITE G

Reference:

A3690100G

Colour:

Gold

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM TUNABLE WHITE N

Reference:

A3690100N

Colour:

Matt black

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM TUNABLE WHITE W

Reference:

A3690100W

Colour:

Matt white

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM TUNABLE WHITE WN

Reference:

A3690100WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM TUNABLE WHITE Z

Reference:

A3690100Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM DIM TO WARM G

Reference:

A3690200G

Colour:

Gold

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

67%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM DIM TO WARM N

Reference:

A3690200N

Colour:

Matt black

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM DIM TO WARM W

Reference:

A3690200W

Colour:

Matt white

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM DIM TO WARM WN

Reference:

A3690200WN

Colour:

White-Black

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

60%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM DIM TO WARM Z

Reference:

A3690200Z

Colour:

Aluminium

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

66%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM BLUE 1 2700K W

Reference:

A0710225W

Colour:

White-Blue

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 1 3500K W

Reference:

A0710234W

Colour:

White-Blue

Light source:

LED

Luminous flux:

1370 lm

Power:

10 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 1 3000K W

Reference:

A0710201W

Colour:

White-Blue

Light source:

LED

Luminous flux:

1420 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 1 4000K W

Reference:

A0710202W

Colour:

White-Blue

Light source:

LED

Luminous flux:

1440 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 2 2700K W

Reference:

A0710226W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 2 3500K W

Reference:

A0710235W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 2 3000K W

Reference:

A0710203W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 2 4000K W

Reference:

A0710204W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 2 DIM PUSH 2700K W

Reference:

A0710227W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM BLUE 2 DIM PUSH 3500K W

Reference:

A0710236W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM BLUE 2 DIM PUSH 3000K W

Reference:

A0710207W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM BLUE 2 DIM PUSH 4000K W

Reference:

A0710208W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM BLUE 2 DIM DALI 2700K W

Reference:

A0710229W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM BLUE 2 DIM DALI 3500K W

Reference:

A0710237W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2070 lm

Power:

17 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM BLUE 2 DIM DALI 3000K W

Reference:

A0710215W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2150 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM BLUE 2 DIM DALI 4000K W

Reference:

A0710216W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2180 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM BLUE 3 2700K W

Reference:

A0710230W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 3 3500K W

Reference:

A0710238W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 3 3000K W

Reference:

A0710217W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 3 4000K W

Reference:

A0710218W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

No Dim

Sealing:

IP20
LEX ASYMM BLUE 3 DIM DALI 2700K W

Reference:

A0710233W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM BLUE 3 DIM DALI 3500K W

Reference:

A0710240W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM BLUE 3 DIM DALI 3000K W

Reference:

A0710221W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM BLUE 3 DIM DALI 4000K W

Reference:

A0710222W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM BLUE 3 DIM PUSH 2700K W

Reference:

A0710231W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2690 lm

Power:

24 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM BLUE 3 DIM PUSH 3500K W

Reference:

A0710239W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2830 lm

Power:

24 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM BLUE 3 DIM PUSH 3000K W

Reference:

A0710223W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2800 lm

Power:

24 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM BLUE 3 DIM PUSH 4000K W

Reference:

A0710224W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2840 lm

Power:

24 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

60°

Lighting efficiency:

70%

Dimming:

Push

Sealing:

IP20
LEX ASYMM BLUE TUNABLE WHITE W

Reference:

A3691100W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2300 lm

Power:

21,5 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20
LEX ASYMM BLUE DIM TO WARM W

Reference:

A3691200W

Colour:

White-Blue

Light source:

LED

Luminous flux:

2150 lm

Power:

20 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

68°

Lighting efficiency:

70%

Dimming:

DALI

Sealing:

IP20

Accessories

HIGH CHROMATIC LED

Are you interested in this product? Contact us

Phone

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Phone

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Lex

CEILING RECESSED

Awards

Design Plus 2012 Award

Premios Delta´12 SelecciÓn

Lex Asymmetric

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Accessories

Are you interested in this product? Contact us

Related products

Shot Light

Swap

Olympia

Deep

Related projects

All in One – Caixabank

Mar de Fulles

Phnom Penh International Airport

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
