Fifty+ Surface

SURFACE

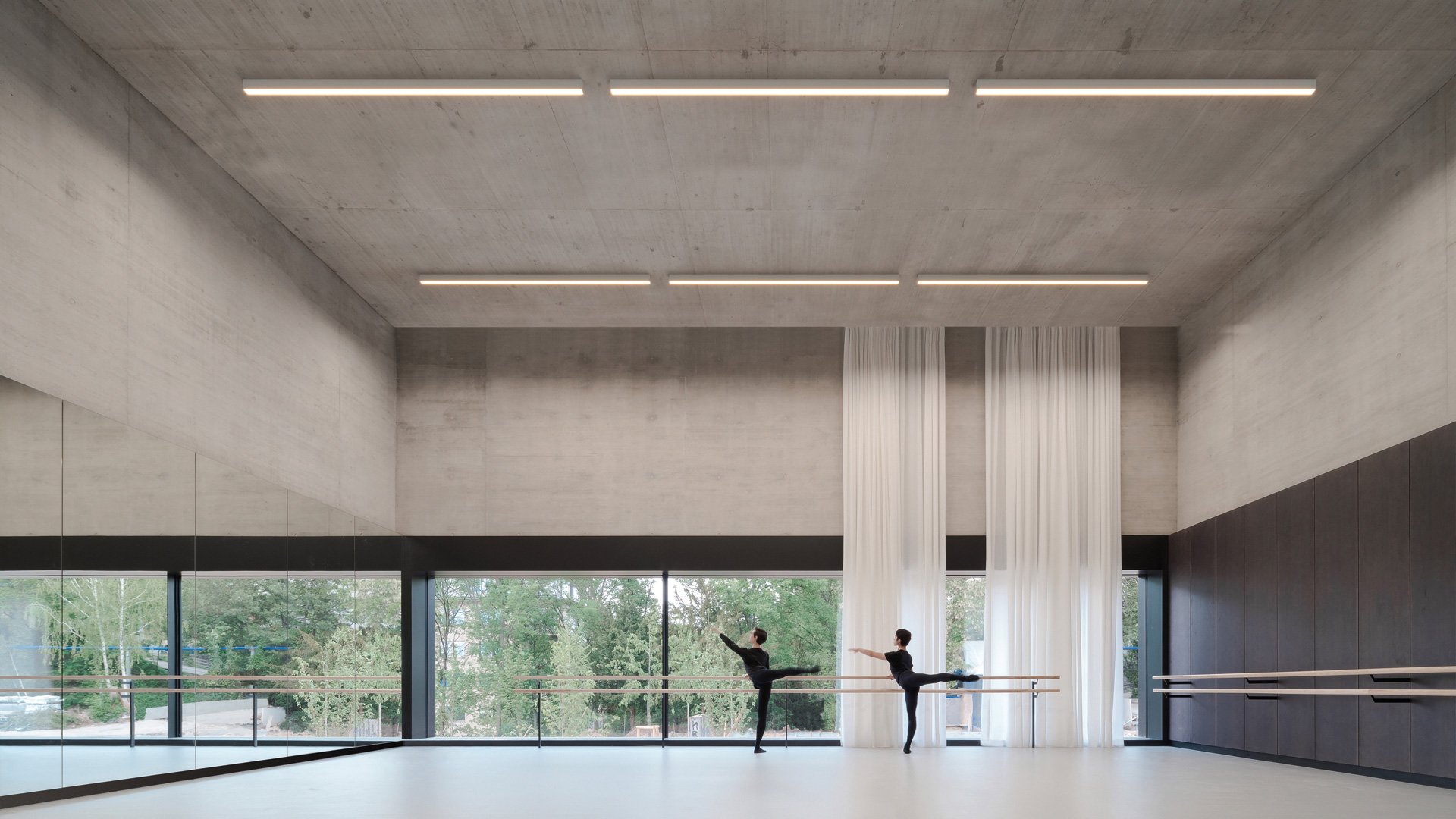

Fifty + is the longitudinal lighting profile for Surface application, individually. Fifty + adds functional light and visual support to highlight the lines, volumes and transitions defined in the architecture. Having an Opal diffuser which disperses the light and a UGR diffuser that reduces the glare angle. Both are installed as a single part along its entire length so as not to interrupt the light beam.

Fifty+ Surface

Fifty+ UGR Surface

Fifty+ HO Surface

Fifty+ UGR HO Surface

Luminous flux

3260 lm / 3440 lm / 4890 lm / 5160 lm / 6520 lm / 6880 lm / 9780 lm / 10320 lm
Lighting efficiency

47%
Power

23,6 W / 35,4 W / 47,2 W / 70,8 W
Dimming

No Dim, DALI, Push
Color temperature

3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

62°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
FIFTY+ UGR HO SURFACE 100 3000K NT

Reference:

A4453111NT

Color:

Textured black

Light source:

LED

Luminous flux:

3260 lm

Power:

23,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 3000K WT

Reference:

A4453111WT

Color:

Textured white

Light source:

LED

Luminous flux:

3260 lm

Power:

23,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 4000K NT

Reference:

A4453112NT

Color:

Textured black

Light source:

LED

Luminous flux:

3440 lm

Power:

23,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 4000K WT

Reference:

A4453112WT

Color:

Textured white

Light source:

LED

Luminous flux:

3440 lm

Power:

23,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 DIM DALI 3000K NT

Reference:

A4453121NT

Color:

Textured black

Light source:

LED

Luminous flux:

3260 lm

Power:

23,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 DIM DALI 3000K WT

Reference:

A4453121WT

Color:

Textured white

Light source:

LED

Luminous flux:

3260 lm

Power:

23,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 DIM DALI 4000K NT

Reference:

A4453122NT

Color:

Textured black

Light source:

LED

Luminous flux:

3440 lm

Power:

23,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 DIM DALI 4000K WT

Reference:

A4453122WT

Color:

Textured white

Light source:

LED

Luminous flux:

3440 lm

Power:

23,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 DIM PUSH 3000K NT

Reference:

A4453131NT

Color:

Textured black

Light source:

LED

Luminous flux:

3260 lm

Power:

23,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 DIM PUSH 3000K WT

Reference:

A4453131WT

Color:

Textured white

Light source:

LED

Luminous flux:

3260 lm

Power:

23,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 DIM PUSH 4000K NT

Reference:

A4453132NT

Color:

Textured black

Light source:

LED

Luminous flux:

3440 lm

Power:

23,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 100 DIM PUSH 4000K WT

Reference:

A4453132WT

Color:

Textured white

Light source:

LED

Luminous flux:

3440 lm

Power:

23,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 3000K NT

Reference:

A4453211NT

Color:

Textured black

Light source:

LED

Luminous flux:

4890 lm

Power:

35,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 3000K WT

Reference:

A4453211WT

Color:

Textured white

Light source:

LED

Luminous flux:

4890 lm

Power:

35,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 4000K NT

Reference:

A4453212NT

Color:

Textured black

Light source:

LED

Luminous flux:

5160 lm

Power:

35,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 4000K WT

Reference:

A4453212WT

Color:

Textured white

Light source:

LED

Luminous flux:

5160 lm

Power:

35,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 DIM DALI 3000K NT

Reference:

A4453221NT

Color:

Textured black

Light source:

LED

Luminous flux:

4890 lm

Power:

35,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 DIM DALI 3000K WT

Reference:

A4453221WT

Color:

Textured white

Light source:

LED

Luminous flux:

4890 lm

Power:

35,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 DIM DALI 4000K NT

Reference:

A4453222NT

Color:

Textured black

Light source:

LED

Luminous flux:

5160 lm

Power:

35,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 DIM DALI 4000K WT

Reference:

A4453222WT

Color:

Textured white

Light source:

LED

Luminous flux:

5160 lm

Power:

35,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 DIM PUSH 3000K NT

Reference:

A4453231NT

Color:

Textured black

Light source:

LED

Luminous flux:

4890 lm

Power:

35,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 DIM PUSH 3000K WT

Reference:

A4453231WT

Color:

Textured white

Light source:

LED

Luminous flux:

4890 lm

Power:

35,4 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 DIM PUSH 4000K NT

Reference:

A4453232NT

Color:

Textured black

Light source:

LED

Luminous flux:

5160 lm

Power:

35,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 150 DIM PUSH 4000K WT

Reference:

A4453232WT

Color:

Textured white

Light source:

LED

Luminous flux:

5160 lm

Power:

35,4 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 3000K NT

Reference:

A4453311NT

Color:

Textured black

Light source:

LED

Luminous flux:

6520 lm

Power:

47,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 3000K WT

Reference:

A4453311WT

Color:

Textured white

Light source:

LED

Luminous flux:

6520 lm

Power:

47,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 4000K NT

Reference:

A4453312NT

Color:

Textured black

Light source:

LED

Luminous flux:

6880 lm

Power:

47,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 4000K WT

Reference:

A4453312WT

Color:

Textured white

Light source:

LED

Luminous flux:

6880 lm

Power:

47,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 DIM DALI 3000K NT

Reference:

A4453321NT

Color:

Textured black

Light source:

LED

Luminous flux:

6520 lm

Power:

47,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 DIM DALI 3000K WT

Reference:

A4453321WT

Color:

Textured white

Light source:

LED

Luminous flux:

6520 lm

Power:

47,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 DIM DALI 4000K NT

Reference:

A4453322NT

Color:

Textured black

Light source:

LED

Luminous flux:

6880 lm

Power:

47,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 DIM DALI 4000K WT

Reference:

A4453322WT

Color:

Textured white

Light source:

LED

Luminous flux:

6880 lm

Power:

47,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 DIM PUSH 3000K NT

Reference:

A4453331NT

Color:

Textured black

Light source:

LED

Luminous flux:

6520 lm

Power:

47,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 DIM PUSH 3000K WT

Reference:

A4453331WT

Color:

Textured white

Light source:

LED

Luminous flux:

6520 lm

Power:

47,2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 DIM PUSH 4000K NT

Reference:

A4453332NT

Color:

Textured black

Light source:

LED

Luminous flux:

6880 lm

Power:

47,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 200 DIM PUSH 4000K WT

Reference:

A4453332WT

Color:

Textured white

Light source:

LED

Luminous flux:

6880 lm

Power:

47,2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 3000K NT

Reference:

A4453411NT

Color:

Textured black

Light source:

LED

Luminous flux:

9780 lm

Power:

70,8 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 3000K WT

Reference:

A4453411WT

Color:

Textured white

Light source:

LED

Luminous flux:

9780 lm

Power:

70,8 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 4000K NT

Reference:

A4453412NT

Color:

Textured black

Light source:

LED

Luminous flux:

10320 lm

Power:

70,8 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 4000K WT

Reference:

A4453412WT

Color:

Textured white

Light source:

LED

Luminous flux:

10320 lm

Power:

70,8 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

No Dim

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 DIM DALI 3000K NT

Reference:

A4453421NT

Color:

Textured black

Light source:

LED

Luminous flux:

9780 lm

Power:

70,8 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 DIM DALI 3000K WT

Reference:

A4453421WT

Color:

Textured white

Light source:

LED

Luminous flux:

9780 lm

Power:

70,8 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 DIM DALI 4000K NT

Reference:

A4453422NT

Color:

Textured black

Light source:

LED

Luminous flux:

10320 lm

Power:

70,8 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 DIM DALI 4000K WT

Reference:

A4453422WT

Color:

Textured white

Light source:

LED

Luminous flux:

10320 lm

Power:

70,8 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

DALI

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 DIM PUSH 3000K NT

Reference:

A4453431NT

Color:

Textured black

Light source:

LED

Luminous flux:

9780 lm

Power:

70,8 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 DIM PUSH 3000K WT

Reference:

A4453431WT

Color:

Textured white

Light source:

LED

Luminous flux:

9780 lm

Power:

70,8 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 DIM PUSH 4000K NT

Reference:

A4453432NT

Color:

Textured black

Light source:

LED

Luminous flux:

10320 lm

Power:

70,8 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20
FIFTY+ UGR HO SURFACE 300 DIM PUSH 4000K WT

Reference:

A4453432WT

Color:

Textured white

Light source:

LED

Luminous flux:

10320 lm

Power:

70,8 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

62°

Lighting efficiency:

47%

Dimming:

Push

Sealing:

IP20

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Company

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

X/Twitter

This field is for validation purposes and should be left unchanged.

Fifty+ Surface

SURFACE

Fifty+ UGR HO Surface

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Are you interested in this product? Contact us

Related products

iO Surface

Zen Tube Surface

Puck

Shot Light Surface

Related projects

Idai Nature

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
