Fit 24V

TRACK LIGHTS

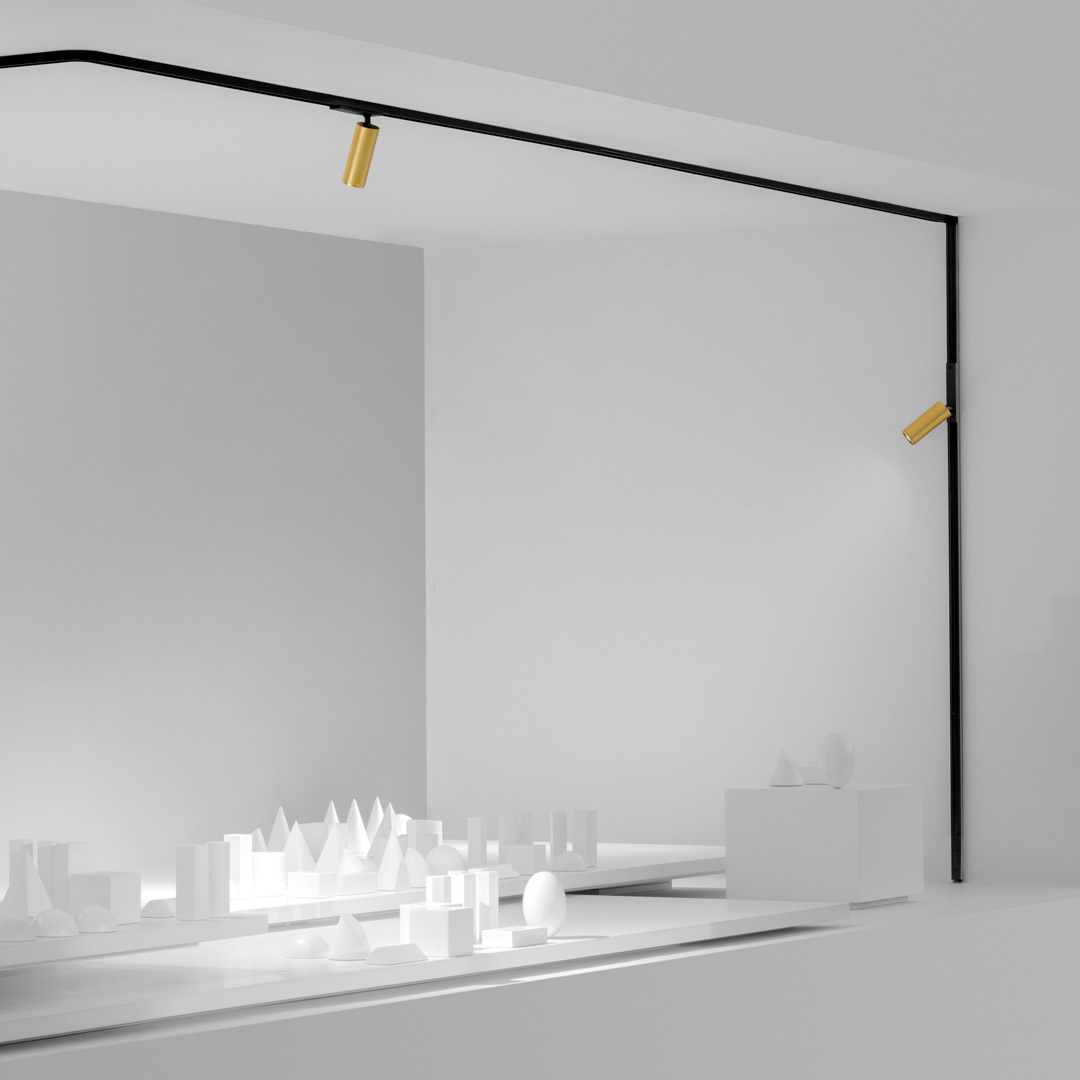

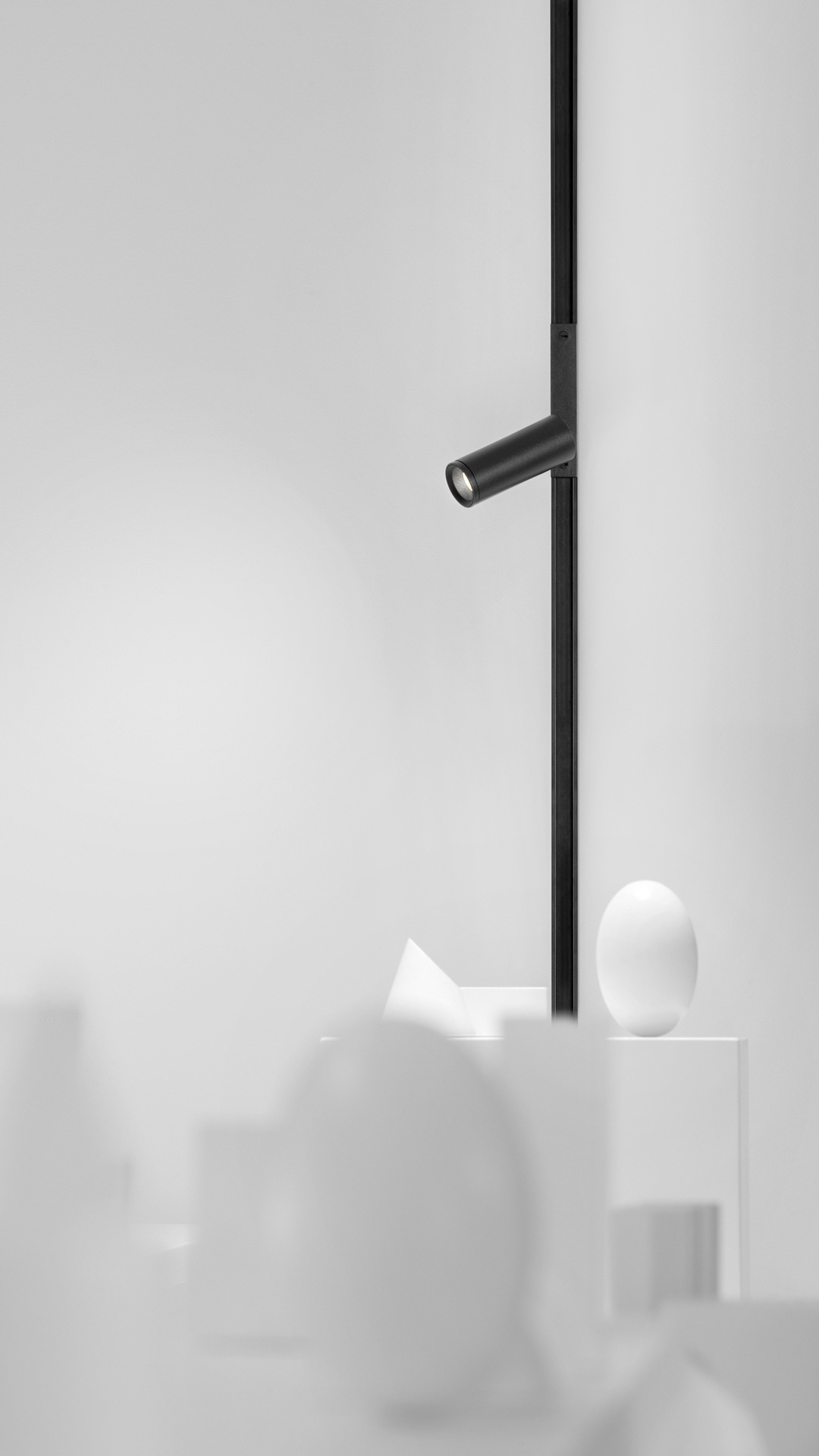

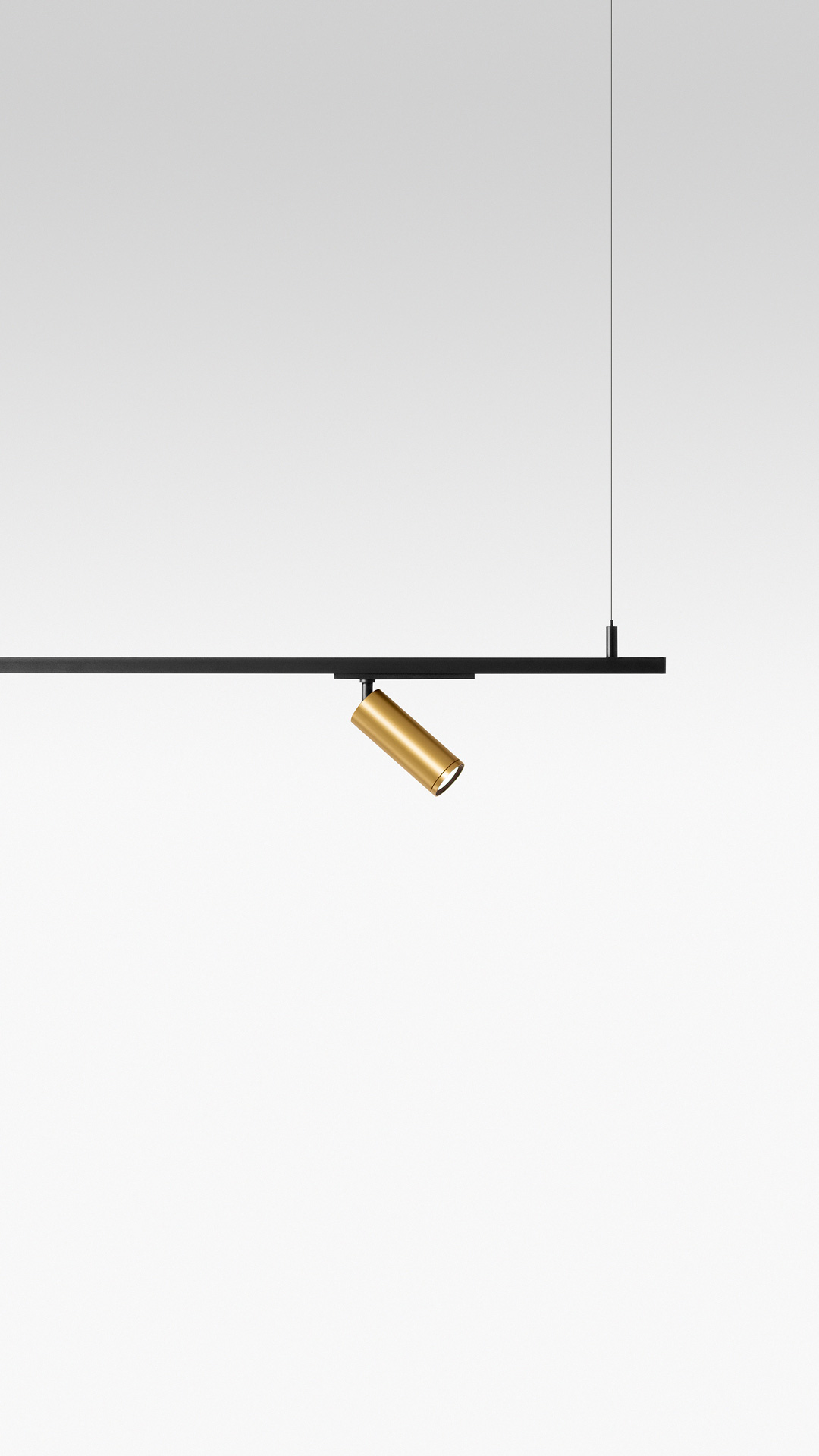

Fit 24V is a projector for the Minimal Track system. Cylindrical geometry and essential forms, it stands out for its minimalistic looking and its functionality as it can be orientated in any direction. The black perimeter around its mouth highlights its anti-glare vocation.

Awards

Red Dot Award Innovate Product 2020
Red Dot Award Lighting Design 2020
Delta Awards´20 Bronze
European Product Design 2020 Honorable Mention
Fx International Interior Design Award
Archiproduct Design Award Winner 2020
Adcv Oro 2022

Fit 20 24V

Fit 27 24V

Luminous flux

440 lm / 470 lm / 520 lm / 560 lm
Lighting efficiency

82% / 84%
Power

4,5 W / 5,5 W
Dimming

DIM options
Color temperature

2700K / 3000K / 3500K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

18° / 31° / 42°

Custom configuration

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

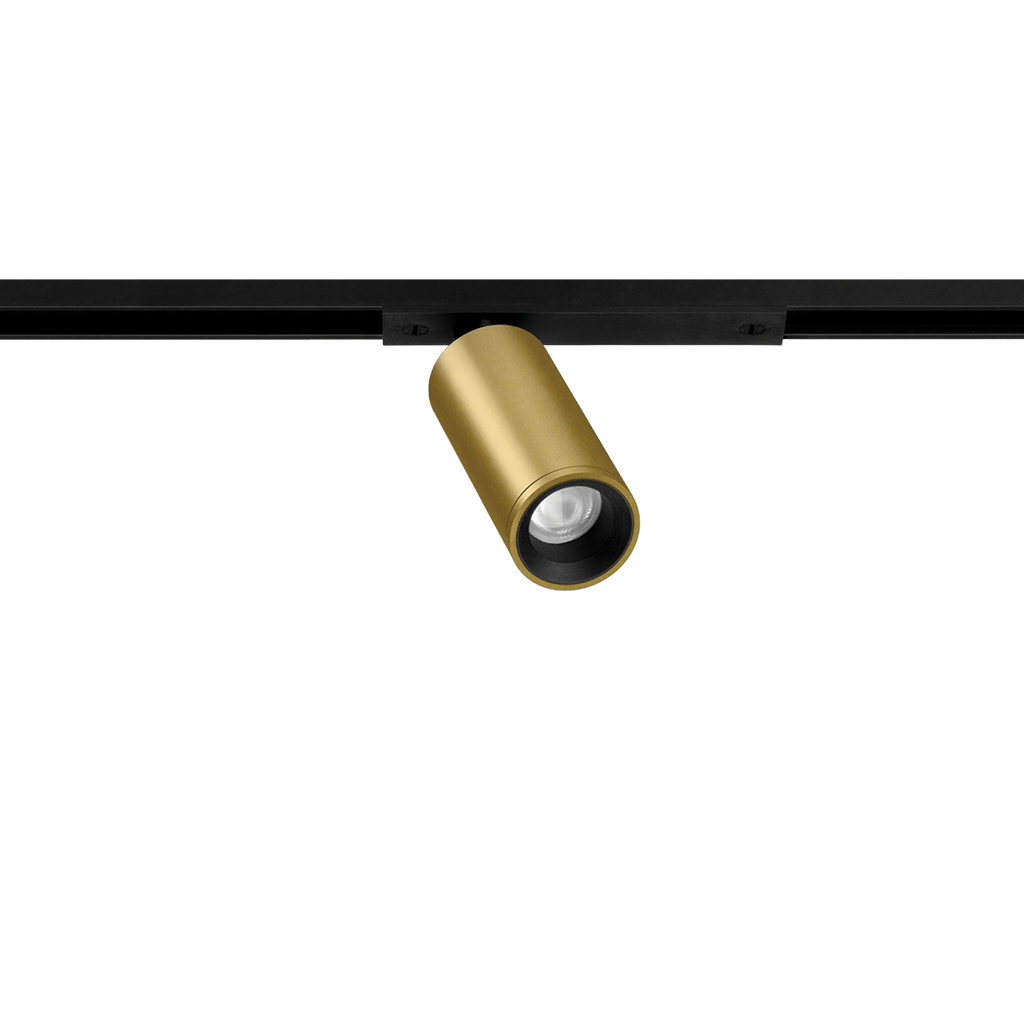

FIT 27 24V 1 SPOT 2700K G

Reference:

A3990010G

Color:

Gold

Light source:

LED

Luminous flux:

440 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20

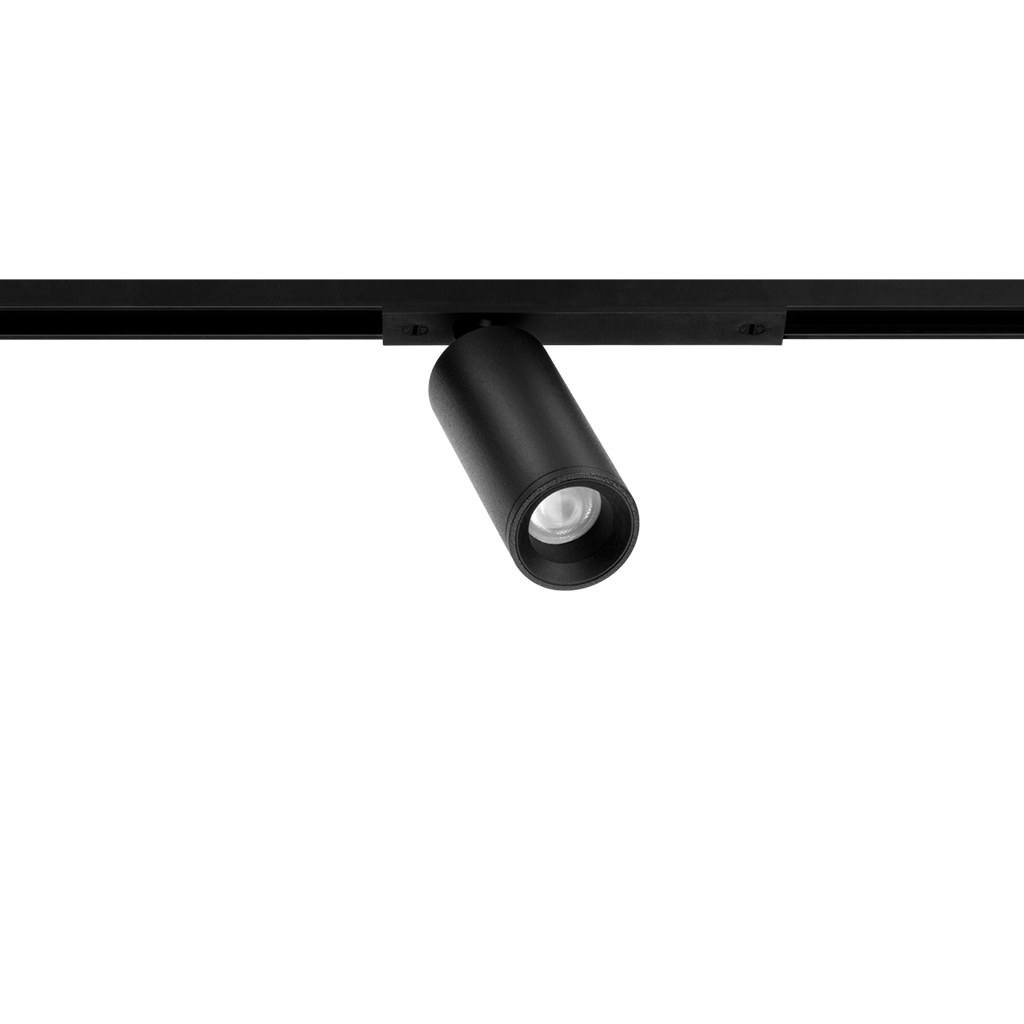

FIT 27 24V 1 SPOT 2700K NT

Reference:

A3990010NT

Color:

Textured black

Light source:

LED

Luminous flux:

440 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20

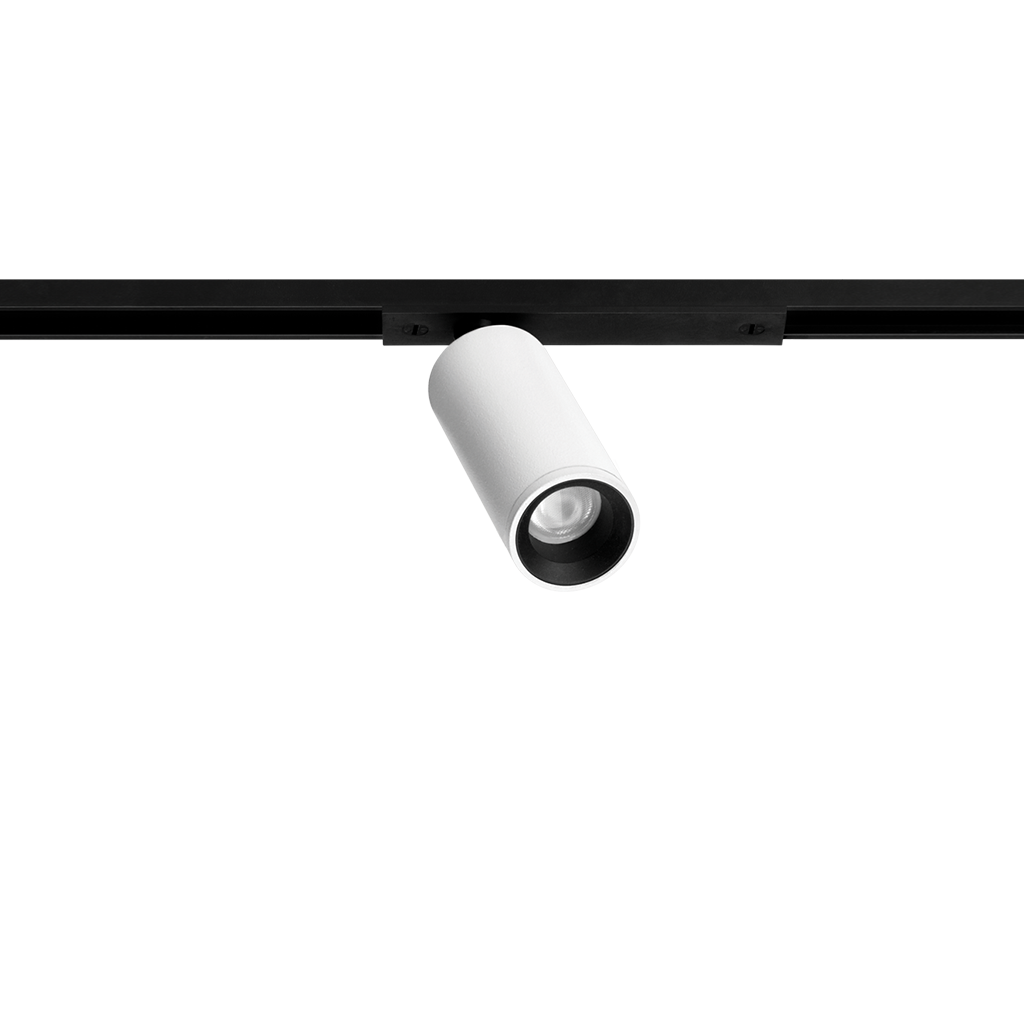

FIT 27 24V 1 SPOT 2700K WT

Reference:

A3990010WT

Color:

Textured white

Light source:

LED

Luminous flux:

440 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 SPOT 3000K G

Reference:

A3990011G

Color:

Gold

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 SPOT 3000K NT

Reference:

A3990011NT

Color:

Textured black

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 SPOT 3000K WT

Reference:

A3990011WT

Color:

Textured white

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 SPOT 3500K G

Reference:

A3990013G

Color:

Gold

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 SPOT 3500K NT

Reference:

A3990013NT

Color:

Textured black

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 SPOT 3500K WT

Reference:

A3990013WT

Color:

Textured white

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 MEDIUM 2700K G

Reference:

A3990020G

Color:

Gold

Light source:

LED

Luminous flux:

440 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 MEDIUM 2700K NT

Reference:

A3990020NT

Color:

Textured black

Light source:

LED

Luminous flux:

440 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 MEDIUM 2700K WT

Reference:

A3990020WT

Color:

Textured white

Light source:

LED

Luminous flux:

440 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 MEDIUM 3000K G

Reference:

A3990021G

Color:

Gold

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 MEDIUM 3000K NT

Reference:

A3990021NT

Color:

Textured black

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 MEDIUM 3000K WT

Reference:

A3990021WT

Color:

Textured white

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 MEDIUM 3500K G

Reference:

A3990023G

Color:

Gold

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 MEDIUM 3500K NT

Reference:

A3990023NT

Color:

Textured black

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 MEDIUM 3500K WT

Reference:

A3990023WT

Color:

Textured white

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 FLOOD 2700K G

Reference:

A3990030G

Color:

Gold

Light source:

LED

Luminous flux:

440 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 FLOOD 2700K NT

Reference:

A3990030NT

Color:

Textured black

Light source:

LED

Luminous flux:

440 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 FLOOD 2700K WT

Reference:

A3990030WT

Color:

Textured white

Light source:

LED

Luminous flux:

440 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 FLOOD 3000K G

Reference:

A3990031G

Color:

Gold

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 FLOOD 3000K NT

Reference:

A3990031NT

Color:

Textured black

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 FLOOD 3000K WT

Reference:

A3990031WT

Color:

Textured white

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 FLOOD 3500K G

Reference:

A3990033G

Color:

Gold

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 FLOOD 3500K NT

Reference:

A3990033NT

Color:

Textured black

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 1 FLOOD 3500K WT

Reference:

A3990033WT

Color:

Textured white

Light source:

LED

Luminous flux:

470 lm

Power:

4,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 SPOT 2700K G

Reference:

A3991010G

Color:

Gold

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 SPOT 2700K NT

Reference:

A3991010NT

Color:

Textured black

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 SPOT 2700K WT

Reference:

A3991010WT

Color:

Textured white

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 SPOT 3000K G

Reference:

A3991011G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 SPOT 3000K NT

Reference:

A3991011NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 SPOT 3000K WT

Reference:

A3991011WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 SPOT 3500K G

Reference:

A3991013G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 SPOT 3500K NT

Reference:

A3991013NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 SPOT 3500K WT

Reference:

A3991013WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 MEDIUM 2700K G

Reference:

A3991020G

Color:

Gold

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 MEDIUM 2700K NT

Reference:

A3991020NT

Color:

Textured black

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 MEDIUM 2700K WT

Reference:

A3991020WT

Color:

Textured white

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 MEDIUM 3000K G

Reference:

A3991021G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 MEDIUM 3000K NT

Reference:

A3991021NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 MEDIUM 3000K WT

Reference:

A3991021WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 MEDIUM 3500K G

Reference:

A3991023G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 MEDIUM 3500K NT

Reference:

A3991023NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 MEDIUM 3500K WT

Reference:

A3991023WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 FLOOD 2700K G

Reference:

A3991030G

Color:

Gold

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 FLOOD 2700K NT

Reference:

A3991030NT

Color:

Textured black

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 FLOOD 2700K WT

Reference:

A3991030WT

Color:

Textured white

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 FLOOD 3000K G

Reference:

A3991031G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 FLOOD 3000K NT

Reference:

A3991031NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 FLOOD 3000K WT

Reference:

A3991031WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 FLOOD 3500K G

Reference:

A3991033G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 FLOOD 3500K NT

Reference:

A3991033NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20
FIT 27 24V 2 FLOOD 3500K WT

Reference:

A3991033WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DIM options

Sealing:

IP20

Accessories

MINIMAL TRACK OPTIONS

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Comments

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Phone

This field is for validation purposes and should be left unchanged.

Fit 24V

TRACK LIGHTS

Awards

Red Dot Award Innovate Product 2020

Red Dot Award Lighting Design 2020

Delta Awards´20 Bronze

European Product Design 2020 Honorable Mention

Fx International Interior Design Award

Archiproduct Design Award Winner 2020

Adcv Oro 2022

Fit 27 24V

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

iO

Zen Tube

Thor

Fit 65 1L

Related projects

Sánchez Plá

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
