Essentials

CEILING RECESSED

Essentials is Arkoslight's basic range of lighting solutions. With Dot, Bath, Gap, Basic and Win you will have "The essential equipment" to pragmatically solve your lighting needs with a logical and competitive product.

Dot Fix
Dot Fix
Dot Tilt
Dot Tilt
Bath
Bath
Bath Matt
Bath Matt
Bath Matt 12V
Bath Matt 12V
Gap
Gap
Gap 12V & 230V
Gap 12V & 230V
Basic 12V & 230V
Basic 12V & 230V
Basic Tilt 12V & 230V
Basic Tilt 12V & 230V
Basic Tilt Extra 12V & 230V
Basic Tilt Extra 12V & 230V

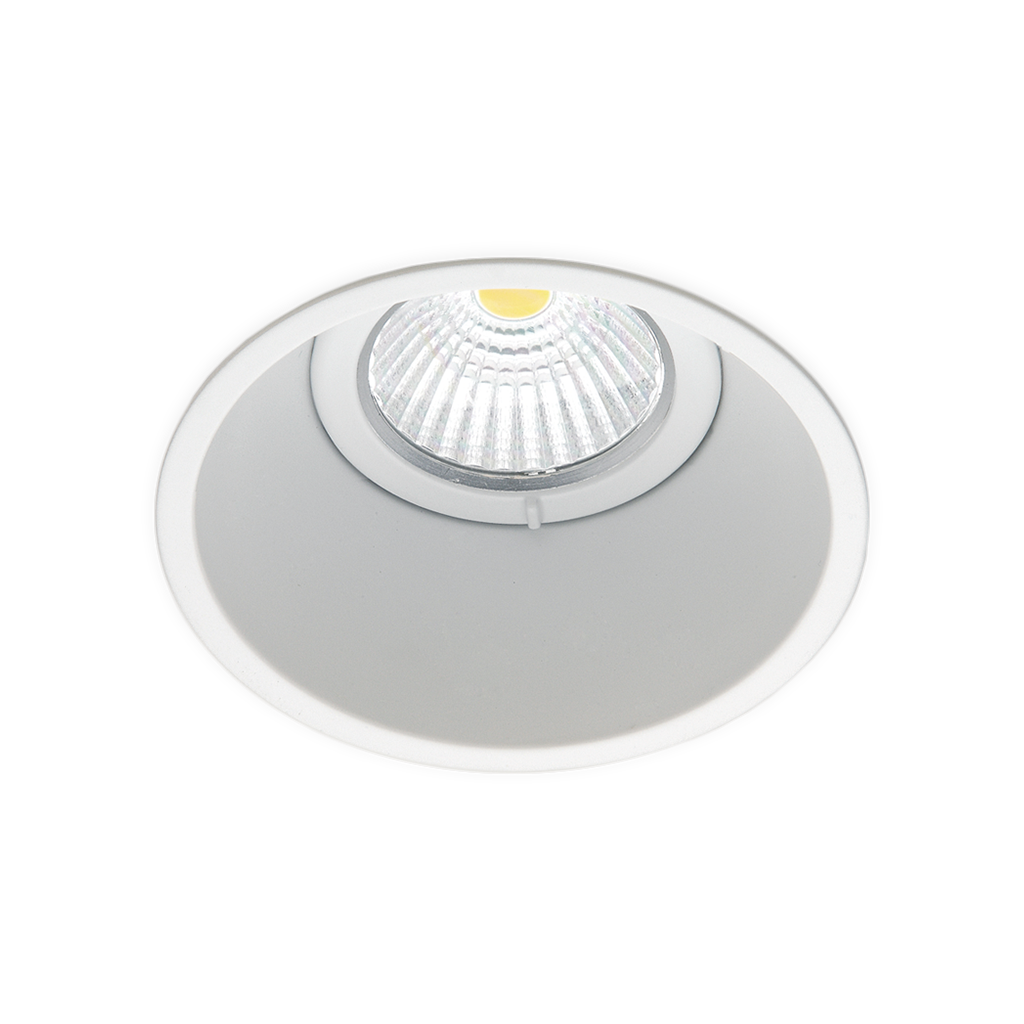

Gap

  • Luminous flux

    700 lm / 730 lm / 750 lm / 950 lm / 1000 lm / 1030 lm

  • Lighting efficiency

    80%

  • Power

    5 W / 7,5 W

  • Dimming

    No Dim, Phase Cut

  • Color temperature

    2700K / 3000K / 4000K

  • Sealing

    IP20

  • Chromatic stability

    MacAdam Step 2

  • Recess measurements

    Ø90mm

  • Light beam angle

    38°

Instructions BIM
Luminous Flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • CRI
      Light beam angle
        Dimming
          Sealing
            Cord length
              Distance of suspension
                Base Finishing
                  Color

                    • Model

                      Ref.

                      Color

                      Source

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      Sealing

                    • GAP 5W 2700K W
                      Reference:

                      A1710110W

                      Color:

                      Matt white

                      Light source:

                      LED

                      Luminous flux:

                      700 lm

                      Power:

                      5 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>80

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • GAP 5W 3000K W
                      Reference:

                      A1710111W

                      Color:

                      Matt white

                      Light source:

                      LED

                      Luminous flux:

                      730 lm

                      Power:

                      5 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>80

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • GAP 5W 4000K W
                      Reference:

                      A1710112W

                      Color:

                      Matt white

                      Light source:

                      LED

                      Luminous flux:

                      750 lm

                      Power:

                      5 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>80

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • GAP 7.5W 2700K W
                      Reference:

                      A1710210W

                      Color:

                      Matt white

                      Light source:

                      LED

                      Luminous flux:

                      950 lm

                      Power:

                      7,5 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>80

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • GAP 7.5W 3000K W
                      Reference:

                      A1710211W

                      Color:

                      Matt white

                      Light source:

                      LED

                      Luminous flux:

                      1000 lm

                      Power:

                      7,5 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>80

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • GAP 7.5W 4000K W
                      Reference:

                      A1710212W

                      Color:

                      Matt white

                      Light source:

                      LED

                      Luminous flux:

                      1030 lm

                      Power:

                      7,5 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>80

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • GAP 7.5W DIM PH.CUT 2700K W
                      Reference:

                      A1710220W

                      Color:

                      Matt white

                      Light source:

                      LED

                      Luminous flux:

                      950 lm

                      Power:

                      7,5 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>80

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Phase Cut

                      Sealing:

                      IP20

                    • GAP 7.5W DIM PH.CUT 3000K W
                      Reference:

                      A1710221W

                      Color:

                      Matt white

                      Light source:

                      LED

                      Luminous flux:

                      1000 lm

                      Power:

                      7,5 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>80

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Phase Cut

                      Sealing:

                      IP20

                    • GAP 7.5W DIM PH.CUT 4000K W
                      Reference:

                      A1710222W

                      Color:

                      Matt white

                      Light source:

                      LED

                      Luminous flux:

                      1030 lm

                      Power:

                      7,5 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>80

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Phase Cut

                      Sealing:

                      IP20
