Dune

SUSPENSION

The Dune suspension luminaire dresses the light and builds the space with a conical, classic and light silhouette. Its language between the technical and the decorative, redefines this archetype with a pure geometry of sharp edges like folded paper, and a placid and homogeneous projected light that invites to enjoy.

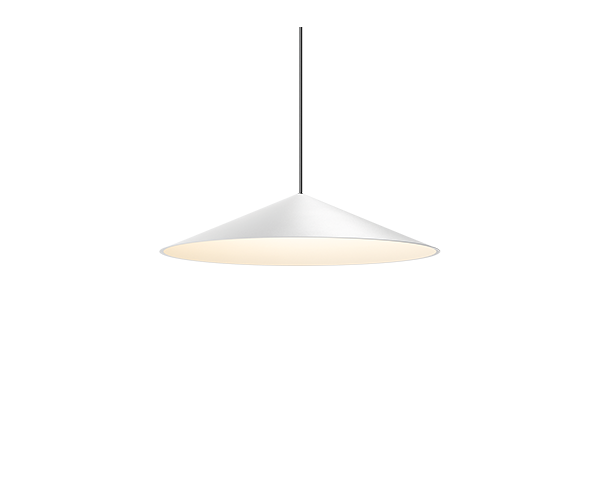

Dune 35

Dune 35 Wire Trimless

Dune 35 Base

Dune 55

Dune 55 Wire Trimless

Dune 55 Base

Dune 55

Luminous flux

710 lm / 735 lm
Lighting efficiency

68% / 71% / 75% / 76% / 84%
Power

5 W
Dimming

DALI, Phase Cut
Colour temperature

2700K / 3000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Recess measurements

Ø62mm
Light beam angle

133°
Cord length

Max. 2 m / Max. 3 m / Max. 5 m

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
DUNE 55 2M DIM DALI 2700K BE

Reference:

A4830020BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP20
DUNE 55 2M DIM DALI 2700K NT

Reference:

A4830020NT

Colour:

Textured black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

DALI

Sealing:

IP20
DUNE 55 2M DIM DALI 2700K OG

Reference:

A4830020OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

DALI

Sealing:

IP20
DUNE 55 2M DIM DALI 2700K PG

Reference:

A4830020PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

DALI

Sealing:

IP20
DUNE 55 2M DIM DALI 2700K WT

Reference:

A4830020WT

Colour:

Textured white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
DUNE 55 2M DIM DALI 3000K BE

Reference:

A4830021BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP20
DUNE 55 2M DIM DALI 3000K NT

Reference:

A4830021NT

Colour:

Textured black

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

DALI

Sealing:

IP20
DUNE 55 2M DIM DALI 3000K OG

Reference:

A4830021OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

DALI

Sealing:

IP20
DUNE 55 2M DIM DALI 3000K PG

Reference:

A4830021PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

DALI

Sealing:

IP20
DUNE 55 2M DIM DALI 3000K WT

Reference:

A4830021WT

Colour:

Textured white

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
DUNE 55 2M DIM PH.CUT 2700K BE

Reference:

A4830050BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 2M DIM PH.CUT 2700K NT

Reference:

A4830050NT

Colour:

Textured black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 2M DIM PH.CUT 2700K OG

Reference:

A4830050OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 2M DIM PH.CUT 2700K PG

Reference:

A4830050PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 2M DIM PH.CUT 2700K WT

Reference:

A4830050WT

Colour:

Textured white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 2M DIM PH.CUT 3000K BE

Reference:

A4830051BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 2M DIM PH.CUT 3000K NT

Reference:

A4830051NT

Colour:

Textured black

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 2M DIM PH.CUT 3000K OG

Reference:

A4830051OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 2M DIM PH.CUT 3000K PG

Reference:

A4830051PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 2M DIM PH.CUT 3000K WT

Reference:

A4830051WT

Colour:

Textured white

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 3M DIM DALI 2700K BE

Reference:

A4830120BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP20
DUNE 55 3M DIM DALI 2700K NT

Reference:

A4830120NT

Colour:

Textured black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

DALI

Sealing:

IP20
DUNE 55 3M DIM DALI 2700K OG

Reference:

A4830120OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

DALI

Sealing:

IP20
DUNE 55 3M DIM DALI 2700K PG

Reference:

A4830120PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

DALI

Sealing:

IP20
DUNE 55 3M DIM DALI 2700K WT

Reference:

A4830120WT

Colour:

Textured white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
DUNE 55 3M DIM DALI 3000K BE

Reference:

A4830121BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP20
DUNE 55 3M DIM DALI 3000K NT

Reference:

A4830121NT

Colour:

Textured black

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

DALI

Sealing:

IP20
DUNE 55 3M DIM DALI 3000K OG

Reference:

A4830121OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

DALI

Sealing:

IP20
DUNE 55 3M DIM DALI 3000K PG

Reference:

A4830121PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

DALI

Sealing:

IP20
DUNE 55 3M DIM DALI 3000K WT

Reference:

A4830121WT

Colour:

Textured white

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
DUNE 55 3M DIM PH.CUT 2700K BE

Reference:

A4830150BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 3M DIM PH.CUT 2700K NT

Reference:

A4830150NT

Colour:

Textured black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 3M DIM PH.CUT 2700K OG

Reference:

A4830150OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 3M DIM PH.CUT 2700K PG

Reference:

A4830150PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 3M DIM PH.CUT 2700K WT

Reference:

A4830150WT

Colour:

Textured white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 3M DIM PH.CUT 3000K BE

Reference:

A4830151BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 3M DIM PH.CUT 3000K NT

Reference:

A4830151NT

Colour:

Textured black

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 3M DIM PH.CUT 3000K OG

Reference:

A4830151OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 3M DIM PH.CUT 3000K PG

Reference:

A4830151PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 3M DIM PH.CUT 3000K WT

Reference:

A4830151WT

Colour:

Textured white

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 5M DIM DALI 2700K BE

Reference:

A4830220BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP20
DUNE 55 5M DIM DALI 2700K NT

Reference:

A4830220NT

Colour:

Textured black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

DALI

Sealing:

IP20
DUNE 55 5M DIM DALI 2700K OG

Reference:

A4830220OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

DALI

Sealing:

IP20
DUNE 55 5M DIM DALI 2700K PG

Reference:

A4830220PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

DALI

Sealing:

IP20
DUNE 55 5M DIM DALI 2700K WT

Reference:

A4830220WT

Colour:

Textured white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
DUNE 55 5M DIM DALI 3000K BE

Reference:

A4830221BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP20
DUNE 55 5M DIM DALI 3000K NT

Reference:

A4830221NT

Colour:

Textured black

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

DALI

Sealing:

IP20
DUNE 55 5M DIM DALI 3000K OG

Reference:

A4830221OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

DALI

Sealing:

IP20
DUNE 55 5M DIM DALI 3000K PG

Reference:

A4830221PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

DALI

Sealing:

IP20
DUNE 55 5M DIM DALI 3000K WT

Reference:

A4830221WT

Colour:

Textured white

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
DUNE 55 5M DIM PH.CUT 2700K BE

Reference:

A4830250BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 5M DIM PH.CUT 2700K NT

Reference:

A4830250NT

Colour:

Textured black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 5M DIM PH.CUT 2700K OG

Reference:

A4830250OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 5M DIM PH.CUT 2700K PG

Reference:

A4830250PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 5M DIM PH.CUT 2700K WT

Reference:

A4830250WT

Colour:

Textured white

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 5M DIM PH.CUT 3000K BE

Reference:

A4830251BE

Colour:

Textured Beige

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

76%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 5M DIM PH.CUT 3000K NT

Reference:

A4830251NT

Colour:

Textured black

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

68%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 5M DIM PH.CUT 3000K OG

Reference:

A4830251OG

Colour:

Textured Olive Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

71%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 5M DIM PH.CUT 3000K PG

Reference:

A4830251PG

Colour:

Textured Pebble Grey

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

75%

Dimming:

Phase Cut

Sealing:

IP20
DUNE 55 5M DIM PH.CUT 3000K WT

Reference:

A4830251WT

Colour:

Textured white

Light source:

LED

Luminous flux:

735 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

133°

Lighting efficiency:

84%

Dimming:

Phase Cut

Sealing:

IP20

Accessories

CORD ACCESSORY

Are you interested in this product? Contact us

X/Twitter

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Company

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Dune

SUSPENSION

Dune 55

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Accessories

Are you interested in this product? Contact us

Related products

Stick

Scope

Spin

Salt

Related projects

Residence in the Ensanche

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
