Deep

CEILING RECESSED

Deep is a family of LED downlights for general lighting functions that stands out for its attractive appearance, where the diffuser is distinctly recessed in relation to the level of the perimeter frame. With its different sizes, it adapts to each project’s requirements and adds a differentiating attribute.

Deep Mini

Deep

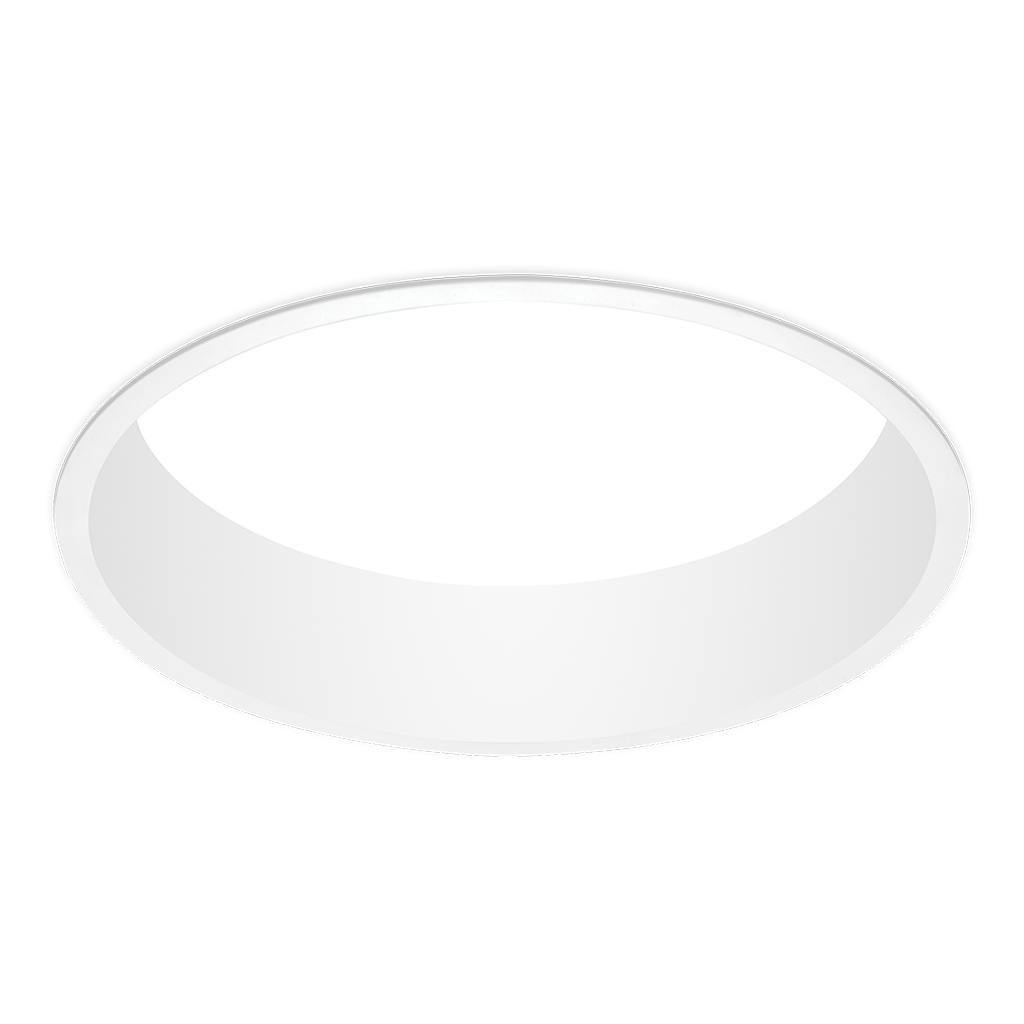

Deep Maxi

Luminous flux

2450 lm / 2500 lm / 3450 lm / 3500 lm / 4700 lm / 4775 lm / 5825 lm / 5925 lm
Lighting efficiency

85%
Power

15 W / 22 W / 31 W / 40 W
Dimming

No Dim, DALI, Push
Colour temperature

3000K / 4000K
Sealing

IP43 / IP54
Chromatic stability

MacAdam Step 2
Recess measurements

Ø320mm
Light beam angle

99°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
DEEP MAXI 2 3000K NT

Reference:

A2480211NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43

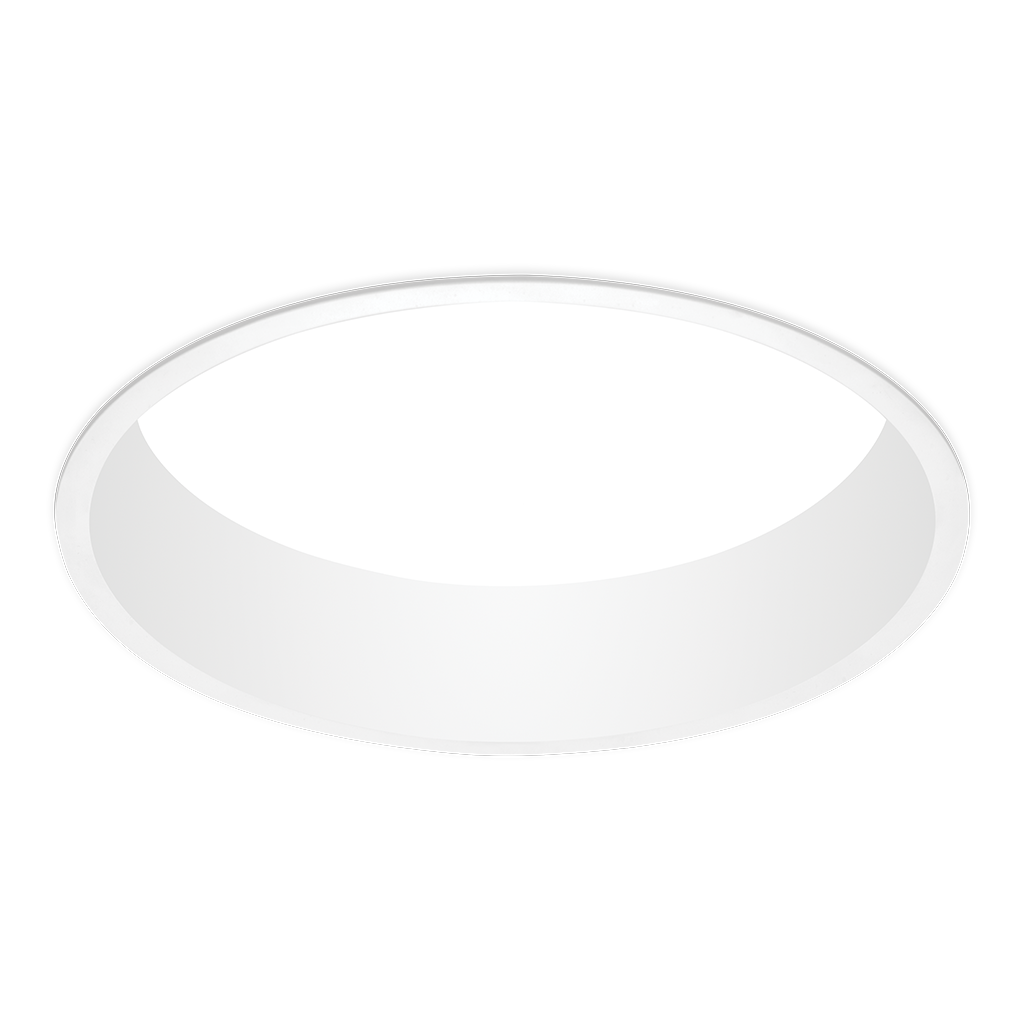

DEEP MAXI 2 3000K WT

Reference:

A2480211WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 2 4000K NT

Reference:

A2480212NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 2 4000K WT

Reference:

A2480212WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 2 DIM PUSH 3000K NT

Reference:

A2480221NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 2 DIM PUSH 3000K WT

Reference:

A2480221WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 2 DIM PUSH 4000K NT

Reference:

A2480222NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 2 DIM PUSH 4000K WT

Reference:

A2480222WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 2 DIM DALI 3000K NT

Reference:

A2480241NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 2 DIM DALI 3000K WT

Reference:

A2480241WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 2 DIM DALI 4000K NT

Reference:

A2480242NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 2 DIM DALI 4000K WT

Reference:

A2480242WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 3 3000K NT

Reference:

A2480311NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 3 3000K WT

Reference:

A2480311WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 3 4000K NT

Reference:

A2480312NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 3 4000K WT

Reference:

A2480312WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 3 DIM PUSH 3000K NT

Reference:

A2480321NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 3 DIM PUSH 3000K WT

Reference:

A2480321WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 3 DIM PUSH 4000K NT

Reference:

A2480322NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 3 DIM PUSH 4000K WT

Reference:

A2480322WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 3 DIM DALI 3000K NT

Reference:

A2480341NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 3 DIM DALI 3000K WT

Reference:

A2480341WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 3 DIM DALI 4000K NT

Reference:

A2480342NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 3 DIM DALI 4000K WT

Reference:

A2480342WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 4 3000K NT

Reference:

A2480411NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 4 3000K WT

Reference:

A2480411WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 4 4000K NT

Reference:

A2480412NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 4 4000K WT

Reference:

A2480412WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 4 DIM PUSH 3000K NT

Reference:

A2480421NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 4 DIM PUSH 3000K WT

Reference:

A2480421WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 4 DIM PUSH 4000K NT

Reference:

A2480422NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 4 DIM PUSH 4000K WT

Reference:

A2480422WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 4 DIM DALI 3000K NT

Reference:

A2480441NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 4 DIM DALI 3000K WT

Reference:

A2480441WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 4 DIM DALI 4000K NT

Reference:

A2480442NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 4 DIM DALI 4000K WT

Reference:

A2480442WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 5 3000K NT

Reference:

A2480511NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 5 3000K WT

Reference:

A2480511WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 5 4000K NT

Reference:

A2480512NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 5 4000K WT

Reference:

A2480512WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP43
DEEP MAXI 5 DIM PUSH 3000K NT

Reference:

A2480521NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 5 DIM PUSH 3000K WT

Reference:

A2480521WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 5 DIM PUSH 4000K NT

Reference:

A2480522NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 5 DIM PUSH 4000K WT

Reference:

A2480522WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP43
DEEP MAXI 5 DIM DALI 3000K NT

Reference:

A2480541NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 5 DIM DALI 3000K WT

Reference:

A2480541WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 5 DIM DALI 4000K NT

Reference:

A2480542NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 5 DIM DALI 4000K WT

Reference:

A2480542WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP43
DEEP MAXI 2 IP54 3000K NT

Reference:

A2481211NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 2 IP54 3000K WT

Reference:

A2481211WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 2 IP54 4000K NT

Reference:

A2481212NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 2 IP54 4000K WT

Reference:

A2481212WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 2 IP54 DIM PUSH 3000K NT

Reference:

A2481221NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 2 IP54 DIM PUSH 3000K WT

Reference:

A2481221WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 2 IP54 DIM PUSH 4000K NT

Reference:

A2481222NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 2 IP54 DIM PUSH 4000K WT

Reference:

A2481222WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 2 IP54 DIM DALI 3000K NT

Reference:

A2481241NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 2 IP54 DIM DALI 3000K WT

Reference:

A2481241WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 2 IP54 DIM DALI 4000K NT

Reference:

A2481242NT

Colour:

Textured black

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 2 IP54 DIM DALI 4000K WT

Reference:

A2481242WT

Colour:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 3 IP54 3000K NT

Reference:

A2481311NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 3 IP54 3000K WT

Reference:

A2481311WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 3 IP54 4000K NT

Reference:

A2481312NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 3 IP54 4000K WT

Reference:

A2481312WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 3 IP54 DIM PUSH 3000K NT

Reference:

A2481321NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 3 IP54 DIM PUSH 3000K WT

Reference:

A2481321WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 3 IP54 DIM PUSH 4000K NT

Reference:

A2481322NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 3 IP54 DIM PUSH 4000K WT

Reference:

A2481322WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 3 IP54 DIM DALI 3000K NT

Reference:

A2481341NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 3 IP54 DIM DALI 3000K WT

Reference:

A2481341WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 3 IP54 DIM DALI 4000K NT

Reference:

A2481342NT

Colour:

Textured black

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 3 IP54 DIM DALI 4000K WT

Reference:

A2481342WT

Colour:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 4 IP54 3000K NT

Reference:

A2481411NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 4 IP54 3000K WT

Reference:

A2481411WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 4 IP54 4000K NT

Reference:

A2481412NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 4 IP54 4000K WT

Reference:

A2481412WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 4 IP54 DIM PUSH 3000K NT

Reference:

A2481421NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 4 IP54 DIM PUSH 3000K WT

Reference:

A2481421WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 4 IP54 DIM PUSH 4000K NT

Reference:

A2481422NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 4 IP54 DIM PUSH 4000K WT

Reference:

A2481422WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 4 IP54 DIM DALI 3000K NT

Reference:

A2481441NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 4 IP54 DIM DALI 3000K WT

Reference:

A2481441WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 4 IP54 DIM DALI 4000K NT

Reference:

A2481442NT

Colour:

Textured black

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 4 IP54 DIM DALI 4000K WT

Reference:

A2481442WT

Colour:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 5 IP54 3000K NT

Reference:

A2481511NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 5 IP54 3000K WT

Reference:

A2481511WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 5 IP54 4000K NT

Reference:

A2481512NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 5 IP54 4000K WT

Reference:

A2481512WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

No Dim

Sealing:

IP54
DEEP MAXI 5 IP54 DIM PUSH 3000K NT

Reference:

A2481521NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 5 IP54 DIM PUSH 3000K WT

Reference:

A2481521WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 5 IP54 DIM PUSH 4000K NT

Reference:

A2481522NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 5 IP54 DIM PUSH 4000K WT

Reference:

A2481522WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

Push

Sealing:

IP54
DEEP MAXI 5 IP54 DIM DALI 3000K NT

Reference:

A2481541NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 5 IP54 DIM DALI 3000K WT

Reference:

A2481541WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 5 IP54 DIM DALI 4000K NT

Reference:

A2481542NT

Colour:

Textured black

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54
DEEP MAXI 5 IP54 DIM DALI 4000K WT

Reference:

A2481542WT

Colour:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

99°

Lighting efficiency:

85%

Dimming:

DALI

Sealing:

IP54

Are you interested in this product? Contact us

X/Twitter

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Deep

CEILING RECESSED

Deep Maxi

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Are you interested in this product? Contact us

Related products

Shot Light

Swap

Lex

Olympia

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
