Coco 48V

TRACK LIGHTS

A lightweight and powerful solution. Coco is a spotlight with a qualitative and uniform light distribution and provides great freedom of light emissions with four opening angles -flood, medium, spot and superspot - a 360° rotation and a 90° tilt. With an exceptional lm/W ratio, it can be fitted with various accessories: anti-glare honeycomb and anti-glare screen, which reduce glare to facilitate visual comfort, and the linear filter, which sets a linear light distribution. Coco invites one to interact with the light through a version with integrated dimmer, enabling one to adjust the desired intensity in each luminaire. Its tunable white version replicates the effects of natural light by regulating the intensity and colour temperature.

Awards

Red Dot Design Award 2024
Archiproducts Design Award Winner 2024

Coco 48V

New

Coco Shaper 48V

Coco 48V Short

Coco Shaper 48V Short

Luminous flux

650 lm / 680 lm / 730 lm
Lighting efficiency

37% / 40-38%
Power

6 W
Dimming

No Dim, DALI
Color temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

20°-33° / 53°

Custom configuration

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
COCO SHAPER 48V SHORT 20º-33º 2700K NT

Reference:

A5190100NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

No Dim

Sealing:

IP20
COCO SHAPER 48V SHORT 20º-33º 2700K NTW

Reference:

A5190100NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

No Dim

Sealing:

IP20
COCO SHAPER 48V SHORT 20º-33º 3000K NT

Reference:

A5190101NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

No Dim

Sealing:

IP20
COCO SHAPER 48V SHORT 20º-33º 3000K NTW

Reference:

A5190101NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

No Dim

Sealing:

IP20
COCO SHAPER 48V SHORT 20º-33º 4000K NT

Reference:

A5190102NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

730 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

No Dim

Sealing:

IP20
COCO SHAPER 48V SHORT 20º-33º 4000K NTW

Reference:

A5190102NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

730 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

No Dim

Sealing:

IP20
COCO SHAPER 48V SHORT 53º 2700K NT

Reference:

A5190110NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

No Dim

Sealing:

IP20
COCO SHAPER 48V SHORT 53º 2700K NTW

Reference:

A5190110NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

No Dim

Sealing:

IP20
COCO SHAPER 48V SHORT 53º 3000K NT

Reference:

A5190111NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

No Dim

Sealing:

IP20
COCO SHAPER 48V SHORT 53º 3000K NTW

Reference:

A5190111NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

No Dim

Sealing:

IP20

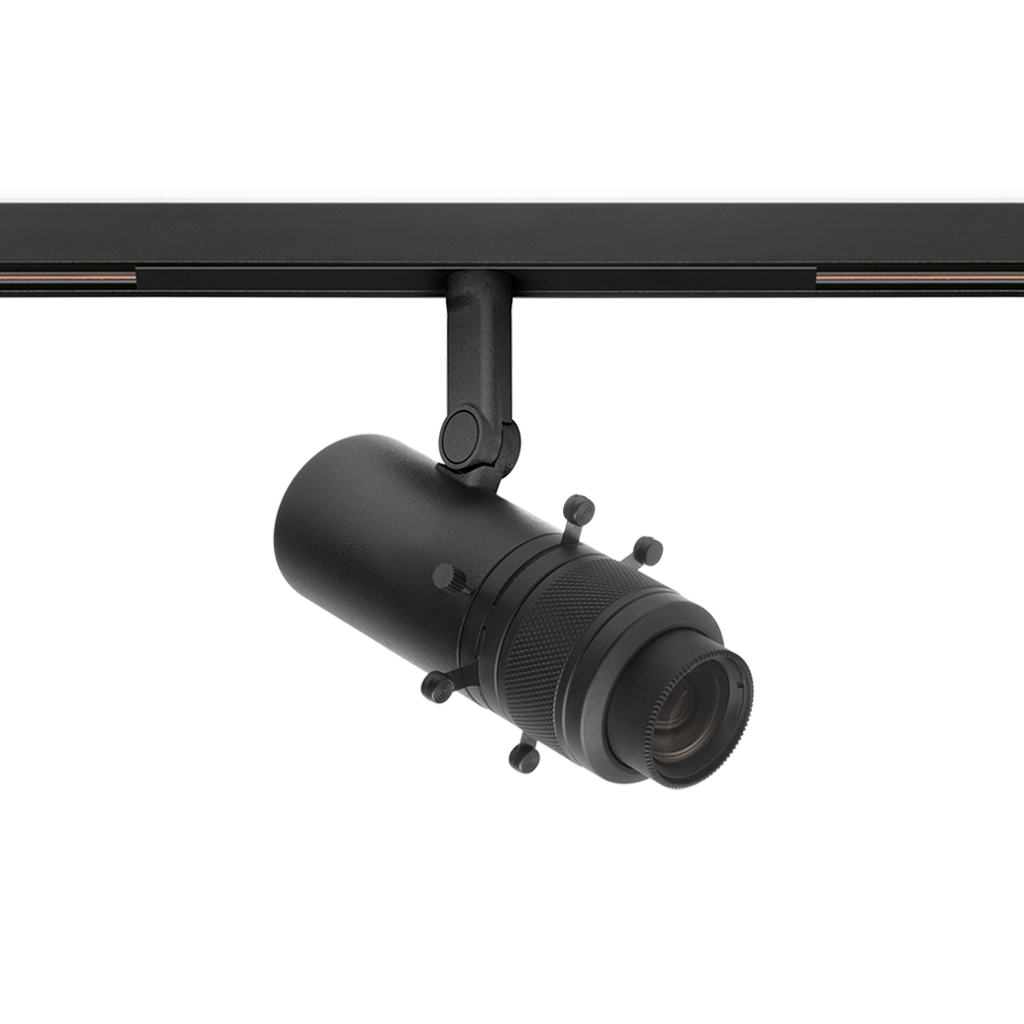

COCO SHAPER 48V SHORT 53º 4000K NT

Reference:

A5190112NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

730 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

No Dim

Sealing:

IP20

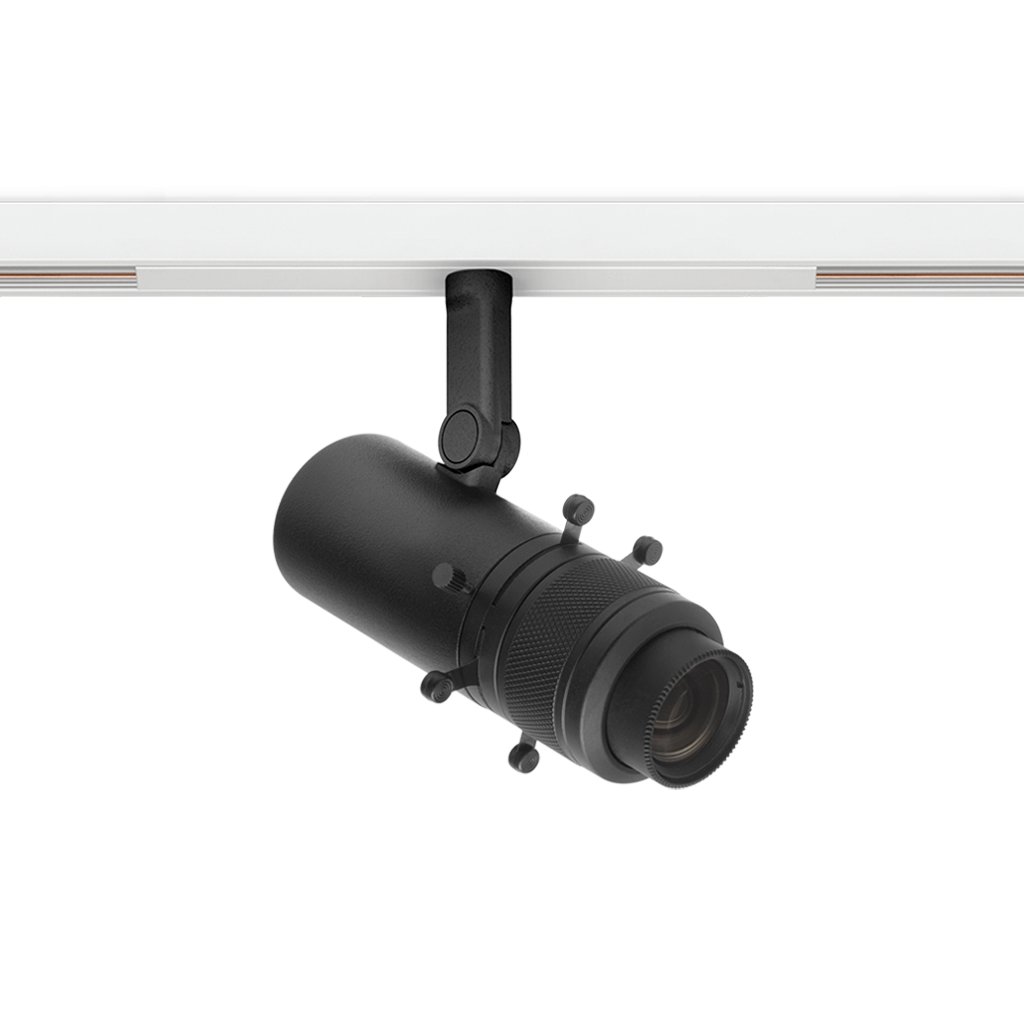

COCO SHAPER 48V SHORT 53º 4000K NTW

Reference:

A5190112NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

730 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

No Dim

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 20º-33º 2700K NT

Reference:

A5190200NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 20º-33º 2700K NTW

Reference:

A5190200NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 20º-33º 3000K NT

Reference:

A5190201NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 20º-33º 3000K NTW

Reference:

A5190201NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 20º-33º 4000K NT

Reference:

A5190202NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

730 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 20º-33º 4000K NTW

Reference:

A5190202NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

730 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

20°-33°

Lighting efficiency:

40-38%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 53º 2700K NT

Reference:

A5190210NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 53º 2700K NTW

Reference:

A5190210NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 53º 3000K NT

Reference:

A5190211NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 53º 3000K NTW

Reference:

A5190211NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 53º 4000K NT

Reference:

A5190212NT-S

Color:

Textured black

Light source:

LED

Luminous flux:

730 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

DALI

Sealing:

IP20
COCO SHAPER 48V SHORT DIM DALI 53º 4000K NTW

Reference:

A5190212NTW-S

Color:

Textured black - White track

Light source:

LED

Luminous flux:

730 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

53°

Lighting efficiency:

37%

Dimming:

DALI

Sealing:

IP20
