Buddy
CEILING RECESSED
The sophistication of recessed lighting. Buddy is here to maximise the luminous performance of the classic recessed luminaire. It emerges with a solid and purposeful design, greater energy savings and excellent visual comfort. The product family comes in several versions with four opening angles -flood, medium, spot and super spot-. The dim to warm technology enables Buddy to facilitate comfort to the space by dimming the intensity and colour temperature. Furthermore, with the tunable White feature it can be controlled independently. Its four versions per position demonstrate its versatility: recessed, trimless, tilt and the tilt trimless version, which maintains its light output at all opening angles.

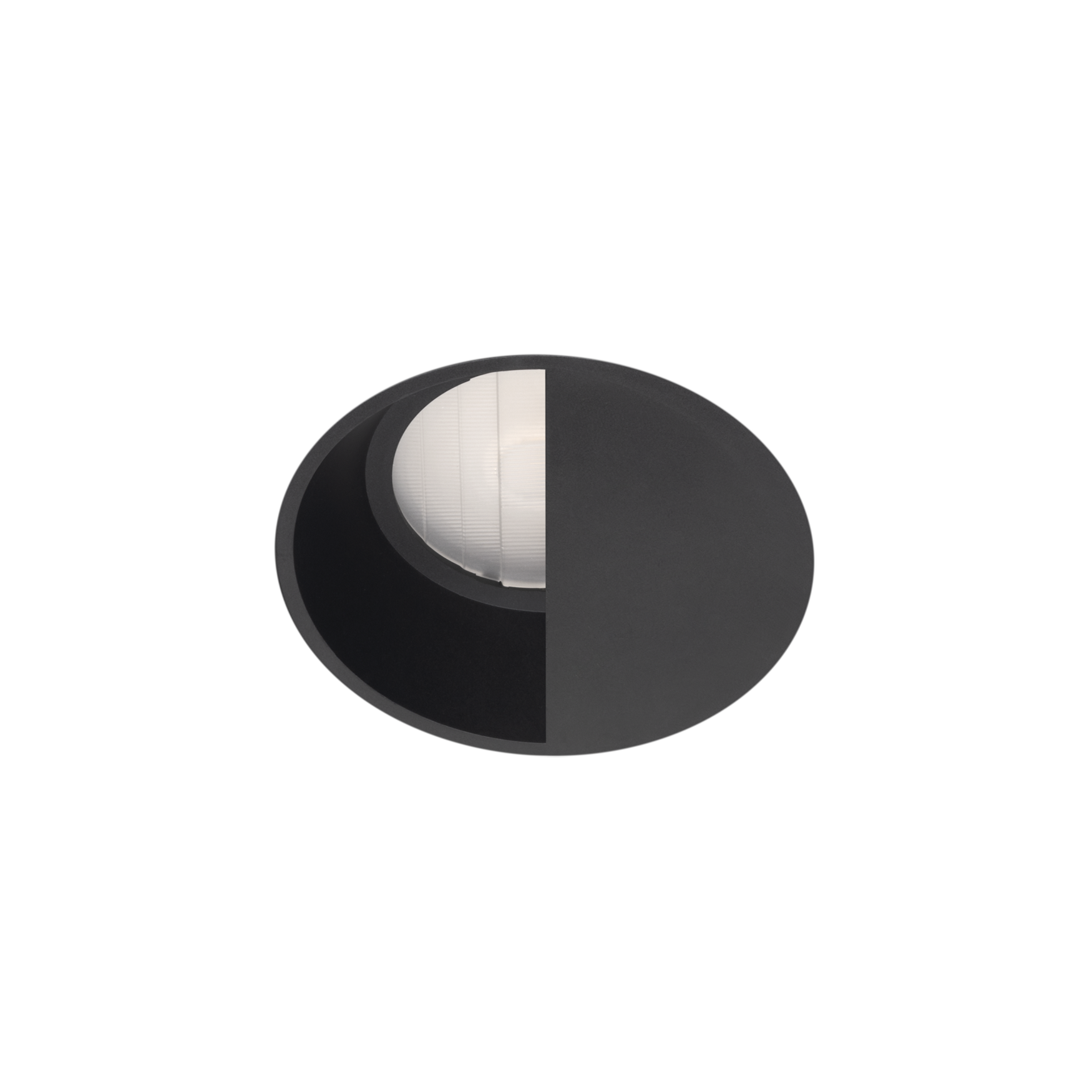

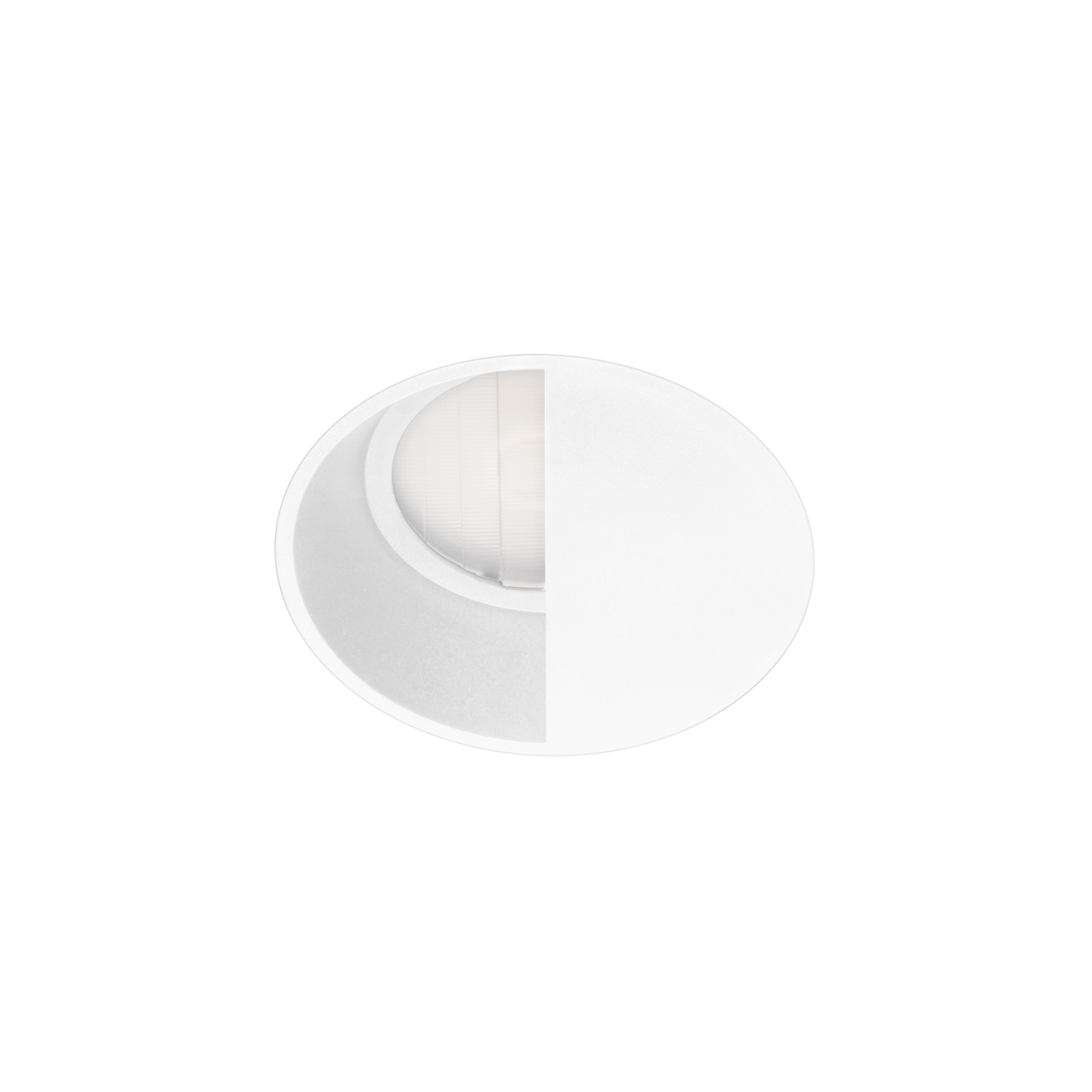

Buddy Wall Washer Trimless
-
Luminous flux
1000 lm / 1150 lm / 1200 lm / 1210 lm / 1220 lm
-
Lighting efficiency
39% / 48%
-
Power
6,6 W / 8,4 W
-
Dimming
DALI, No Dim / DALI / Casambi / Phase Cut
-
Color temperature
2700K / 3000K / 3500K / 4000K / Tunable White 2700 - 5000K
-
Sealing
IP20
-
Chromatic stability
MacAdam Step 2 / MacAdam Step 3
-
Recess measurements
Ø79mm
-
Model
Ref.
Color
Source
Lum. flux
Power
Temp.
CRI
Beam angle
Efficiency
Dimming
Sealing
-
Reference:
A5091010N
Color:Matt black
Light source:LED
Luminous flux:1150 lm
Power:6,6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:Lighting efficiency:39%
Dimming:No Dim / DALI / Casambi / Phase Cut
Sealing:IP20
-
Reference:
A5091010W
Color:Matt white
Light source:LED
Luminous flux:1150 lm
Power:6,6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:Lighting efficiency:48%
Dimming:No Dim / DALI / Casambi / Phase Cut
Sealing:IP20
-
Reference:
A5091011N
Color:Matt black
Light source:LED
Luminous flux:1200 lm
Power:6,6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:Lighting efficiency:39%
Dimming:No Dim / DALI / Casambi / Phase Cut
Sealing:IP20
-
Reference:
A5091011W
Color:Matt white
Light source:LED
Luminous flux:1200 lm
Power:6,6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:Lighting efficiency:48%
Dimming:No Dim / DALI / Casambi / Phase Cut
Sealing:IP20
-
Reference:
A5091012N
Color:Matt black
Light source:LED
Luminous flux:1220 lm
Power:6,6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:Lighting efficiency:39%
Dimming:No Dim / DALI / Casambi / Phase Cut
Sealing:IP20
-
Reference:
A5091012W
Color:Matt white
Light source:LED
Luminous flux:1220 lm
Power:6,6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:Lighting efficiency:48%
Dimming:No Dim / DALI / Casambi / Phase Cut
Sealing:IP20
-
Reference:
A5091013N
Color:Matt black
Light source:LED
Luminous flux:1210 lm
Power:6,6 W
Colour temperature:3500K
CRI:CRI>90
Light beam angle:Lighting efficiency:39%
Dimming:No Dim / DALI / Casambi / Phase Cut
Sealing:IP20
-
Reference:
A5091013W
Color:Matt white
Light source:LED
Luminous flux:1210 lm
Power:6,6 W
Colour temperature:3500K
CRI:CRI>90
Light beam angle:Lighting efficiency:48%
Dimming:No Dim / DALI / Casambi / Phase Cut
Sealing:IP20
-
Reference:
A5091118N
Color:Matt black
Light source:LED
Luminous flux:1000 lm
Power:8,4 W
Colour temperature:Tunable White 2700 - 5000K
CRI:CRI>90
Light beam angle:Lighting efficiency:39%
Dimming:DALI
Sealing:IP20
-
Reference:
A5091118W
Color:Matt white
Light source:LED
Luminous flux:1000 lm
Power:8,4 W
Colour temperature:Tunable White 2700 - 5000K
CRI:CRI>90
Light beam angle:Lighting efficiency:48%
Dimming:DALI
Sealing:IP20
