Buddy

CEILING RECESSED

The sophistication of recessed lighting. Buddy is here to maximise the luminous performance of the classic recessed luminaire. It emerges with a solid and purposeful design, greater energy savings and excellent visual comfort. The product family comes in several versions with four opening angles -flood, medium, spot and super spot-. The dim to warm technology enables Buddy to facilitate comfort to the space by dimming the intensity and colour temperature. Furthermore, with the tunable White feature it can be controlled independently. Its four versions per position demonstrate its versatility: recessed, trimless, tilt and the tilt trimless version, which maintains its light output at all opening angles.

Buddy

Buddy Trimless

Buddy Tilt

Buddy Tilt Trimless

Buddy Wall Washer

Buddy Wall Washer Trimless

New

Buddy L

Buddy L Trimless

Buddy L Tilt

Buddy L Tilt Trimless

Luminous flux

1270 lm / 1280 lm / 1430 lm / 1500 / 2010 lm / 1510 lm / 1560 / 2090 lm / 1570 lm / 1600 / 2120 lm / 1610 lm / 1630 lm
Lighting efficiency

65% / 66% / 67% / 71% / 74% / 76% / 77% / 78% / 79% / 80% / 82% / 84% / 85%
Power

8,1 / 11,5 W / 11,6 W
Dimming

DALI, DALI / Casambi / Phase Cut, No Dim / DALI / Casambi, No Dim / DALI / Casambi / Phase Cut
Colour temperature

2700K / 3000K / 3500K / 4000K / Dim to warm 3000 - 1800K / Tunable White 1800 - 4000K / Tunable White 2700 - 5000K
Sealing

IP54
Chromatic stability

MacAdam Step 2 / MacAdam Step 3
Recess measurements

Ø105mm
Light beam angle

13° / 29° / 32° / 41° / 44° / 51° / 56°

EPD Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Model

Ref.

Colour

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

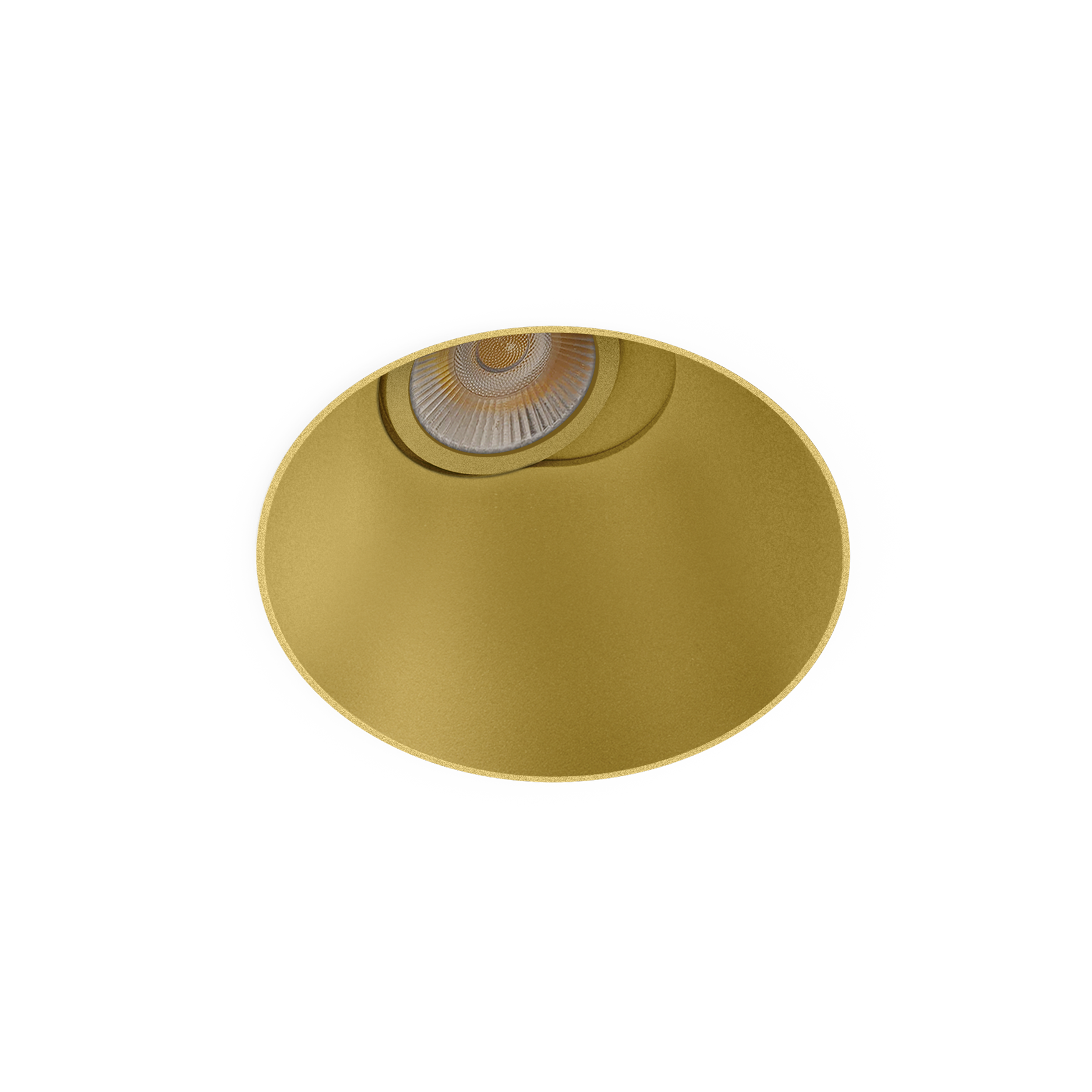

BUDDY L TILT TRIMLESS SUPER SPOT 2700K G

Reference:

A5691000G

Colour:

Gold

Light source:

LED

Luminous flux:

1430 lm

Power:

11,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

66%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54

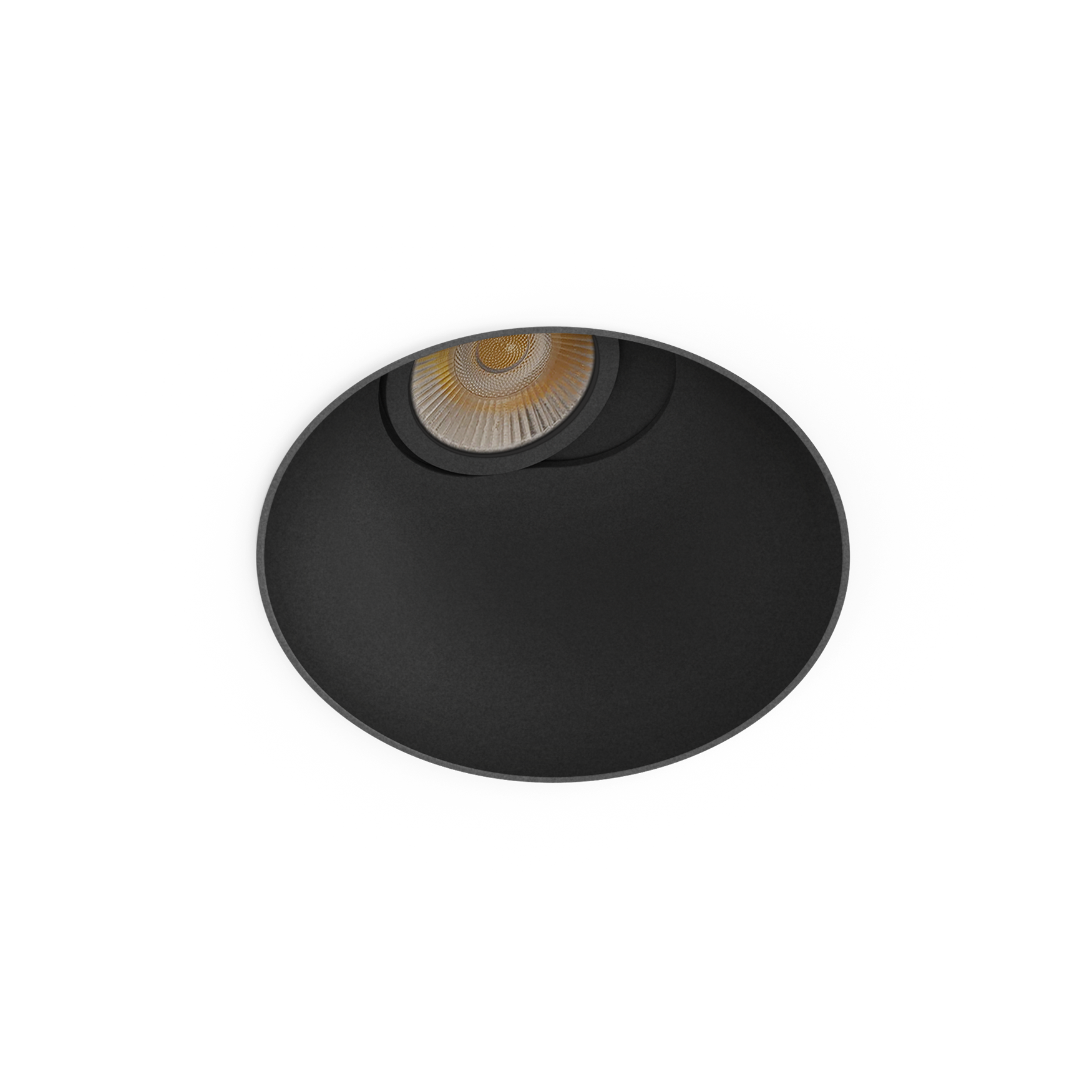

BUDDY L TILT TRIMLESS SUPER SPOT 2700K N

Reference:

A5691000N

Colour:

Matt black

Light source:

LED

Luminous flux:

1430 lm

Power:

11,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

65%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54

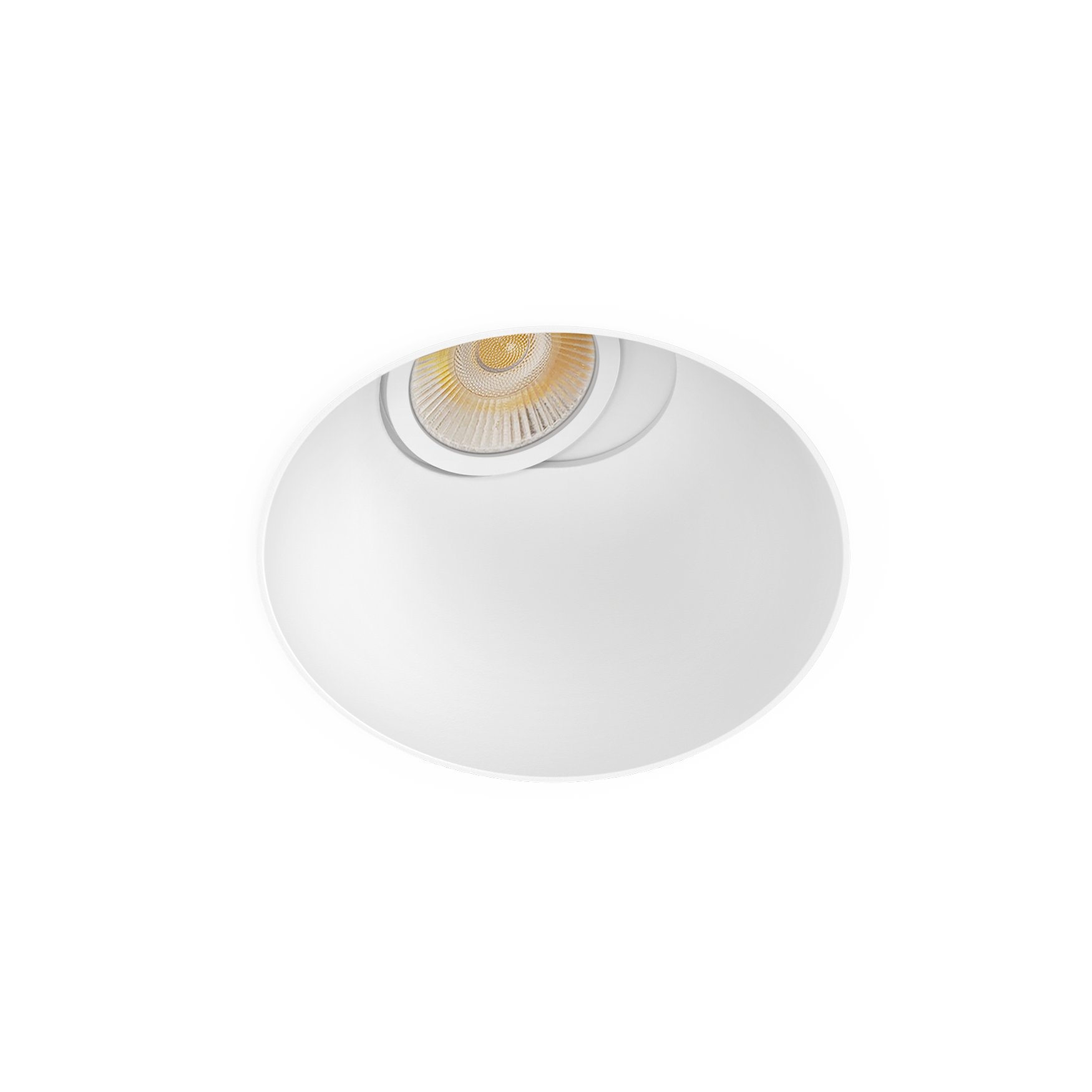

BUDDY L TILT TRIMLESS SUPER SPOT 2700K W

Reference:

A5691000W

Colour:

Matt white

Light source:

LED

Luminous flux:

1430 lm

Power:

11,6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

67%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54
BUDDY L TILT TRIMLESS SUPER SPOT 3000K G

Reference:

A5691001G

Colour:

Gold

Light source:

LED

Luminous flux:

1510 lm

Power:

11,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

66%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54
BUDDY L TILT TRIMLESS SUPER SPOT 3000K N

Reference:

A5691001N

Colour:

Matt black

Light source:

LED

Luminous flux:

1510 lm

Power:

11,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

65%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54
BUDDY L TILT TRIMLESS SUPER SPOT 3000K W

Reference:

A5691001W

Colour:

Matt white

Light source:

LED

Luminous flux:

1510 lm

Power:

11,6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

67%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54
BUDDY L TILT TRIMLESS SUPER SPOT 3500K G

Reference:

A5691003G

Colour:

Gold

Light source:

LED

Luminous flux:

1570 lm

Power:

11,6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

66%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54
BUDDY L TILT TRIMLESS SUPER SPOT 3500K N

Reference:

A5691003N

Colour:

Matt black

Light source:

LED

Luminous flux:

1570 lm

Power:

11,6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

65%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54
BUDDY L TILT TRIMLESS SUPER SPOT 3500K W

Reference:

A5691003W

Colour:

Matt white

Light source:

LED

Luminous flux:

1570 lm

Power:

11,6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

67%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54
BUDDY L TILT TRIMLESS SUPER SPOT 4000K G

Reference:

A5691002G

Colour:

Gold

Light source:

LED

Luminous flux:

1610 lm

Power:

11,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

66%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54
BUDDY L TILT TRIMLESS SUPER SPOT 4000K N

Reference:

A5691002N

Colour:

Matt black

Light source:

LED

Luminous flux:

1610 lm

Power:

11,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

65%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54
BUDDY L TILT TRIMLESS SUPER SPOT 4000K W

Reference:

A5691002W

Colour:

Matt white

Light source:

LED

Luminous flux:

1610 lm

Power:

11,6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

13°

Lighting efficiency:

67%

Dimming:

No Dim / DALI / Casambi

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 2700K G

Reference:

A5691010G

Colour:

Gold

Light source:

LED

Luminous flux:

1500 / 2010 lm

Power:

8,1 / 11,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

71%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 2700K N

Reference:

A5691010N

Colour:

Matt black

Light source:

LED

Luminous flux:

1500 / 2010 lm

Power:

8,1 / 11,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

67%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 2700K W

Reference:

A5691010W

Colour:

Matt white

Light source:

LED

Luminous flux:

1500 / 2010 lm

Power:

8,1 / 11,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

76%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 3000K G

Reference:

A5691011G

Colour:

Gold

Light source:

LED

Luminous flux:

1560 / 2090 lm

Power:

8,1 / 11,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

71%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 3000K N

Reference:

A5691011N

Colour:

Matt black

Light source:

LED

Luminous flux:

1560 / 2090 lm

Power:

8,1 / 11,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

67%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 3000K W

Reference:

A5691011W

Colour:

Matt white

Light source:

LED

Luminous flux:

1560 / 2090 lm

Power:

8,1 / 11,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

76%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 3500K G

Reference:

A5691013G

Colour:

Gold

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

71%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 3500K N

Reference:

A5691013N

Colour:

Matt black

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

67%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 3500K W

Reference:

A5691013W

Colour:

Matt white

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

76%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 4000K G

Reference:

A5691012G

Colour:

Gold

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

71%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 4000K N

Reference:

A5691012N

Colour:

Matt black

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

67%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS SPOT 4000K W

Reference:

A5691012W

Colour:

Matt white

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

32°

Lighting efficiency:

76%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 2700K G

Reference:

A5691020G

Colour:

Gold

Light source:

LED

Luminous flux:

1500 / 2010 lm

Power:

8,1 / 11,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

78%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 2700K N

Reference:

A5691020N

Colour:

Matt black

Light source:

LED

Luminous flux:

1500 / 2010 lm

Power:

8,1 / 11,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

76%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 2700K W

Reference:

A5691020W

Colour:

Matt white

Light source:

LED

Luminous flux:

1500 / 2010 lm

Power:

8,1 / 11,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

82%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 3000K G

Reference:

A5691021G

Colour:

Gold

Light source:

LED

Luminous flux:

1560 / 2090 lm

Power:

8,1 / 11,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

78%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 3000K N

Reference:

A5691021N

Colour:

Matt black

Light source:

LED

Luminous flux:

1560 / 2090 lm

Power:

8,1 / 11,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

76%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 3000K W

Reference:

A5691021W

Colour:

Matt white

Light source:

LED

Luminous flux:

1560 / 2090 lm

Power:

8,1 / 11,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

82%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 3500K G

Reference:

A5691023G

Colour:

Gold

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

78%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 3500K N

Reference:

A5691023N

Colour:

Matt black

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

76%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 3500K W

Reference:

A5691023W

Colour:

Matt white

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

82%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 4000K G

Reference:

A5691022G

Colour:

Gold

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

78%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 4000K N

Reference:

A5691022N

Colour:

Matt black

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

76%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS MEDIUM 4000K W

Reference:

A5691022W

Colour:

Matt white

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

44°

Lighting efficiency:

82%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 2700K G

Reference:

A5691030G

Colour:

Gold

Light source:

LED

Luminous flux:

1500 / 2010 lm

Power:

8,1 / 11,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

80%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 2700K N

Reference:

A5691030N

Colour:

Matt black

Light source:

LED

Luminous flux:

1500 / 2010 lm

Power:

8,1 / 11,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

77%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 2700K W

Reference:

A5691030W

Colour:

Matt white

Light source:

LED

Luminous flux:

1500 / 2010 lm

Power:

8,1 / 11,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

85%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 3000K G

Reference:

A5691031G

Colour:

Gold

Light source:

LED

Luminous flux:

1560 / 2090 lm

Power:

8,1 / 11,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

80%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 3000K N

Reference:

A5691031N

Colour:

Matt black

Light source:

LED

Luminous flux:

1560 / 2090 lm

Power:

8,1 / 11,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

77%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 3000K W

Reference:

A5691031W

Colour:

Matt white

Light source:

LED

Luminous flux:

1560 / 2090 lm

Power:

8,1 / 11,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

85%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 3500K G

Reference:

A5691033G

Colour:

Gold

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

80%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 3500K N

Reference:

A5691033N

Colour:

Matt black

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

77%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 3500K W

Reference:

A5691033W

Colour:

Matt white

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

85%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 4000K G

Reference:

A5691032G

Colour:

Gold

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

80%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 4000K N

Reference:

A5691032N

Colour:

Matt black

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

77%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS FLOOD 4000K W

Reference:

A5691032W

Colour:

Matt white

Light source:

LED

Luminous flux:

1600 / 2120 lm

Power:

8,1 / 11,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

85%

Dimming:

No Dim / DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 1800K-4000K SPOT G

Reference:

A5691117G

Colour:

Gold

Light source:

LED

Luminous flux:

1270 lm

Power:

11,6 W

Colour temperature:

Tunable White 1800 - 4000K

CRI:

CRI>90

Light beam angle:

29°

Lighting efficiency:

79%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 1800K-4000K SPOT N

Reference:

A5691117N

Colour:

Matt black

Light source:

LED

Luminous flux:

1270 lm

Power:

11,6 W

Colour temperature:

Tunable White 1800 - 4000K

CRI:

CRI>90

Light beam angle:

29°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 1800K-4000K SPOT W

Reference:

A5691117W

Colour:

Matt white

Light source:

LED

Luminous flux:

1270 lm

Power:

11,6 W

Colour temperature:

Tunable White 1800 - 4000K

CRI:

CRI>90

Light beam angle:

29°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 2700K-5000K SPOT G

Reference:

A5691118G

Colour:

Gold

Light source:

LED

Luminous flux:

1630 lm

Power:

11,6 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

29°

Lighting efficiency:

79%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 2700K-5000K SPOT N

Reference:

A5691118N

Colour:

Matt black

Light source:

LED

Luminous flux:

1630 lm

Power:

11,6 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

29°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 2700K-5000K SPOT W

Reference:

A5691118W

Colour:

Matt white

Light source:

LED

Luminous flux:

1630 lm

Power:

11,6 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

29°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 1800K-4000K MEDIUM G

Reference:

A5691127G

Colour:

Gold

Light source:

LED

Luminous flux:

1270 lm

Power:

11,6 W

Colour temperature:

Tunable White 1800 - 4000K

CRI:

CRI>90

Light beam angle:

41°

Lighting efficiency:

79%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 1800K-4000K MEDIUM N

Reference:

A5691127N

Colour:

Matt black

Light source:

LED

Luminous flux:

1270 lm

Power:

11,6 W

Colour temperature:

Tunable White 1800 - 4000K

CRI:

CRI>90

Light beam angle:

41°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 1800K-4000K MEDIUM W

Reference:

A5691127W

Colour:

Matt white

Light source:

LED

Luminous flux:

1270 lm

Power:

11,6 W

Colour temperature:

Tunable White 1800 - 4000K

CRI:

CRI>90

Light beam angle:

41°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 2700K-5000K MEDIUM G

Reference:

A5691128G

Colour:

Gold

Light source:

LED

Luminous flux:

1630 lm

Power:

11,6 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

41°

Lighting efficiency:

79%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 2700K-5000K MEDIUM N

Reference:

A5691128N

Colour:

Matt black

Light source:

LED

Luminous flux:

1630 lm

Power:

11,6 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

41°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 2700K-5000K MEDIUM W

Reference:

A5691128W

Colour:

Matt white

Light source:

LED

Luminous flux:

1630 lm

Power:

11,6 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

41°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 1800K-4000K FLOOD G

Reference:

A5691137G

Colour:

Gold

Light source:

LED

Luminous flux:

1270 lm

Power:

11,6 W

Colour temperature:

Tunable White 1800 - 4000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

79%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 1800K-4000K FLOOD N

Reference:

A5691137N

Colour:

Matt black

Light source:

LED

Luminous flux:

1270 lm

Power:

11,6 W

Colour temperature:

Tunable White 1800 - 4000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 1800K-4000K FLOOD W

Reference:

A5691137W

Colour:

Matt white

Light source:

LED

Luminous flux:

1270 lm

Power:

11,6 W

Colour temperature:

Tunable White 1800 - 4000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 2700K-5000K FLOOD G

Reference:

A5691138G

Colour:

Gold

Light source:

LED

Luminous flux:

1630 lm

Power:

11,6 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

79%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 2700K-5000K FLOOD N

Reference:

A5691138N

Colour:

Matt black

Light source:

LED

Luminous flux:

1630 lm

Power:

11,6 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

76%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS TW 2700K-5000K FLOOD W

Reference:

A5691138W

Colour:

Matt white

Light source:

LED

Luminous flux:

1630 lm

Power:

11,6 W

Colour temperature:

Tunable White 2700 - 5000K

CRI:

CRI>90

Light beam angle:

51°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
BUDDY L TILT TRIMLESS DIM TO WARM G

Reference:

A5691239G

Colour:

Gold

Light source:

LED

Luminous flux:

1280 lm

Power:

11,6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

77%

Dimming:

DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS DIM TO WARM N

Reference:

A5691239N

Colour:

Matt black

Light source:

LED

Luminous flux:

1280 lm

Power:

11,6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

74%

Dimming:

DALI / Casambi / Phase Cut

Sealing:

IP54
BUDDY L TILT TRIMLESS DIM TO WARM W

Reference:

A5691239W

Colour:

Matt white

Light source:

LED

Luminous flux:

1280 lm

Power:

11,6 W

Colour temperature:

Dim to warm 3000 - 1800K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

82%

Dimming:

DALI / Casambi / Phase Cut

Sealing:

IP54

Accessories

TRIMLESS ACCESSORY (MANDATORY)

DRIVER OPTIONS

TRIMLESS TOOL

HIGH CHROMATIC LED

Are you interested in this product? Contact us

Company

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Comments

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Buddy

CEILING RECESSED

Buddy L Tilt Trimless

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Colour

Accessories

Are you interested in this product? Contact us

Related products

Shot Light

Swap

Lex

Olympia

Related projects

Casa Lucía

Kasumigaseki Capital Office

Miphai Store

osom coffee house

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
